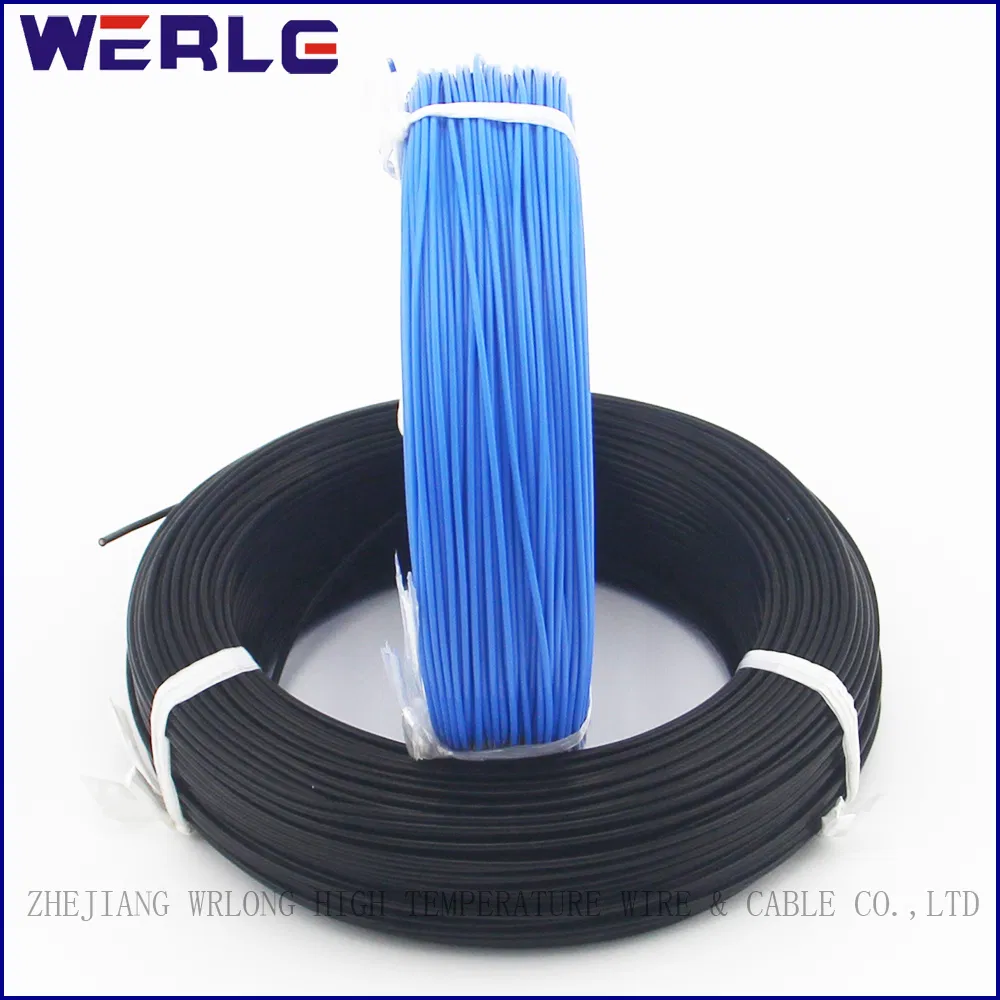

China UL1015 30 AWG High Temperature Resistance PVC Wire with Product Certification Black

Product Description

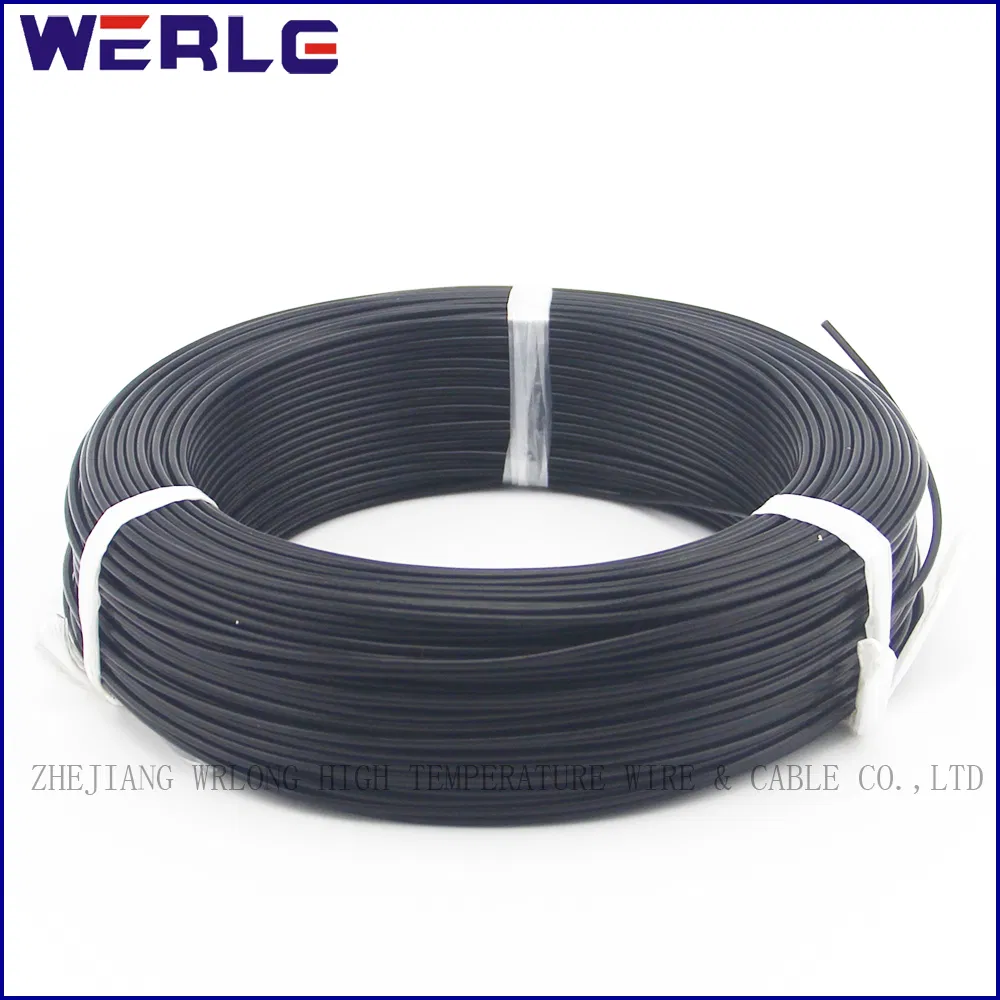

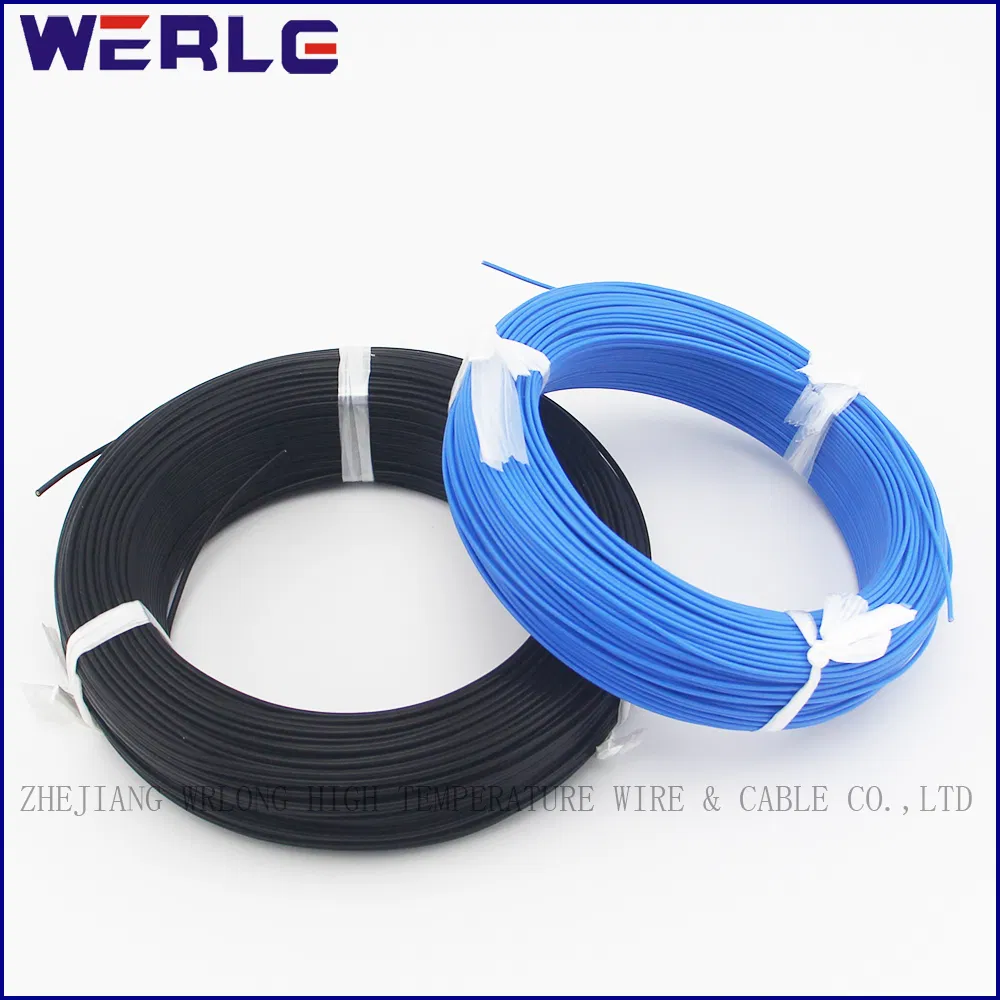

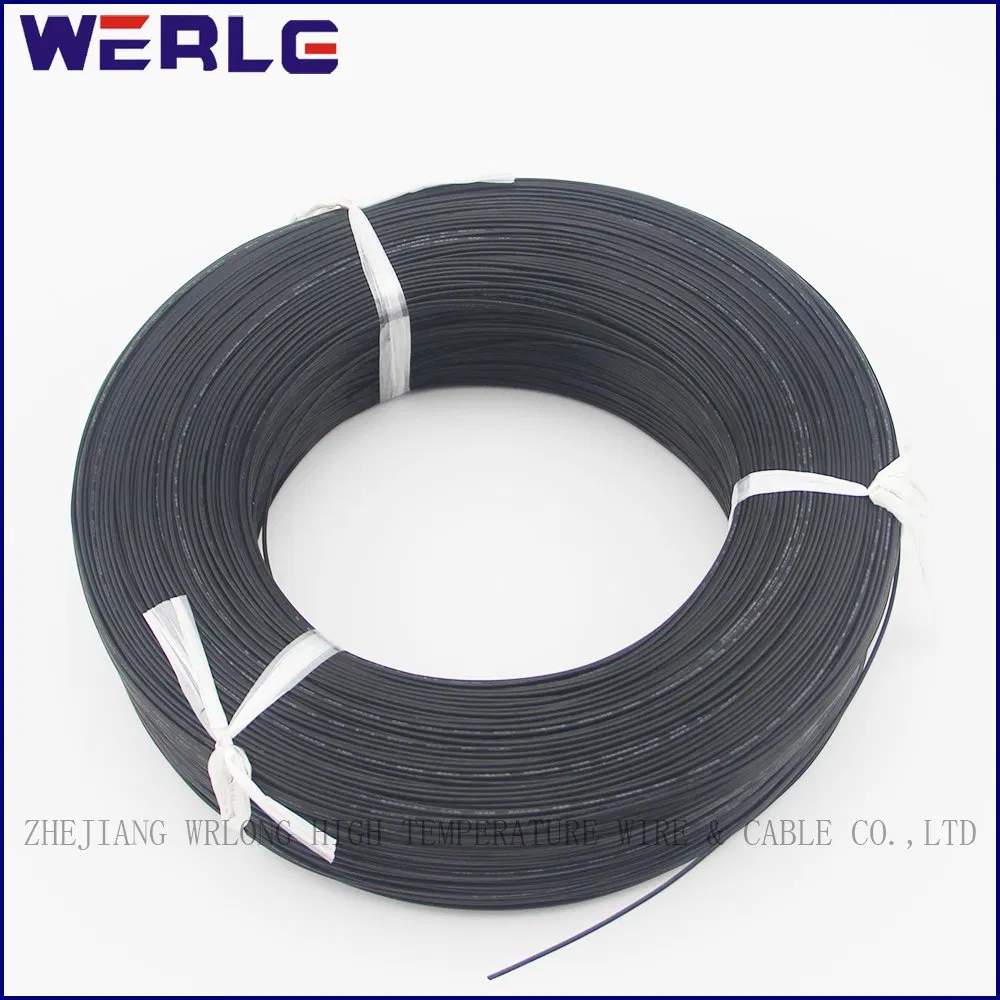

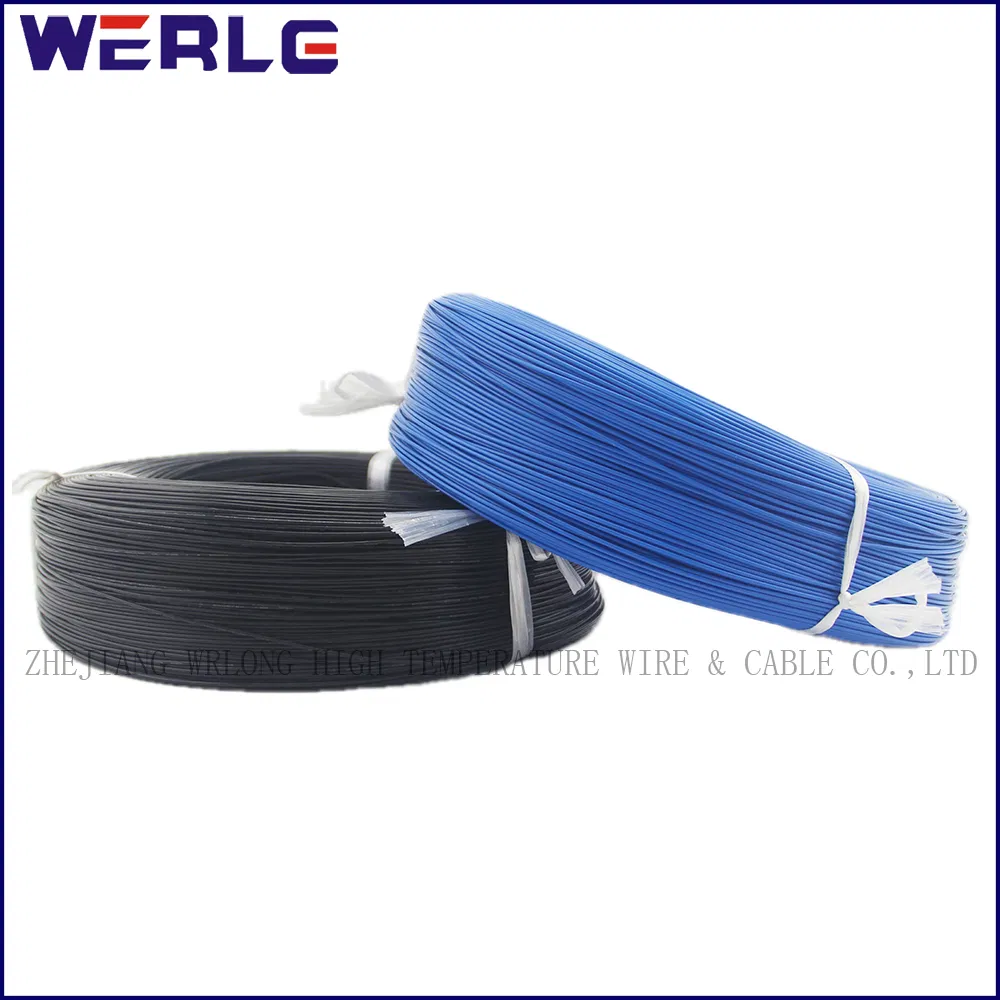

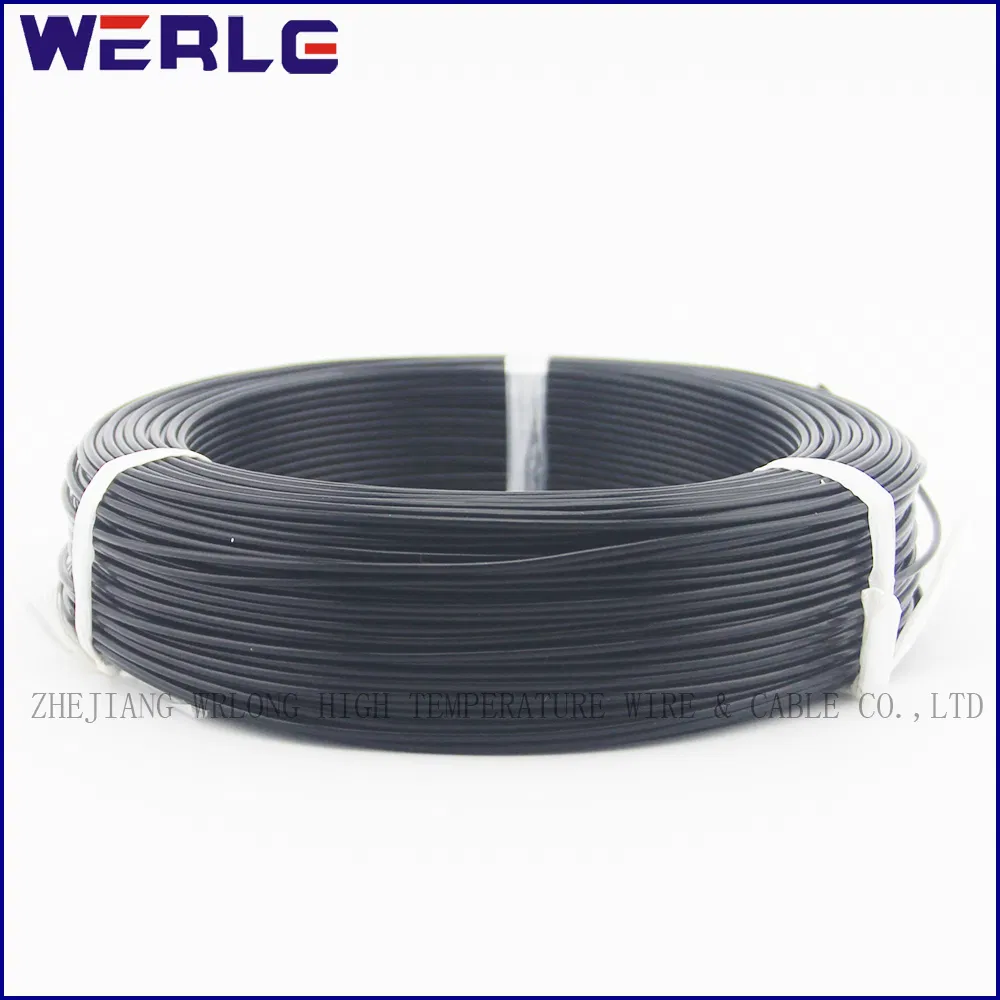

UL1015 30 AWG high temperature resistance PVC wire with Product certification black

TECHNICAL DATA
Rated voltage: 600V
Rated temperature:-40ºC~+105ºC
Conductor: Tinned or bare copper
Insulator: PVC
OD Tolerance: ±0.05mm
Colour: white, blue, red, black, brown, orange, purple, gray, yellow, green, transparent, yellow-green, etc

CHARACTERISTIC
Flexible, easy assemble, cold resistance, stable performance, UL 758, RoHs compliance.

APPLICATION
Apply to household appliance, illumination & lighting & headlamp, electric machines, temperature sensor, military series, metallurgy chemical series, motor cars & ships, electrical installation.

UL1015	Conductor		Over Diamter ±0.05mm²	Insulator			Technical Data		Packing(m/roll)
Size	Conductor Construction No./mm	Diameter mm	Over Diamter ±0.05mm²	Material	Average Thickness mm	Colour	Temperature Range(ºC)	Nominal voltage	Packing(m/roll)
30 AWG	7/0.1	0.3	1.87	PVC	0.782	red,yellow, blue,green, black,white, purple,brown, orange, yellow-green, transparent	105ºC	600V	610
28 AWG	7/0.127	0.38	1.95	PVC	0.781				610
26 AWG	7/0.16	0.48	2.05	PVC	0.781				610
24 AWG	11/0.16	0.61	2.18	PVC	0.784				610
22 AWG	17/0.16	0.76	2.33	PVC	0.784				610
20 AWG	26/0.16	0.94	2.51	PVC	0.784				305
18 AWG	41/0.16	1.18	2.75	PVC	0.783				305
16 AWG	26/0.254	1.49	3.06	PVC	0.782				305
14 AWG	41/0.254	1.86	3.44	PVC	0.781				305
12 AWG	65/0.254	2.35	3.93	PVC	0.782				305
10 AWG	66/0.32	3	4.57	PVC	0.784				305
