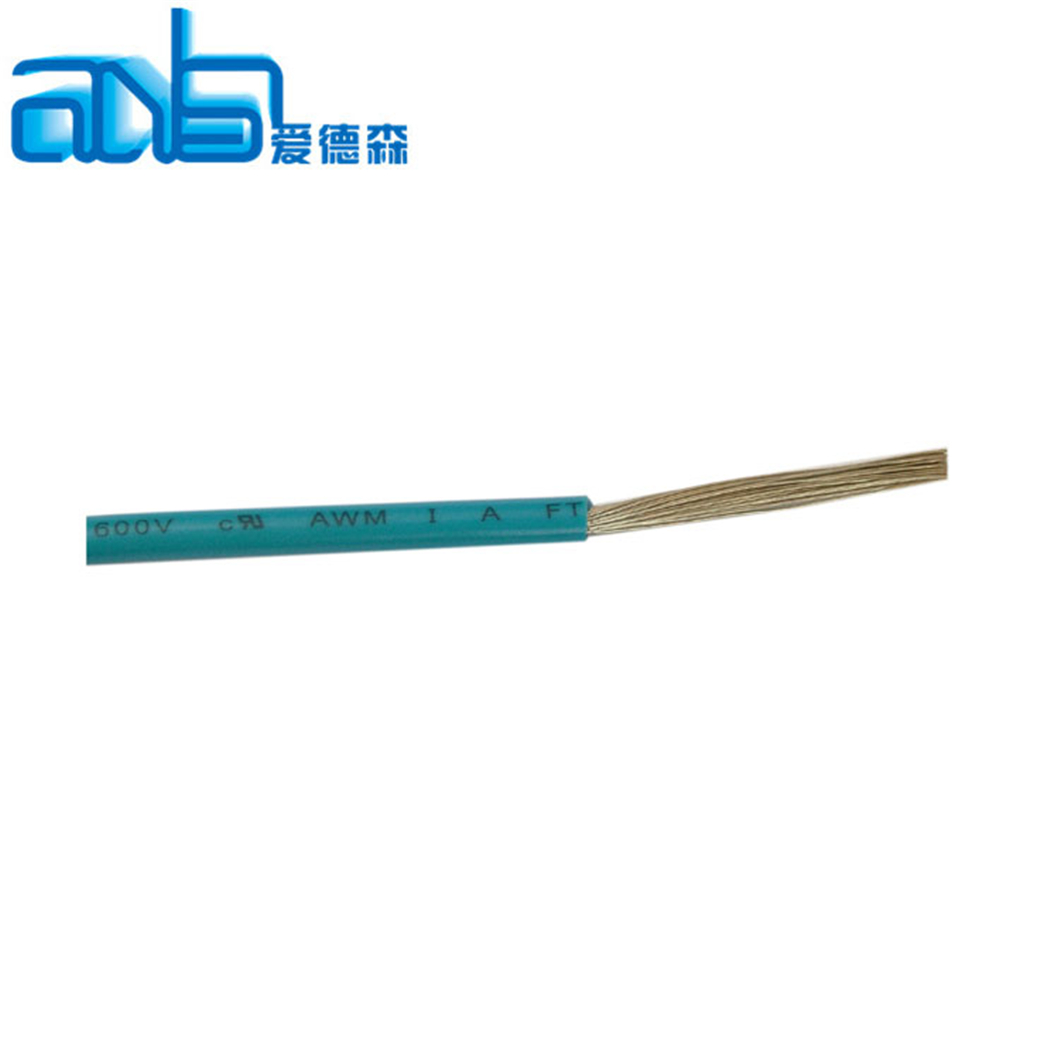

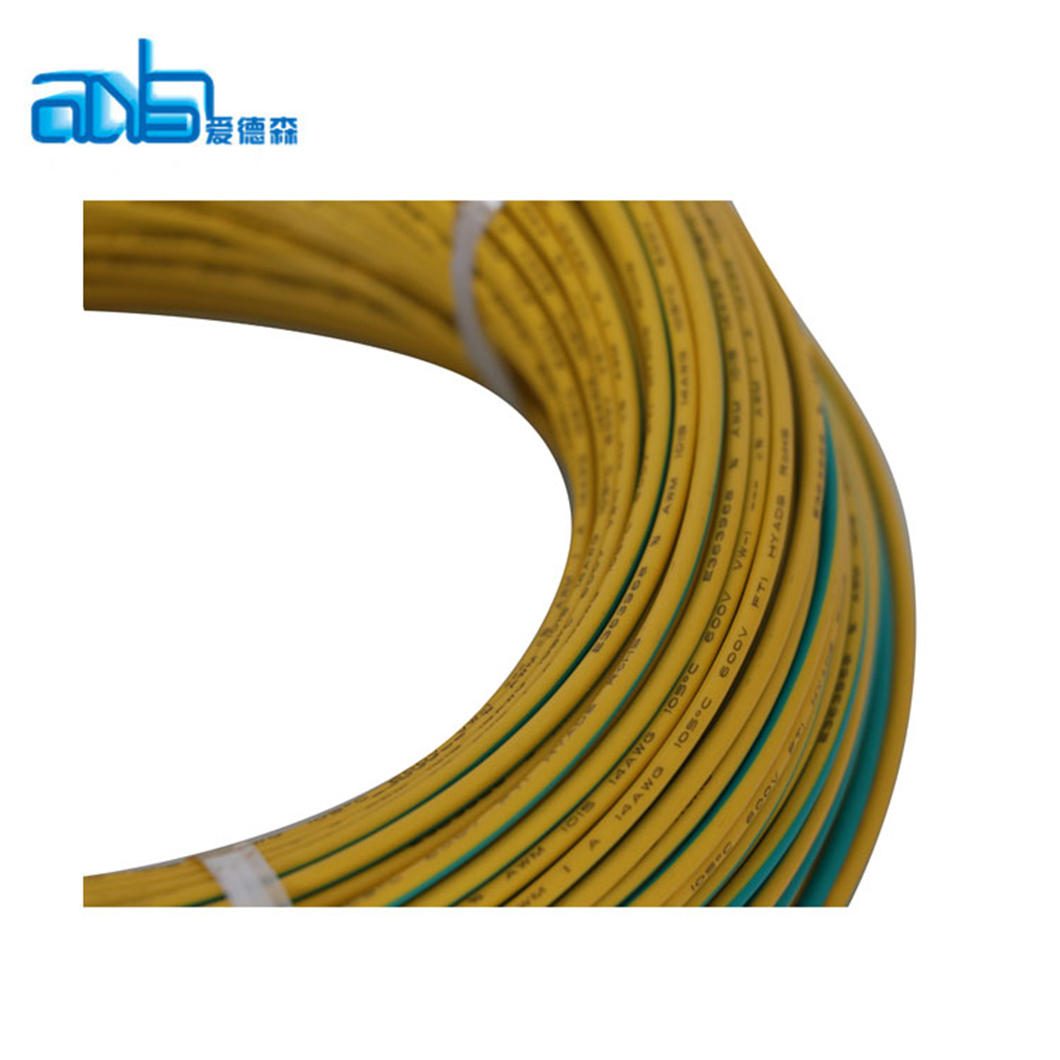

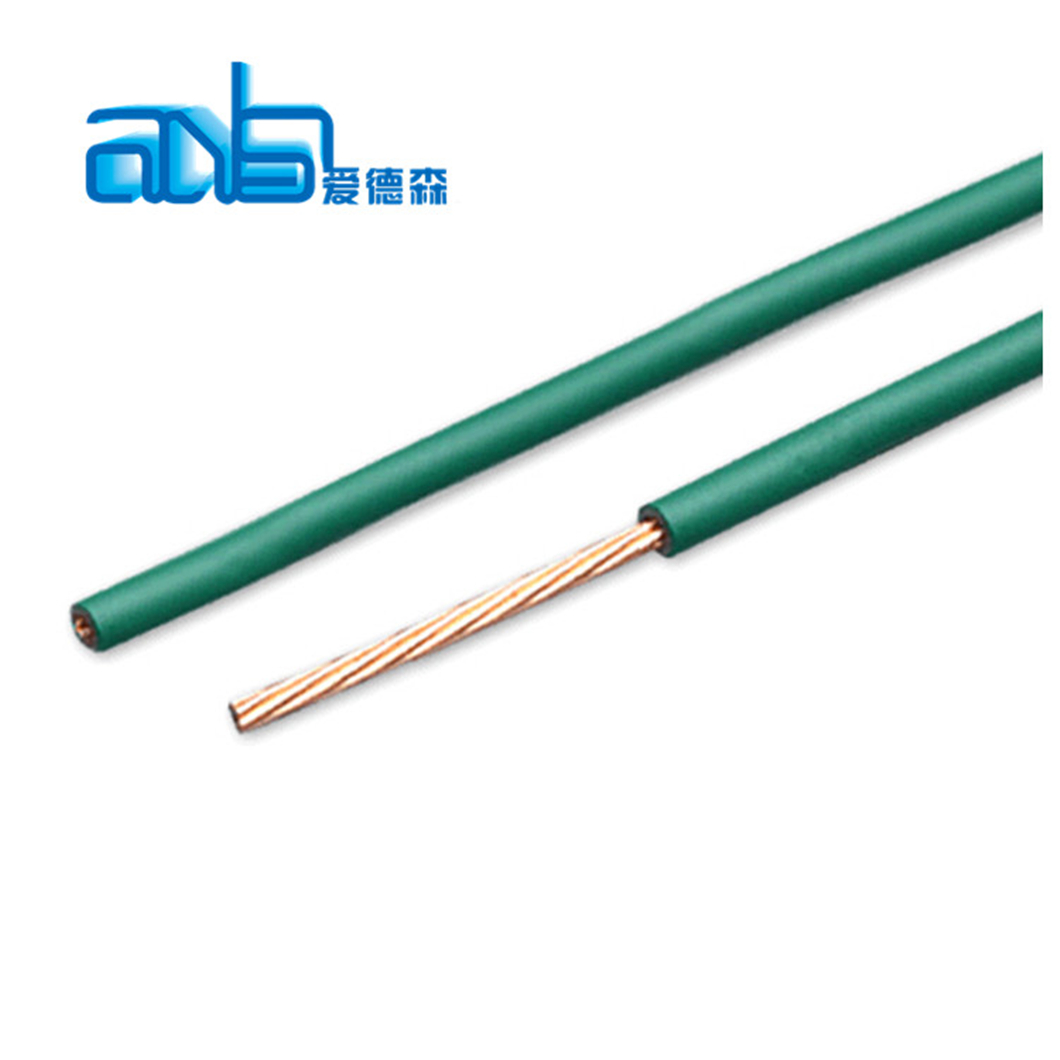

UL1015 26AWG 600V Single Core Tinned Copper Flex Cable Wire
Product Description UL LISTED ROHS Flame RetardantStyle 1015 Single conductor with extruded insulation1.Rated temperature:80ºC,90ºC,105ºC 2.Rated voltage:600v 3. according to:UL subject 758,UL1581,C......
Send Inquiry
Product Description
Product Description
UL LISTED ROHS Flame Retardant
Style 1015 Single conductor with extruded insulation
1.Rated temperature:80ºC,90ºC,105ºC
2.Rated voltage:600v
3. according to:UL subject 758,UL1581,CSA C22.2
4. Solid or Stranded,tinned or bare copper conductor 30AWG-2AWG
5. PVC insulation
6.Passes UL VW-1 & CSA FT1 Vertical flame test
7. uniform insulation thickness of wire to ensure easy stripping and cutting
8. Environmental testing pass ROHS
9. The wire can use for the Internal wiring of appliances where exposed to oil at a temperature not exceeding (60°C or 80°C, whichever is applicable).

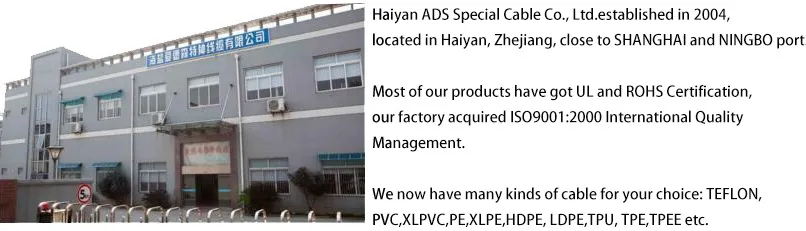

Company Introduction

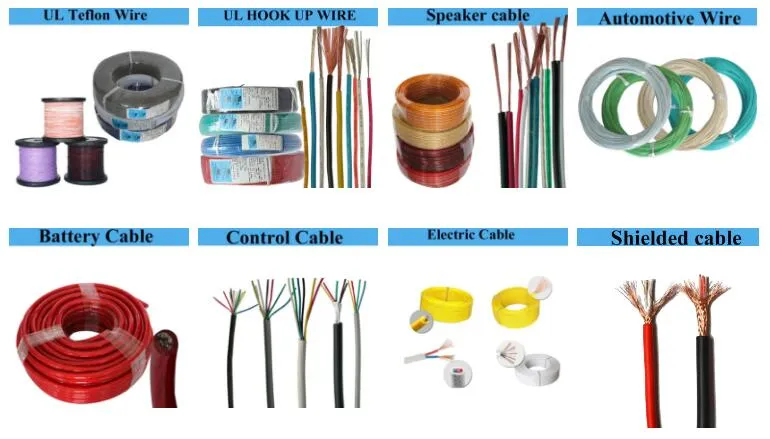

Our Main Product
UL List

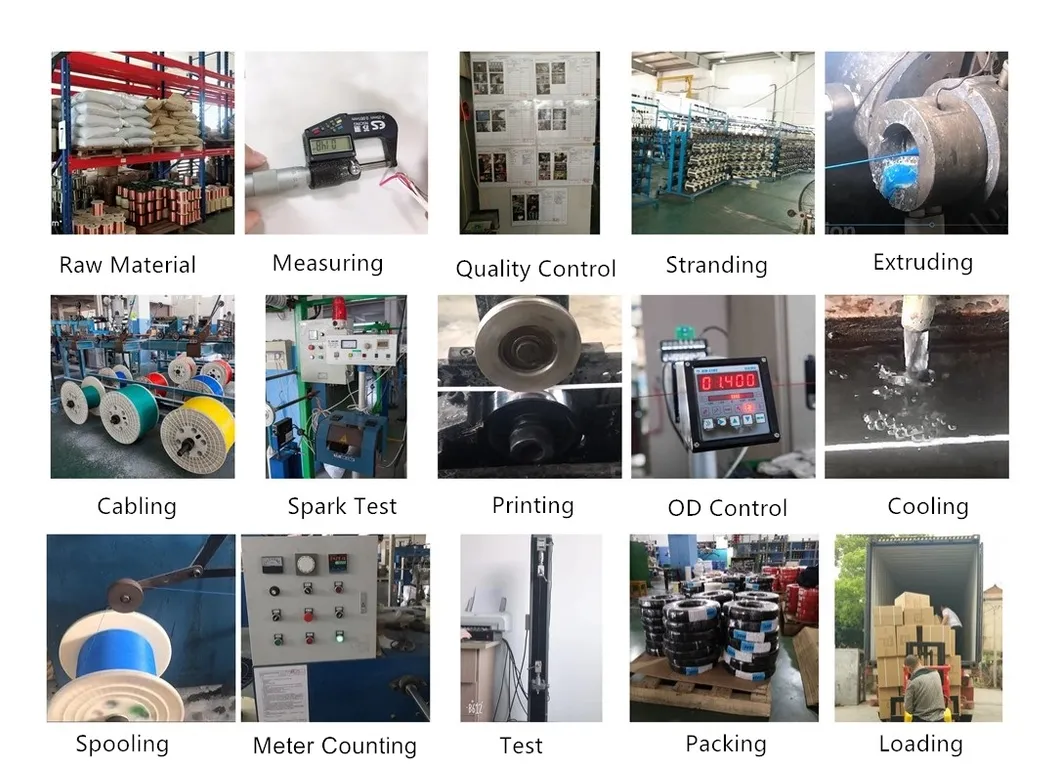

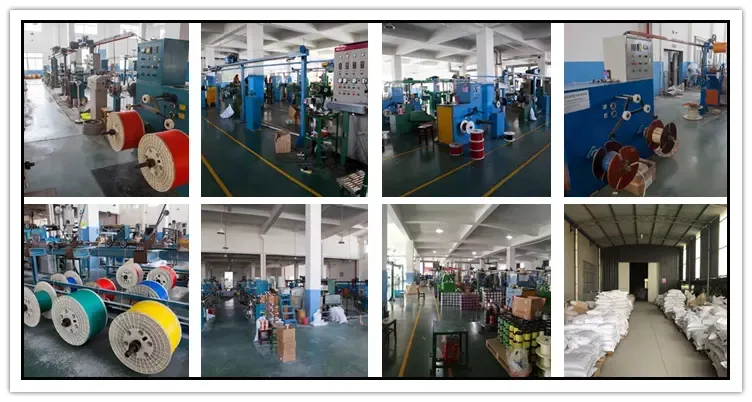

Production Process
Exhibition

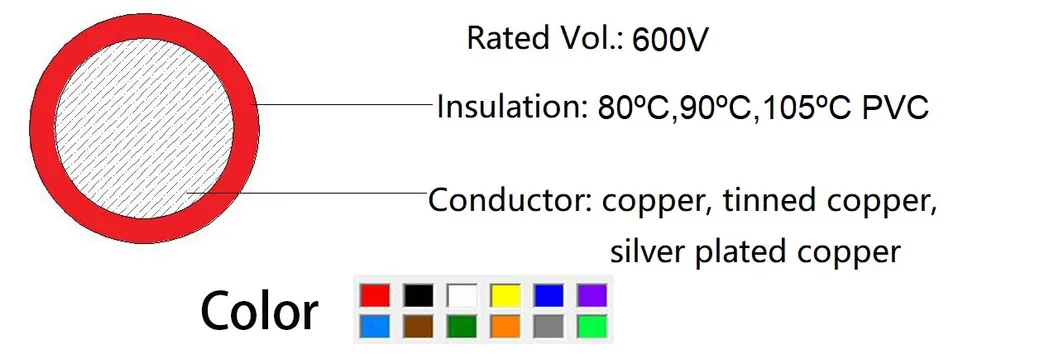

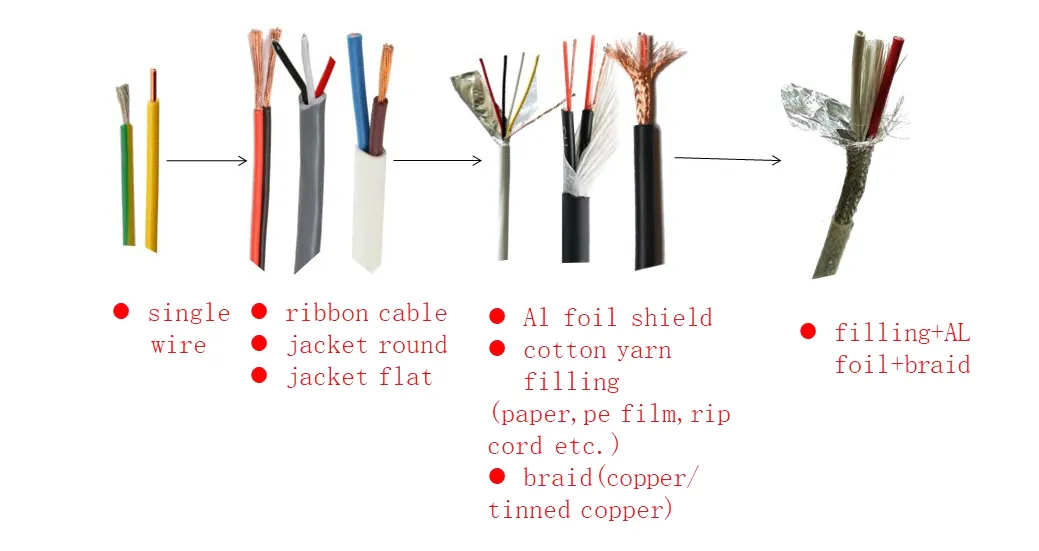

What construction of cables we can make

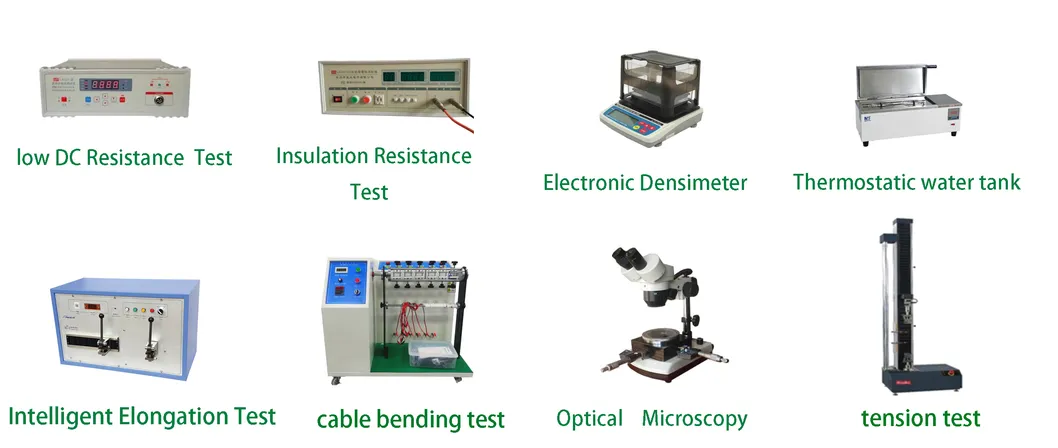

Test Equipment
Certificate

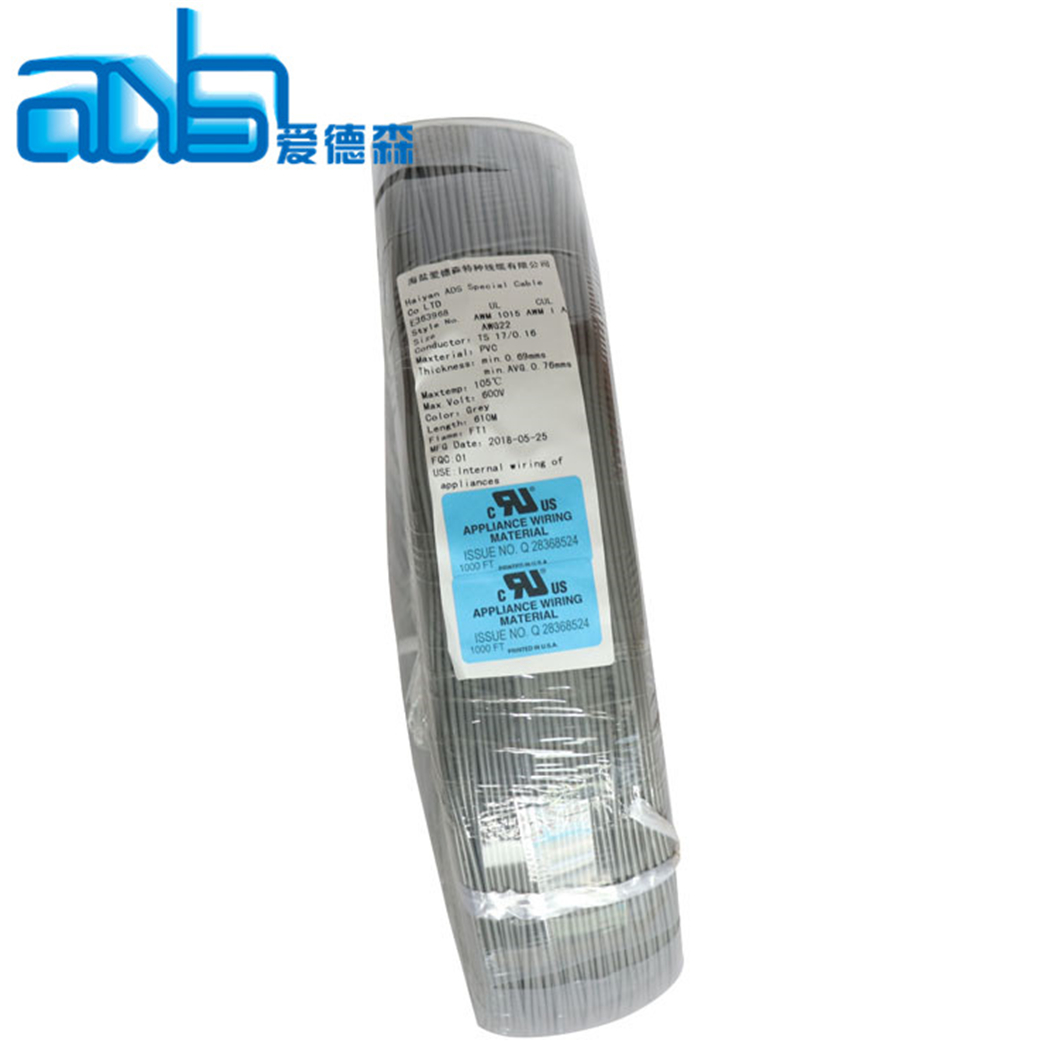

Packing
FAQ
1. Q; Are you factory or trading company?
A: We are factory has more than 10 years manufacturing experiences.
2.Q: What certifications do you have?
A: We have UL1330,UL1332,UL1007,UL1015,UL1571,UL1569,UL1672,UL2464 and ROHS
3.Q: Where is your factory located ?
A: Building1-2(No.88 Huxi Street), Shiquan Town, Haiyan County, Zhejiang, China
4 : Q: How can I get some samples?
A: If we have in stock, within 10 meters, it is free. Or we will charge sample fee.
5 : Q: Are samples free shipping?
A: Sorry, it should be on customer side.
6: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
7: Q:What about the lead time for mass production?
A:Honestly, it depends on the order quantity.
8: Q:Is this wire have in stock?
A:Pls check with our sales. orders quantity reach 6100m/size/color can arrange production.
Contact Us
UL LISTED ROHS Flame Retardant
Style 1015 Single conductor with extruded insulation
1.Rated temperature:80ºC,90ºC,105ºC
2.Rated voltage:600v
3. according to:UL subject 758,UL1581,CSA C22.2
4. Solid or Stranded,tinned or bare copper conductor 30AWG-2AWG
5. PVC insulation
6.Passes UL VW-1 & CSA FT1 Vertical flame test
7. uniform insulation thickness of wire to ensure easy stripping and cutting
8. Environmental testing pass ROHS
9. The wire can use for the Internal wiring of appliances where exposed to oil at a temperature not exceeding (60°C or 80°C, whichever is applicable).
| UL TYPE | Gauge (AWG) | Construction (no/mm) | conductor outer diameter (mm) | insulation thickness (mm) | wire O.D (mm) | Max Cond. resistance (Ω/km ,20ºC | packing | |
| FT/ROLL | METER/ROLL | |||||||
| 1015 | 30 | 7/0.1 | 0.3 | 0.8 | 1.9 | 381 | 2000 | 610 |
| 28 | 1/0.32 | 0.32 | 0.79 | 1.9 | 227 | |||
| 7/0.127 | 0.38 | 0.81 | 2 | 239 | ||||
| 7/0.127 OS-1 | 0.38 | 0.81 | 2 | 239 | ||||
| 26 | 1/0.404 | 0.4 | 0.8 | 2 | 143 | |||
| 7/0.16 | 0.48 | 0.81 | 2.1 | 150 | ||||
| 7/0.16 OS-1 | 0.48 | 0.81 | 2.1 | 150 | ||||
| 24 | 1/0.511 | 0.51 | 0.8 | 2.1 | 89.3 | |||
| 11/0.16 | 0.61 | 0.82 | 2.25 | 94.2 | ||||
| 7/0.2 OS-1 | 0.6 | 0.83 | 2.25 | 94.2 | ||||
| 22 | 1/0.643 | 0.64 | 0.8 | 2.25 | 56.4 | |||
| 17/0.16 | 0.76 | 0.82 | 2.4 | 59.4 | ||||
| 7/0.254 OS-1 | 0.76 | 0.82 | 2.4 | 59.4 | ||||
| 20 | 1/0.813 | 0.81 | 0.8 | 2.4 | 35.2 | |||
| 26/0.16 | 0.94 | 0.81 | 2.55 | 36.7 | ||||
| 7/0.32 OS-1 | 0.96 | 0.8 | 2.55 | 36.7 | ||||
| 18 | 1/1.024 | 1.02 | 0.82 | 2.65 | 22.2 | 1000 | 305 | |
| 41/0.16 | 1.18 | 0.81 | 2.8 | 23.2 | ||||
| 7/0.404 OS-1 | 1.2 | 0.8 | 2.8 | 23.2 | ||||
| 16 | 1/1.129 | 1.29 | 0.81 | 2.9 | 14 | |||
| 26/0.254 | 1.49 | 0.81 | 3.1 | 14.6 | ||||
| 14 | 1/1.6 | 1.6 | 0.8 | 3.2 | 8.78 | |||
| 41/0.254 | 1.88 | 0.81 | 3.5 | 8.96 | ||||
| 12 | 65/0.254 | 2.36 | 0.82 | 4 | 5.64 | |||
| 10 | 7/15/0.254 | 3.42 | 0.82 | 5.05 | 3.54 | |||
| 8 | 7/24/0.254 | 3.99 | 1.21 | 6.4 | 2.23 | 328 | 100 | |
| 6 | 4/31/0.37 | 4.75 | 1.86 | 8.5 | 1.4 | |||
| 4 | 7/28/0.37 | 5.98 | 2 | 10 | 0.9 | |||
| 2 | 7/44/0.37 | 8.49 | 1.76 | 12 | 0.56 | |||
| 1 | 333/0.4 | 9.6 | 2.03 | 13.5 | 0.1289 | |||
| 1/0 | 418/0.4 | 10.77 | 15 | 0.1022 | ||||
| 2/0 | 534/0.4 | 12.19 | 16.5 | 0.08108 | 164 | 50 | ||
| 3/0 | 664/0.4 | 13.8 | 17.8 | 0.06431 | ||||
| 4/0 | 536/0.5 | 15.26 | 20 | 0.05099 | ||||
Company Introduction
Our Main Product
UL List
E363968
| Ul cables | |||||||||||||
| Teflon Wire | |||||||||||||
| 1330 | 1332 | 10518 | 10064 | 10588 | 1371 | 1375 | 1589 | ||||||
| 1723 | 1886 | 1331 | 1333 | 1591 | 1592 | 1887 | 1901 | ||||||
| Single-conductor, thermoplastic insulation. | |||||||||||||
| 1007 | 1032 | 1185 | 1284 | 1571 | 1283 | 1672 | 1569 | ||||||
| 1015 | 10198 | 10070 | |||||||||||
| Multiple-conductor, thermoplastic insulation. | |||||||||||||
| 2464 | 2468 | 2725 | 20276 | 2835 | |||||||||
| Single-conductor, thermoset insulation. | |||||||||||||
| 3271 | 3321 | ||||||||||||
| Automotive Wires | |||||||||||||
| German Standard | |||||||||||||
| FLR2X-B | FLRY11Y/FLR4G11Y | FLRY-A | FLRY-B | FLRYW-A | FLRYW-B | FLRYY/FLR4GY | |||||||
| China Standard | |||||||||||||
| QB-A/B/C/D | QFR | QVR | QVR-105 | ||||||||||
| Japan Standard | |||||||||||||
| AV | AVS | AVSS | AVSSX/AESSX | AVX/AEX | CAVS | ||||||||
| America Standard | |||||||||||||
| GPT | GXL | HDT | SXL | TWP | TXL | ||||||||
Production Process
Exhibition
What construction of cables we can make
Test Equipment
Certificate
Packing
FAQ
1. Q; Are you factory or trading company?
A: We are factory has more than 10 years manufacturing experiences.
2.Q: What certifications do you have?
A: We have UL1330,UL1332,UL1007,UL1015,UL1571,UL1569,UL1672,UL2464 and ROHS
3.Q: Where is your factory located ?
A: Building1-2(No.88 Huxi Street), Shiquan Town, Haiyan County, Zhejiang, China
4 : Q: How can I get some samples?
A: If we have in stock, within 10 meters, it is free. Or we will charge sample fee.
5 : Q: Are samples free shipping?
A: Sorry, it should be on customer side.
6: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
7: Q:What about the lead time for mass production?
A:Honestly, it depends on the order quantity.
8: Q:Is this wire have in stock?
A:Pls check with our sales. orders quantity reach 6100m/size/color can arrange production.
Contact Us
