UL Certificated PVC Insulated PVC Sheath Double Insulated Wire

Product Description

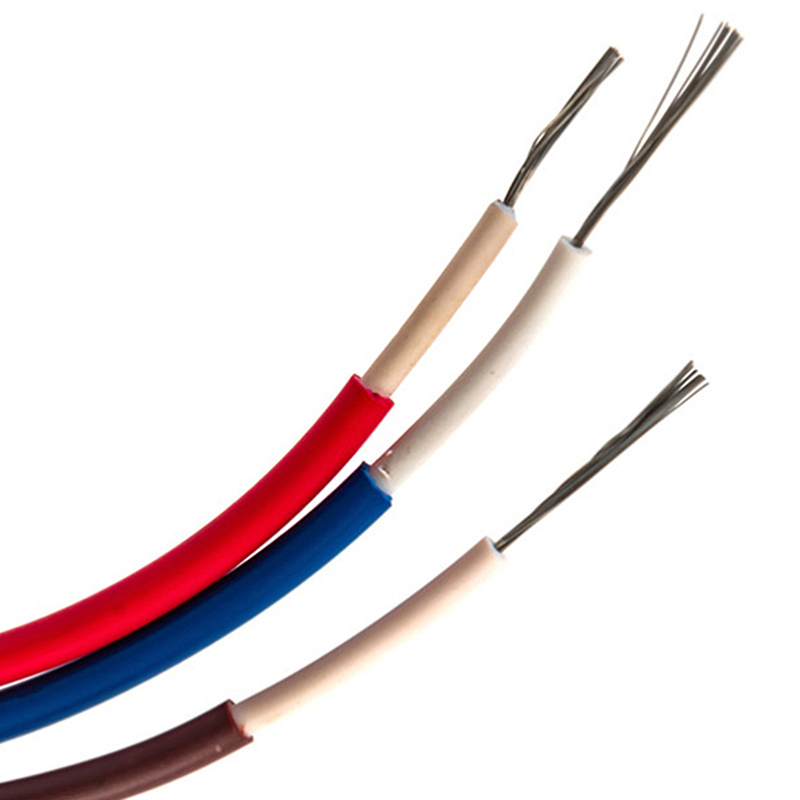

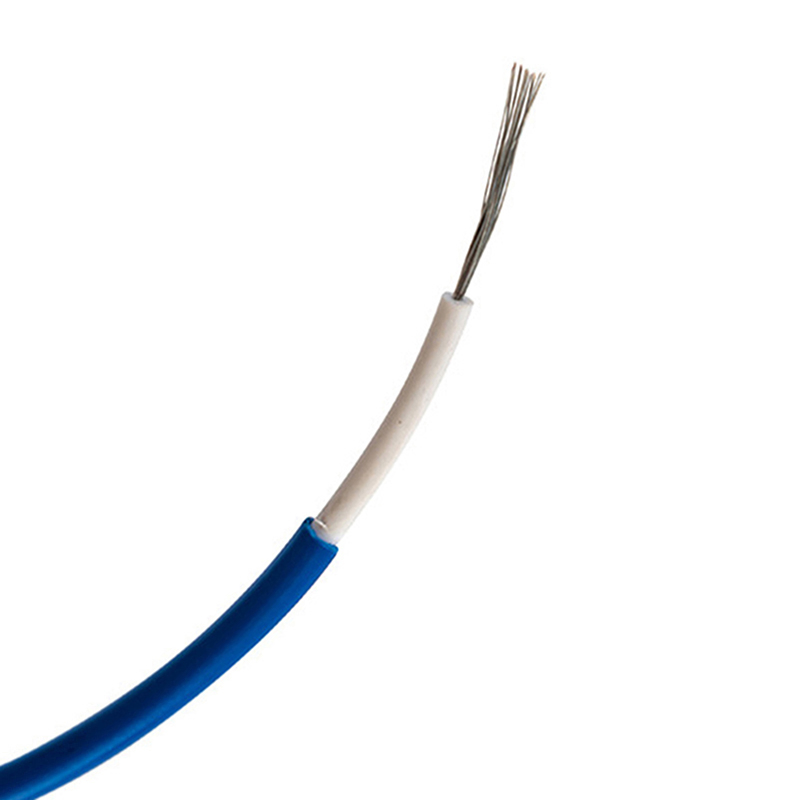

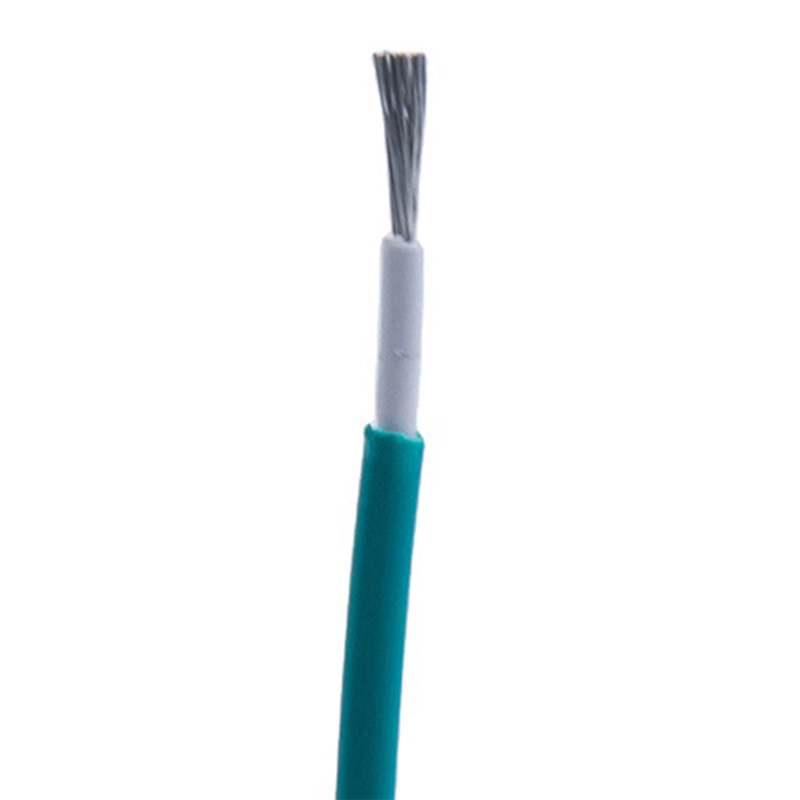

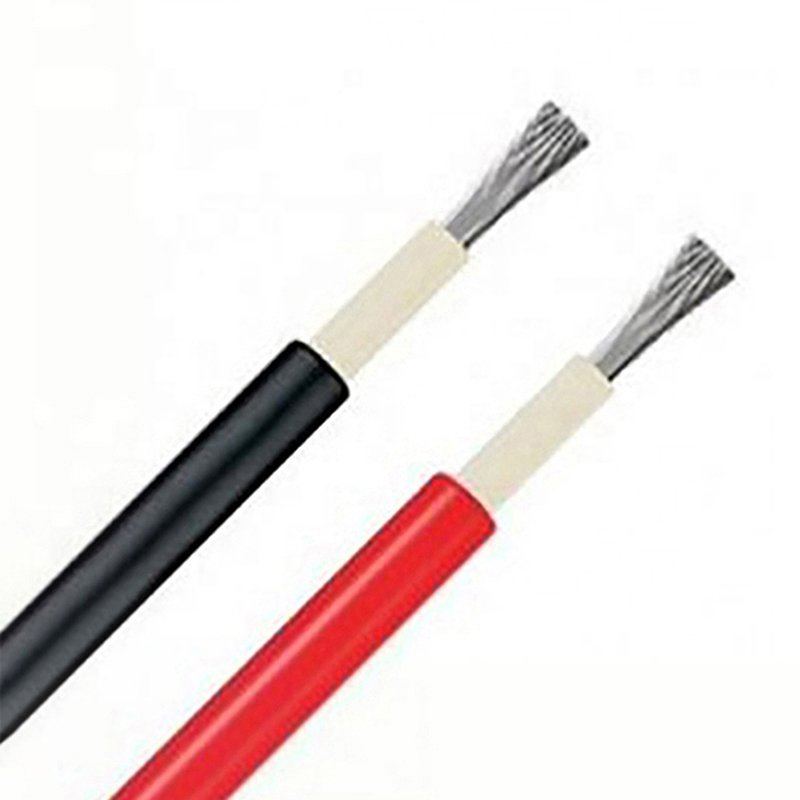

UL certificated PVC Insulated Pvc Sheath double insulated wire

Rated temperature:105ºC
Rated voltage:300V
According to:UL Subject758,UL1581,C22.2
Solid or stranded,tinned or bare copper conductor
PVC insulation
PVC jacket
Passes UL VW-1&CSA FT1 vertical flame test
Uniform insulation thickness of wire to ensure
easy stripping and cutting
For internal wiring of appliance

Product standard

Conductor		Finished product			Maximum Resistance at 20ºC
AWG	NO.of Cond	Insulation Thick.	Outside Thick.	Packing	Maximum Resistance at 20ºC
AWG	mm	mm	mm	m/r	Ω/mm
28	7/0.127	0.45	0.45	610.00	223.75
26	7/0.16	0.45	0.45	610.00	139.76
24	11/0.16	0.45	0.45	610.00	88.36
22	17/0.16	0.45	0.45	610.00	60.16
20	21/0.178	0.45	0.45	610.00	38.58
18	34/0.178	0.45	0.45	610.00	22.98
16	26/0.254	0.45	0.45	610.00	15.06
14	41/0.254	0.45	0.45	610.00	9.65
12	65/0.254	0.45	0.45	610.00	6.07
28	1/0.320	0.45	0.45	610.00	227.39
26	1/0.404	0.45	0.45	610.00	142.79
24	1/0.511	0.45	0.45	610.00	89.39
22	1/0.643	0.45	0.45	610.00	54.30
20	1/0.813	0.45	0.45	610.00	33.90
18	1/1.024	0.45	0.45	610.00	21.40
