UL 854 Single Conductor Cable Underground Service Entrance Cable
UL 854 Single Conductor Cable Underground Service Entrance CableProduct DescriptionThe USE-2 AL cable is 600 voltage aluminum alloy conductor cross-linked polyethylene (XLPE) insulation, moisture, heat, low-temp, oil, gas, sunlight resistant, single conductor underground service entrance cable and w......
Send Inquiry
Product Description
UL 854 Single Conductor Cable Underground Service Entrance Cable
Product Description

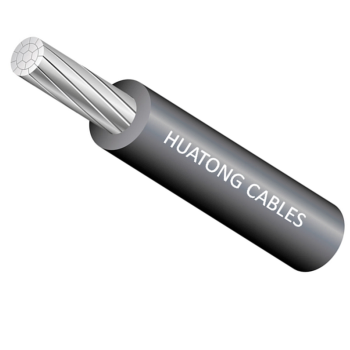

The USE-2 AL cable is 600 voltage aluminum alloy conductor cross-linked polyethylene (XLPE) insulation, moisture, heat, low-temp, oil, gas, sunlight resistant, single conductor underground service entrance cable and wire.
Applications
HUATONG TYPES USE-2 cable with single 8000 Series or 1350-H19 Aluminum Alloy conductor is suitable for use in conduit and raceways installed underground in conduit as specified in the USA National Electrical Code (NEC), at dry or wet locations while conductor temperatures shall not exceed 90ºC. USE-2 is permitted for 600 volt applications. With the special insulation, the cable requires no lubrication for installation. USE-2 is to be assembled with or without a bare (metal-coated) or insulated grounded conductor and without any overall covering other than an open, skeleton tape or wrap that.
Standards
USE-2 AL complies with the following:
• ASTM B800, B801, B836, B230, B230M-07
• UL854
• USA National Electrical Code/NFPA 70, 2014Edition

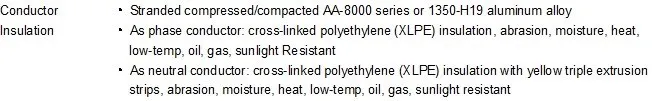

Construction

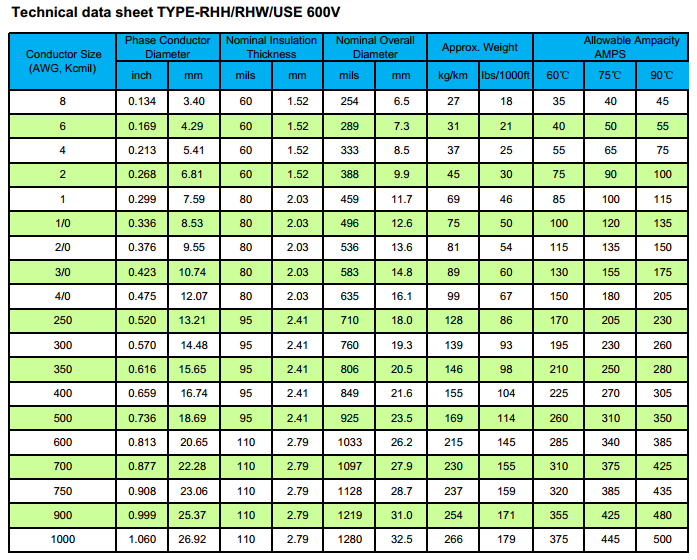

Technical Parameter List
Packaging & Shipping
Cable will be packed and shipped on non-returnable wooden/wooden & iron/steel cable drum or recycled wooden box.
Our Services
We provide 24- hour service, you can contact +86-185 6701 6066 or by E-mail.
If you have any questions please feel free to contact us for more information and price.
Company Information
Product Description
The USE-2 AL cable is 600 voltage aluminum alloy conductor cross-linked polyethylene (XLPE) insulation, moisture, heat, low-temp, oil, gas, sunlight resistant, single conductor underground service entrance cable and wire.
Applications
HUATONG TYPES USE-2 cable with single 8000 Series or 1350-H19 Aluminum Alloy conductor is suitable for use in conduit and raceways installed underground in conduit as specified in the USA National Electrical Code (NEC), at dry or wet locations while conductor temperatures shall not exceed 90ºC. USE-2 is permitted for 600 volt applications. With the special insulation, the cable requires no lubrication for installation. USE-2 is to be assembled with or without a bare (metal-coated) or insulated grounded conductor and without any overall covering other than an open, skeleton tape or wrap that.
Standards
USE-2 AL complies with the following:
• ASTM B800, B801, B836, B230, B230M-07
• UL854
• USA National Electrical Code/NFPA 70, 2014Edition
Construction
Technical Parameter List
Packaging & Shipping
Cable will be packed and shipped on non-returnable wooden/wooden & iron/steel cable drum or recycled wooden box.
Our Services
We provide 24- hour service, you can contact +86-185 6701 6066 or by E-mail.
If you have any questions please feel free to contact us for more information and price.
Company Information
