Home > Products > Electric Wire & Cable > UL 854 Mhf Cable 600 Voltage Aluminum Alloy Conductors Cross-Linked Polyethylene (XLPE) Insulated Mobile Home Feeder Cable
UL 854 Mhf Cable 600 Voltage Aluminum Alloy Conductors Cross-Linked Polyethylene (XLPE) Insulated Mobile Home Feeder Cable
UL 854 MHF Cable 600 Voltage Aluminum Alloy Conductors Cross-linked Polyethylene (XLPE) Insulated Mobile Home Feeder CableProduct DescriptionThe MHF mobile home Feeder is 600 voltage aluminum alloy conductors, cross-linked polyethylene (XLPE) insulated moisture, heat, low-temp,sunlight resistant, fl......
Send Inquiry
Product Description
UL 854 MHF Cable 600 Voltage Aluminum Alloy Conductors Cross-linked Polyethylene (XLPE) Insulated Mobile Home Feeder Cable
Product Description
The MHF mobile home Feeder is 600 voltage aluminum alloy conductors, cross-linked polyethylene (XLPE) insulated moisture, heat, low-temp,
sunlight resistant, flame retardant cable wire.
Applications
HUATONG TYPES Mobile Home Feeder Cable is used to provide power from the electrical disconnect to the distribution panel board in mobile
home applications accordance with the requirements of the NEC NFPA 70, 2011 Edition, suitable for direct burial at conductor temperatures
not to exceed 90°C. Voltage rating is 600 volts.
Standards
Hebei Huatong Mobile home feeder meets the requirements
• ASTM B800 and B801
• UL 44
• UL 854 (USE-2)
• ICEA T-29-520
Construction

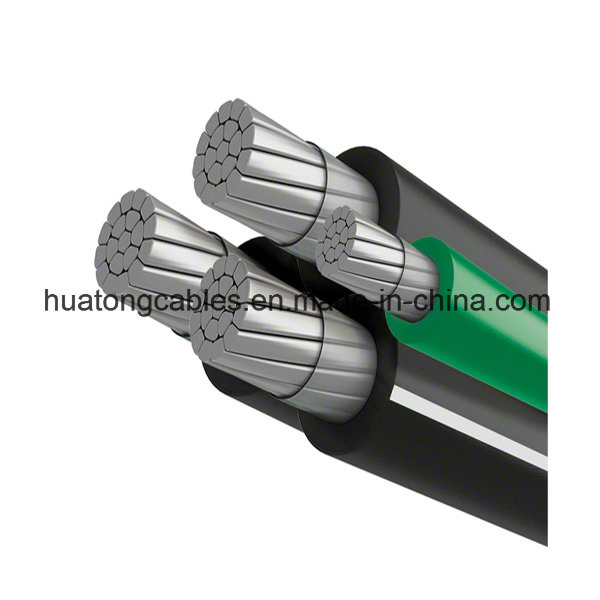

HUATONG TYPES mobile home feeder consists of four quadruplexed type RHH or RHW-2 or USE-2 AA-8000 series aluminum alloy compacted
conductors. The cable contains 2 triple-extruded phase conductors, a white striped neutral conductor and a green grounding conductor to
eliminate the need for field marking per the National Electrical Code. The insulation is sunlight resistant.
Technical Parameter List
Packaging & Shipping
Cable will be packed and shipped on non-returnable wooden/wooden & iron/steel cable drum or recycled wooden box.
Our Services
We provide 24- hour service, you can contact +86-185 6701 6066 or by E-mail.
If you have any questions please feel free to contact us for more information and price.
Company Information
Product Description
The MHF mobile home Feeder is 600 voltage aluminum alloy conductors, cross-linked polyethylene (XLPE) insulated moisture, heat, low-temp,
sunlight resistant, flame retardant cable wire.
Applications
HUATONG TYPES Mobile Home Feeder Cable is used to provide power from the electrical disconnect to the distribution panel board in mobile
home applications accordance with the requirements of the NEC NFPA 70, 2011 Edition, suitable for direct burial at conductor temperatures
not to exceed 90°C. Voltage rating is 600 volts.
Standards
Hebei Huatong Mobile home feeder meets the requirements
• ASTM B800 and B801
• UL 44
• UL 854 (USE-2)
• ICEA T-29-520
Construction
HUATONG TYPES mobile home feeder consists of four quadruplexed type RHH or RHW-2 or USE-2 AA-8000 series aluminum alloy compacted
conductors. The cable contains 2 triple-extruded phase conductors, a white striped neutral conductor and a green grounding conductor to
eliminate the need for field marking per the National Electrical Code. The insulation is sunlight resistant.
Technical Parameter List
| Size (AWG) | Phase Conductor | Neutral Conductor | Grounding Conductor | Overall Cable O.D. (Mils) | Weight Per 1000' (Lbs) | Ampacity | |||
| Strand | Diameter (Mils) | Strand | Diameter (Mils) | Strand | Diameter (Mils) | ||||
| 2-2-4-6 | 6 | 388 | 7 | 33 | 6 | 292 | 937 | 301 | 100 |
| 2-2-2-4 | 6 | 388 | 6 | 333 | 4 | 333 | 937 | 345 | 100 |
| 2/0-2/0-1-4 | 18 | 536 | 18 | 459 | 7 | 333 | 1294 | 553 | 150 |
| 2/0-2/0-2/0-1 | 18 | 536 | 18 | 536 | 8 | 462 | 1294 | 671 | 150 |
| 4/0-4/0-2/0-4 | 18 | 635 | 18 | 536 | 7 | 333 | 1533 | 784 | 200 |
| 4/0-4/0-4/0-2/0 | 18 | 635 | 18 | 635 | 18 | 536 | 1533 | 989 | 200 |
Packaging & Shipping
Cable will be packed and shipped on non-returnable wooden/wooden & iron/steel cable drum or recycled wooden box.
Our Services
We provide 24- hour service, you can contact +86-185 6701 6066 or by E-mail.
If you have any questions please feel free to contact us for more information and price.
Company Information

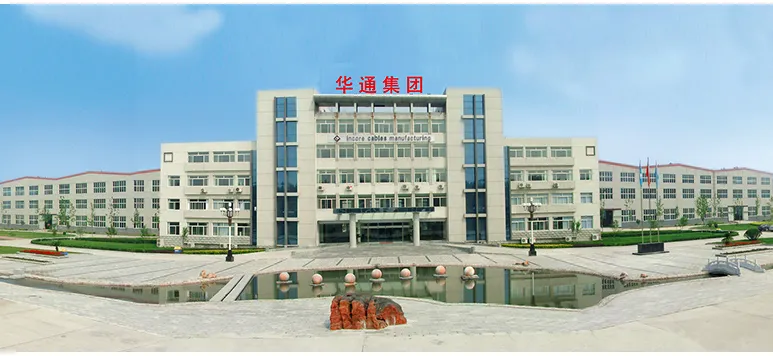

Hebei huatong wires & cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa (Japanese company) for rubber serious
cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very
influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control
cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products
are exported, most customers are from developed countries. We got ISO,UL, TUV,KEMA,CE and many other certifications.
Certificate
Now we got UL, TUV, CE, BV, KEMA, SABS, PSB products certifications and ISO9001, ISO14001, OHSAS18001 system certifications.
These UL certifications including AC, XHHW, THW/THHN, SER/SEU/MHF/UD, MV90/MV105,TC/TC-ER/, PV, MC,WELDING CABLES, SOOW/SJOOW,
DLO, MINING CABLES....
FAQ
Q1: What is your payment term?
A1: Our standard payment term is 30% for advanced payment before production, 70% before dispatch. However, the terms can be negotiable
as per different orders.
Q2: What is the lead time?
A2: The lead time can be 7 - 30 days according to actual order quantity.
Q3: What is the package of the cable?
A3: The package is steel & wooden drum or recycled wooden box. We can adopt other methods according to customer's requirements.
Q4: How to choose cable if the type is undefined?
A4: Please provide the application, we will help you find the right type.
UL Cable List and Contact Information
cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very
influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control
cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products
are exported, most customers are from developed countries. We got ISO,UL, TUV,KEMA,CE and many other certifications.
Certificate
Now we got UL, TUV, CE, BV, KEMA, SABS, PSB products certifications and ISO9001, ISO14001, OHSAS18001 system certifications.
These UL certifications including AC, XHHW, THW/THHN, SER/SEU/MHF/UD, MV90/MV105,TC/TC-ER/, PV, MC,WELDING CABLES, SOOW/SJOOW,
DLO, MINING CABLES....
FAQ
Q1: What is your payment term?
A1: Our standard payment term is 30% for advanced payment before production, 70% before dispatch. However, the terms can be negotiable
as per different orders.
Q2: What is the lead time?
A2: The lead time can be 7 - 30 days according to actual order quantity.
Q3: What is the package of the cable?
A3: The package is steel & wooden drum or recycled wooden box. We can adopt other methods according to customer's requirements.
Q4: How to choose cable if the type is undefined?
A4: Please provide the application, we will help you find the right type.
UL Cable List and Contact Information
