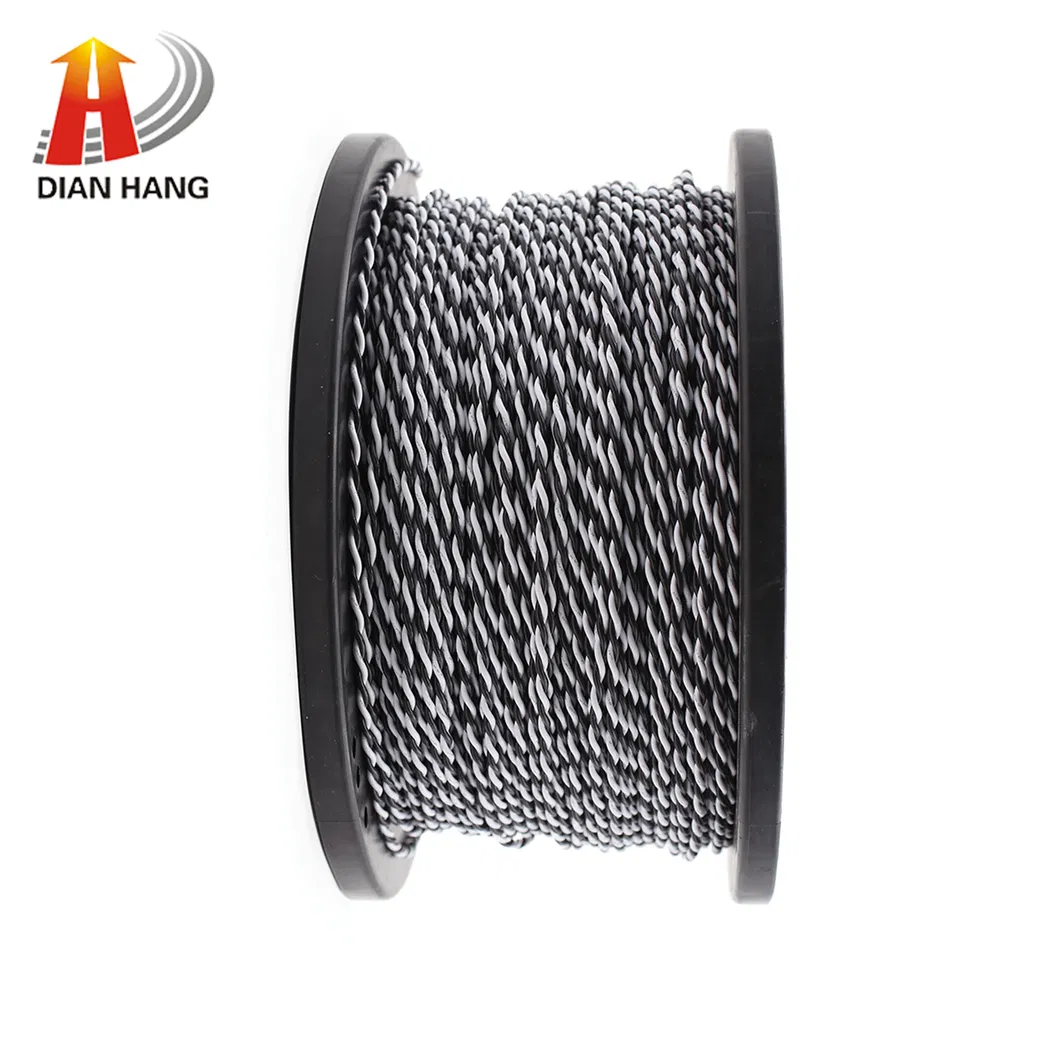

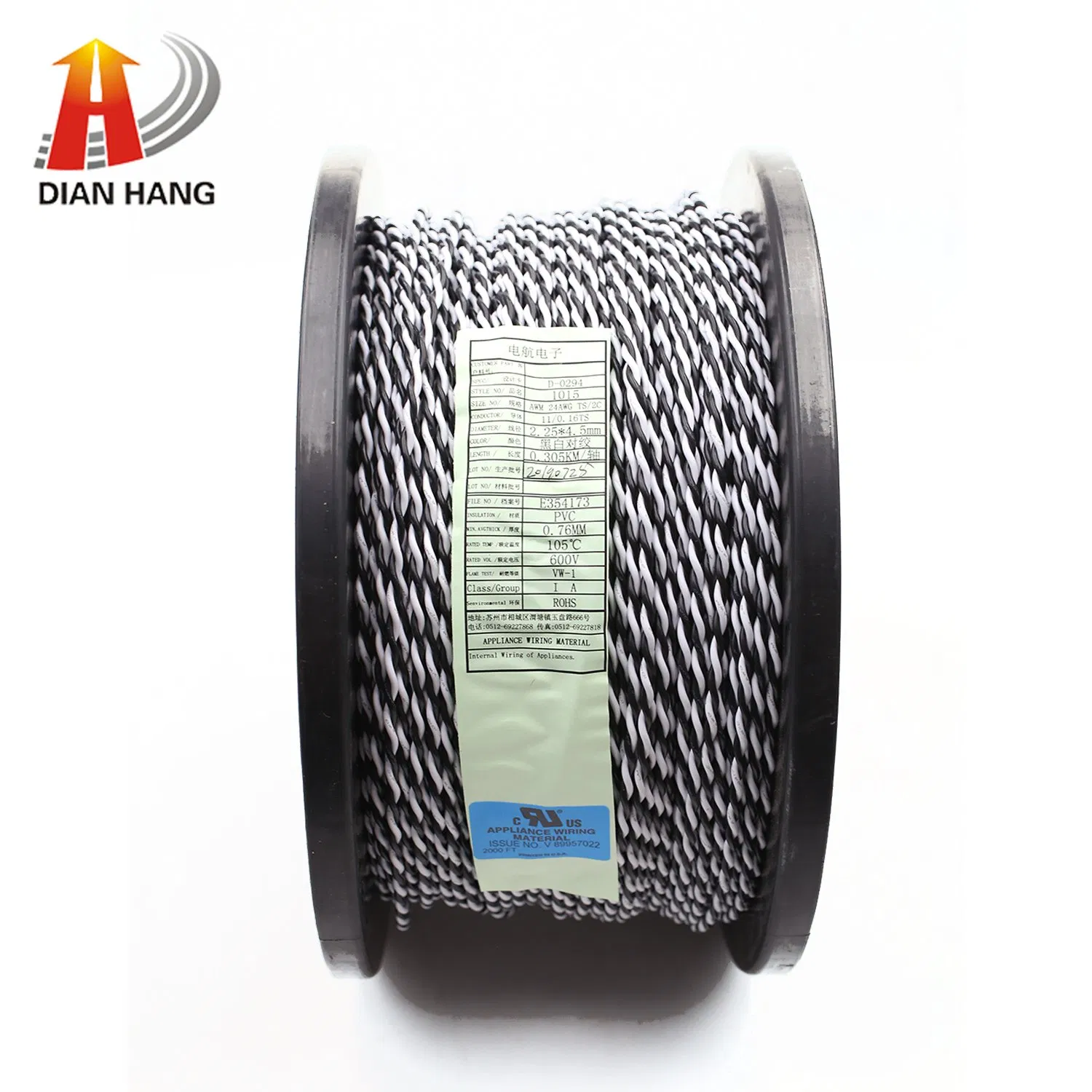

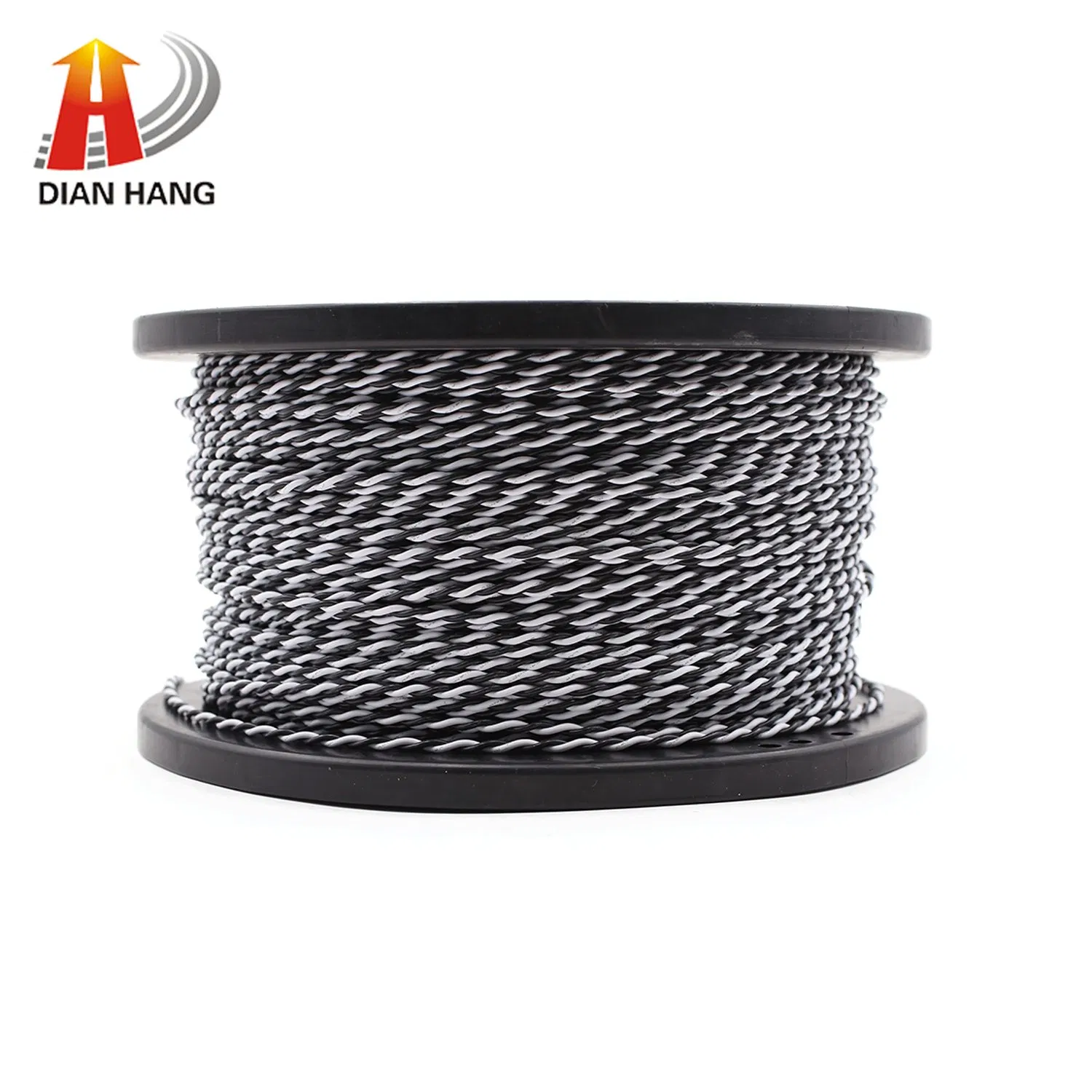

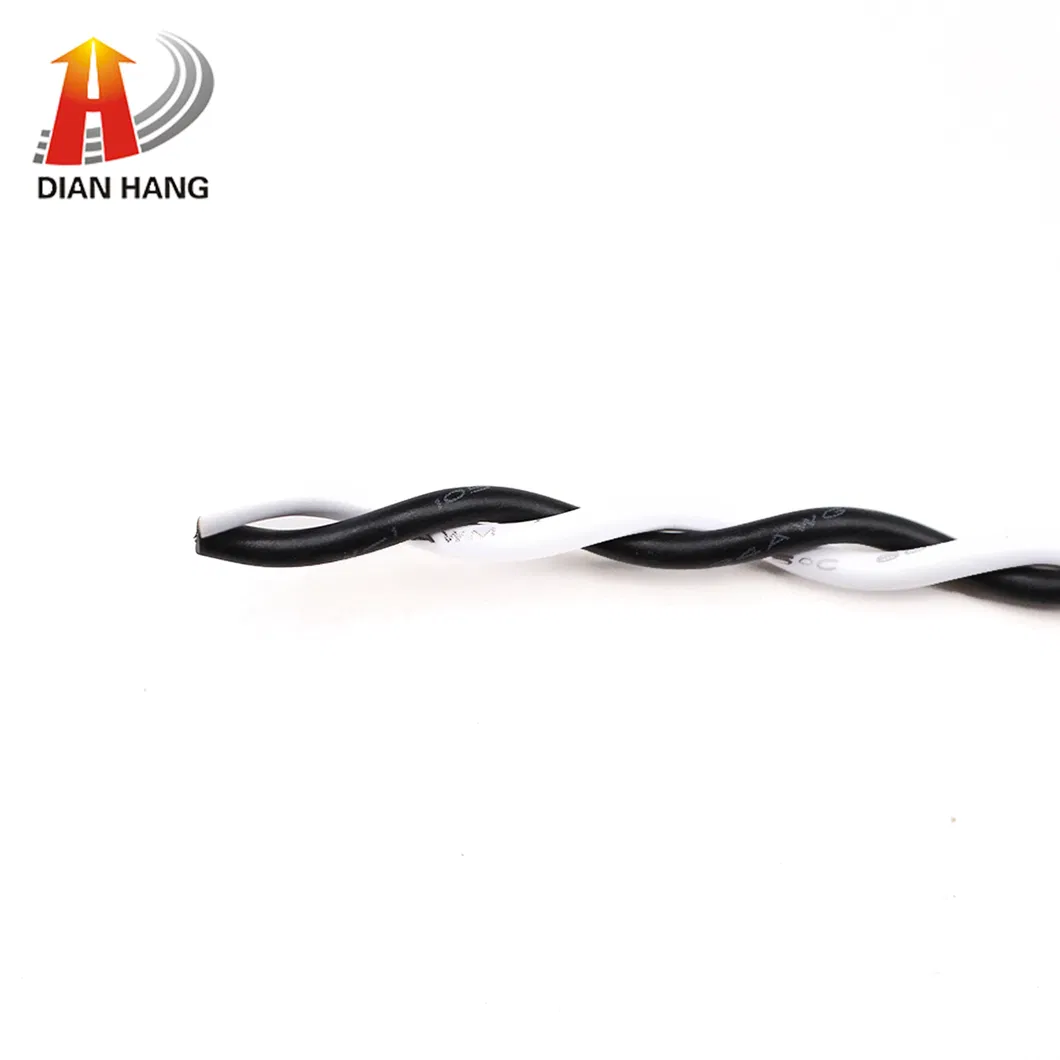

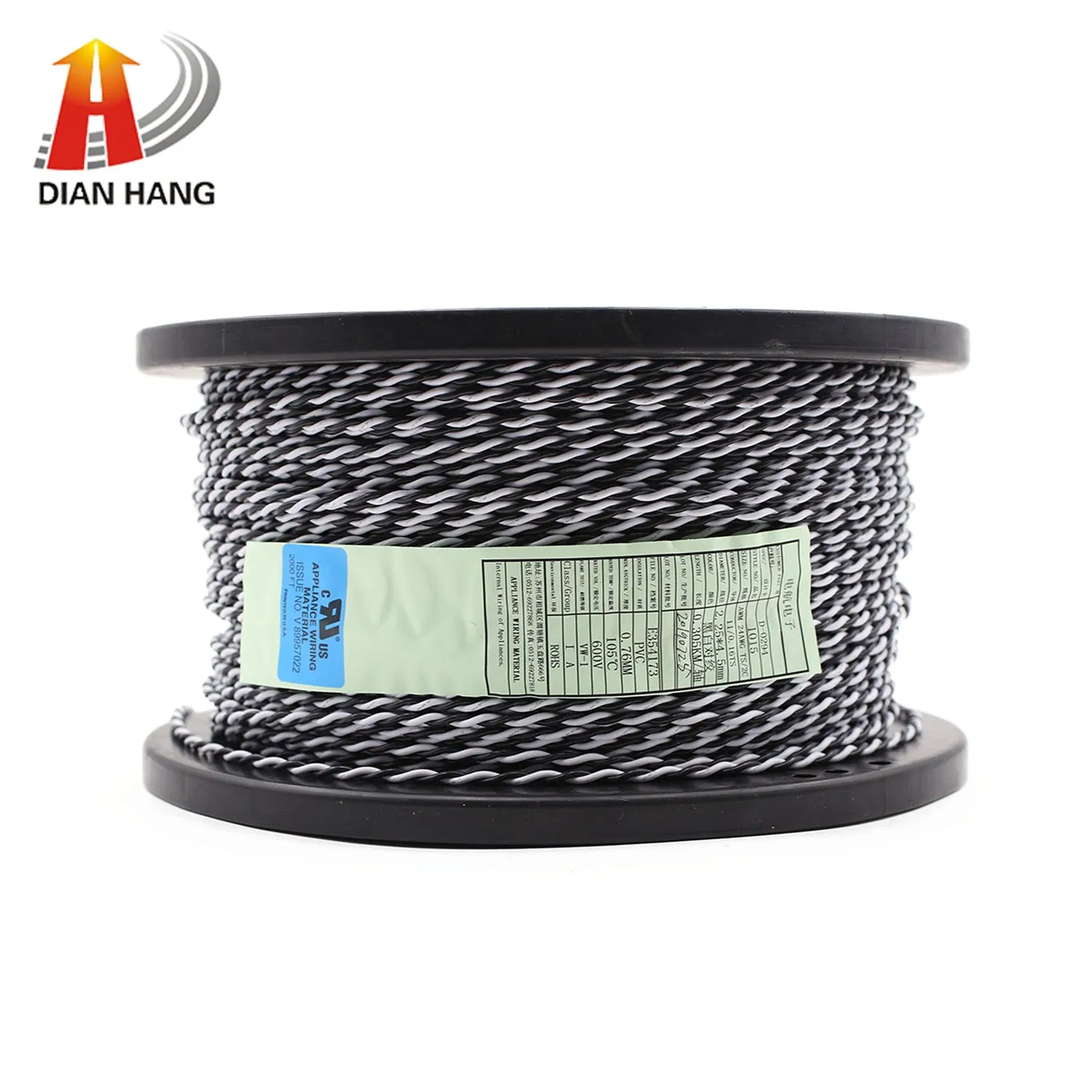

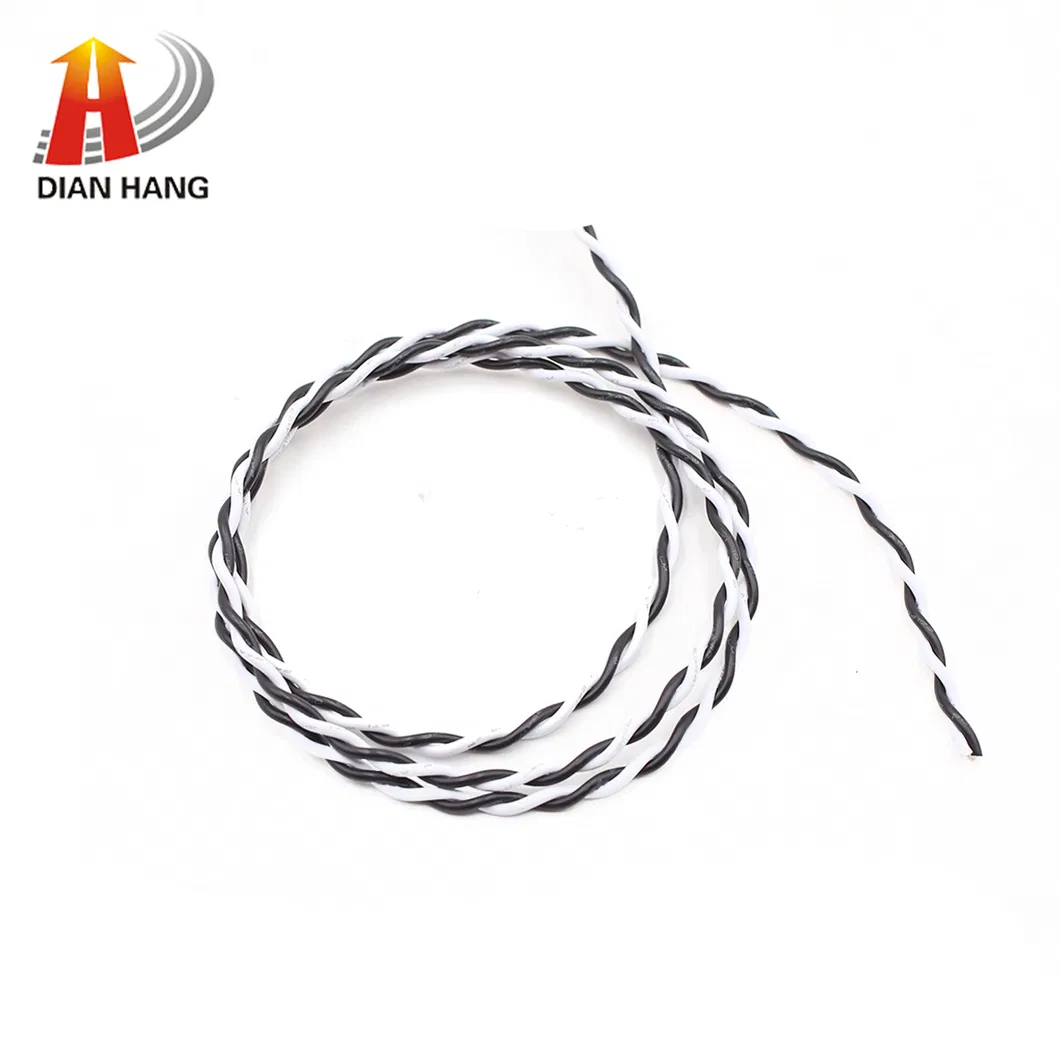

UL 600V PVC 105 Degree Wire for Hair Dryer UL1015 10, 12, 14, 18AWG Electronic Wire PVC Insulated Control Wire Electrical Cable
Product Descriptionfactory supply ul 1015 26 awg hookup wire voltage 600v pvc electrical wireRated temperature:105ºCRated voltage:600VReference standard:UL758,UL1581,CSA C22.2No.210.2Solid or stranded, tinned or bare copper conductor 32~16AWGPVC insulation, comply with ROHS, REACH environme......
Send Inquiry
Product Description
factory supply ul 1015 26 awg hookup wire voltage 600v pvc electrical wire
Rated temperature:105ºC
Rated voltage:600V
Reference standard:UL758,UL1581,CSA C22.2No.210.2
Solid or stranded, tinned or bare copper conductor 32~16AWG
PVC insulation, comply with ROHS, REACH environmental standard
Passes UL VW-1, CSA FTI and JQA F-Mark flame test
Uniform insulation thickness to ensure easy stripping and cutting
Application:For general purpose internal wiring of appliance
UL type | Conductor | Insulation | Max.cond. Resistance | (Dielectric Strength) | |||
1015 | AWG | Construction (No./mm) | OD (mm) | Thickness (mm) | OD (mm) | (Ω/Km,20ºC,Dc)
| (Vac,1min)
|
28 | 7/0.127 | 0.38 | 0.81 | 2.00 | 239 | 2000 | |
26 | 7/0.16 | 0.48 | 0.81 | 2.10 | 150 | 2000 | |
24 | 11/0.16 | 0.61 | 0.82 | 2.25 | 94.2 | 2000 | |
22 | 17/0.16 | 0.76 | 0.82 | 2.40 | 59.4 | 2000 | |
20 | 26/0.16 | 0.94 | 0.81 | 2.55 | 36.7 | 2000 | |
18 | 41/0.16 | 1.18 | 0.80 | 2.80 | 23.2 | 2000 | |
16 | 26/0.254 | 1.49 | 0.81 | 3.10 | 14.6 | 2000 | |
14 | 41/0.254 | 1.88 | 0.81 | 3.50 | 8.96 | 2000 | |
12 | 65/0.254 | 2.36 | 0.82 | 4.00 | 5.64 | 2000 | |
10 | 7/15/0.254 | 3.42 | 0.82 | 5.05 | 3.54 | 2000 | |
8 | 7/24/0.254 | 3.99 | 1.14 | 6.40 | 2.22 | 2000 | |
