Product Description

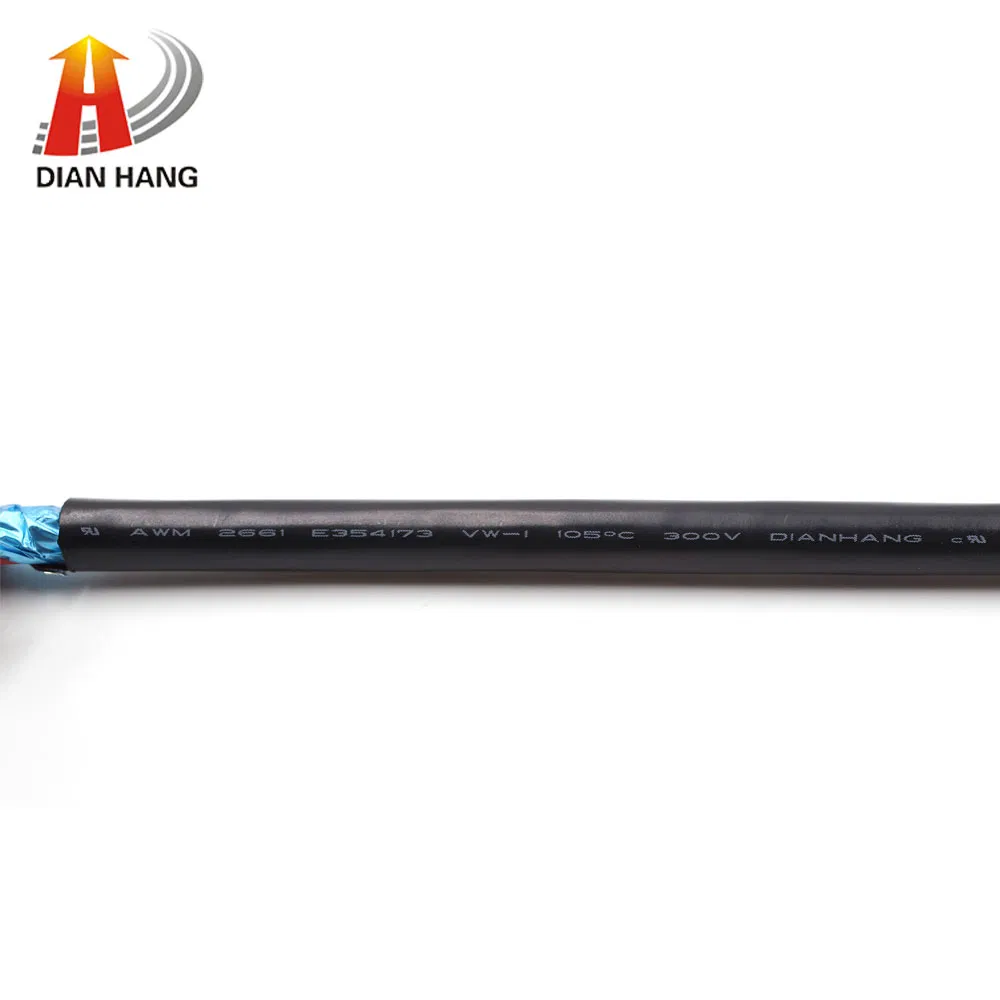

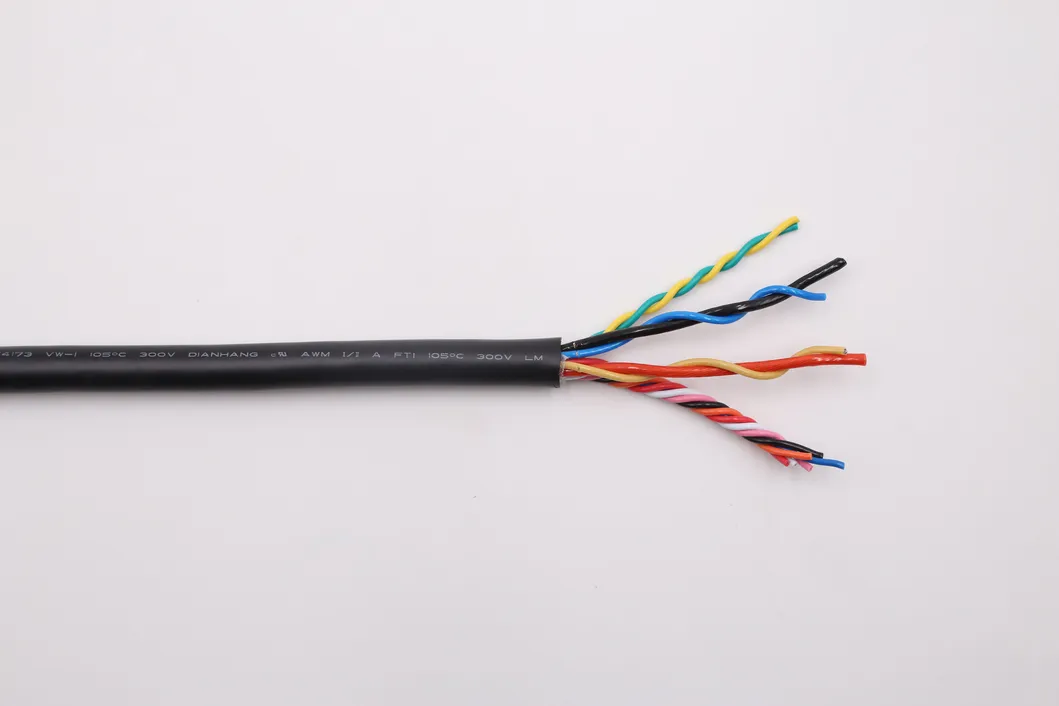

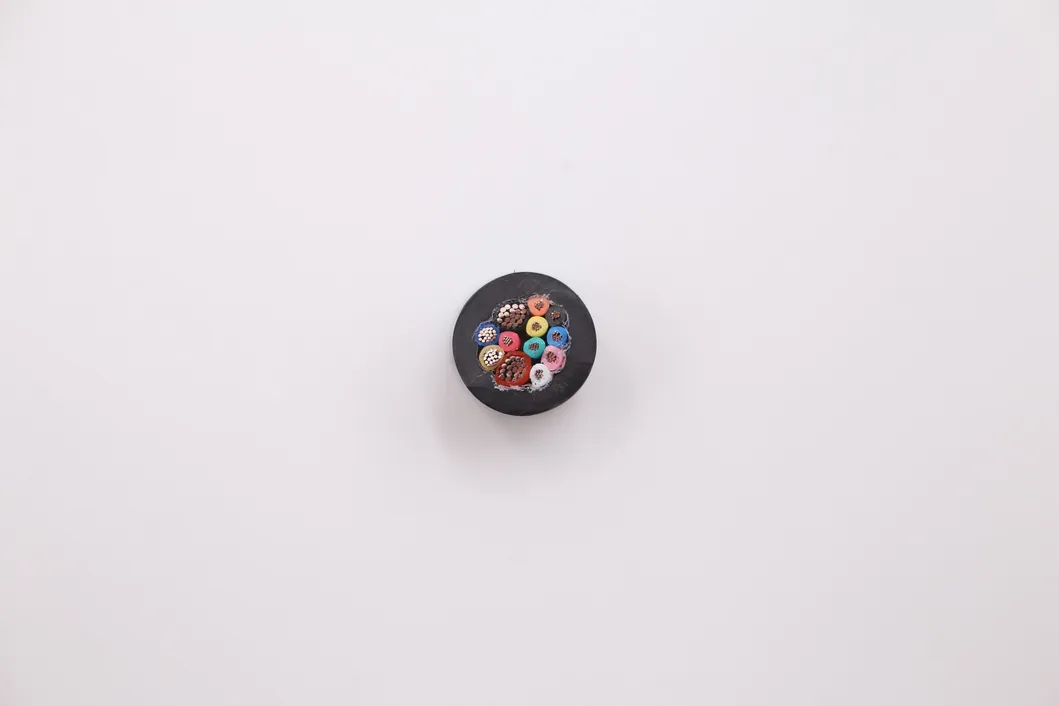

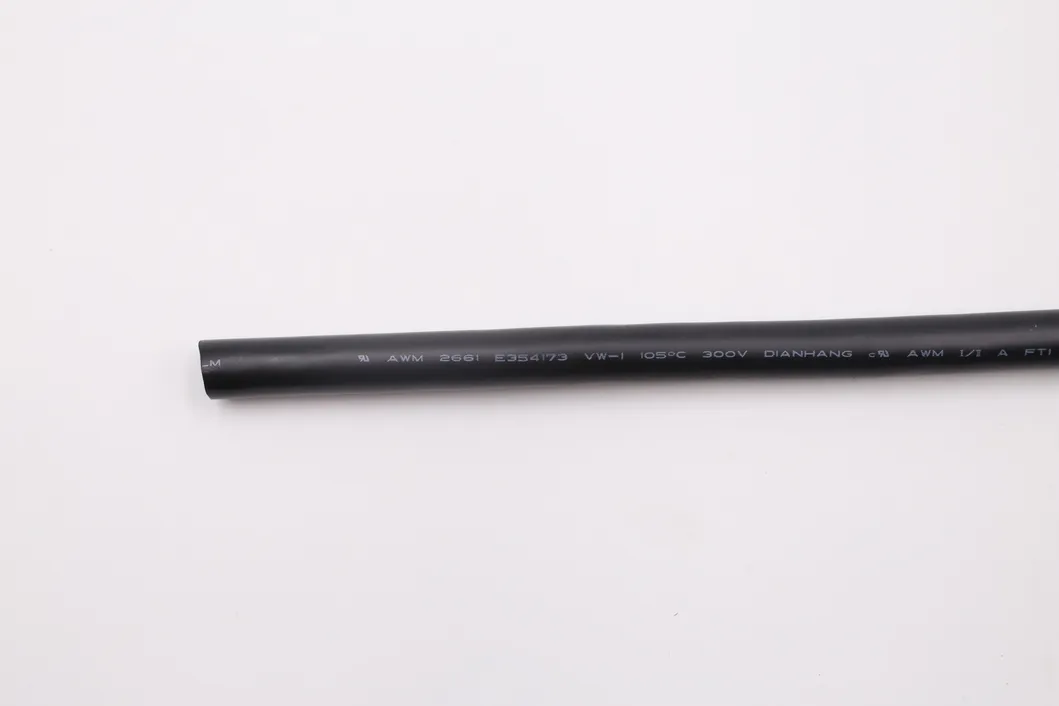

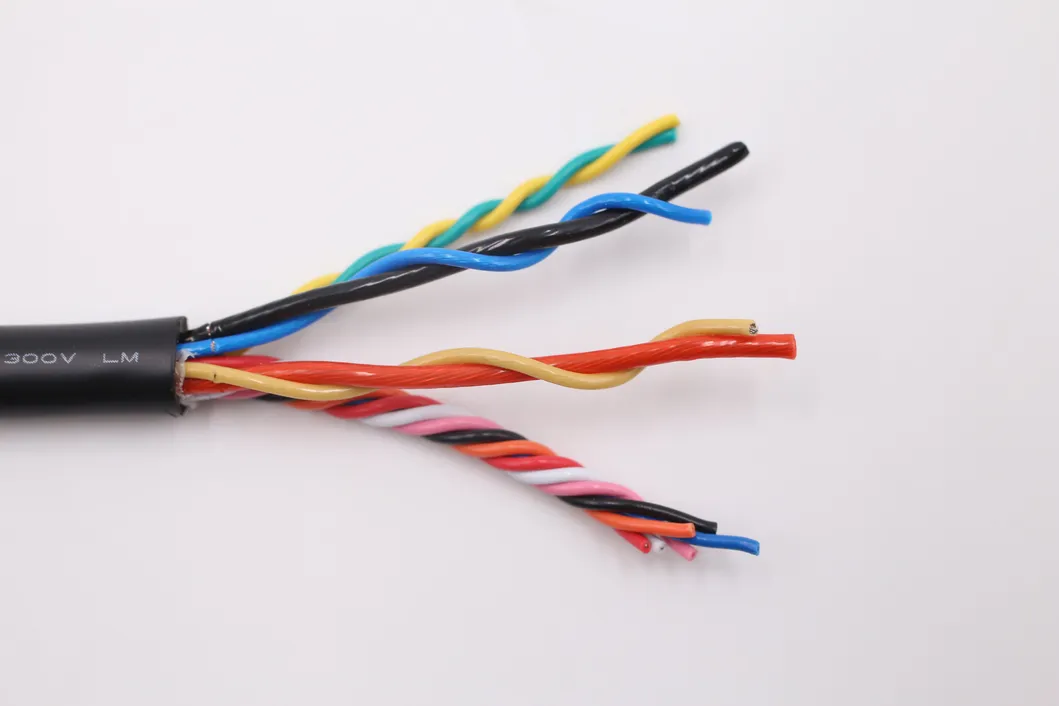

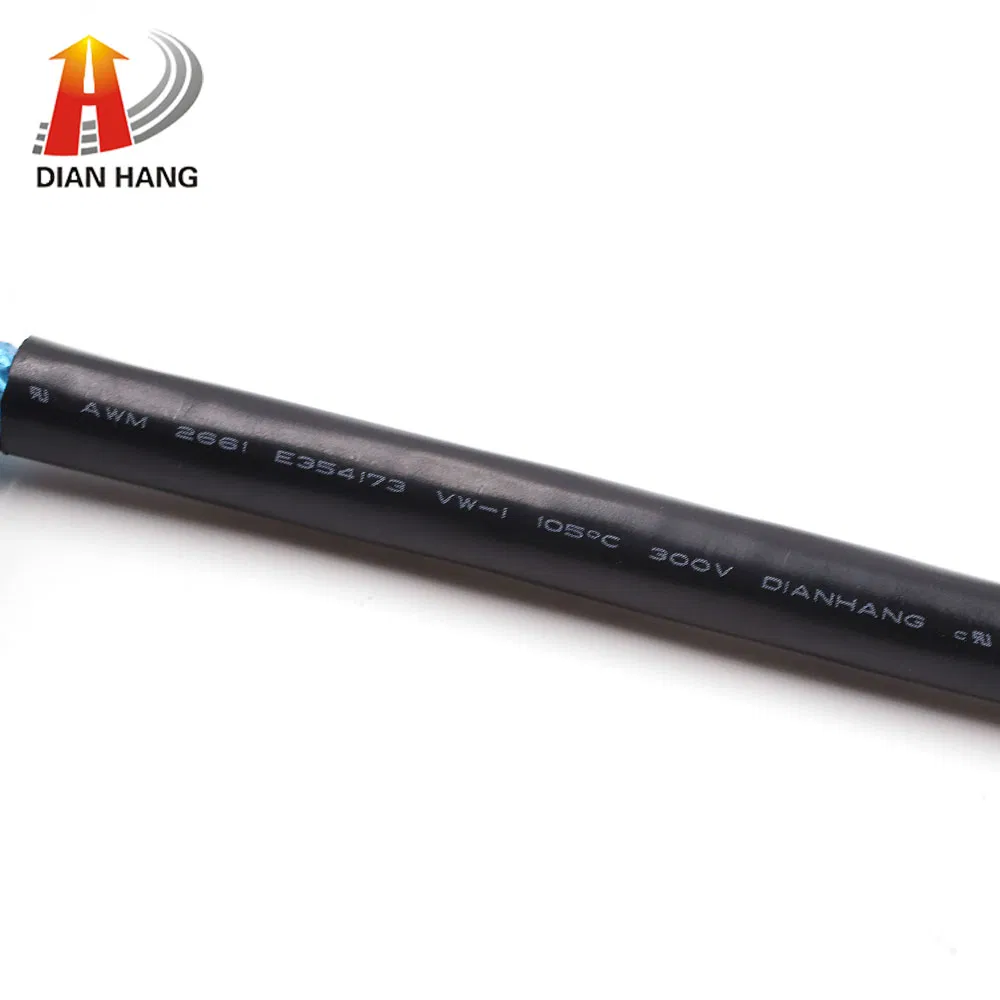

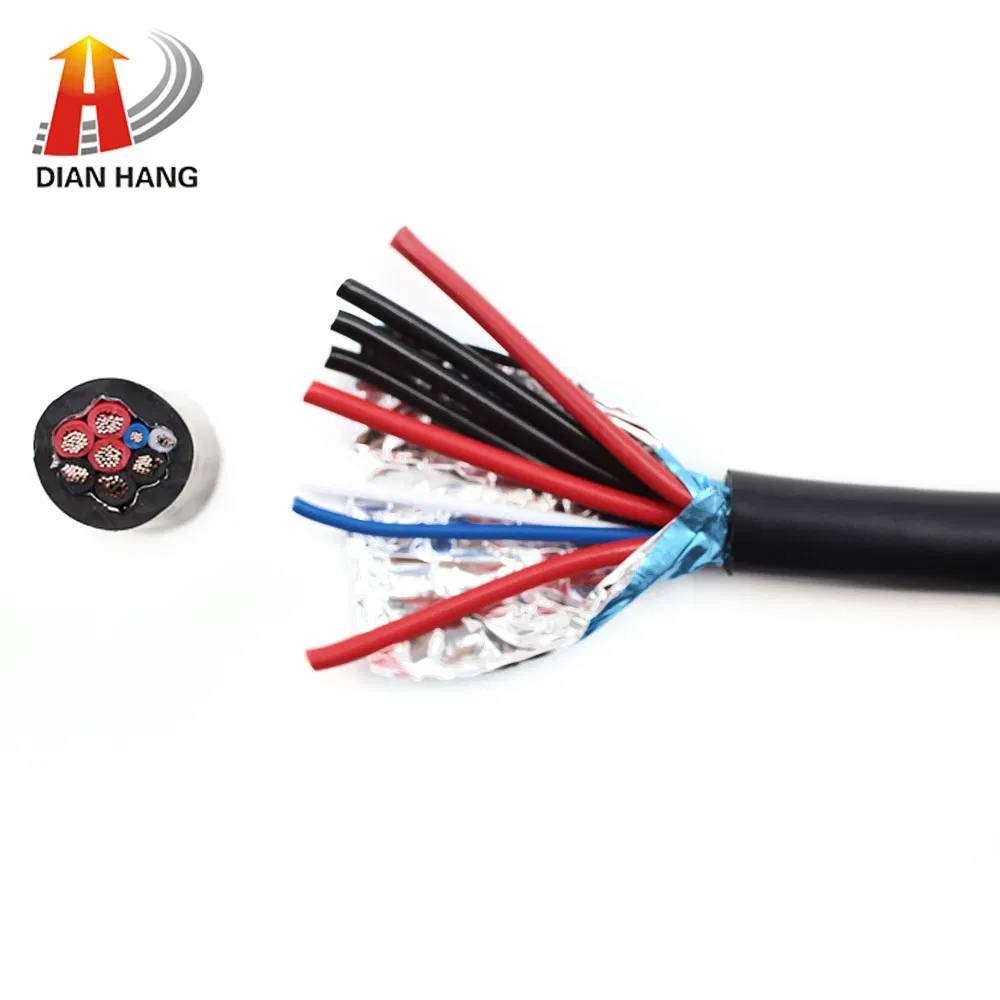

ul 2661 300V tinned copper Multi-core black color high temperature Electronic equipment cable
Rated voltage:300V
Reference standard:UL758,UL1581,CSA C22.2No.210.2
Solid or stranded, tinned or bare copper conductor 32~16AWG
PVC insulation, comply with ROHS, REACH environmental standard

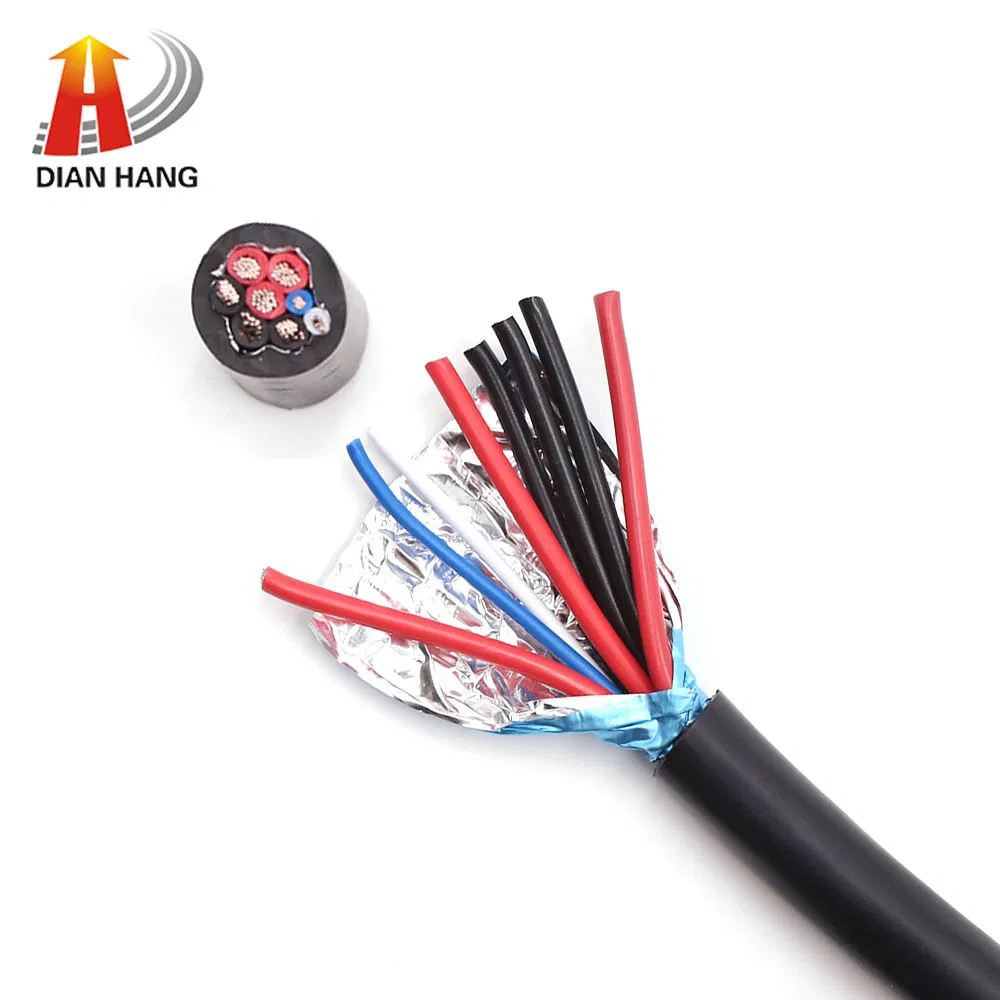

Tinned or bare copper wire braid shield
PVC jacket, comply with ROHS, REACH environmental standard
Passes UL VW-1, CSA FT1 and JQA F-Mark flame test
Uniform insulation thickness to ensure easy stripping and cutting
Application:Internal wiring or external interconnection of electronic equipment
UL Type | Conductor | Insulation | Shielded | Jacket | Dielectric Strength | |||
2661 | AWG | Construction (No./mm) | cores.No
| Thickness (mm) | OD (mm) | (No./mm) | OD
| (Vac,1min)
|
30 | 7/0.10 |
Above2cores | 0.38 | Above1.10 | 16/4/0.12 | Above4.30 | 2000 | |
28 | 7/0.127 | 0.38 | Above1.20 | 16/5/0.12 | Above4.50 | 2000 | ||
26 | 7/0.16 | 0.38 | Above1.30 | 16/4/0.12 | Above4.80 | 2000 | ||
24 | 11/0.16 | 0.38 | Above1.40 | 16/4/0.12 | Above5.00 | 2000 | ||
22 | 17/0.16 | 0.38 | Above1.60 | 16/4/0.12 | Above5.40 | 2000 | ||
Note: the specific chip number and shielding can be customized according to customer needs. | ||||||||
