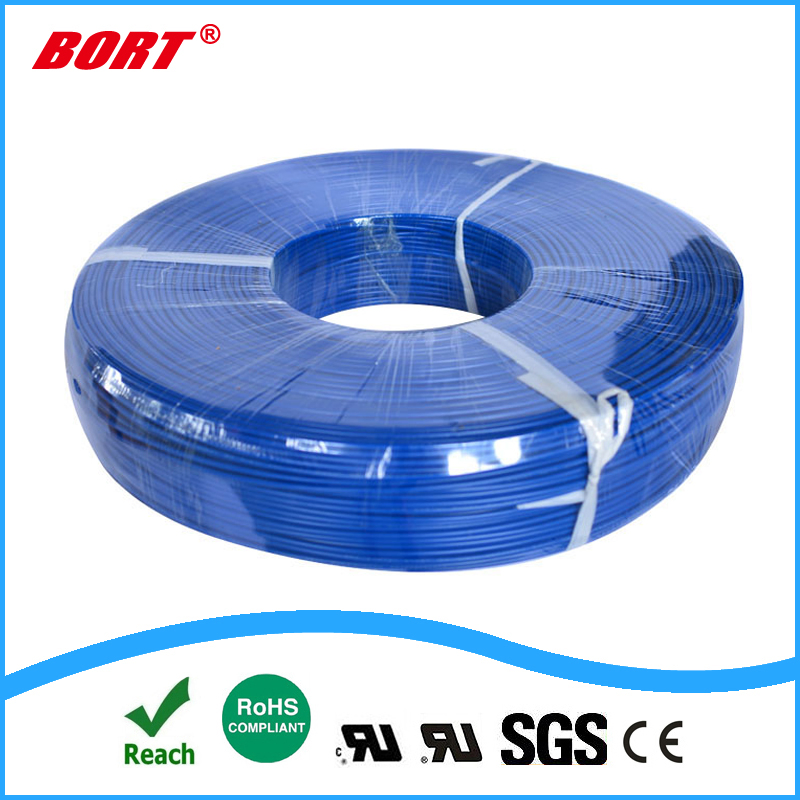

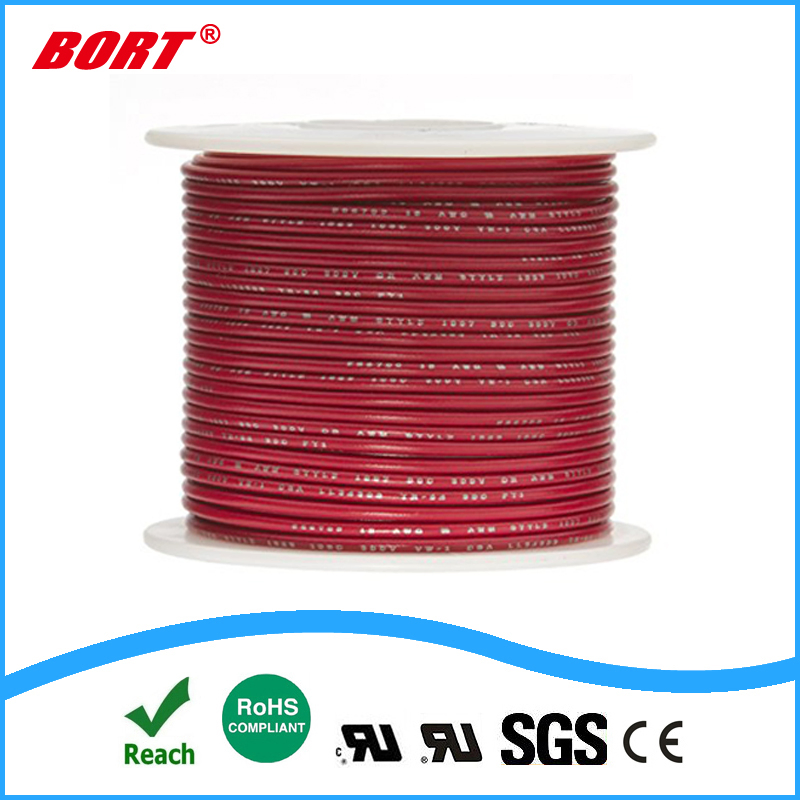

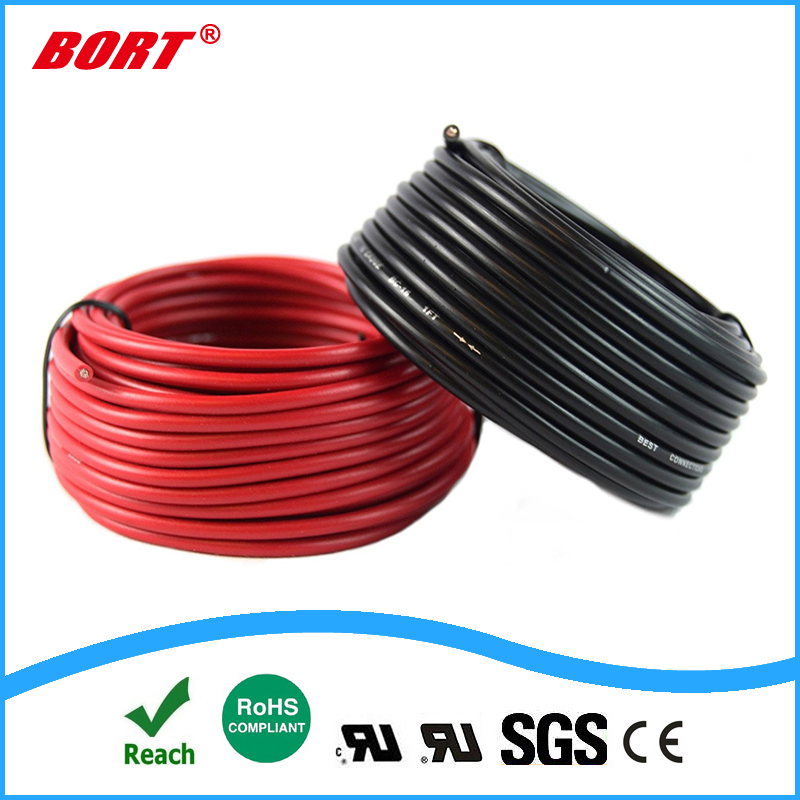

UL, Solid or Stranded, UL1180 High Temperature None Cracked PTFE Electric Wire, , RoHS, LED Lighting, Audio Cable, Automotive Wire Harness
APPLICATIONS:High temperature internal electronic applicationsPTFE offers superior resistance to thermal aging, solder damage, open flames, moisture, solvents, grease, ozone and other chemicalsCHARACTERISTICS:PRODUCT DESCRIPTION:Stranded silver platted copperExtruded PTFE insulation, color coded, .0......
Send Inquiry
Product Description
APPLICATIONS:
- High temperature internal electronic applications
- PTFE offers superior resistance to thermal aging, solder damage, open flames, moisture, solvents, grease, ozone and other chemicals
CHARACTERISTICS:
PRODUCT DESCRIPTION:

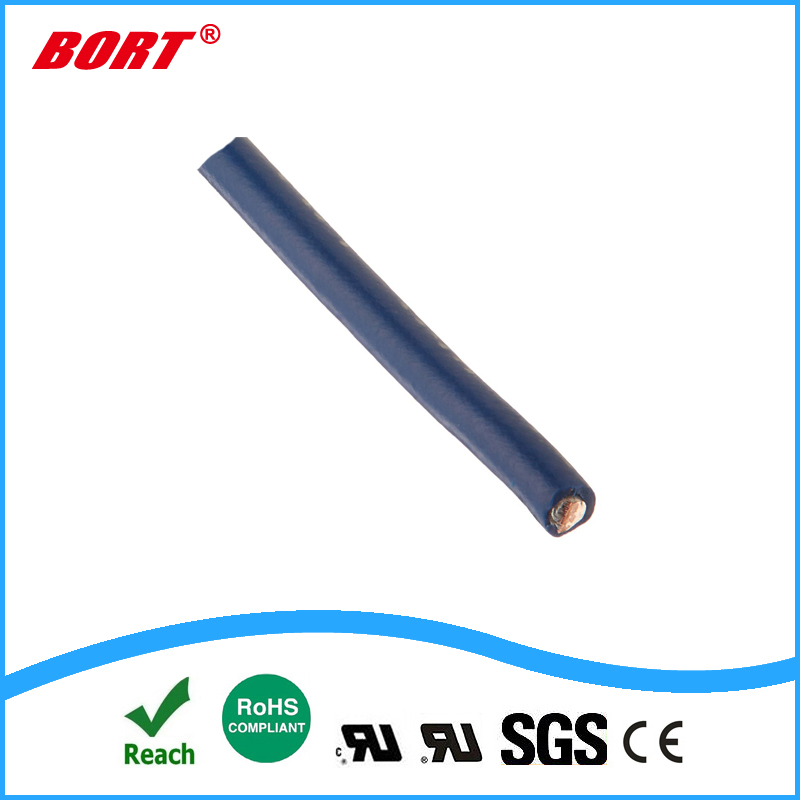

- Stranded silver platted copper
- Extruded PTFE insulation, color coded, .015" nom. wall
OPERATING TEMPERATURE:
- -60°C to +200°C
VOLTAGE RATING:
- UL1180, 300 volts
- M16878/5, 1000 volts
APPROVALS:
- UL 1180
- M-W-16878/5
- RoHS compliant
- Passes UL VW-1 flame test
| Part Number # | AWG | Stranding | Nom. | Nom. | Nom. |
| Insulation (in) | O.D. (in) | Lbs/Mft | |||
| 1180-24(7) | 24 | 7/32 | 0.015 | 0.055 | 3 |
| 1180-24(19) | 24 | 19/36 | 0.015 | 0.055 | 3 |
| 1180-22(7) | 22 | 7/30 | 0.015 | 0.06 | 4 |
| 1180-22(19) | 22 | 19/34 | 0.015 | 0.06 | 4 |
| 1180-20(7) | 20 | 7/28 | 0.015 | 0.07 | 6 |
| 1180-20(19) | 20 | 19/32 | 0.015 | 0.07 | 6 |
| 1180-18(7) | 18 | 7/28 | 0.015 | 0.08 | 8 |
| 1180-18(19) | 18 | 19/32 | 0.015 | 0.08 | 9 |
| 1180-16(7) | 16 | 7/26 | 0.015 | 0.09 | 11 |
| 1180-14(19) | 14 | 19/30 | 0.015 | 0.09 | 16 |
| 1180-12(19) | 12 | 19/29 | 0.015 | 0.12 | 25 |
| 1180-10(19) | 10 | 19/27 | 0.015 | 0.145 | 37 |
| 1180-8(133) | 8 | 133/29 | 0.02 | 0.21 | 68 |
