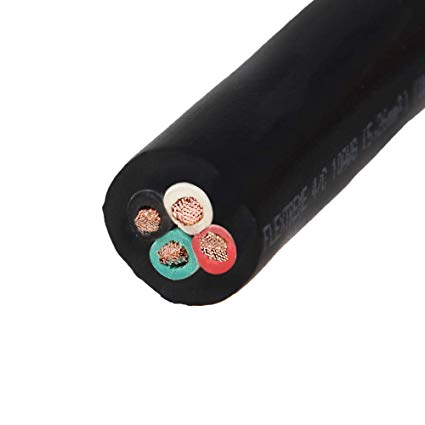

Types Soow Flexible Cord 90c 600 Volt with UL62 Certificate
TYPES SOOW FLEXIBLE CORD 90C 600 Volt with UL62 CertificateProduct Description1 Applications:UL S/SO/SOW/SOOW Electric Cable is ideal for use with industrial equipment, heavy tools, battery chargers,portable lights and power extensions. SOOW cable has a neoprene insulation that is resistant to oil,......
Send Inquiry
Product Description
Product Description
1 Applications:

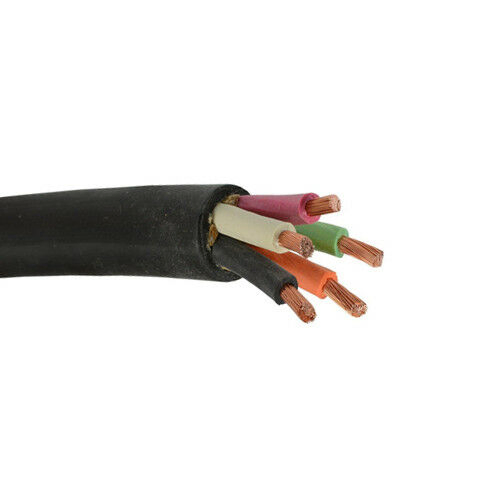

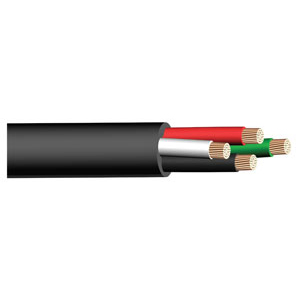

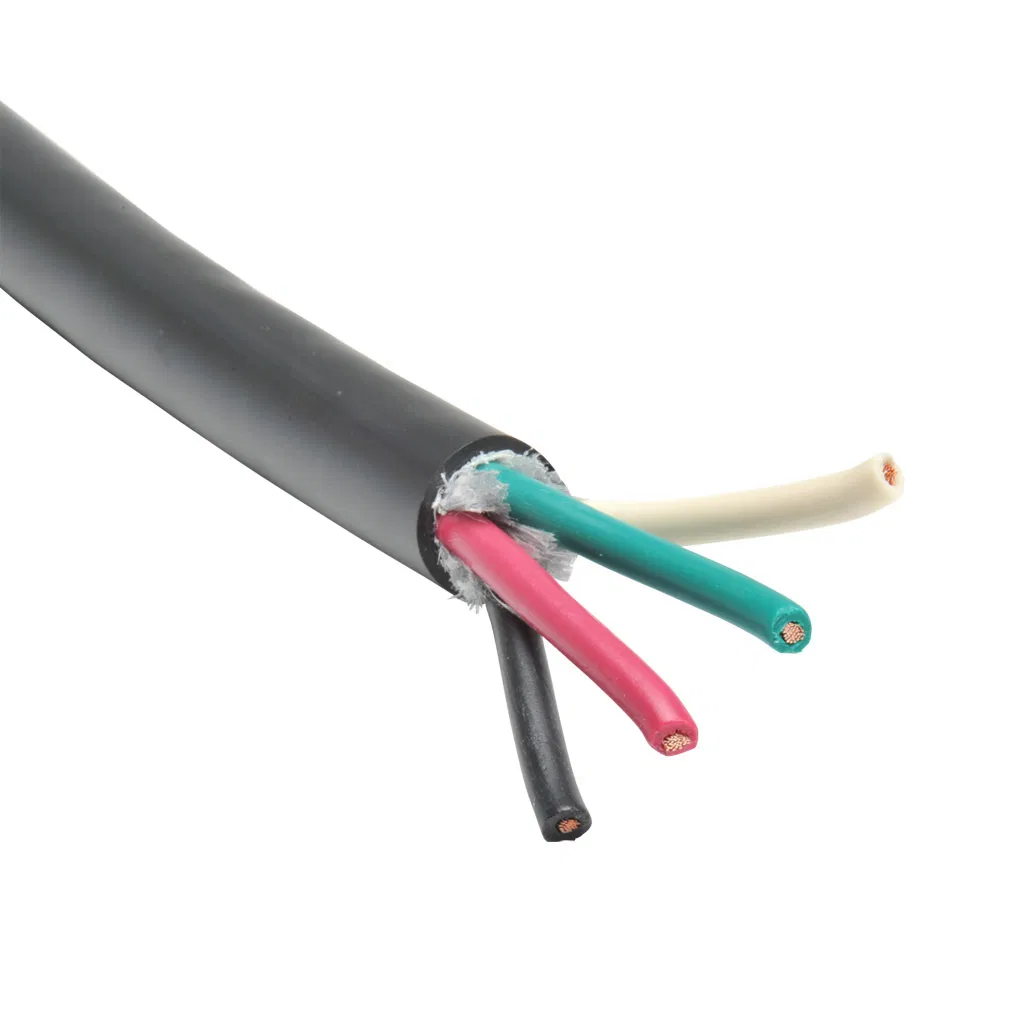

UL S/SO/SOW/SOOW Electric Cable is ideal for use with industrial equipment, heavy tools, battery chargers,portable lights and power extensions. SOOW cable has a neoprene insulation that is resistant to oil,acid, abrasion, sunlight.
2 Standard:
UL62 Standard.
| UL Approval Style | Cores | Conductor | Insulation | Jacket | Amp Rating | ||||
| AWG | Sectional Area(mm2) | Construction (no./mm) | Thickness (mm) | Diameter (mm) | Thickness (mm) | Diameter (mm) | |||
| S SO SOO SOW SOOW | 2C | 18 | 0.82 | 41/0.16 | 0.76 | 2.80 | 1.52 | 8.80 | 10A |
| 16 | 1.31 | 26/0.254 | 0.76 | 3.10 | 1.52 | 9.45 | 13A | ||
| 14 | 2.08 | 41/0.254 | 1.14 | 4.30 | 2.03 | 12.80 | 15A | ||
| 12 | 3.31 | 65/0.254 | 1.14 | 4.65 | 2.41 | 14.12 | 20A | ||
| 3C | 18 | 0.82 | 41/0.16 | 0.76 | 2.80 | 1.52 | 9.30 | 10A | |
| 16 | 1.31 | 26/0.254 | 0.76 | 3.10 | 1.52 | 9.95 | 13A | ||
| 14 | 2.08 | 41/0.254 | 1.14 | 4.30 | 2.03 | 13.50 | 15A | ||
| 12 | 3.31 | 65/0.254 | 1.14 | 4.65 | 2.41 | 15.35 | 20A | ||
| 4C | 18 | 0.82 | 41/0.16 | 0.76 | 2.80 | 1.52 | 9.95 | 10A | |
| 16 | 1.31 | 26/0.254 | 0.76 | 3.10 | 1.52 | 10.70 | 13A | ||
| 14 | 2.08 | 41/0.254 | 1.14 | 4.30 | 2.03 | 14.70 | 15A | ||
| 12 | 3.31 | 65/0.254 | 1.14 | 4.65 | 2.41 | 16.61 | 20A | ||

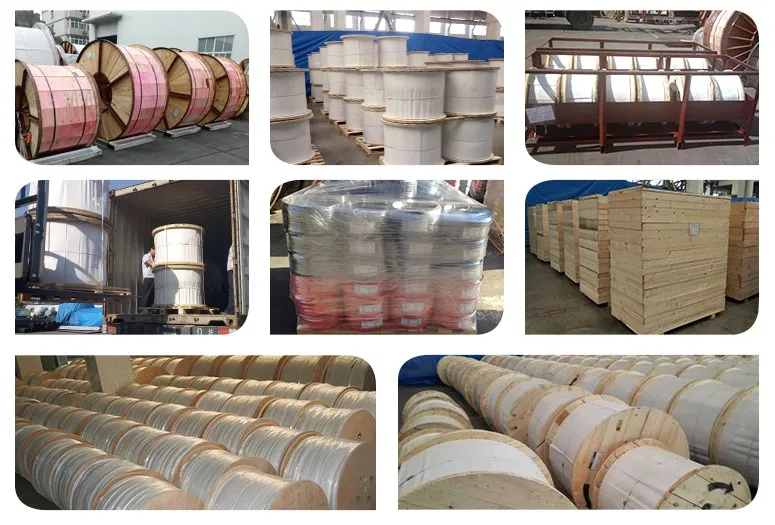

Package

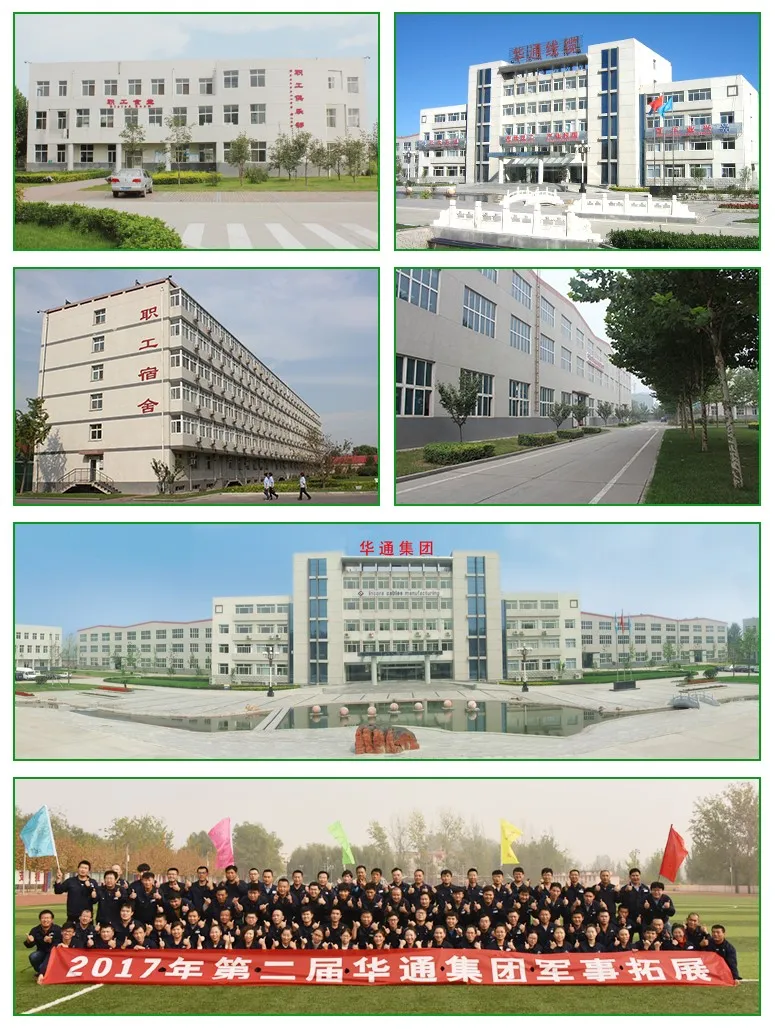

Company Information
Hebei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,
our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
Certificate

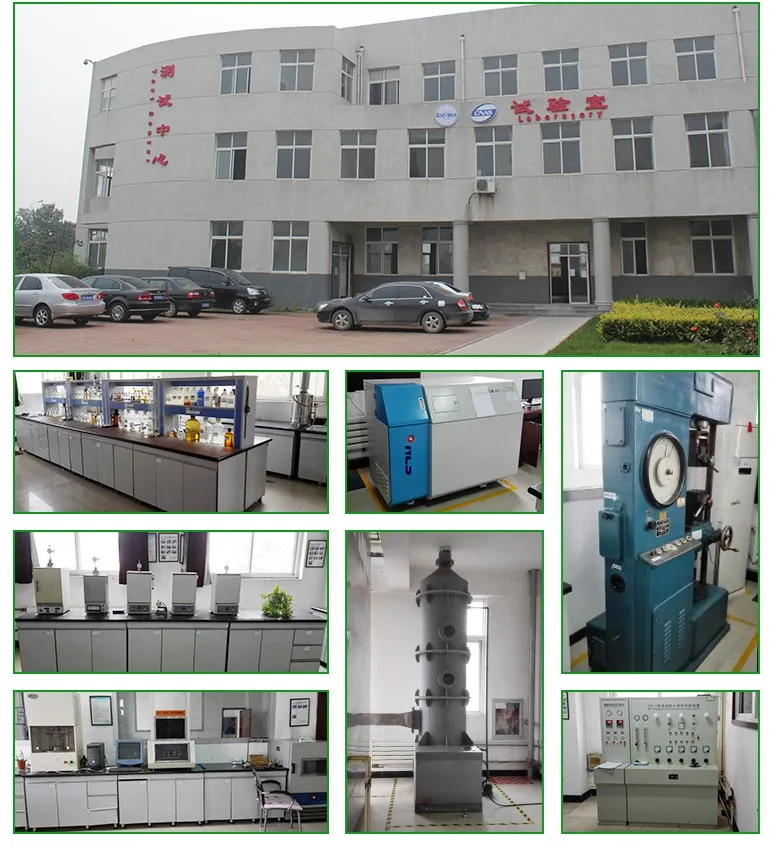

Laboratory
FAQ
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
