Product Description

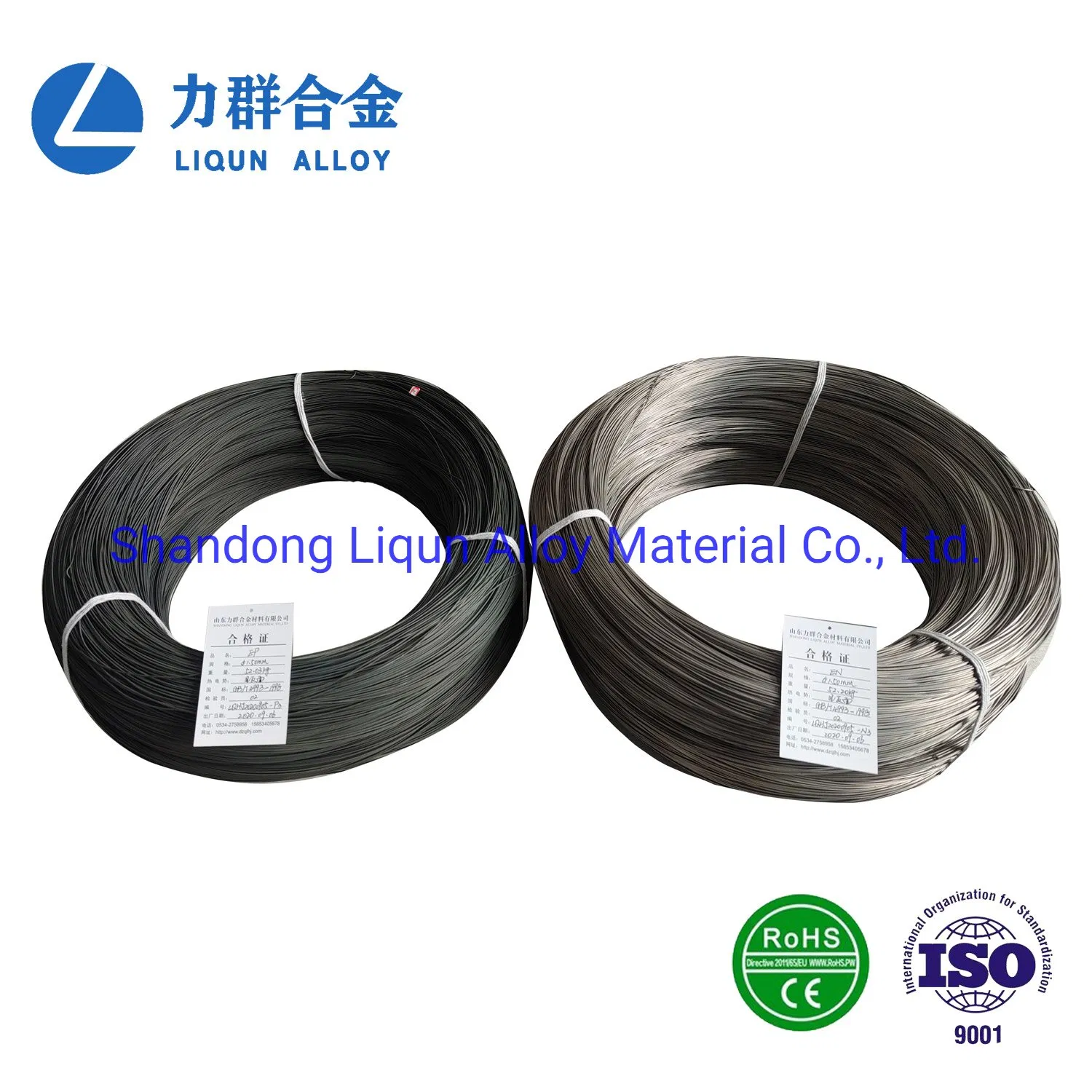

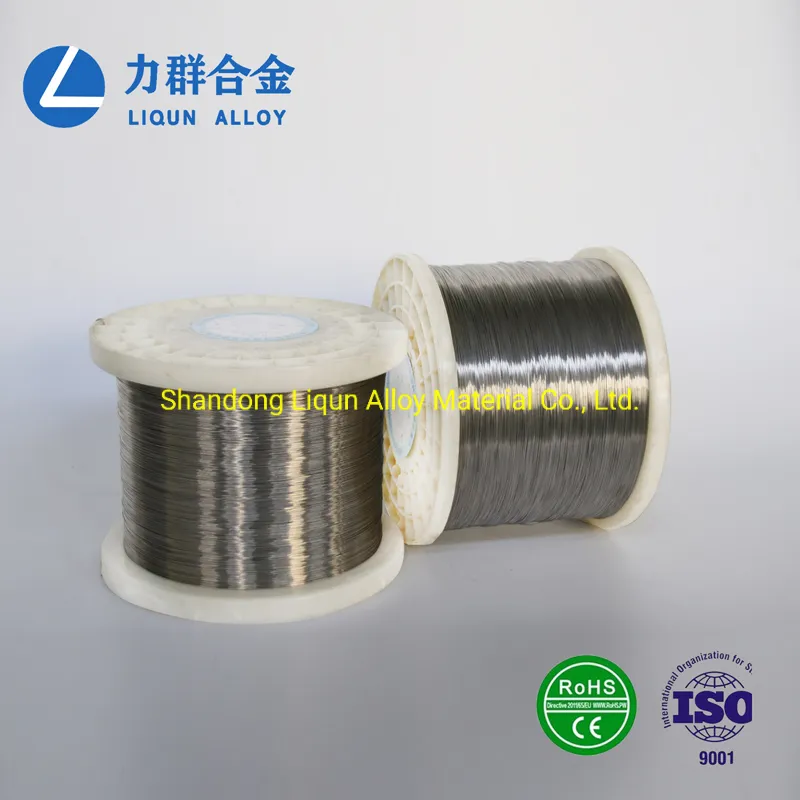

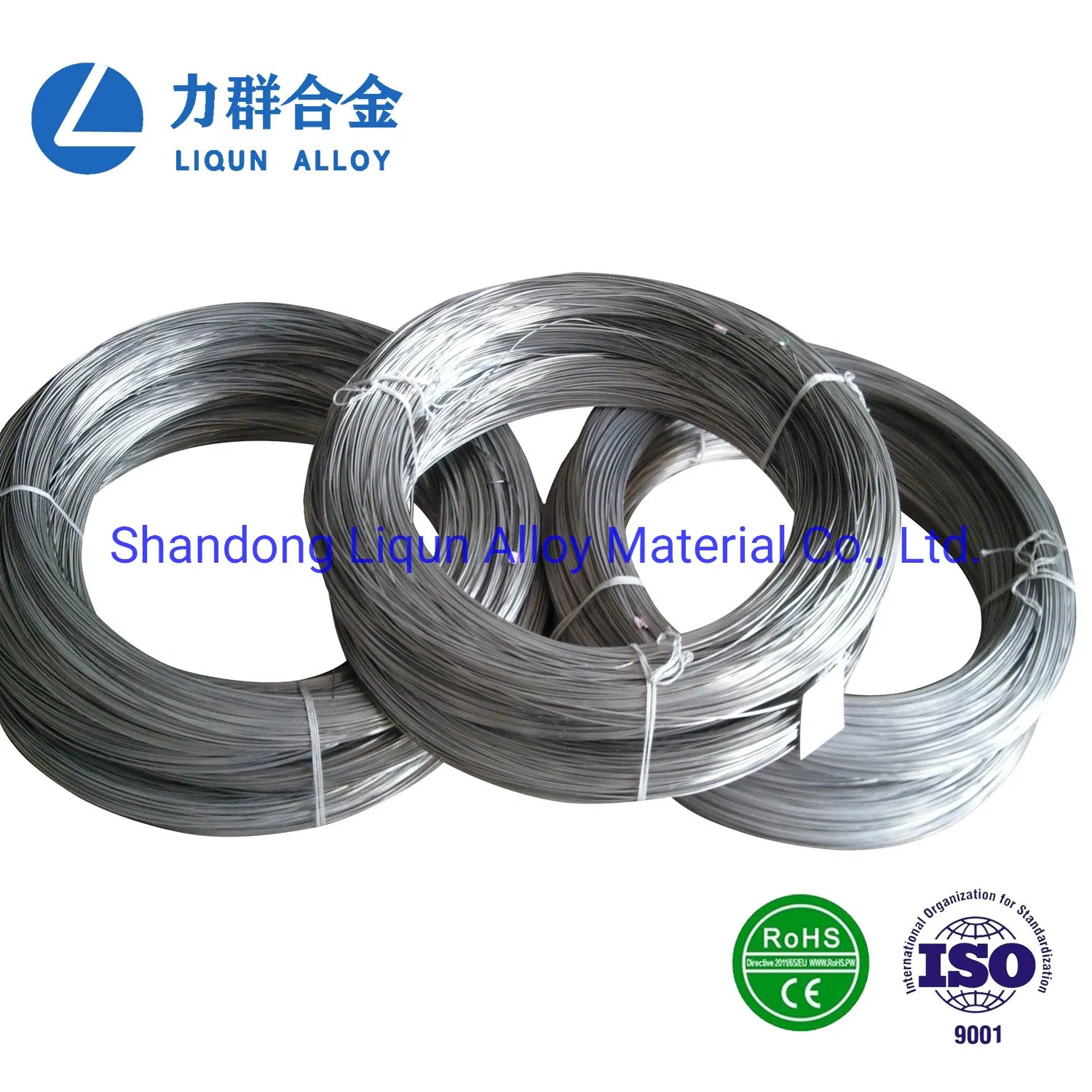

Type E Diameter 15AWG Nickel Chrome-Copper Nickel Thermocouple bar alloy Wire for electric insluated cable EP EN (Type K/N/J/T/E) / copper hdmi Extension wire
Thermocouple compensating wire is used to connect the electrode (cold side of thermocouple) with display instrument in order to form a temperature measurement system.
Thermocouple compensating wire is used to extend the reference junction of thermocouple and connect with the temperature measuring instrument to form a temperature measuring system.
It usually works in most applications, which include industrial aerospace,nuclear power,chemical industry.
1.Chemical composition and mechanical properties
| Thermocouple type | Extension condution model | Extension condution alloy wire | |||||||||||
| E | EX | Name | Code | Polarity | Chemical Composition/% | Density (g/cm3) | Resistivity (μΩ.cm) | Tensile Strength (Mpa) | |||||
| Ni | Cr | Cu | |||||||||||
| Ni-Cr10 | EPX | Positive | 90 | 10 | - | 8.7 | <7.9 | >490 | |||||
| Cu-Ni45 | ENX | Nagative | 45 | - | 55 | 8.6 | <0.3 | >390 | |||||
2.Alloy wire specification
| Alloy wire Dia/mm | Apply to the number of wire cores | The nominal cross-sectional area of the wire core /mm² |
| 0.2 | 7 | 0.2 |
| 0.3 | 7 | 0.5 |
| 0.41 | 19 | 2.5 |
| 0.43 | 7 | 1.0 |
| 0.52 | 7 | 1.5 |
| 0.52 | 1 | 0.2 |
| 0.8 | 1 | 0.5 |
| 1.13 | 1 | 1.0 |
| 1.38 | 1 | 1.5 |
| 1.78 | 1 | 2.5 |
3.Couple EPX/ENX EMF reference table (μV)
| Thermocouple type | Extension condution model | Use classification | Operating temperatures/°C | Nominal value of thermoelectric EMF | Level I | |
| Tolerance | Range of EMF | |||||
E | EX | G | -25 | -1432 | ±81 | -1351 ~ -1513 |
| 100 | 6319 | 6 238 ~ 6 400 | ||||
E | H | -25 | -1432 | ±81 | -1351 ~ -1513 | |
| 100 | 6319 | 6 238 ~ 6 400 | ||||
| 200 | 13421 | 13 340 ~ 13 502 | ||||
