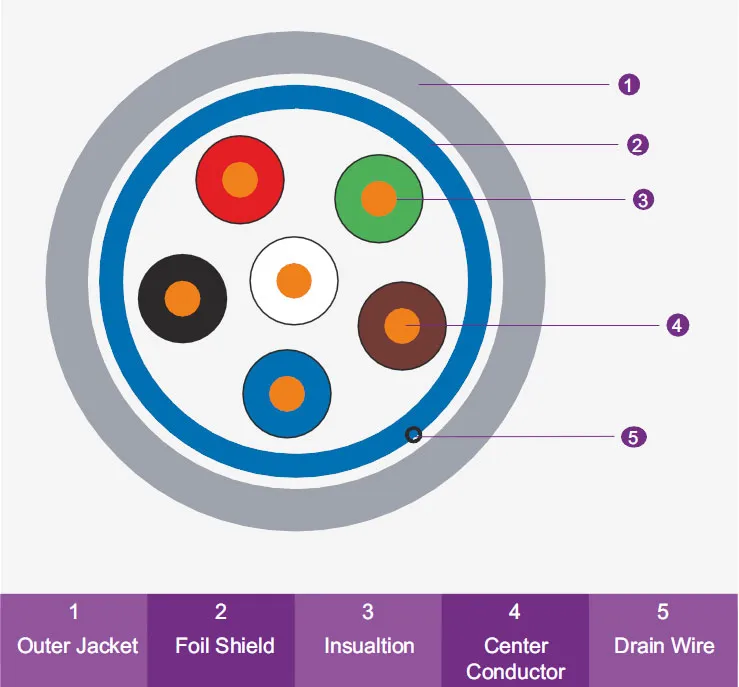

Specification:| Conductor | Shielding | Outer Jacket |
| Bare Copper | Aluminium Foil-Polyester Tape | LSZH |
| Insulation | Drain Wire | Jacket Color |
| PE(High Density Polyethylene) | Tinned Copper | Grey ,White or according customer's requests |
Construction& Physical Characteristics
| Characteristic | Value |
| No.of Conductor | 6 |
| Conductor Size | 22AWG (0.64mm) |
| Insulation Diameter | 1.3 mm |
| Drain Wire Size | 7*0.20 mm |
| Jacket Thickness | 0.45 mm |
| Outer Jacket Diameter | 5.2mm |
| Max. Recommended Pulling Tension | 242N |
Electrical Characteristics
| Characteristic | Unit | Value |
| Nom. Conductor DCR | Ω/Km | 52.8 |
| Nom. Resistance Shield | Ω/Km | 79 |
| Nom. Capacitance conductor to conductor | pF/m | 65 |
| Maximum Operating Voltage | Vrms | 300 |
Mechanical Characteristics
Insulation Colour Code
| Characteristic | Value |
| Test Material | LSZH |
| Before Tensile Strength (Mpa) | ≥ 13.8 |
| Aging Elongation (%) | ≥ 100 |
| After Tensile Strength (Mpa) | ≥ 10.35 |
| Aging Elongation (%) | ≥ 75 |
| Cold Bend (-20±°C x 4 hrs) | No Crack |

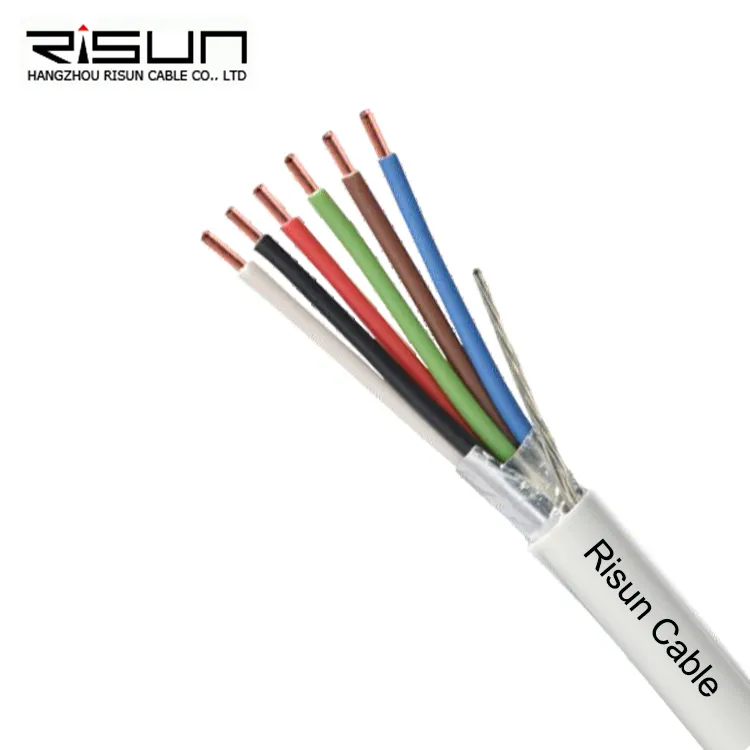

Insulation Colour Code
| Individual Pair | Colour |
| Core 1 | Black |
| Core 2 | Red |
| Core 3 | White |
| Core 4 | Green |
| Core 5 | Brown |
| Core 6 | Blue |
Application:

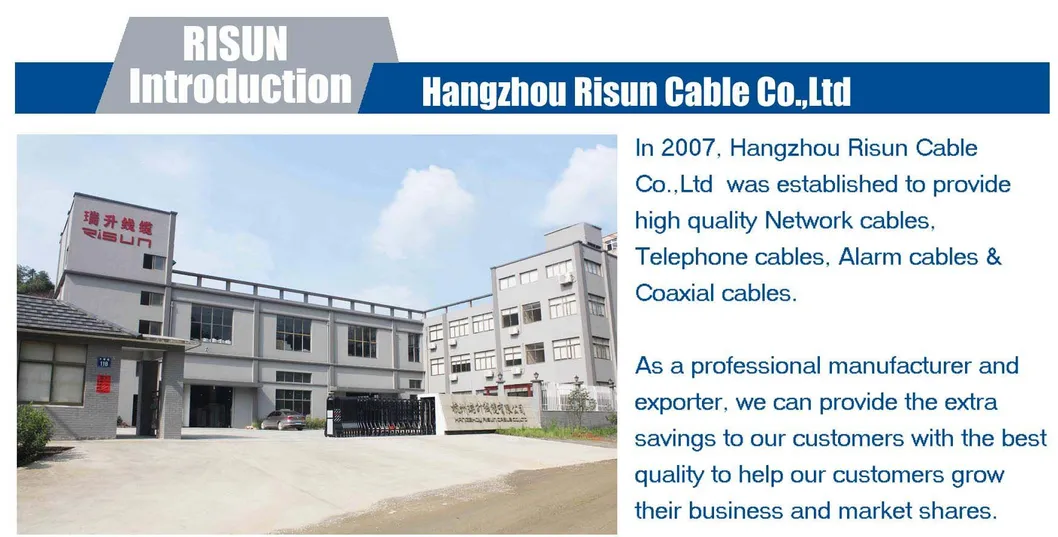

Company Introduction

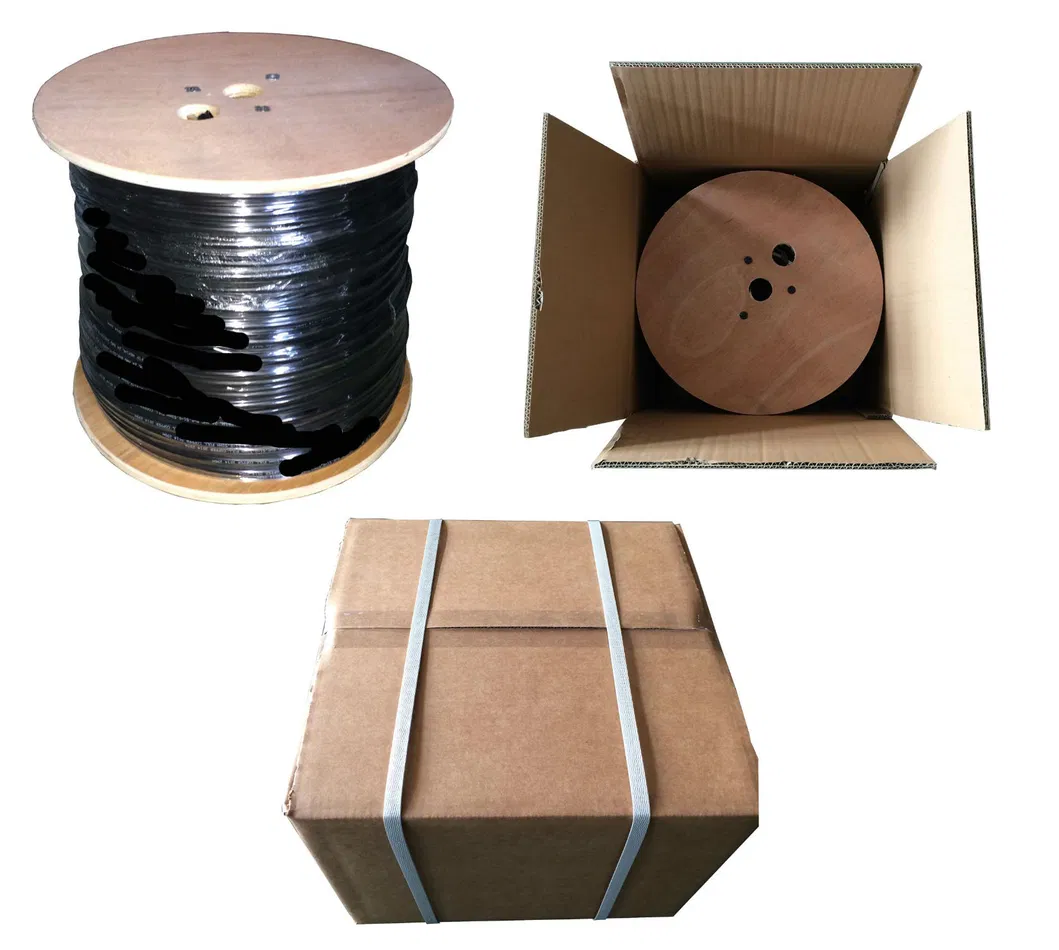

Packing:

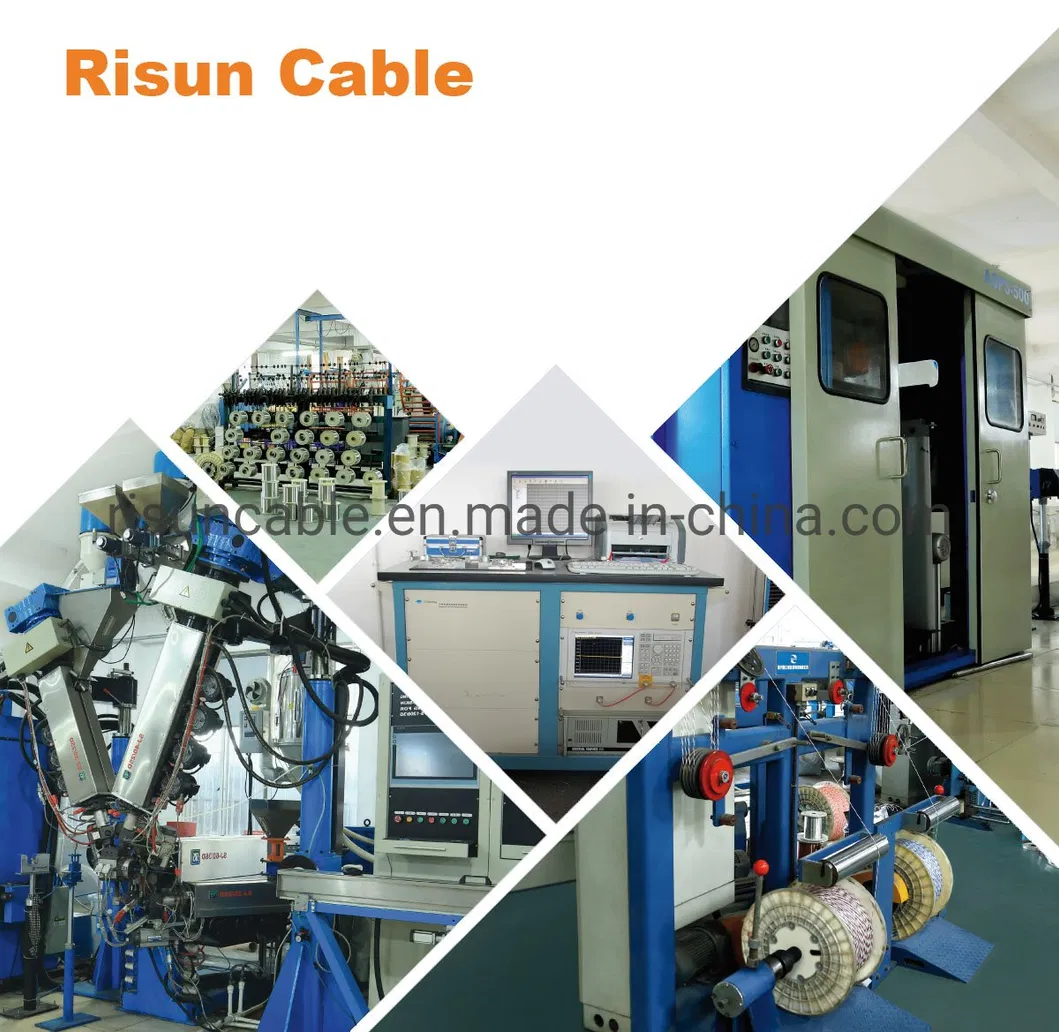

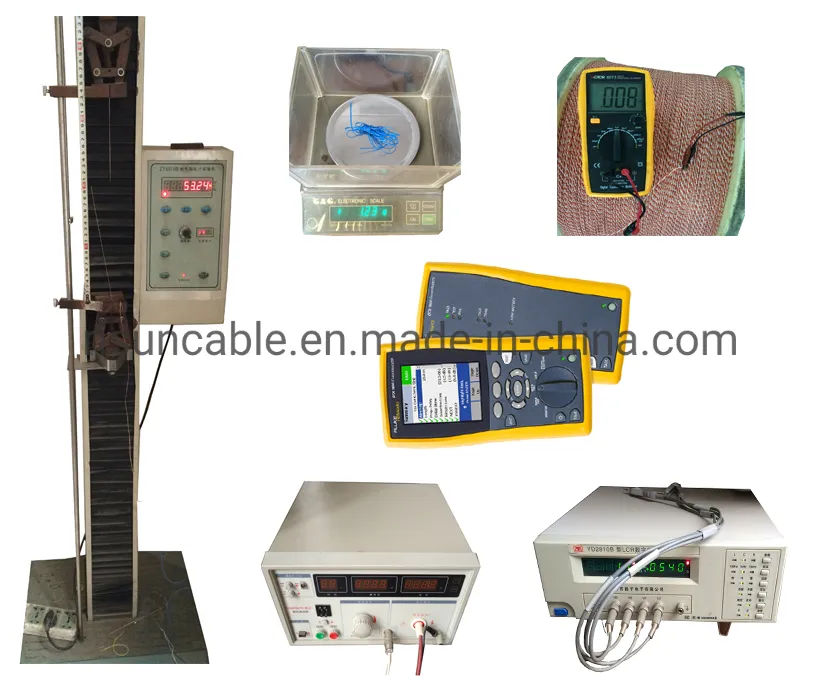

Production line:
FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.
Q2. HOW LONG IS YOUR DELIVERY TIME?
A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.
Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color
Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?
Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?
A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
A: Yes. Please inform us formally before our production.
Q7. WHAT IS YOUR TERMS OF PAYMENT?
A: Payment<=60km,100% in="" advance="">=60KM,30%TT in advance ,balance before shipment .
