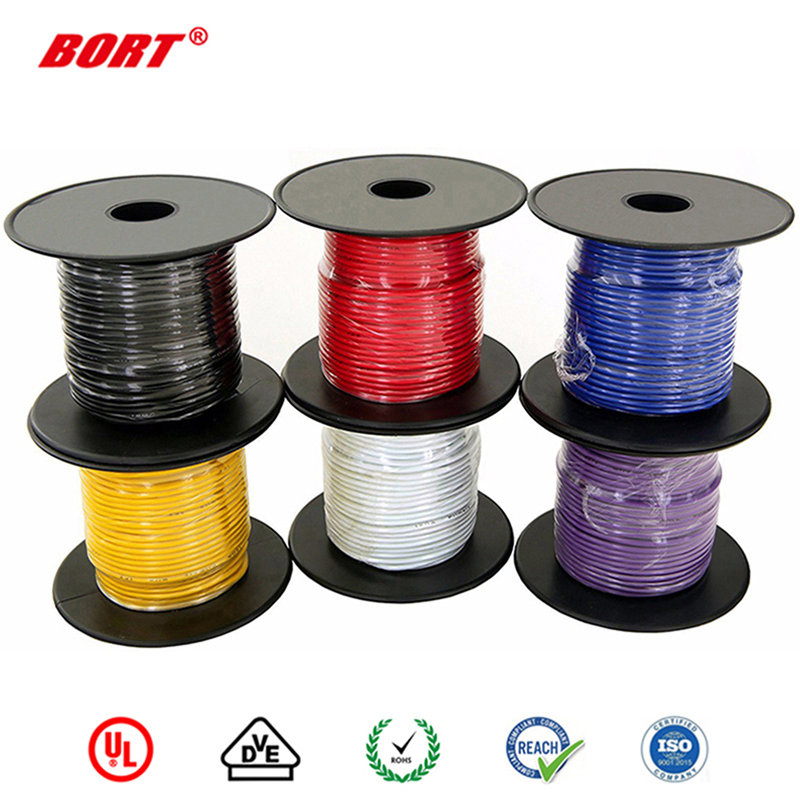

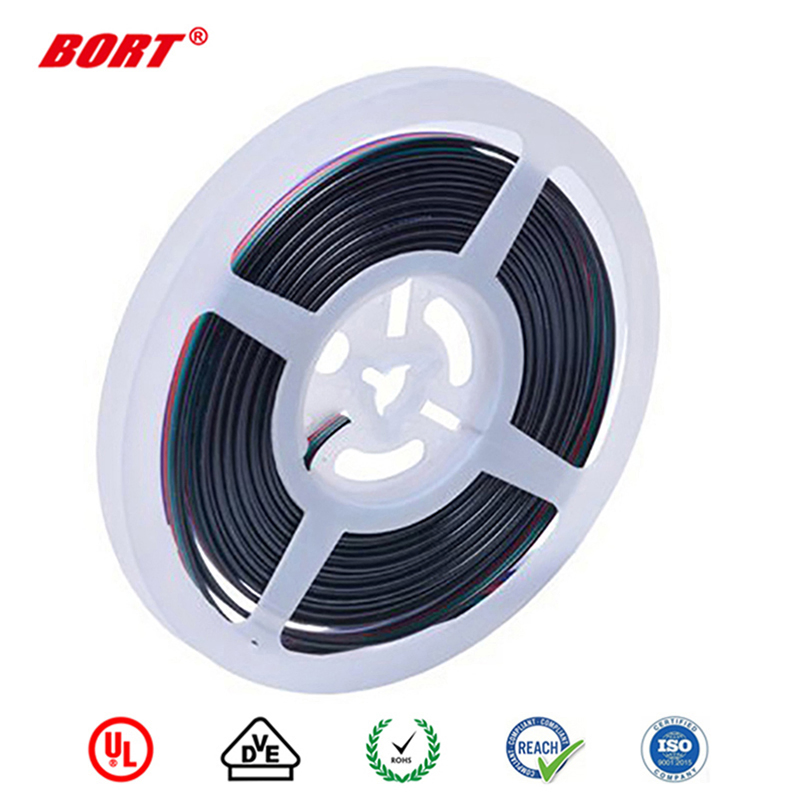

The VDE H05s-K 300V Silicone Rubber Wires Home Appliance Heater Motor

VDE Approved H05VV -F Power Cable Electric Wire PVC Sheathed Flexible Cable for House

H05VV-F Application Scope :
Available for external & internal wiring of electrical instrument, power device & automatic device without forcible traction. Without direction, at times for movable wiring.

H05VV-F Cable structure:
Conductor: Stranded bare copper or tinned copper in accordance with VDE 0281 Part 5,HD21.5S3 IEC 227-5
Insulation:PVC/TI2 PVC in accordance with DIN VDE 0281.
Color ID:In accordance with HD 402 Standard
Jacket Material:PVC/TM2 PVC
Application Standard:  HD21.5, VDE 0281, CEI 20-20/5, CEI 20-35 (EN60332-1), CEI 20-52,CE Low voltage 73/23/EEC & 93/68/EEC

H05VV-F Features & Conformity:
Features : Super fine conductor, flexible for small bending angle . Durable for certain external mechanical forces
In accordance with EU coordination standard
Conformity Approval : RoHS   CE

H05VV-F Technical Parameter:
Rated Voltage:2000V In accordance with DIN VDE 0281 Part 2 HD21.2
Min. bending Radius
Fixed Installation:  5×D(Cable OD)
Movable Installation:  8×D(Cable OD)
Temperature Range
Fixed Installation:  -20 to +70°C
Movable Installation:  -5 to +70°C
