Product Description

View more about products :

IEC60227 BV RV BVR RVV RVB AVVR RVVP Electric Wire and Cable Housing Wire Building Wire Installation Wire Hookup Wire

-Rated temperature: 70ºC
-Rated voltage: 300V/300V; 300V/500V; 450V/750V
-Reference Standard: GB/T5023.3; GB/T 5023.5-2008; IEC 60227
-Flame test: IEC 60332
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance.

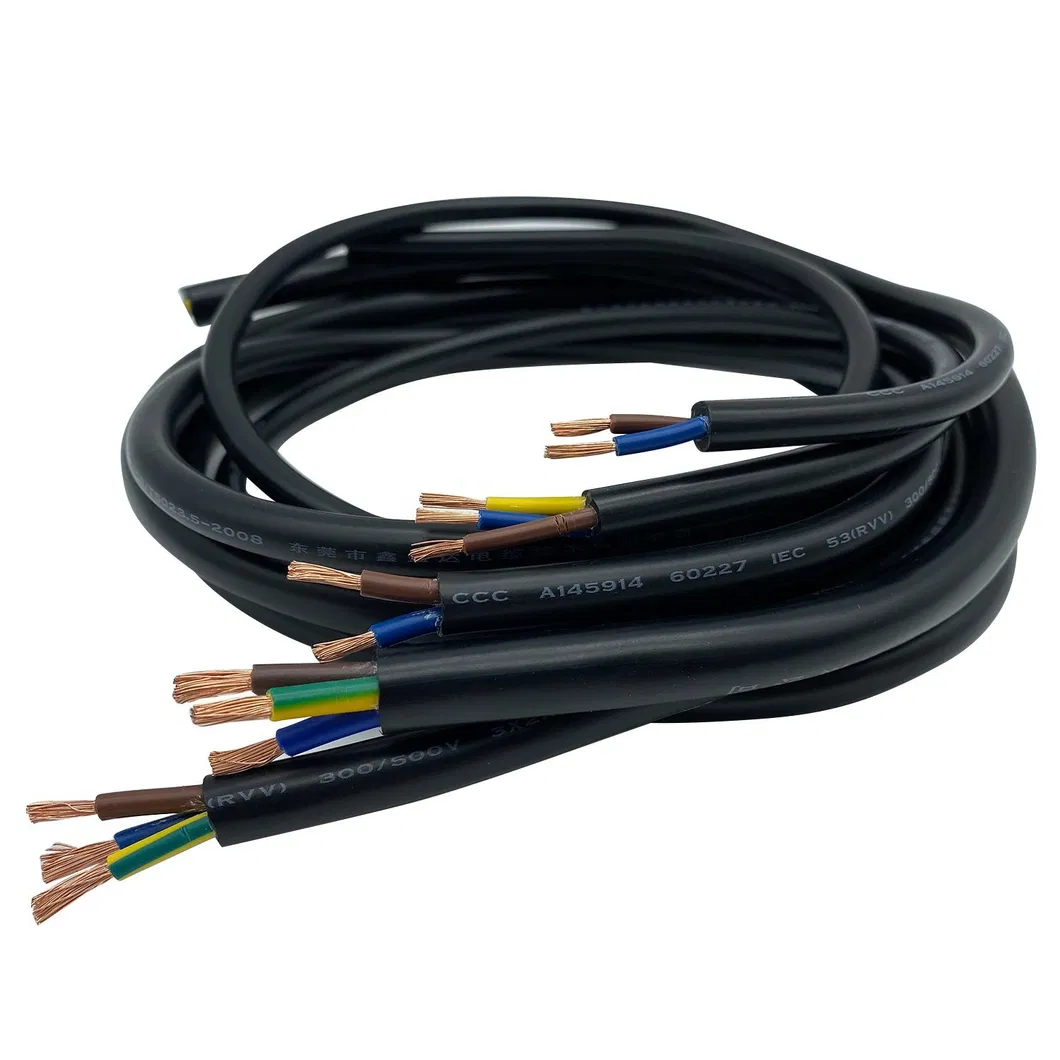

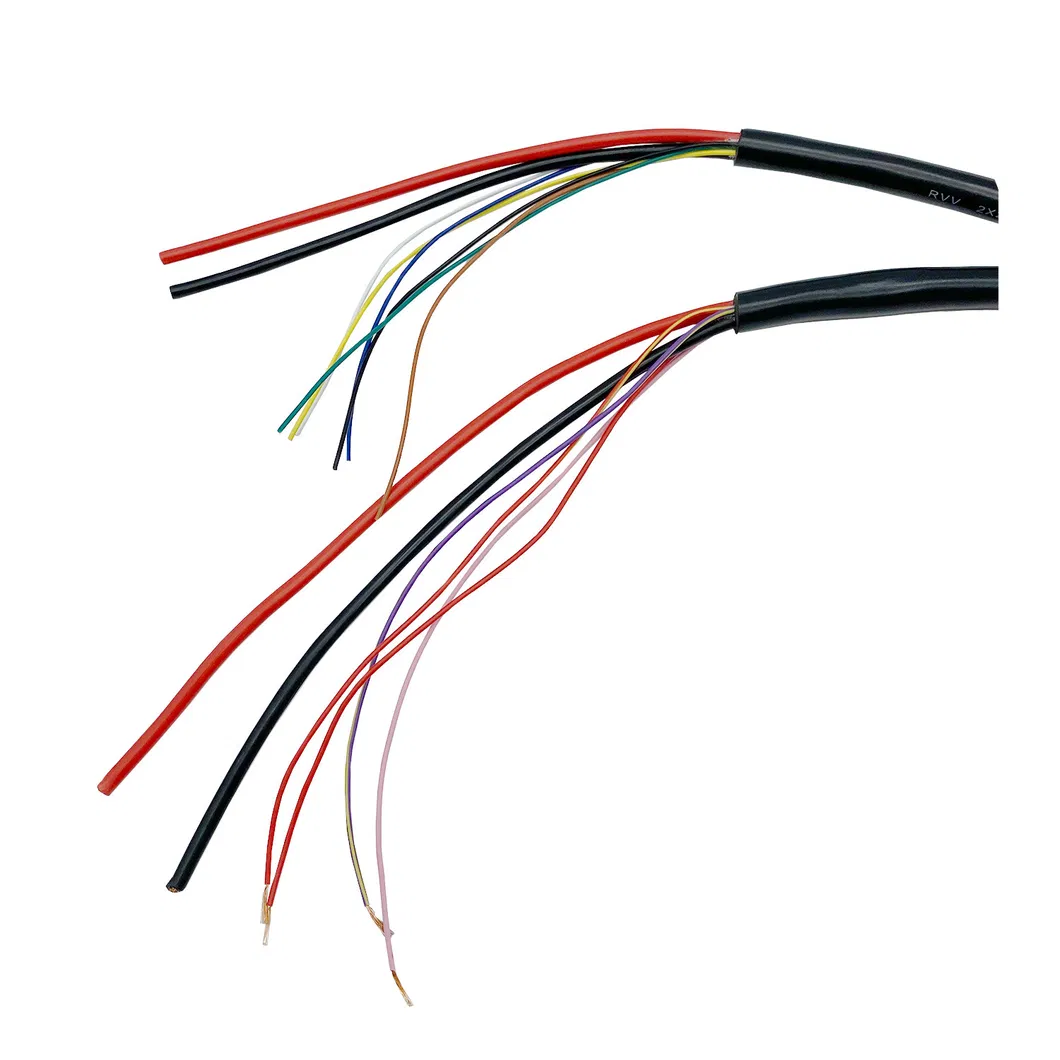

Rvv RV BV Bvr Electric Flexible Cable PVC Sheathed Housing Wire for Electrical Appliance

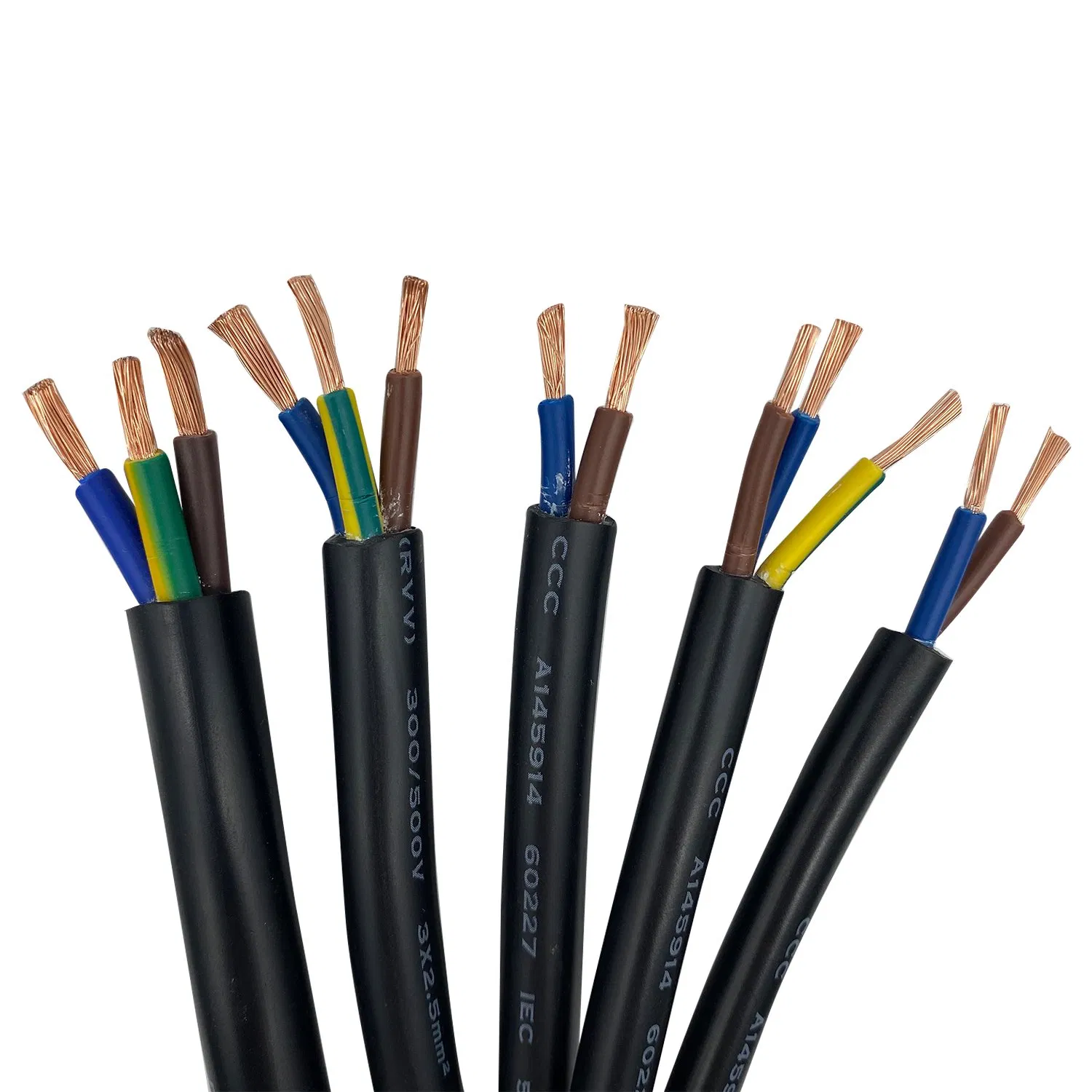

Rvv RV BV Bvr Electric Flexible Cable PVC Sheathed Housing Wire for Electrical Appliance

Code Designation by IEC	Code Designation by GB	Rated Voltage	Rated Temperature	Nominal crosssection(mm²)	Description	Application
60227 IEC 01	BV	450V/750V	0°C~70°C	1.5 to 35mm²	Copper Conductor PVC Insulated Rigid Cable	Fixed laid indoors instrument etc.
60227 IEC 05	BVR	450V/750V	0°C~70°C	2.5 to 35mm²	Copper Conductor PVC Insulated Semi-Flexible Cable	For laying permanent place where flexible required
60227 IEC 02	RV	450V/750V	0°C~70°C	1.5 to 35mm²	Copper conductor PVC Insulated Flexible Connector Cable	Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required
60227 IEC 06	RV	300V/500V	0°C~70°C	0.5 to 1mm²	Copper conductor PVC Insulated Flexible Connector Cable

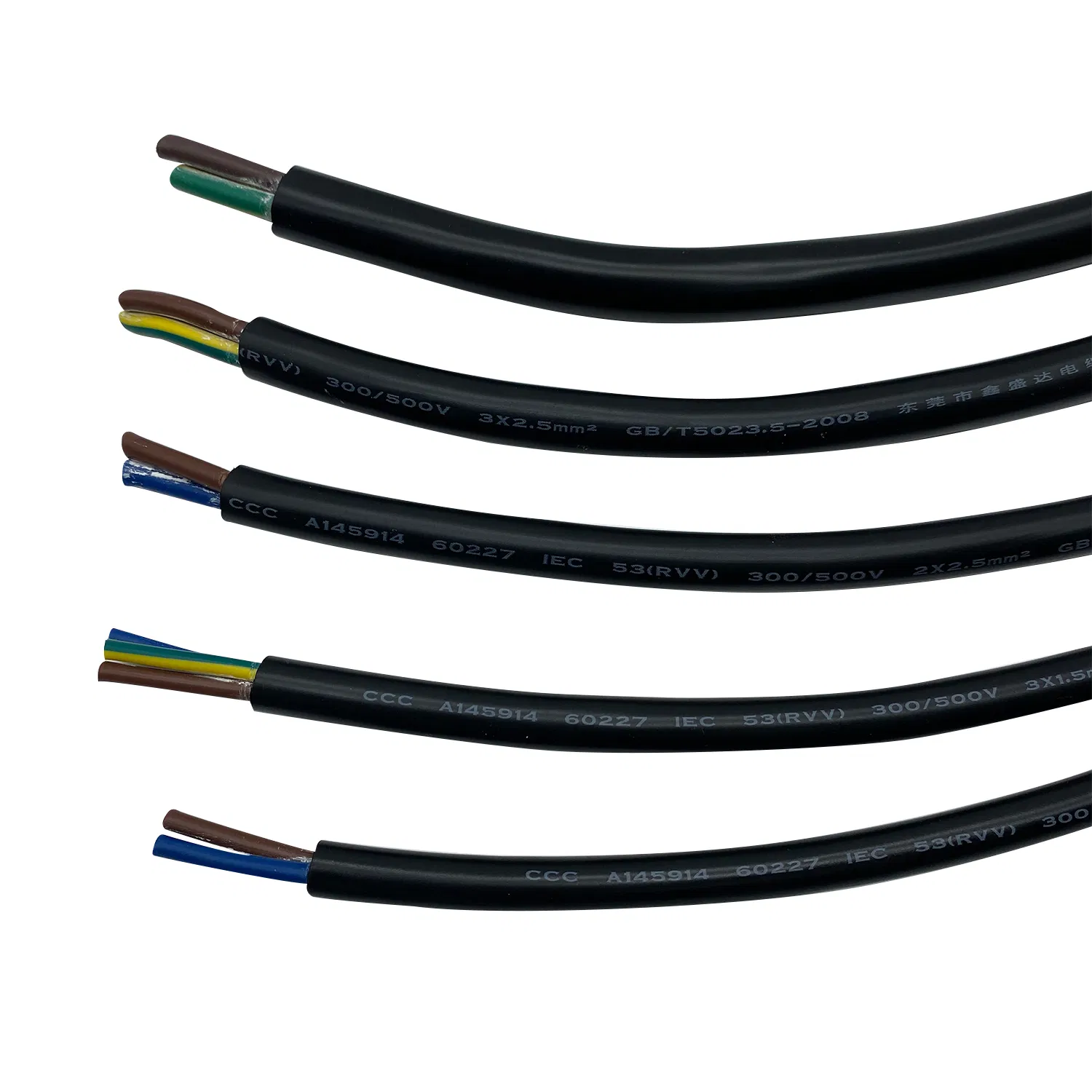

60227 IEC 52	RVV	300V/300V	0°C~70°C	0.5 to 0.75mm² (2 to 3 cores)	Copper conductor PVC Insulated and PVC Sheathed Round Flexible Connector Cable
60227 IEC 53	RVV	300V/500V	0°C~70°C	0.75 to 2.5mm² (2 to 5 cores)
				4mm² (3 to 5 cores)
				0.75 to 2.5mm² (6 cores)
				0.75 to 1.5mm² (7 to 8 cores)
				0.75 to 1mm² (10 to 24 cores)
60227 IEC 42	RVB	300V/300V	0°C~70°C	0.5 to 4mm² (2 cores)	Copper conductor PVC Insulated Flat Flexible Connector Cable
N/A	RVVP	300/300V	0°C~70°C	0.08 to 1.5mm² (2 cores)	PVC Insulated Wire and Shielded Wire for Installation	For Installation
				0.12 to 1.5mm² (3 cores)
				0.12 to 0.4mm² (4 to 24 cores)
	AVVR	300/300V	0°C~70°C	0.08 to 0.4mm² (2 cores)
	AVVR	300/300V	0°C~70°C	0.12 to 0.4mm² (4 to 24 cores)

Rvv RV BV Bvr Electric Flexible Cable PVC Sheathed Housing Wire for Electrical Appliance

SHENZHEN SINGDER INSULATION MATERIALS CO LTD (E484953)
Table of Recognized Styles
Single-conductor, thermoplastic insulation.
1007	1061	1330	1332	1430	1571	10269	10702
1015	1185	1331	1333	1569	1589	10368
Multiple-conductor, thermoplastic insulation.
2464	2648	2678	20080	21016	21513
2468	2651	2725	20276	21370
Single-conductor, thermoset insulation.
3173	3271	3321	3386	3656
3266	3302	3385	3619
Multiple-conductor, thermoset insulation.
4478

DONGGUAN XSD CABLE TECHNOLOGY CO LTD (E506386)
Table of Recognized Styles
Single-conductor, thermoplastic insulation.
1007	1015	1061	1569	10070	10368
1013	1032	1185	1571	10269	11627
Multiple-conductor, thermoplastic insulation.
2464	2468	2517	2547	2651	2725	2835	20276
Single-conductor, thermoset insulation.
3173	3266	3289	3321	3386
3196	3271	3302	3385	3656

View more about us :

Dongguan XSD Cable Technology Co., Ltd (subsidiary of Shenzhen Singder Insulation Materials Co., Ltd) is a Chinese professional manufacturer with "ISO9001, IATF16949, UL, cUL, CCC" approved in Dongguan city next to Shenzhen and Guangzhou.

★Main Products: UL/cUL AWM Wires&Cables, Automotive Wire, Industrial Wire, Hook-up&Lead Wire, Solar Cable(PV Wire), Heating Wire, FFC Wire, Flat Ribbon Cable, BV, RV, BVR, RVV, RVB, AVVR, RVVP, USB Cable, HDMI, DVI, VGA, Cable Assembly, Wire Harness and so on.

★Insulation Materials: PVC/PE/XLPE/LSZH/PTFE/PFA/FEP/SILICONE RUBBER/TPU/TPE and so on.

We are keen to talk more and support you more whether it is a deal or not. Please contact us without hesitation if you have any demands.
