PVC Insulation Tinned Copper White Hookup Wire 16AWG 18 AWG 20AWG 22AWG AWG24 26AWG 28AWG Awm UL1007 Electric Wire
pvc insulation Tinned Copper white hookup wire 16awg 18 awg 20awg 22awg awg24 26awg 28awg awm ul1007 electric wireModel: UL 1007 Hook-up wireVoltage: 300VTemperature: 80°CAccoring to: UL Subject758, UL1581, C22.2Conductor: solid or stranded, bare or tinned copperPVC insulationPVC jacket32AWG......
Send Inquiry
Product Description

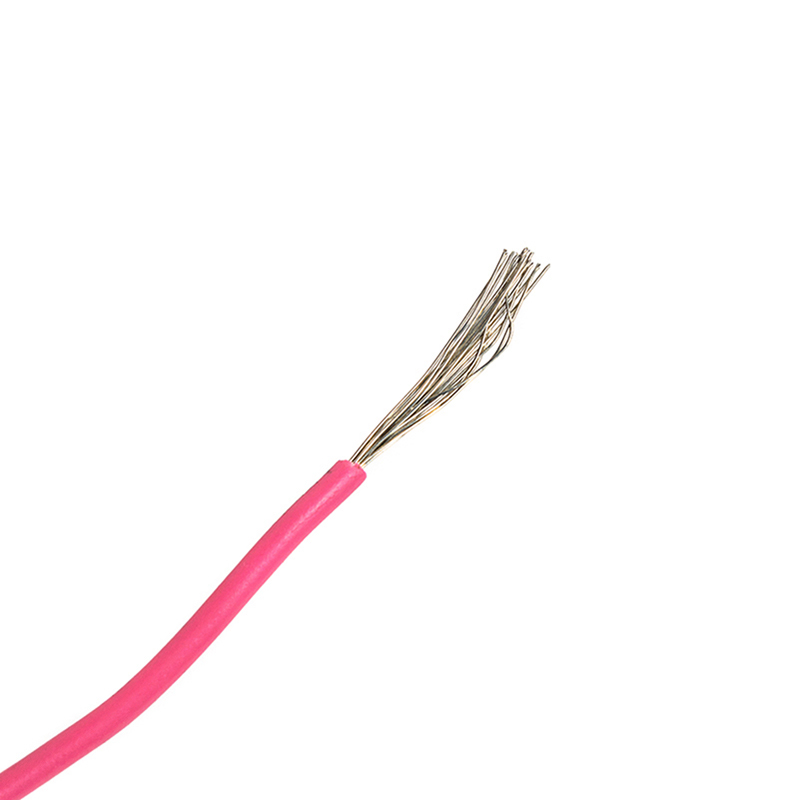

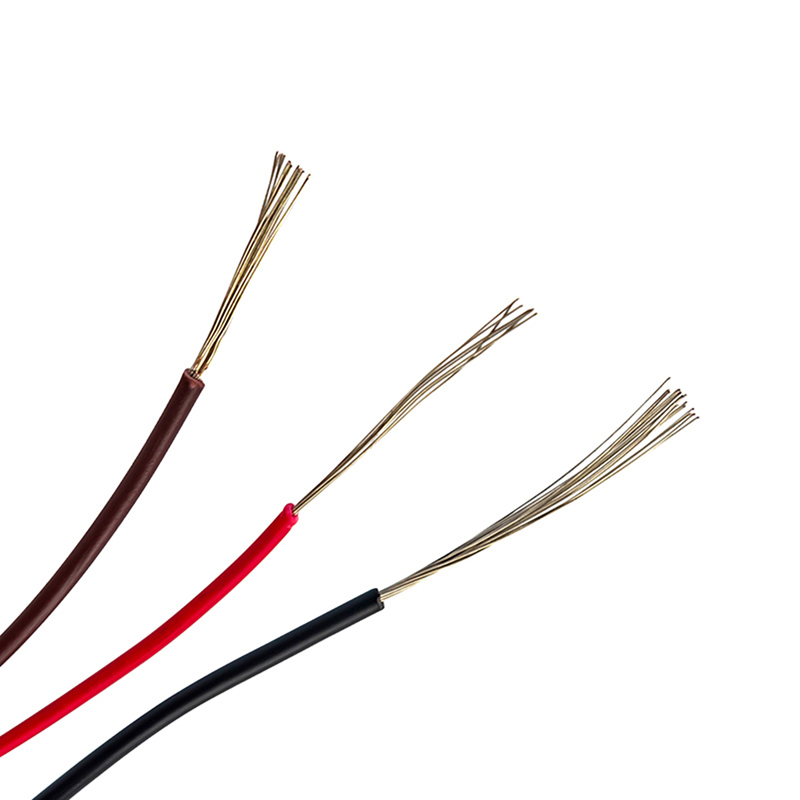

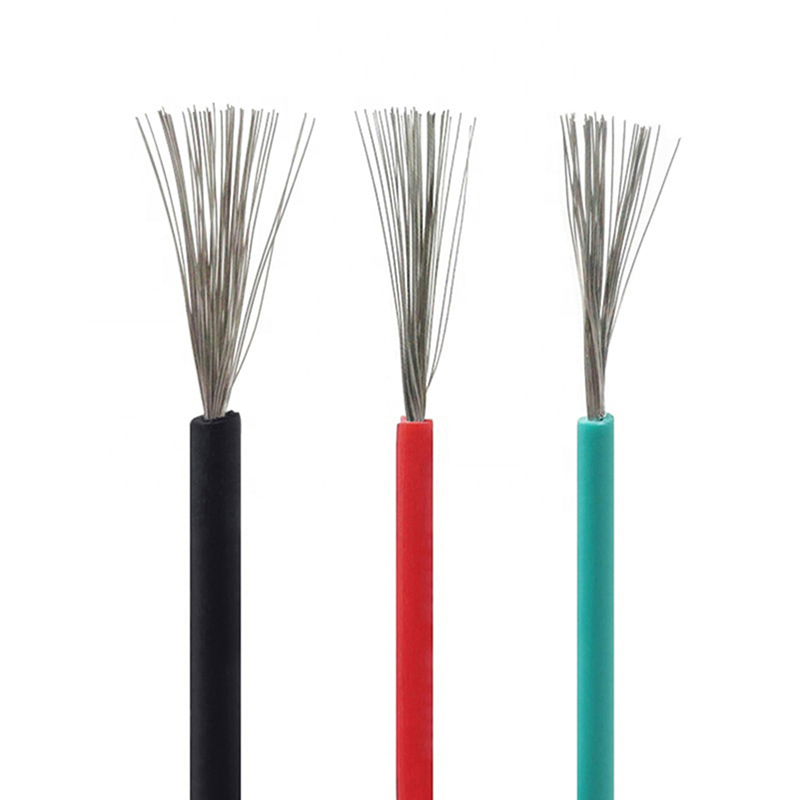

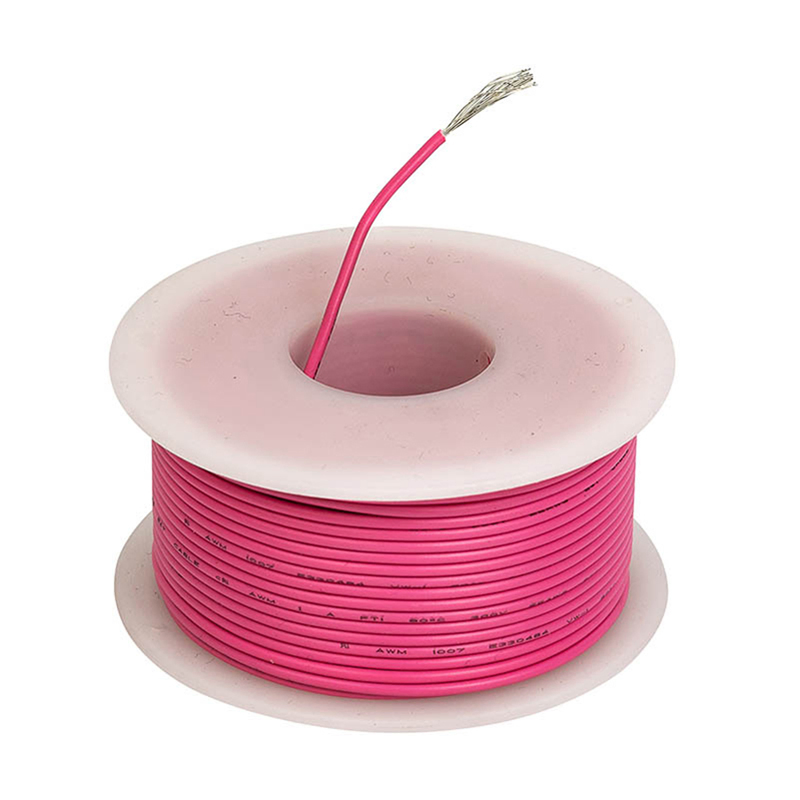

pvc insulation Tinned Copper white hookup wire 16awg 18 awg 20awg 22awg awg24 26awg 28awg awm ul1007 electric wire
- Model: UL 1007 Hook-up wire
- Voltage: 300V
- Temperature: 80°C
- Accoring to: UL Subject758, UL1581, C22.2
- Conductor: solid or stranded, bare or tinned copper
- PVC insulation
- PVC jacket
- 32AWG to 16AWG
- Passes UL VW-1 & CSA FT1 vertical flame test
- Uniform insulation thickness of wire to ensure easy stripping and cutting
- For general purpose internal wiring of appliance
| Conductor | Finished product | Maximum Resistance at 20ºC | |||
| AWG | NO.of Cond | Insulation Thick. | Outside Thick. | Packing | |
| mm | mm | mm | m/r | Ω/mm | |
| 30 | 7/0.1 | 0.41 | 1.10 | 610 | 354.33 |
| 28 | 7/0.127 | 0.41 | 1.20 | 610 | 223.75 |
| 26 | 7/0.16 | 0.41 | 1.30 | 610 | 139.76 |
| 24 | 11/0.16 | 0.41 | 1.40 | 610 | 88.36 |
| 22 | 17/0.16 | 0.41 | 1.60 | 610 | 60.16 |
| 20 | 21/0.178 | 0.41 | 1.80 | 610 | 38.58 |
| 18 | 34/0.178 | 0.41 | 2.10 | 610 | 22.98 |
| 16 | 26/0.254 | 0.41 | 2.40 | 610 | 15.06 |
| 28 | 1/0.320 | 0.41 | 1.15 | 610 | 227.39 |
| 26 | 1/0.404 | 0.41 | 1.25 | 610 | 142.79 |
| 24 | 1/0.511 | 0.41 | 1.35 | 610 | 89.39 |
| 22 | 1/0.643 | 0.41 | 1.50 | 610 | 54.30 |
| 20 | 1/0.813 | 0.41 | 1.65 | 610 | 33.90 |
| 18 | 1/1.024 | 0.41 | 1.85 | 610 | 21.40 |
