PTC Bj Tns 600V AWG Copper Cable 14AWG 12AWG 10AWG 8AWG 6AWG

Product Description

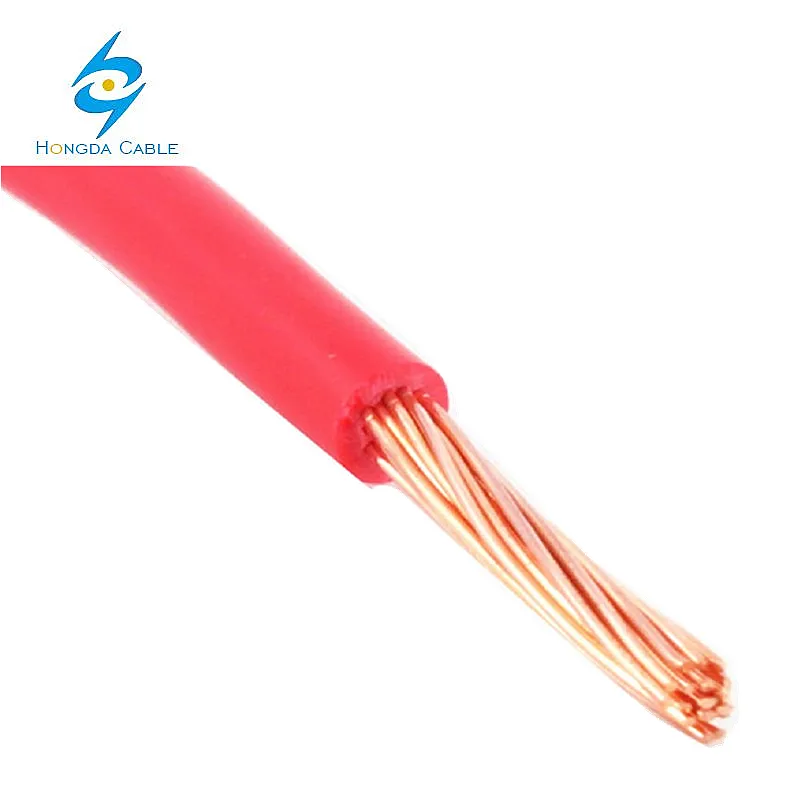

Copper conductor 450/750v THW 12 AWG cable wire electrical

Type THW is a single conductor ground wire suitable for non-grounded multiconductor cables. Compatible with twisted, heavy-duty,jacketed, or parallel cables. These wires are manufactured to UL standard Type THW. The solid bare copper conductor is insulated with a moisture-resistant, polyvinyl chloride (PVC) insulation .
phone 008615037165923
1.For installation in conduits and other raceways
2.Oil and grease resistant insulation
3.Abrasion and crush resistant
4.THW insulation is flame retardant PVC and meets the UL VW-1 flame test
5.Maximum continuous conductor temperature: 75°C Dry, 75°C Wet

WG or kcmil	Strand	Nominal Insulation Thichness Inch/mm		Nominal Overall Diameter Inch/mm		Cable Weight Lbs/kft kg/km
14	1	0.030	0.76	0.169	4.3	22	33
12	1	0.030	0.76	0.189	4.8	32	47
10	1	0.030	0.76	0.213	5.4	46	68
8	1	0.045	1.14	0.240	6.1	67	100
14	7	0.030	0.76	0.177	7	101	151
12	7	0.030	0.76	0.201	4.5	24	36
10	7	0.030	0.76	0.228	5.1	34	50
8	7	0.045	1.14	0.291	5.8	49	73
6	7	0.060	1.52	0.335	7.4	79	118
4	7	0.060	1.52	0.386	8.5	117	174
2	7	0.080	2.03	0.445	9.8	172	256
1	19	0.080	2.03	0.531	11.3	263	391
1/0	19	0.080	2.03	0.575	13.5	339	505
2/0	19	0.080	2.03	0.622	14.6	418	622
3/0	19	0.080	2.03	0.677	15.8	515	767
4/0	37	0.080	2.03	0.740	17.2	638	950
250	37	0.095	2.41	0.823	18.8	792	1179
300	37	0.095	2.41	0.882	20.9	943	1404
350	37	0.095	2.41	0.937	22.4	1118	1664
400	37	0.095	2.41	0.984	23.8	1292	1923
500	61	0.095	2.41	1.079	25	1465	2180
600	61	0.110	2.79	1.197	27.4	1810	2694
