ISO 6722 Europe Germany Standard 125 Degree Flryw-a PVC Auto Wire
ISO 6722 Europe Germany Standard 125 Degree FLRYW-A PVC auto wire Rated temperature: 125°CAccording to: ISO 6722 Class CStranded tinned copperInsulation: PVCAutomotive PVC insulated single-core cable with symmetrical conductor structure (type A) and thin wall is used for automobiles, motorcy......
Send Inquiry
Product Description

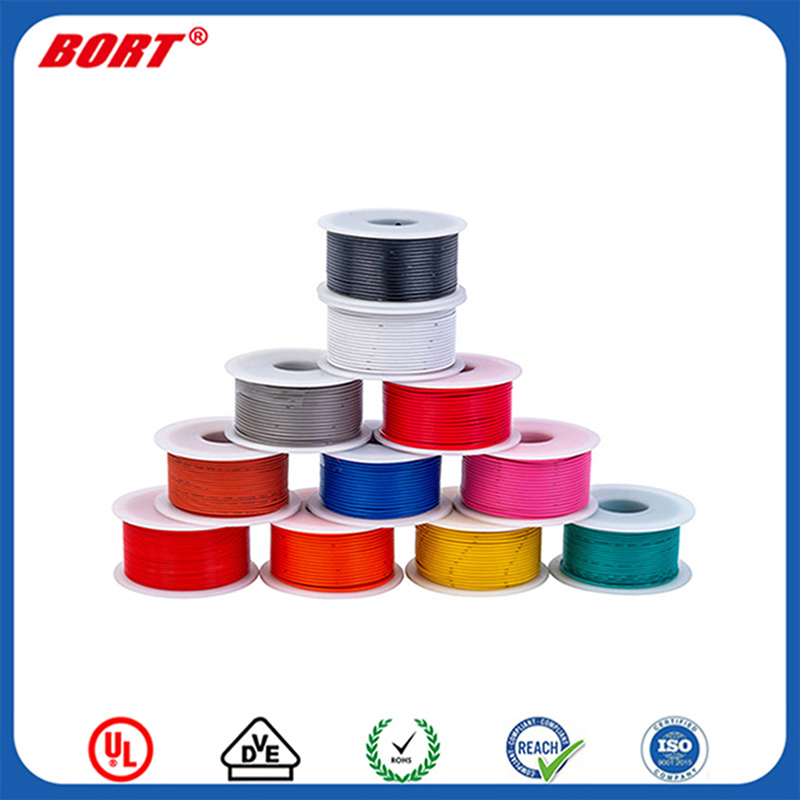

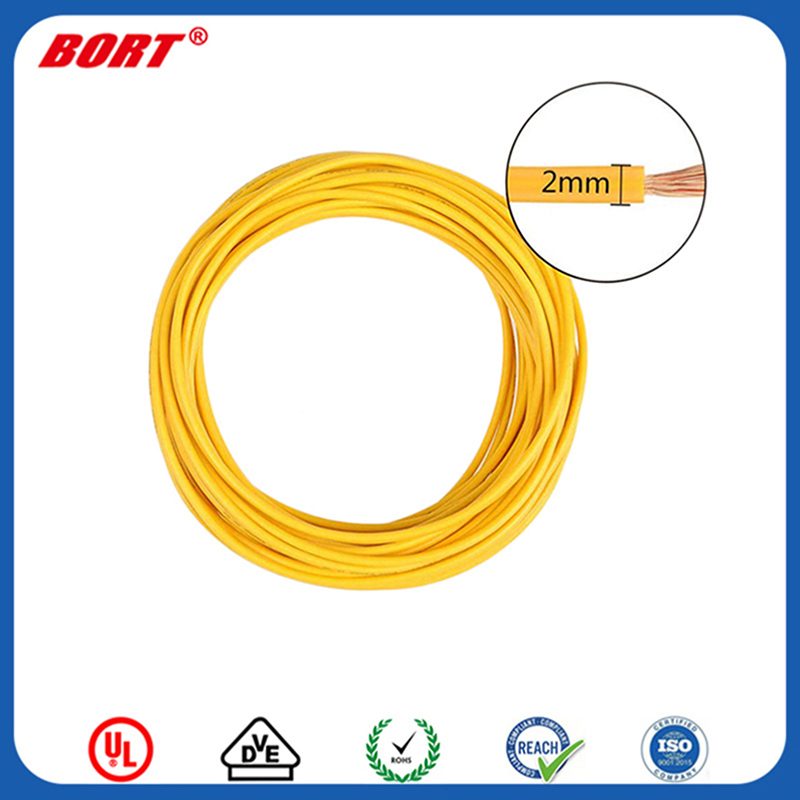

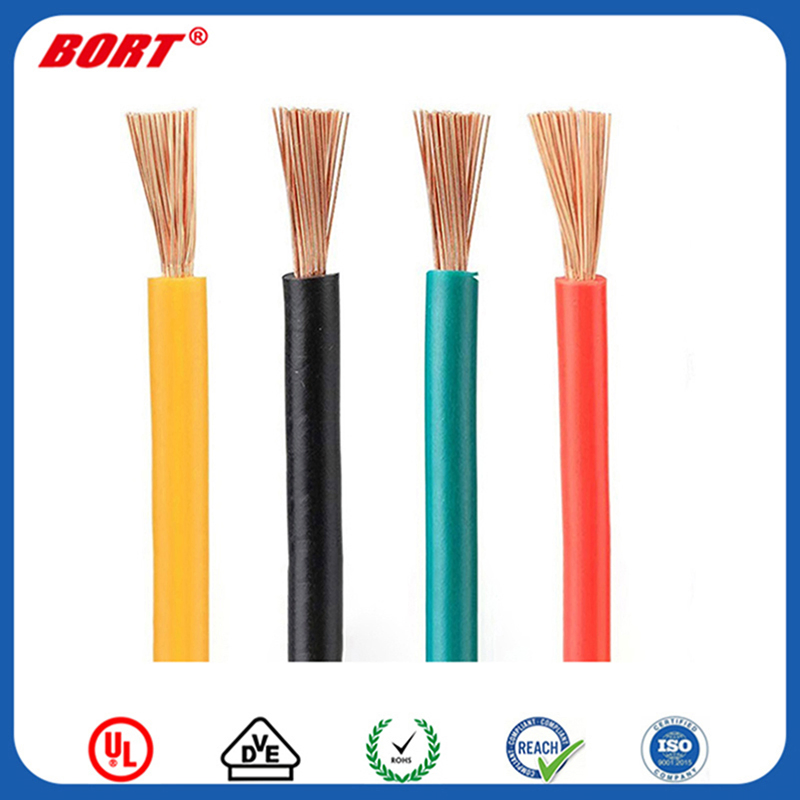

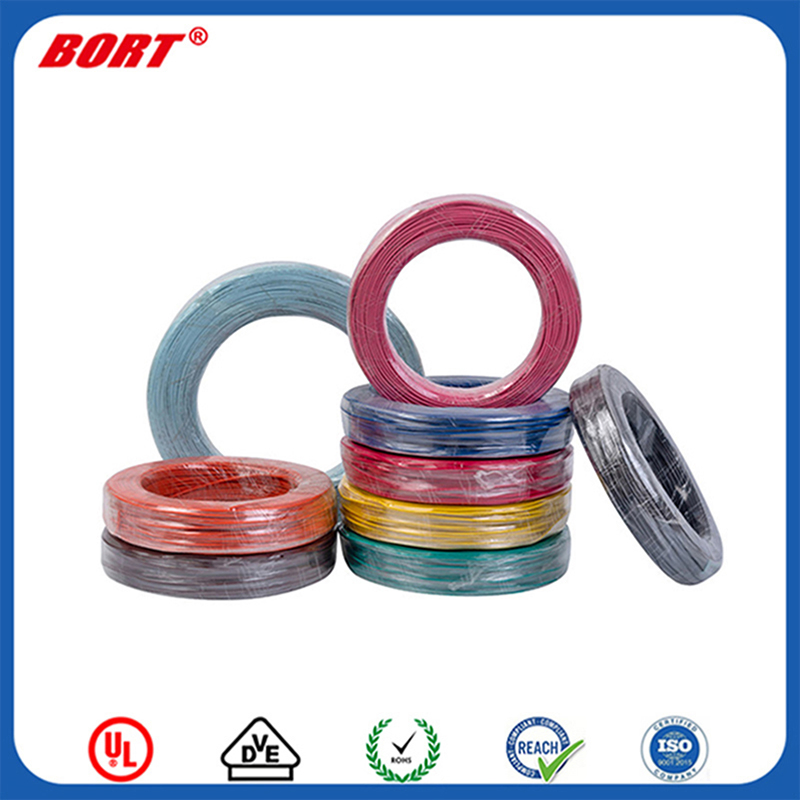

ISO 6722 Europe Germany Standard 125 Degree FLRYW-A PVC auto wire
Rated temperature: 125°C
According to: ISO 6722 Class C
Stranded tinned copper
Insulation: PVC
Automotive PVC insulated single-core cable with symmetrical conductor structure (type A) and thin wall is used for automobiles, motorcycles electrical equipment in high temperature condition
| Cross- section | No. and Dia. of Wires | Diameter of Conductor max. | Resistance at 20°C Bare/Tinned | Thickness Wall min. | Overall Diameter Max. | Weight approx. |
| max. | ||||||
| mm2 | No./mm | mm | mΩ/m | mm | mm | kg/km |
| 1x0.22 | 7/0.21 | 0.7 | 84.80/86.50 | 0.2 | 1.2 | 3 |
| 1x0.35 | 7/0.26 | 0.8 | 52.00/54.50 | 0.2 | 1.3 | 5 |
| 1x0.50 | 19/0.19 | 1 | 37.10/38.20 | 0.22 | 1.6 | 7 |
| 1x0.75 | 19/0.23 | 1.2 | 24.70/25.40 | 0.24 | 1.9 | 9 |
| 1x1.00 | 19/0.26 | 1.35 | 18.50/19.10 | 0.24 | 2.1 | 11 |
| 1x1.50 | 19/0.32 | 1.7 | 12.70/13.00 | 0.24 | 2.4 | 16 |
| 1x2.00 | 19/0.37 | 2 | 9.42/9.69 | 0.24 | 2.6 | 23 |
| 1x2.50 | 19/0.41 | 2.2 | 7.60/7.80 | 0.28 | 3 | 26 |
