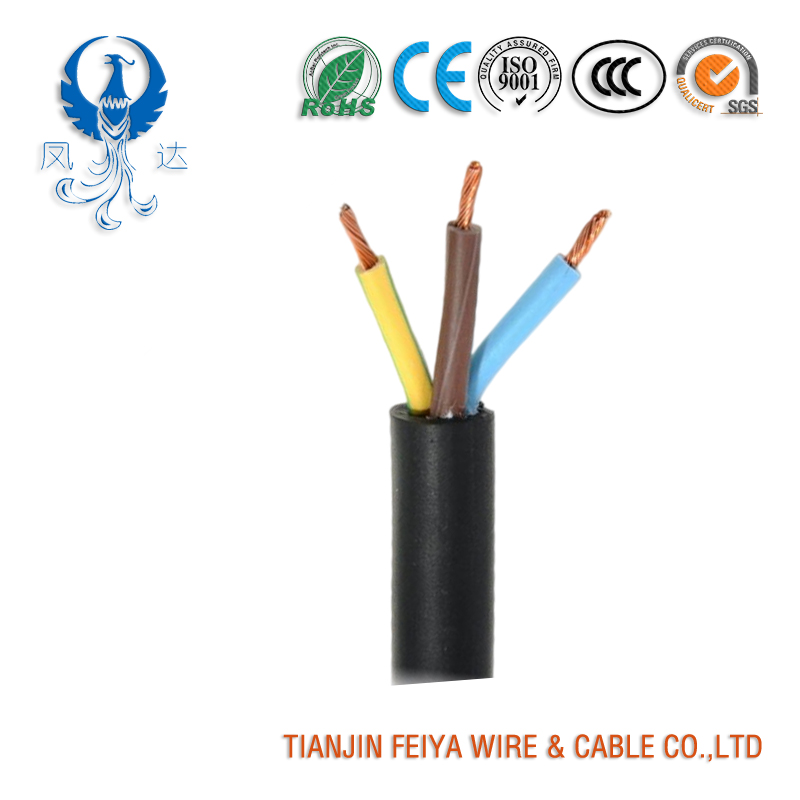

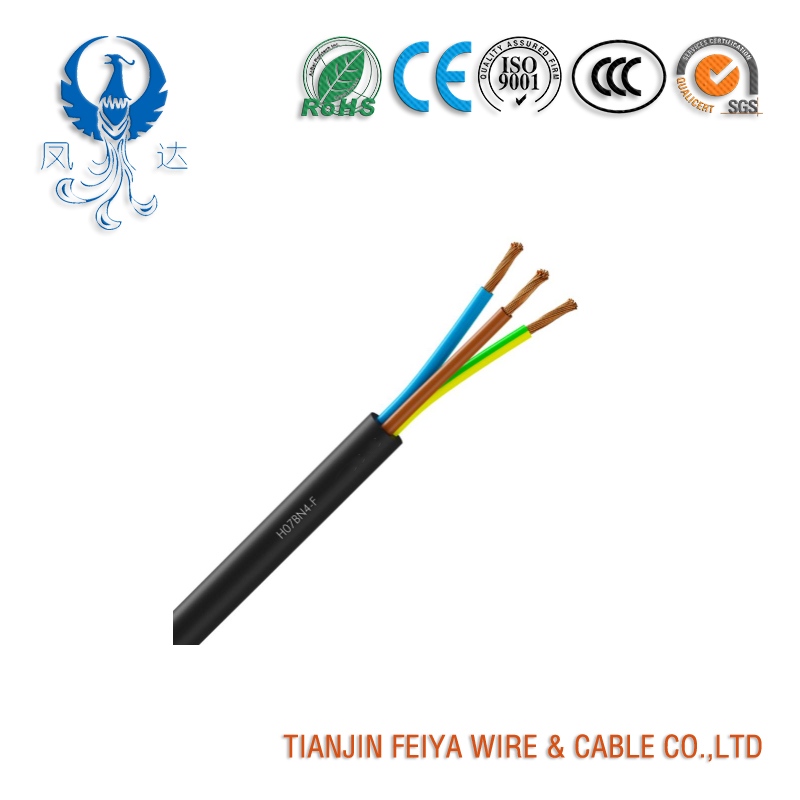

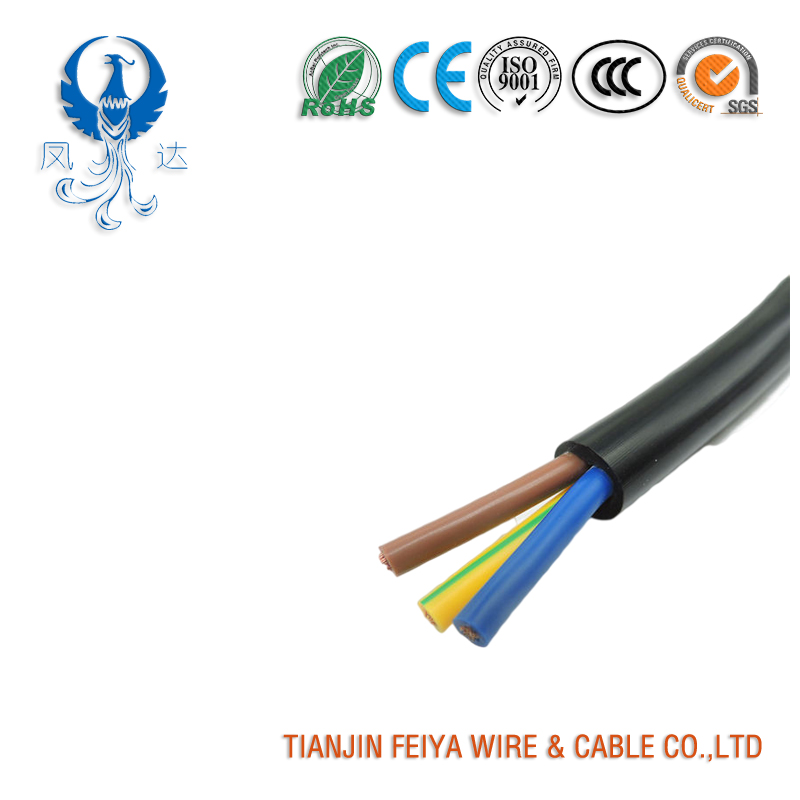

China Industrial Cables H07bn4-F 3 Core 1.25 mm2 Mains Power Cable, Black Rubber Sheathed Cable

Product Description

Introduction
1	Can be customized according to requirements.
2	Independent brand recruitment agency.
3	High quality, ISO 9001, CCC, CE, RoHS certified.
4	ODM&OEM is available.

APPLICATION

This range of high temperature flexible cables is particularly adapted for all uses in industry or in specific equipment material for energy production as well as in leading sectors.

H07BN4-F cables are made with synthetic rubbers having an excellent temperature resistance and can be used for intensive applications. In this case H07BN4-F can be more adequate than standard H07RN-F cables for the same core section (wages of weight, dimension, and connection accessories). The use up to 1000 V in alternative current is authorized for protected static installation and for connecting of motors in lifting appliances.

Installation

This cable can be installed in open air or be buried but with extra mechanical protection (tube, gutter).

Conductors laid up

Assembled conductors.

USE <'HAR>H07 BN4-F N X (or G ) S

N = number of cores
G = with Green-Yellow
x = without Green-Yellow
S = section in mm²

Nota

Max continuous operating conductor temperature in normal use :

+90°C ( in every case of mobile installation)

+250°C ( in short circuit )

Permissible current rating is measured for an ambient temperature of 30°C and a maximum operating and conductor temperature of 90°C .

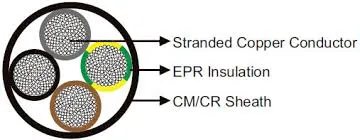

Design Conductor: Flexible and annealed copper acc. to IEC 60228 class 5
Insulation: EPDM-rubber class EI6
Core identification: 2-core: blue, brown
3-core: green/yellow, blue, brown
4-core: green/yellow, brown, black, grey
5-core: green/yellow, blue, brown, black, grey
7-core: green/yellow,
6 cores black number-marked 1-6
Sheath: Weather- and oil-resistant rubber, halogen free. Fulfills class EM2, EM6 and EM7

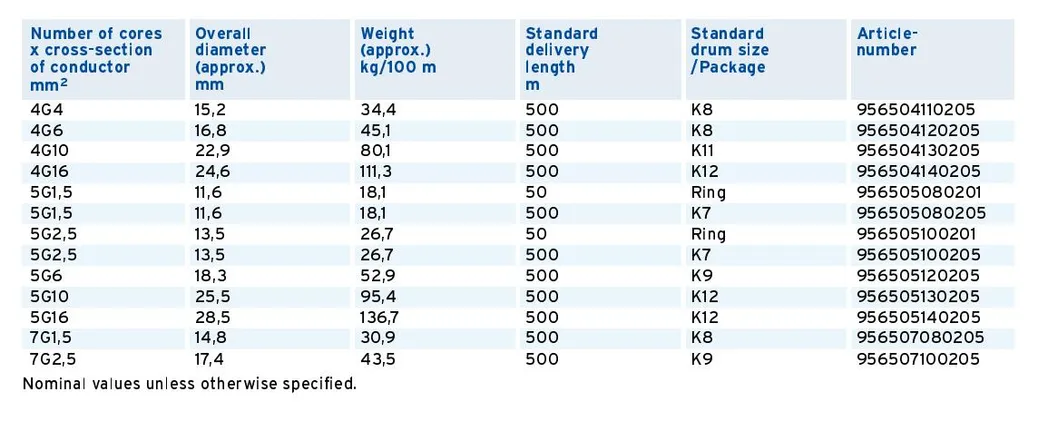

Type of the cables
