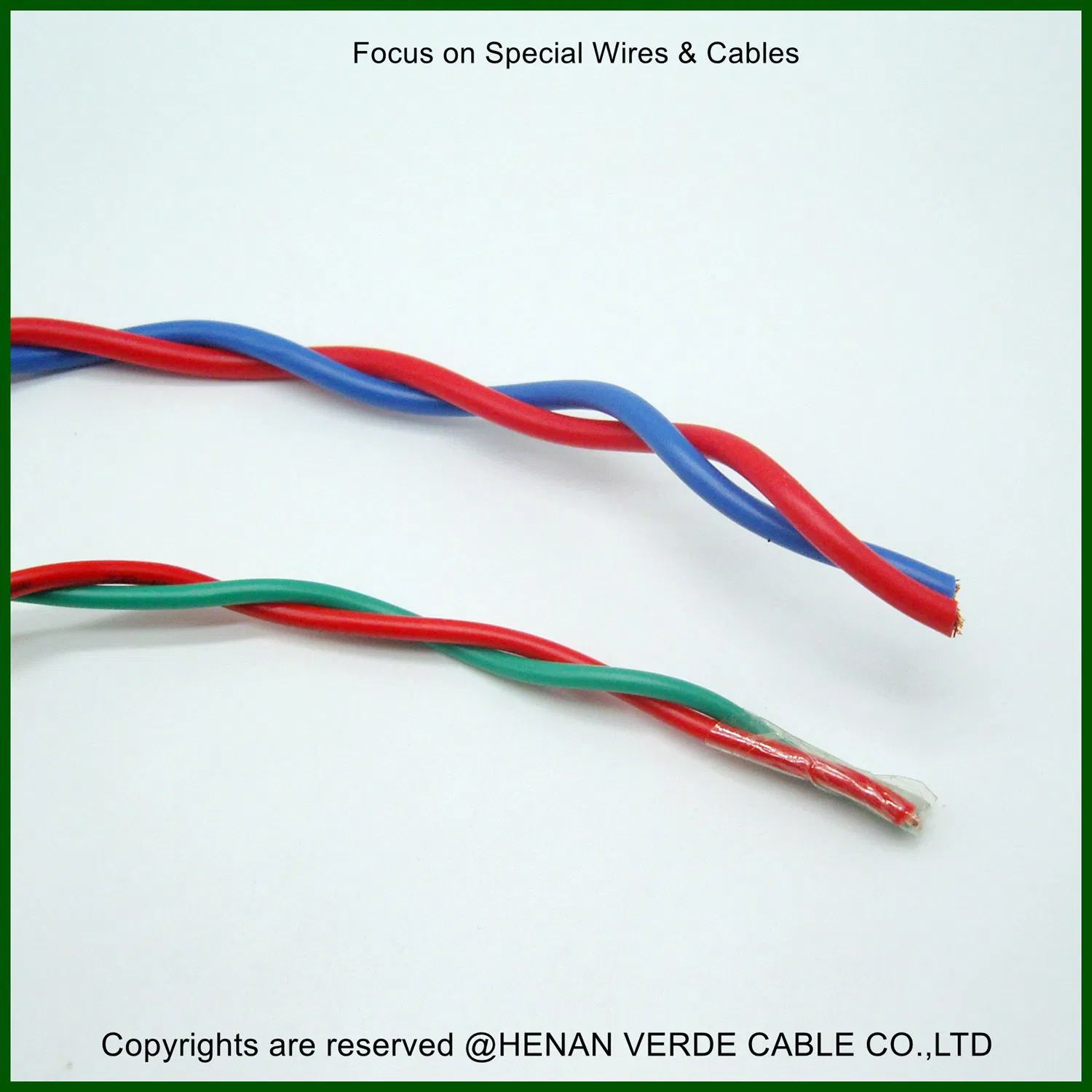

China High Temperature Resistant Wire Paf PTFE Insulated Twisted Pair Super Flexible TPE Cable

Product Description

High Temperature Resistant Insulated TPE Sheathed Flexible Cable

Heating Resisting cable High Temperature Resistant Wire Cable

For Speical Equipment and Military

Application:
Aerospace field,Electronic industry, Internal wiring of electric motor,electric appliance,instrument with rated voltage 600V and below.It can be used in temperature compensating wire, low temperature-resist wire, high temperature heat wire, aging-resistance wire and fire-resist wire;Household appliances industry, It can be used in air-conditioning equipment, micro-wave oven, electric disinfectant cupboard, electric cooker, electric thermos, electric heater, electric oven, lamps and lanterns in their inner wire and so on.

Product features:
Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance, strong alkali-resistance,oxidant-resistance and so on.Bear the good electric insulated capability, high voltage-resist,moisture-resistance,high insulation resistance;Flame-retardant, Anti-ageing, long age of usage

Rated voltage:600V and below

Test of power-frequency withstand voltage:3000V

Temperature range:-65~+250ºC

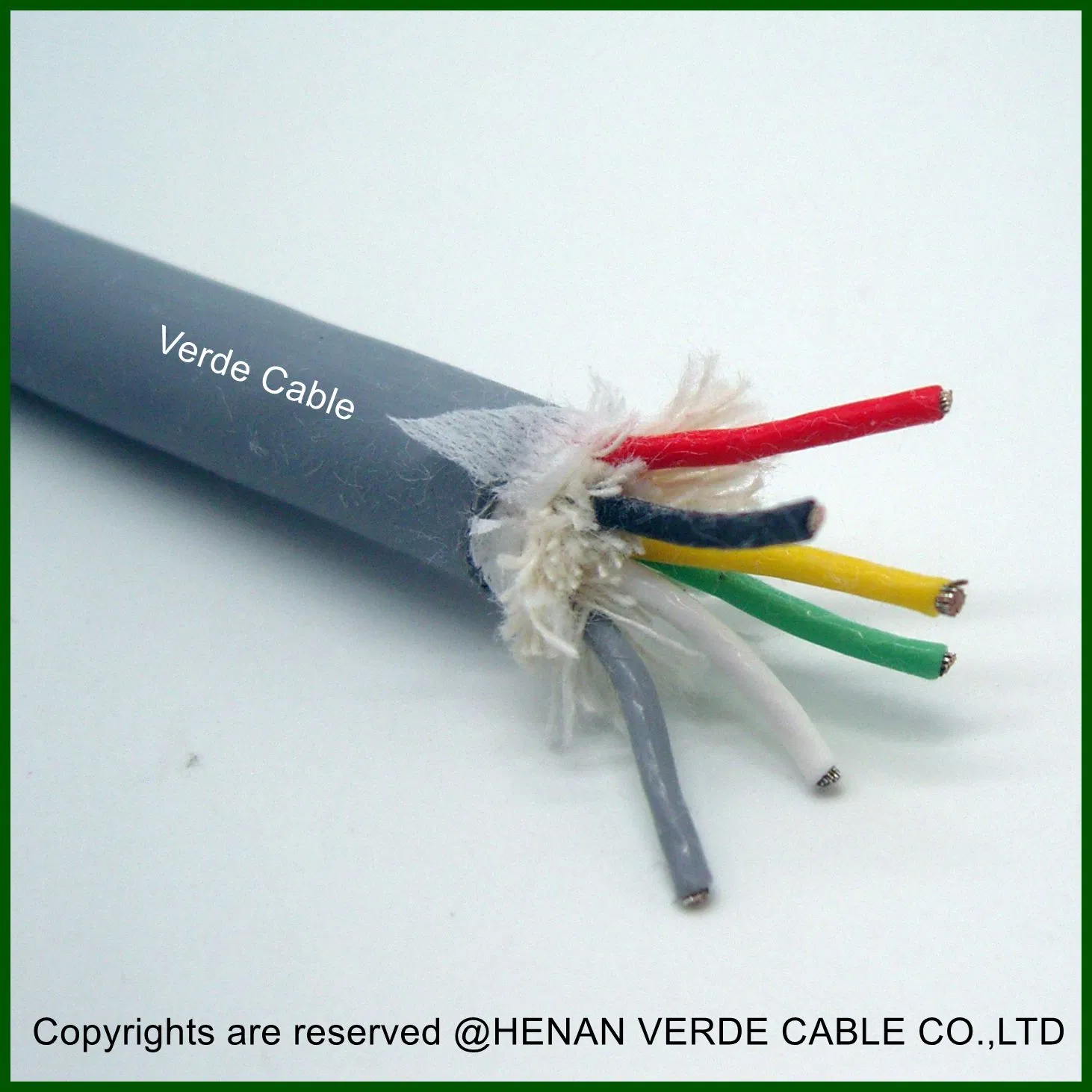

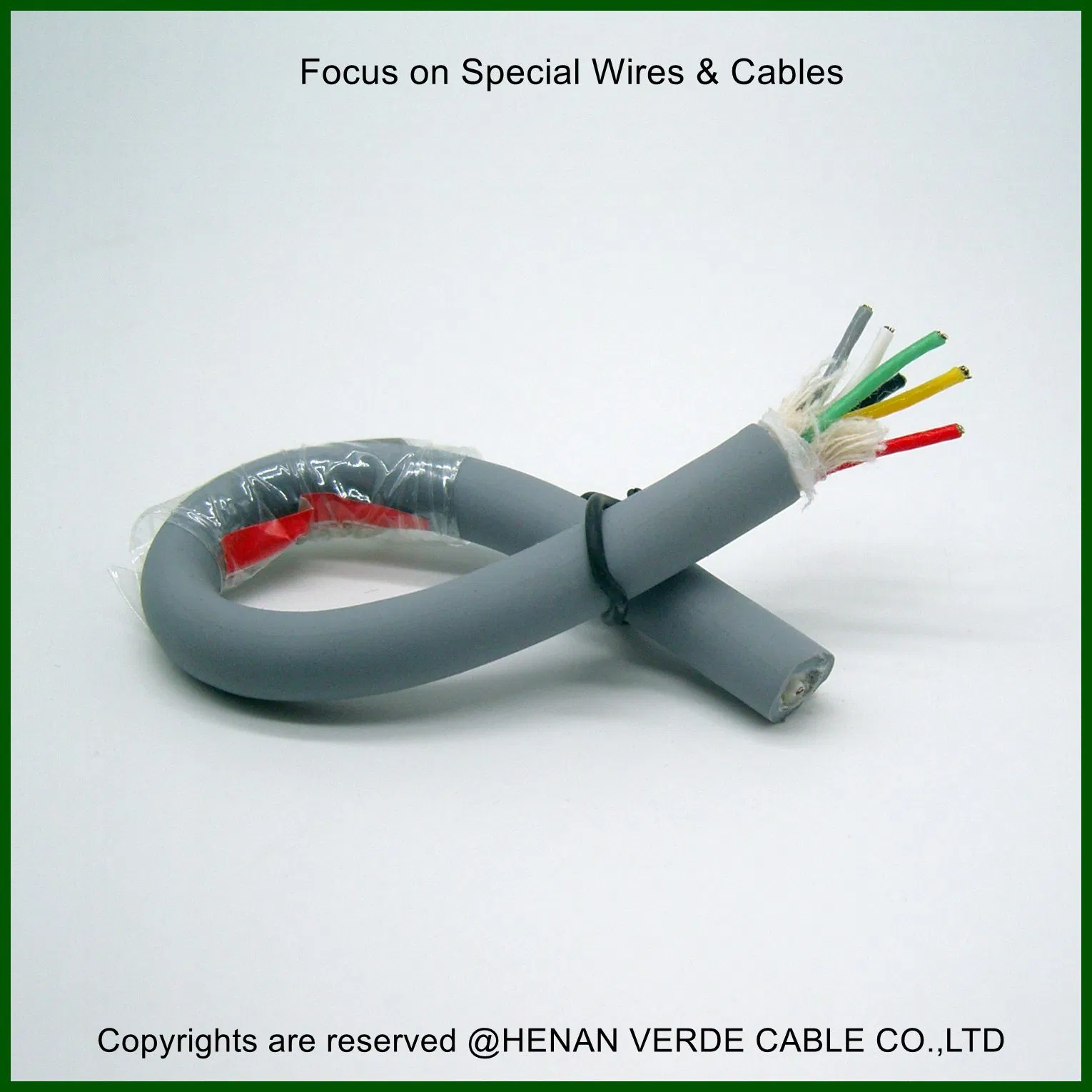

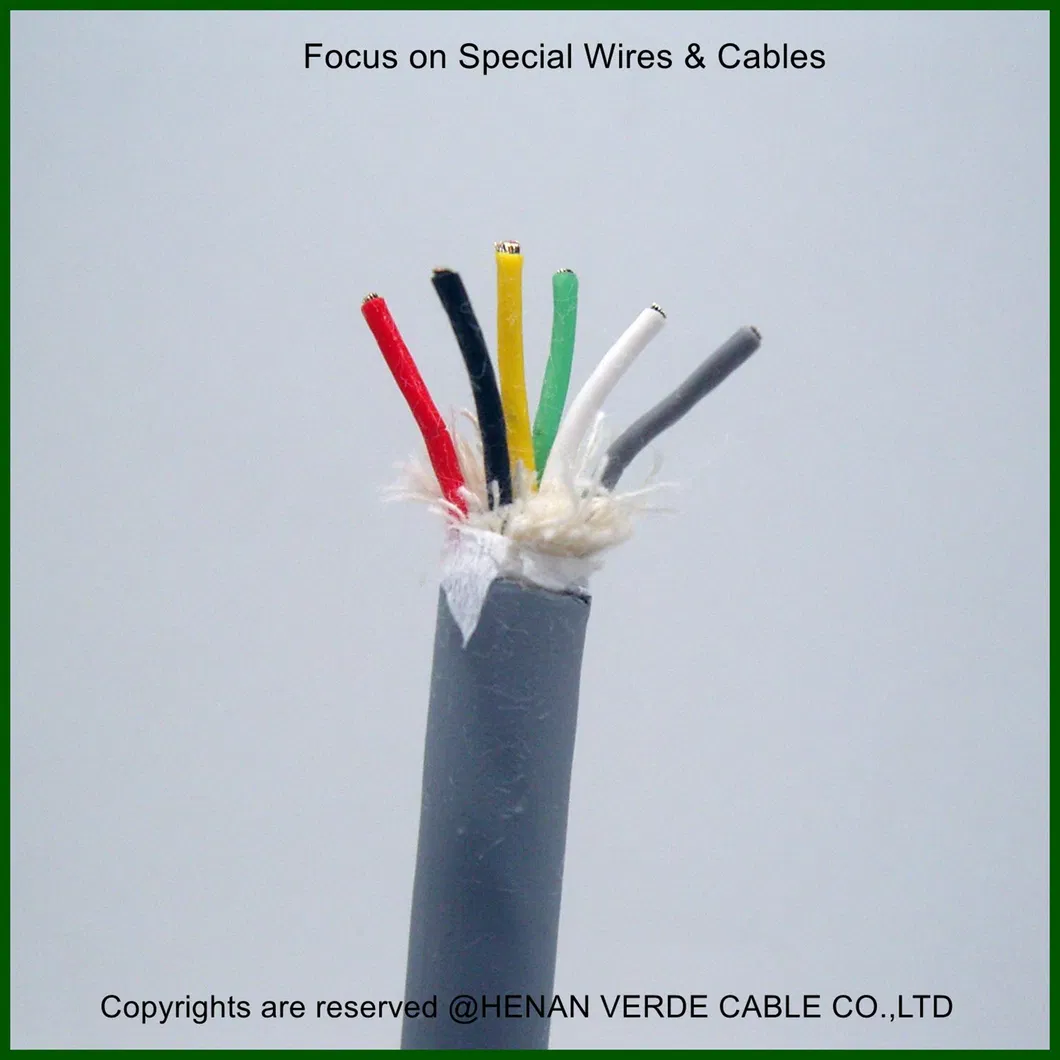

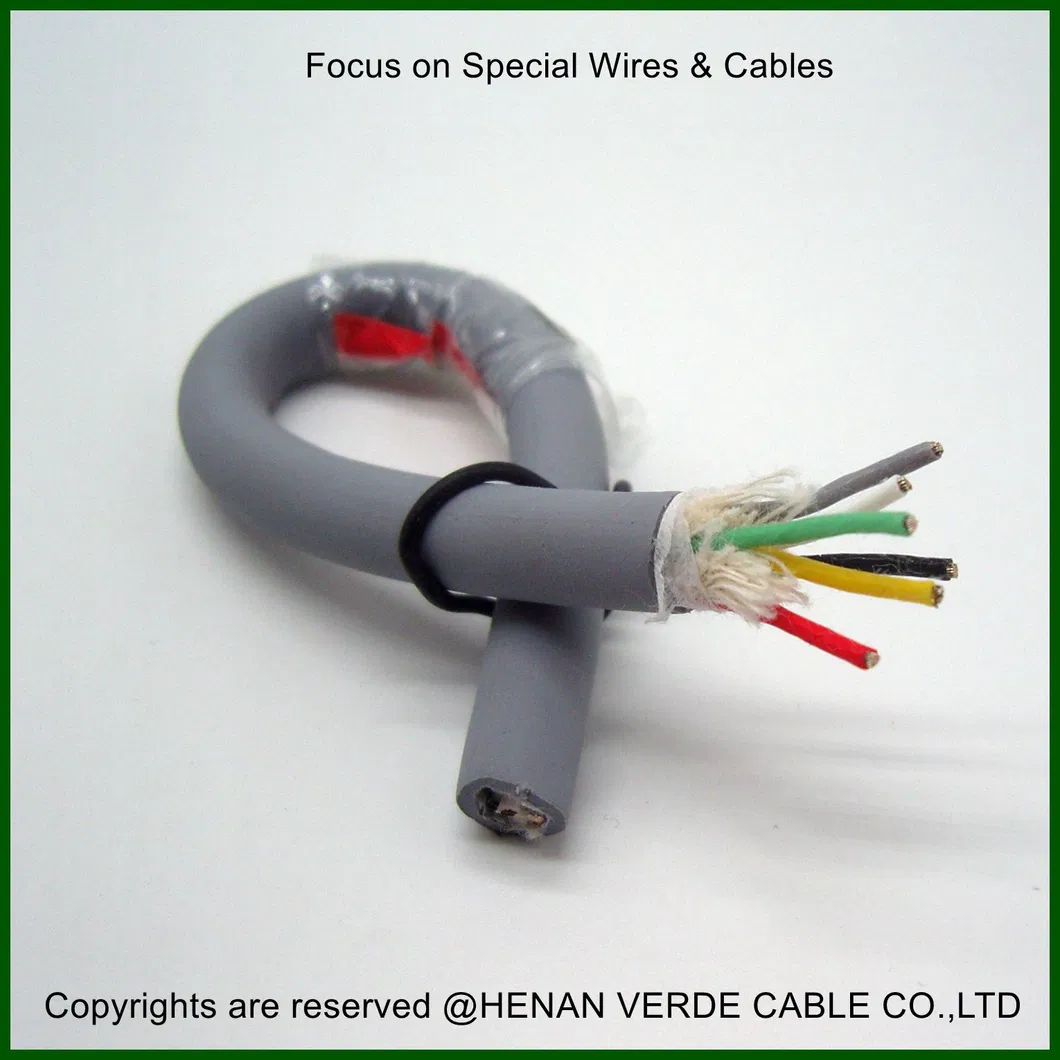

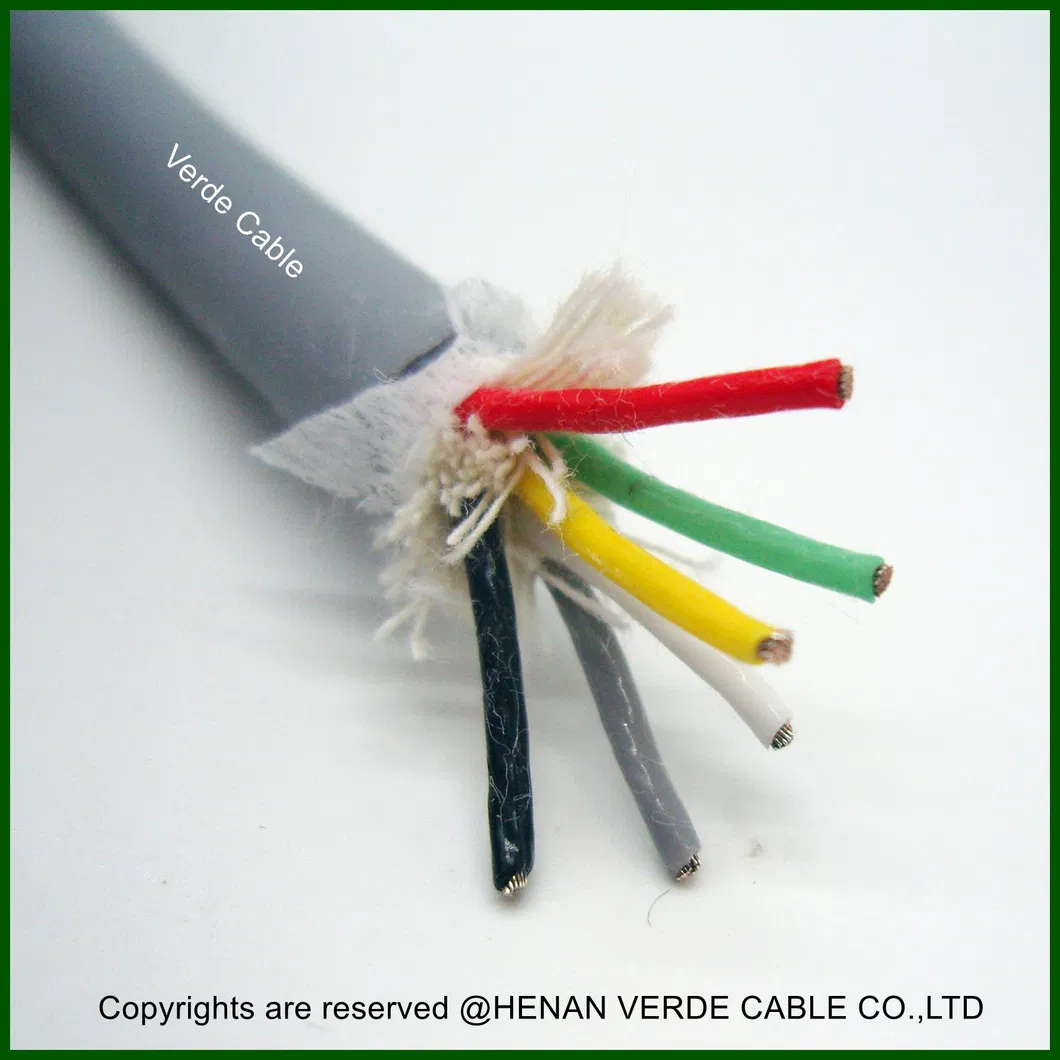

Construction of Cable:

Conductor: Tinned copper or Silver-plated copper

Insulation: FEP, PFA , PTFE according to customer's request

Color:Red yellow blue green white black orange purple brown

Outer Sheath(Jacket): TPE, or PUR as per customer's requirements

Parts of Technical Specification Lists(You can also customize your specification)
Conductor and Insulation Data List

Conductor Nominal Section(mm2)	Conductor Construction (No/mm)	Average. Insulation Thickness (mm)	Calculated. Outer Diameter (mm)	D.C.Conductor resistance at 20ºC(Ω/km)
Conductor Nominal Section(mm2)	Conductor Construction (No/mm)	Average. Insulation Thickness (mm)	Calculated. Outer Diameter (mm)	Tinned copper	Silver coated copper
0.035	7/0.08	0.20	0.64	562	550
0.05	10/0.08	0.30	0.90	383	370
0.06	7/0.10	0.30	0.90	348	339
0.08	7/0.12	0.30	0.96	286	280
0.10	7/0.14	0.30	1.02	157	150
0.12	7/0.15 30/0.07	0.30	1.05	152	145
0.14	7/0.16 19/0.10	0.30	1.08	136	130
0.15	30/0.08	0.30	1.10	111	105
0.20	7/0.02 19/0.12	0.30	1.20	87	82
0.35	19/0.16	0.30	1.40	57	54
0.50	19/0.18	0.30	1.50	40	37.5
0.80	19/0.23	0.32	1.79	24	23
1.00	19/0.26	0.35	2.00	21	20
1.20	19/0.28	0.45	2.30	19	18
1.50	19/0.32	0.45	2.50	13	12
2.00	19/0.37	0.45	2.75	10	9
2.50	37/0.30	0.55	3.20	8	7
3.00	37/0.32	0.68	3.60	6.8	6.4

High Temperature Resistant Wire Paf PTFE Insulated Twisted Pair Super Flexible TPE Cable

Here only list one parts of our products,If you want to know more about us and our products,pls contact us. Same Sincerity and Care With Every Customer No matter the order is Small or Big!
