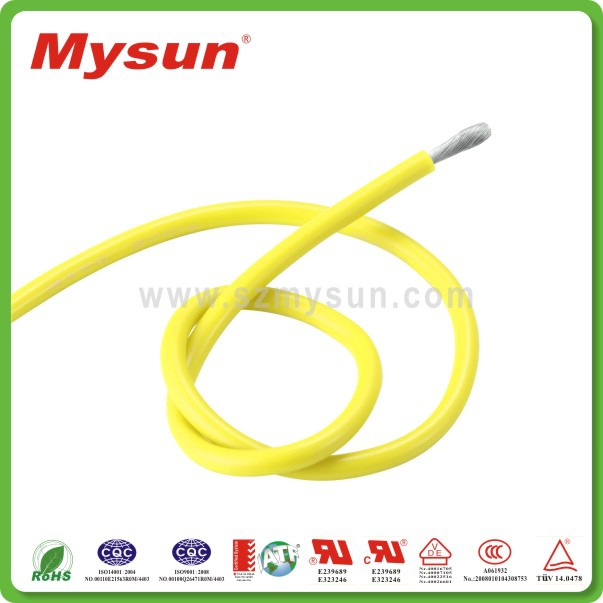

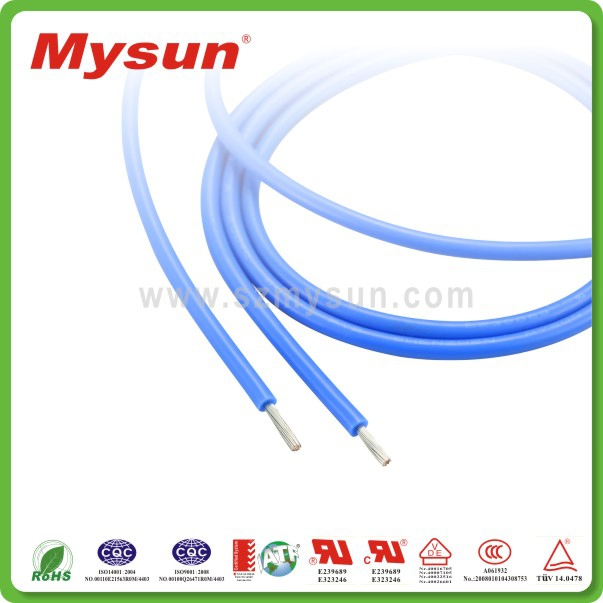

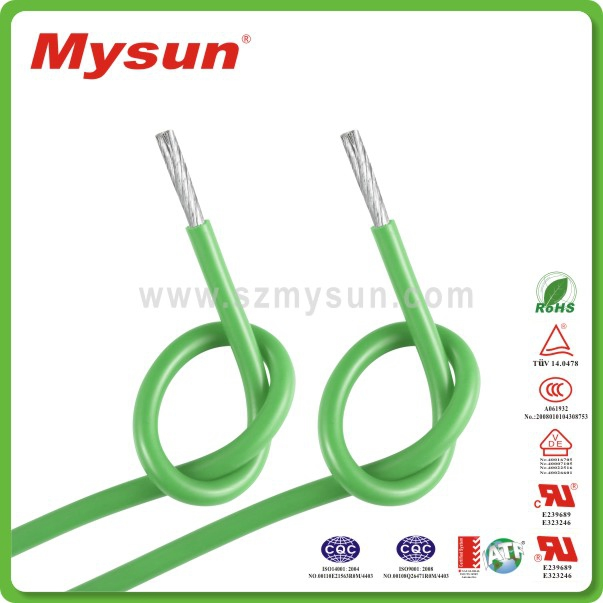

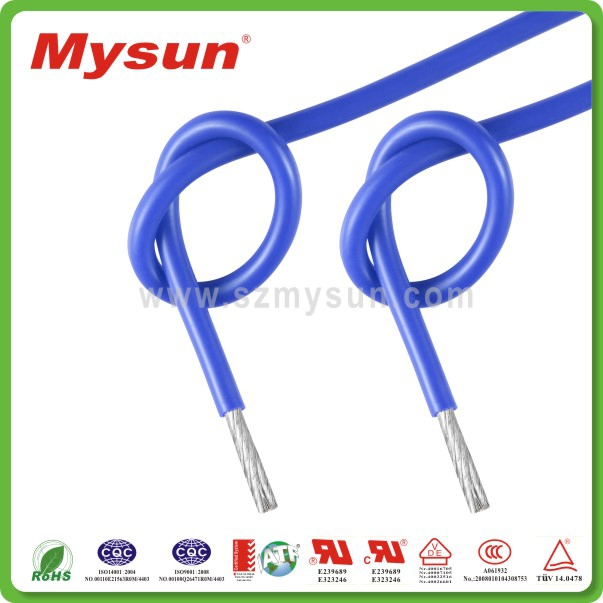

High Quality Silicone Rubber Wire UL3123 Coffee Machine Internal Wire
Product dimensions:ConductorInsulationMax.cond resistance(Ω/km)Unit Length(m)(Ft)Size(AWG)Construction(No./mm)Diameter(mm)Nominal Thickness(mm)Diameter(mm)307/0.100.30 0.78 1.86 361305/1000287/0.120.38 1.92 227267/0.160.48 2.04 143247/0.200.60 2.16 89.3227/0.250.76 2.32 56.4207/0.310.93 2.......
Send Inquiry
Product Description
Product dimensions:
| Conductor | Insulation | Max.cond resistance (Ω/km) | Unit Length (m)(Ft) | |||
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | ||
| 30 | 7/0.10 | 0.30 | 0.78 | 1.86 | 361 | 305/1000 |
| 28 | 7/0.12 | 0.38 | 1.92 | 227 | ||
| 26 | 7/0.16 | 0.48 | 2.04 | 143 | ||
| 24 | 7/0.20 | 0.60 | 2.16 | 89.3 | ||
| 22 | 7/0.25 | 0.76 | 2.32 | 56.4 | ||
| 20 | 7/0.31 | 0.93 | 2.49 | 35.2 | ||
| 18 | 7/0.39 | 1.17 | 2.73 | 22.2 | ||
| 16 | 7/0.49 | 1.47 | 3.03 | 14 | ||
Service
Shipment:
1. by express
2. by sea
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
