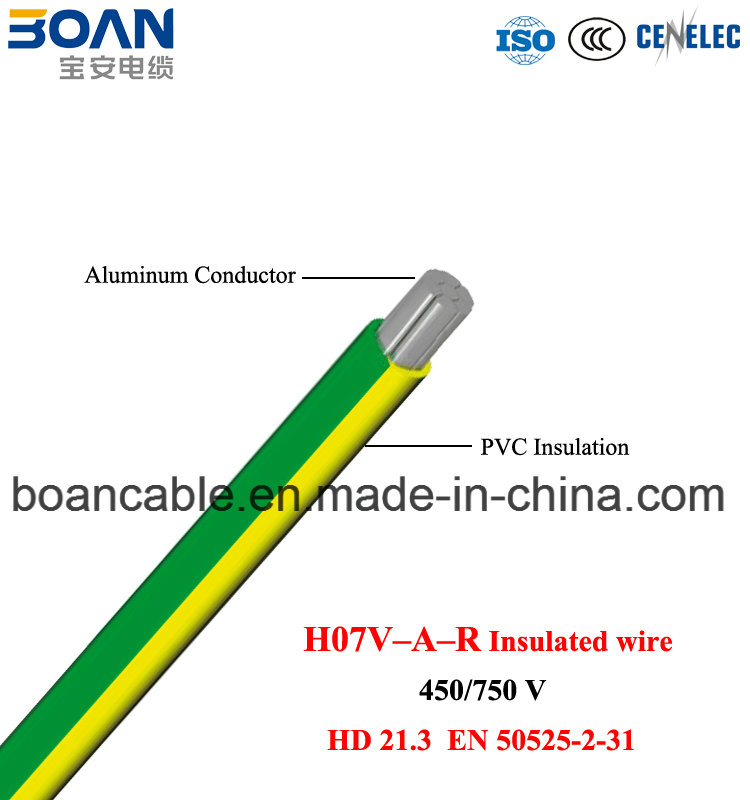

H07V-a-R, Al/PVC Insulated Wire, HD 21.3, En 50525-2-31

Production Description:
For fixed installation in conduits on or under plaster. Suitable for protected installation in and on lighting facilities or control devices for voltages up to 750 V AC or 1,000 V DC against ground.

Technical Data:

Standard:
adapted to HD 21.3 EN 50525-2-31

Rated voltage: 450/750 V

Test voltage: 2.5 kV/50 Hz

Temperature range:
laying temperature: min. +5 °C
operating temperature: -5 °C up to +70 °C
conductor temperature: max. +70 °C
short-circuit temperature: max. +160 °C/5s

Bending radius (min.):    5 x ∅ 25 up to 50 mm2,     6 x ∅ above 50 mm2

Core identification:
green/yellow (gn/ye), black (bk), blue (bu), brown (bn), red (rd) and other colours on request

Fire properties: flame retardant: EN 60332-1-2

Certificate: EVPÚ Slovak Republic, LCIE France


Packings & Shipping:
Fumiagted steel-wooden drum or wooden drum



Company Information :

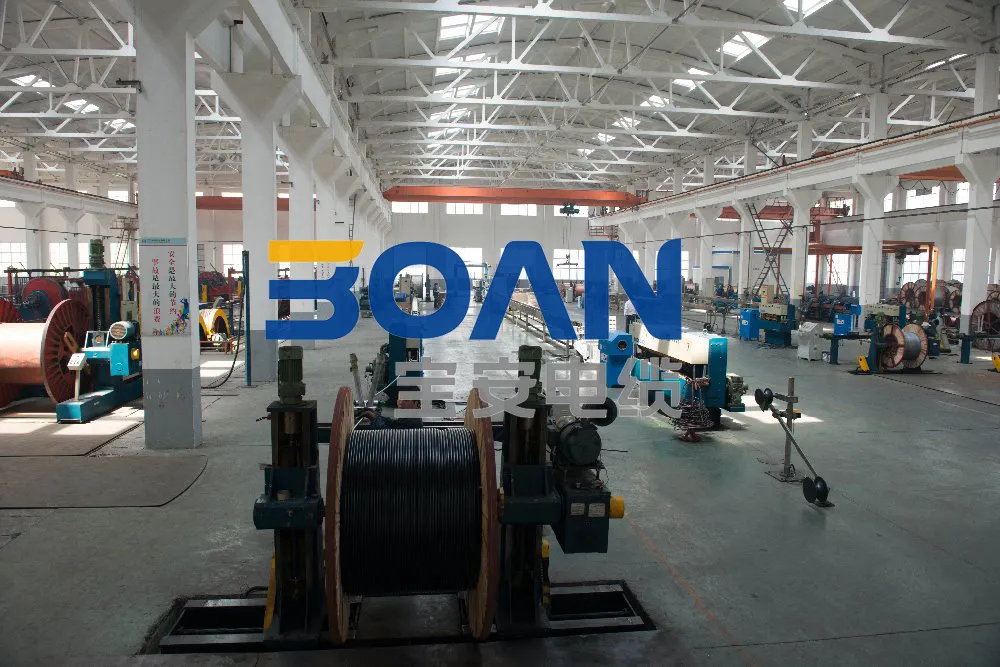

Jiangsu Boan Cable Co., Ltd. was founded in 1996 with a registered capital of 216 million RMB. It is one of key enterprises of China wire and cable industry, the national high-tech enterprises, the
innovation and development pilot enterprises of Jiangsu Province, the private technology enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-grade credit enterprise. We have also passed ISO9001 Quality System, ISO14001 Environment Management System Certificate and GB/T28001 Occupational Health and Safety Management System Certificate.
