Application and Description

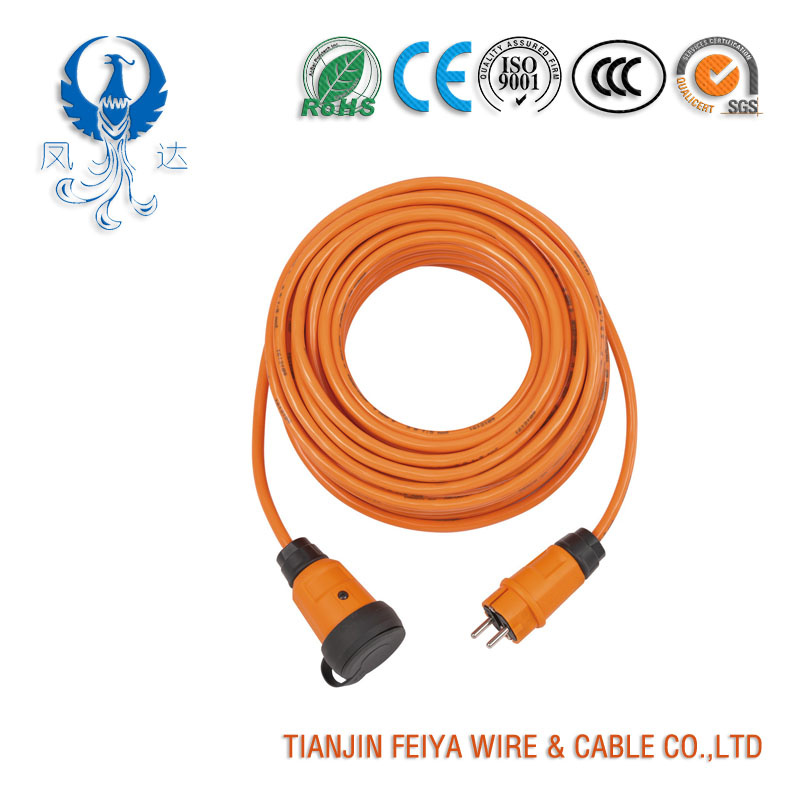

These cables are used for medium mechanical stress in dry, damp or wet areas, e.g. for connecting agricultural and commercial equipment, for connecting heaters where there is a danger of cable damage due to its contact with hot surfaces. The cable can also be used in electrical appliances such as drills, hand-held circular saws as well as in building sites and refrigeration plants.
H07BQ-F can commonly be found in other machinery in agriculture, building sites, docks and refrigeration plants. The robust PUR jacket adds abrasion, notch and tear resistance as well as chemical resistance to oils, fats, petrol, water, ozone, UV radiation, hydrolysis and microbes. Common European designation is NGMH11YÖ.
Standard and Approval
- <HAR> HD22.10 S1
- VDE-0282 Part-10
- CEI 20-19 p.10
- CE low voltage directive 73/23/EEC & 93/68/EEC
- IEC 60245-4
- ROHS compliant

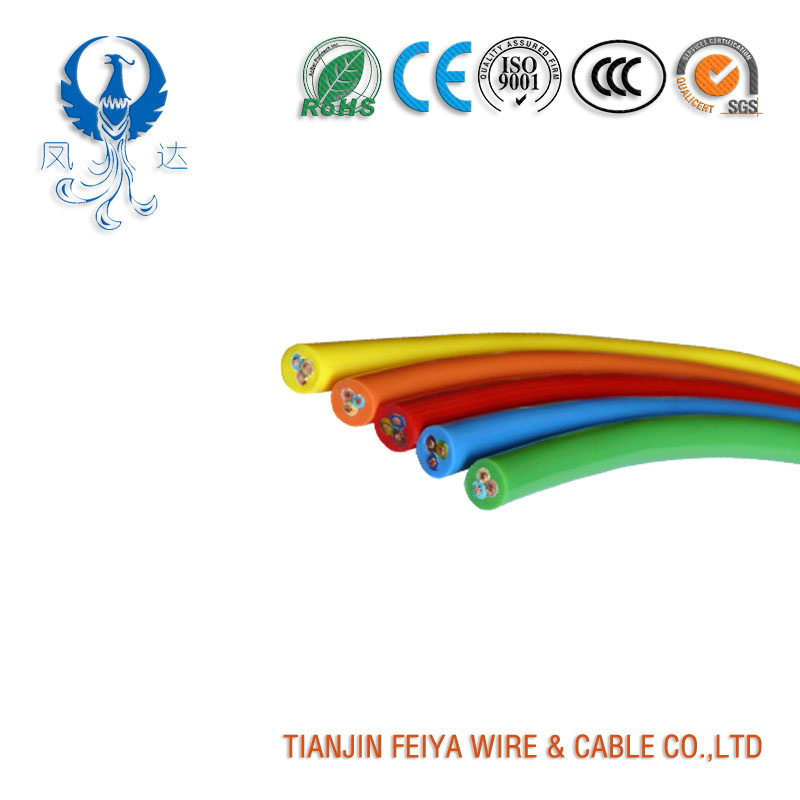

Cable Construction

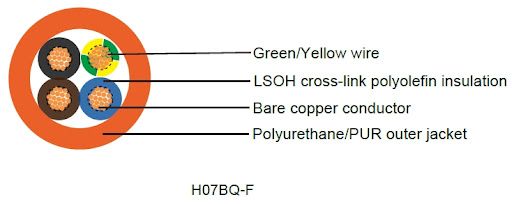

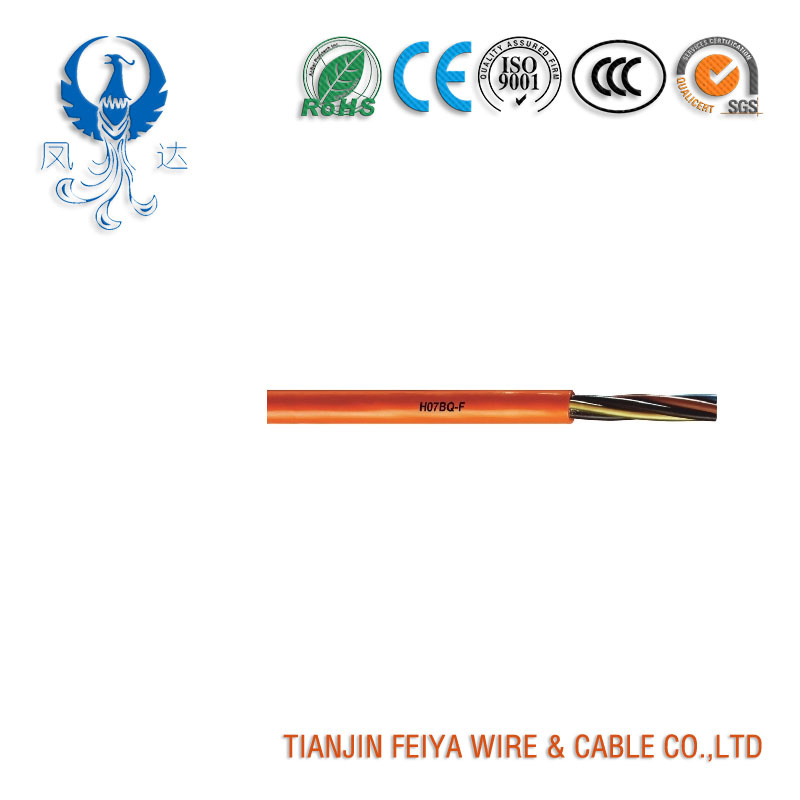

Fine bare or tinned copper strandsStrands to VDE-0295 Class-5, IEC 60228 and HD383 Class-5Rubber compound insulation E16 to VDE-0282 Part-1Color coded to VDE-0293-308Conductors stranded in layers with optimal lay-lengthGreen-yellow earth core in the outer layerPolyurethane/PUR outer jacket TMPU- orange (RAL 2003)Type of the cables
Technical Characteristics
| WORKING VOLTAGE | 300/500 volts (H05BQ-F) ; 450/750 volts (H07BQ-F) |
|---|---|
| TEST VOLTAGE | 2000 volts (H05BQ-F) ; 2500 volts(H07BQ-F) |
| FLEXING BENDING RADIUS | 5 x Ø |
| FIXED BENDING RADIUS | 3 x Ø |
| FLEXING TEMPERATURE | -40 ºC to +80 ºC |
| FIXED TEMPERATURE | -50 ºC to +90 ºC |
| SHORT CIRCUIT TEMPERATURE | +250 ºC |
| FLAME RETARDANT | IEC 60332.1 |
| INSULATION RESISTANCE | 20 MΩ x km |
Cable Parameter
| AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL THICKNESS OF SHEATH | NOMINAL OVERALL DIAMETER | NOMINAL COPPER WEIGHT | NOMINAL WEIGHT |
|---|---|---|---|---|---|---|
| # X MM² | MM | MM | MM | KG/KM | KG/KM | |
| H05BQ-F | ||||||
| 18(24/32) | 2 x 0.75 | 0.6 | 0.8 | 5.7 - 7.4 | 14.4 | 52 |
| 18(24/32) | 3 x 0.75 | 0.6 | 0.9 | 6.2 - 8.1 | 21.6 | 63 |
| 18(24/32) | 4 x 0.75 | 0.6 | 0.9 | 6.8 - 8.8 | 29 | 80 |
| 18(24/32) | 5 x 0.75 | 0.6 | 1.0 | 7.6 - 9.9 | 36 | 96 |
| 17(32/32) | 2 x 1 | 0.6 | 0.9 | 6.1 - 8.0 | 19.2 | 59 |
| 17(32/32) | 3 x 1 | 0.6 | 0.9 | 6.5 - 8.5 | 29 | 71 |
| 17(32/32) | 4 x 1 | 0.6 | 0.9 | 7.1 - 9.3 | 38.4 | 89 |
| 17(32/32) | 5 x 1 | 0.6 | 1.0 | 8.0 - 10.3 | 48 | 112 |
| H07BQ-F | ||||||
| 16(30/30) | 2 x 1.5 | 0.8 | 1.0 | 7.6 - 9.8 | 29 | 92 |
| 16(30/30) | 3 x 1.5 | 0.8 | 1.0 | 8.0 - 10.4 | 43 | 109 |
| 16(30/30) | 4 x 1.5 | 0.8 | 1.1 | 9.0 - 11.6 | 58 | 145 |
| 16(30/30) | 5 x 1.5 | 0.8 | 1.1 | 9.8 - 12.7 | 72 | 169 |
| 14(50/30) | 2 x 2.5 | 0.9 | 1.1 | 13.0 - 15.0 | 101 | 230 |
| 14(50/30) | 3 x 2.5 | 0.9 | 1.1 | 17.0 - 20.0 | 173 | 398 |
| 14(50/30) | 4 x 2.5 | 0.9 | 1.2 | 9.0 - 11.6 | 48 | 121 |
| 14(50/30) | 5 x 2.5 | 0.9 | 1.3 | 9.6 - 12.4 | 72 | 164 |
| 12(56/28) | 2 x 4 | 1.0 | 1.2 | 10.7 - 13.8 | 96 | 207 |
| 12(56/28) | 3 x 4 | 1.0 | 1.2 | 11.9 - 15.3 | 120 | 262 |
| 12(56/28) | 4 x 4 | 1.0 | 1.3 | 10.6 - 13.7 | 77 | 194 |
| 12(56/28) | 5 x 4 | 1.0 | 1.4 | 11.3 - 14.5 | 115 | 224 |
| 10(84/28 | 2 x 6 | 1.0 | 1.3 | 12.7 - 16.2 | 154 | 327 |
| 10(84/28 | 3 x 6 | 1.0 | 1.4 | 14.1 - 17.9 | 192 | 415 |
| 10(84/28 | 4 x 6 | 1.0 | 1.5 | 11.8 - 15.1 | 115 | 311 |
| 10(84/28 | 5 x 6 | 1.0 | 1.6 | 12.8 - 16.3 | 173 | 310 |
