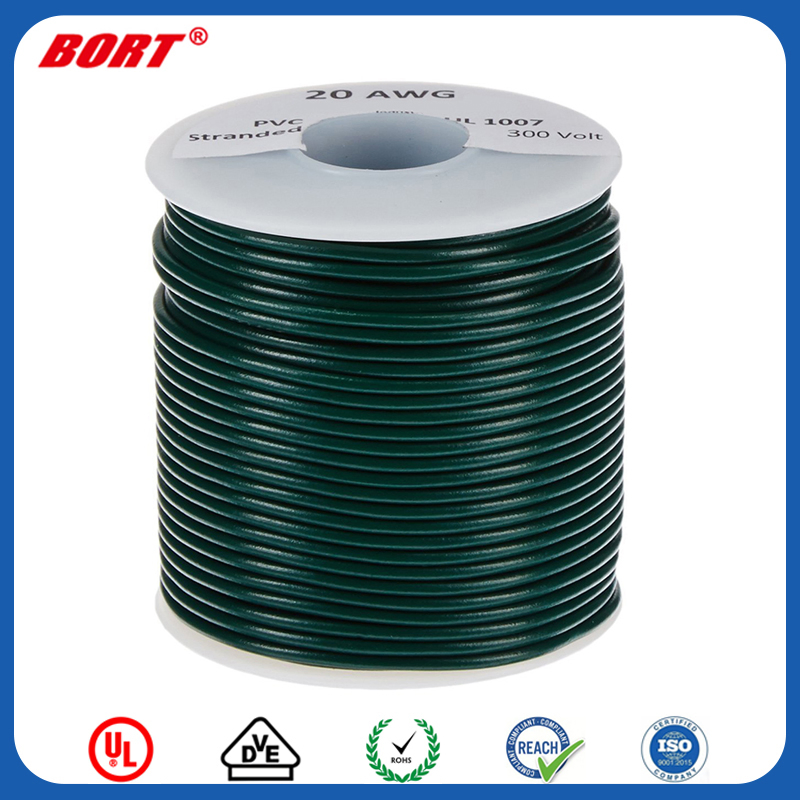

Germany Standard ISO 6722 Class B Automotive Wire, Flry-B, Primary Wire
Germany Standard ISO 6722 Class B Automotive Wire, FLRY-B, Primary Wire PRODUCT DESCRIPTION:Rated temperature:90ºCAccording to DIN72551-6/1996Bunch stranded,tinned or bare copper conductor PVC insulationUniform insulation thickness of wire to ensure easy stripping and cuttingResistant to......
Send Inquiry
Product Description

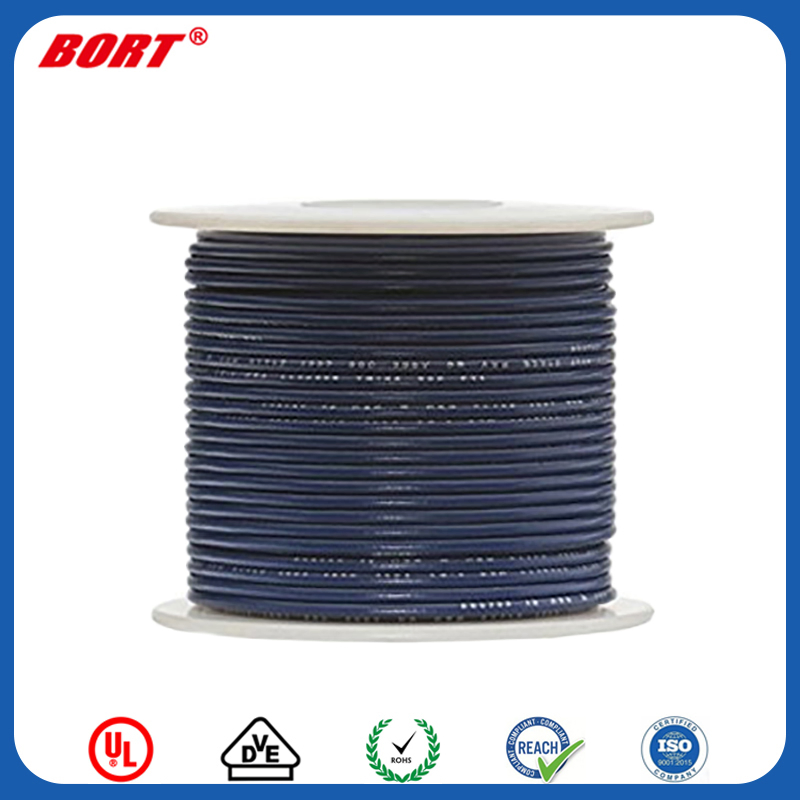

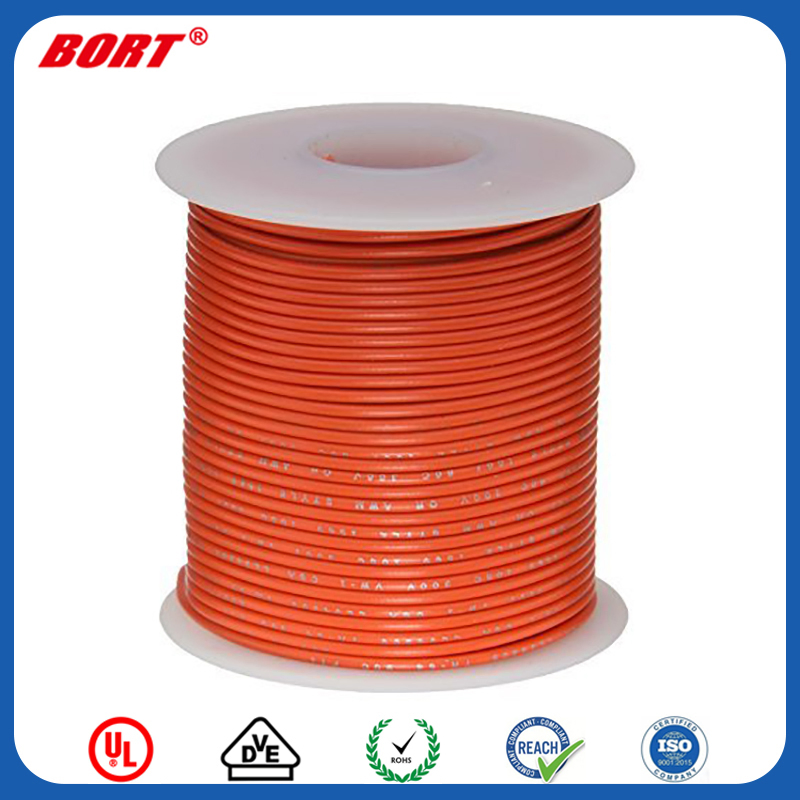

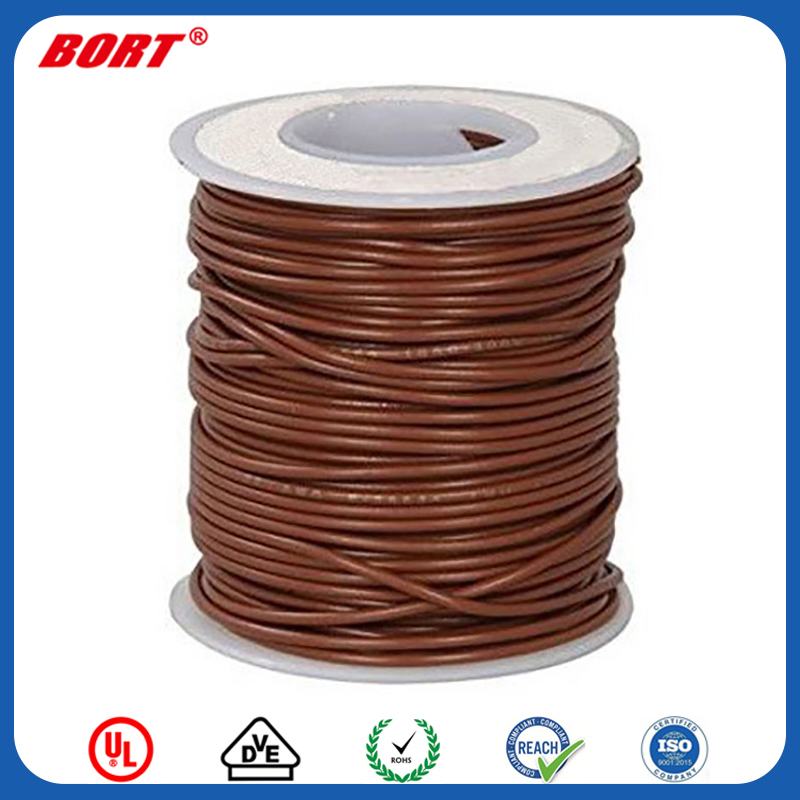

Germany Standard ISO 6722 Class B Automotive Wire, FLRY-B, Primary Wire
PRODUCT DESCRIPTION:★Rated temperature:90ºC
★According to DIN72551-6/1996
★Bunch stranded,tinned or bare copper conductor
★PVC insulation
★Uniform insulation thickness of wire to ensure
easy stripping and cutting
★Resistant to oil,heat and abrasion
★Interal wiring in autmobile where high flexibility
thermo and mechanical strength are required
| Conductor | Finished product | Maximum Resistance at 20ºC | |||
| Cross Sectional Area | NO.of Cond | Insulation Thick. | Outside Thick. | Weight | |
| mm2 | No./mm | mm | mm | kg/km | Ω/mm |
| 0.35 | 12/0.21 | 0.3 | 1.40 | 5.44 | 52.00 |
| 0.5 | 16/0.21 | 0.3 | 1.60 | 7.19 | 37.10 |
| 0.75 | 24/0.21 | 0.3 | 1.90 | 10.51 | 24.70 |
| 1 | 32/0.21 | 0.4 | 2.10 | 13.55 | 18.50 |
| 1.5 | 30/0.26 | 0.4 | 2.40 | 18.8 | 12.70 |
| 2.5 | 50/0.26 | 0.4 | 3.00 | 30.63 | 7.60 |
| 4 | 56/0.31 | 0.5 | 3.70 | 48.03 | 4.70 |
