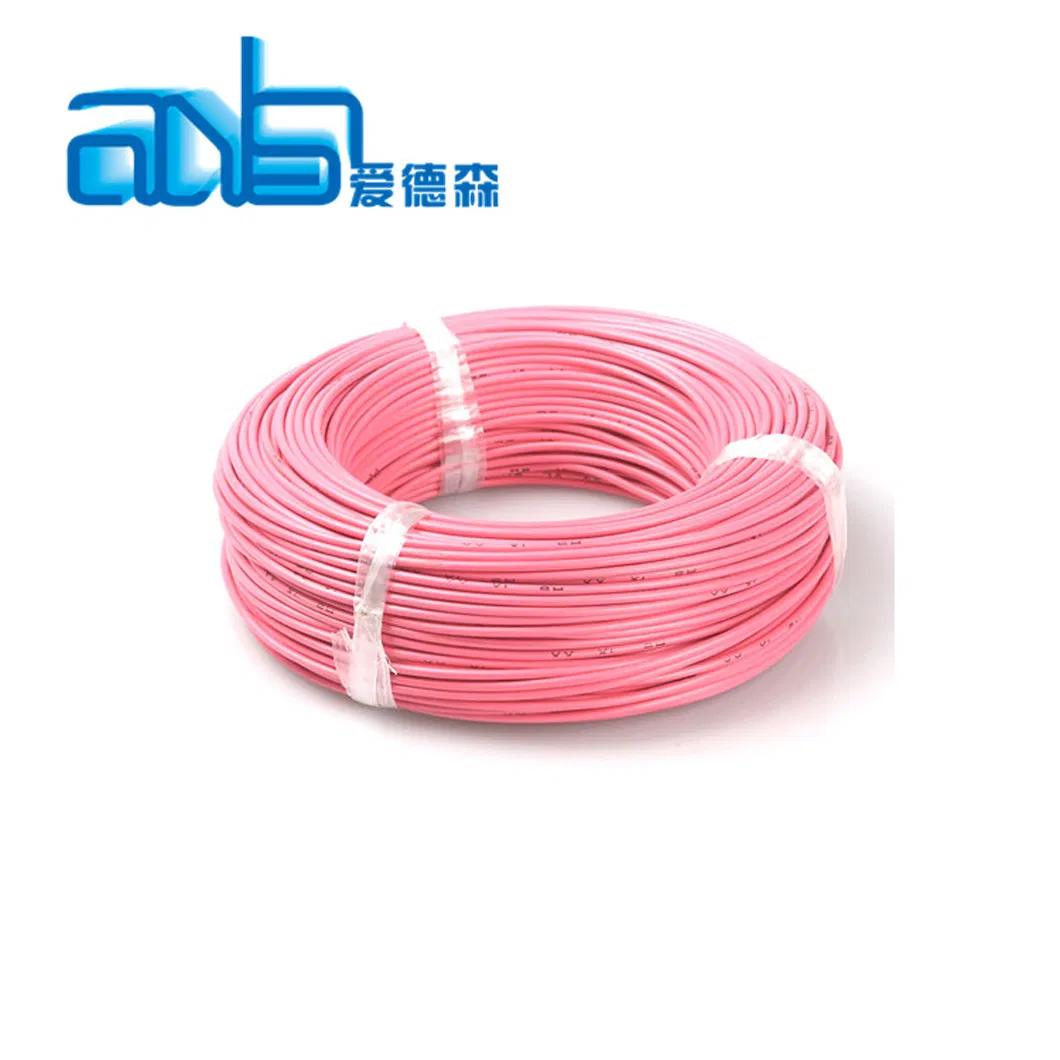

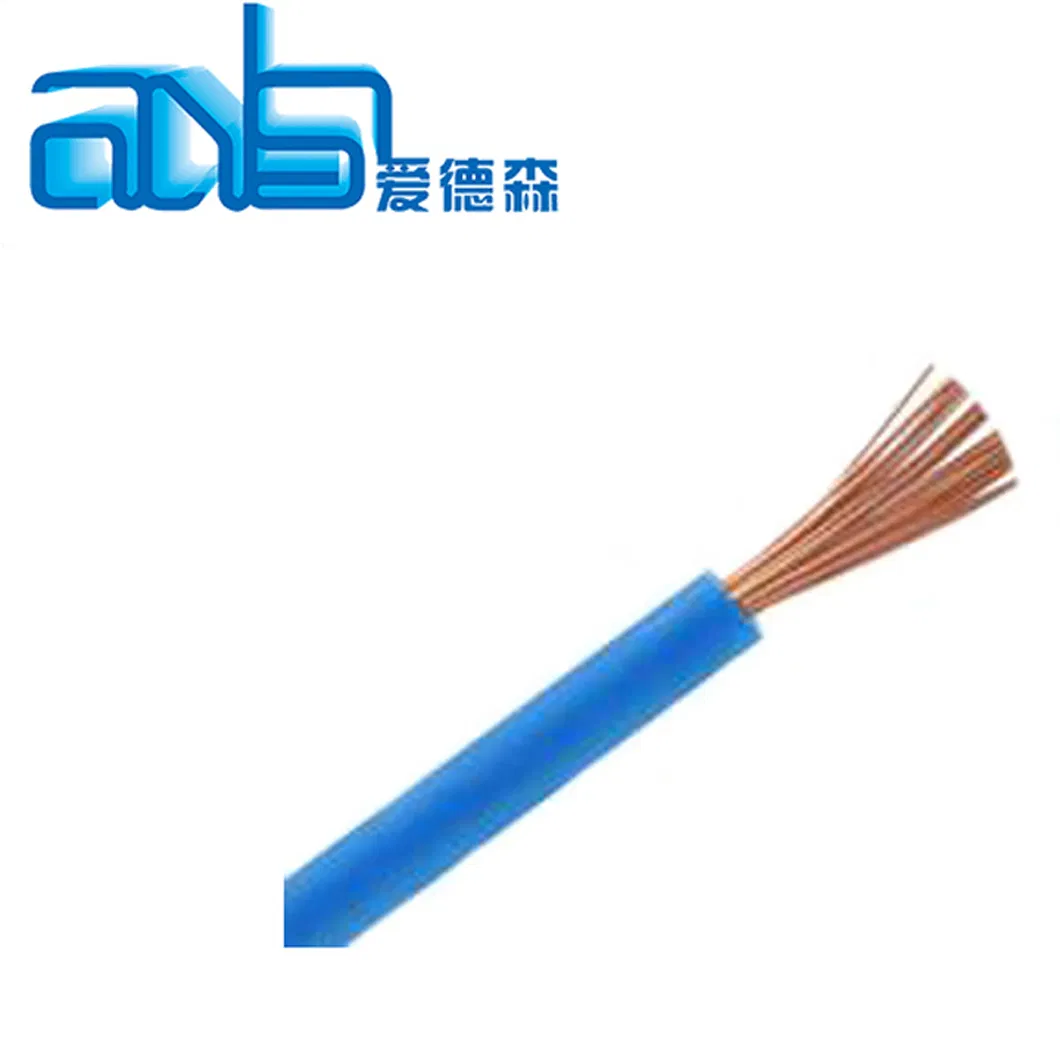

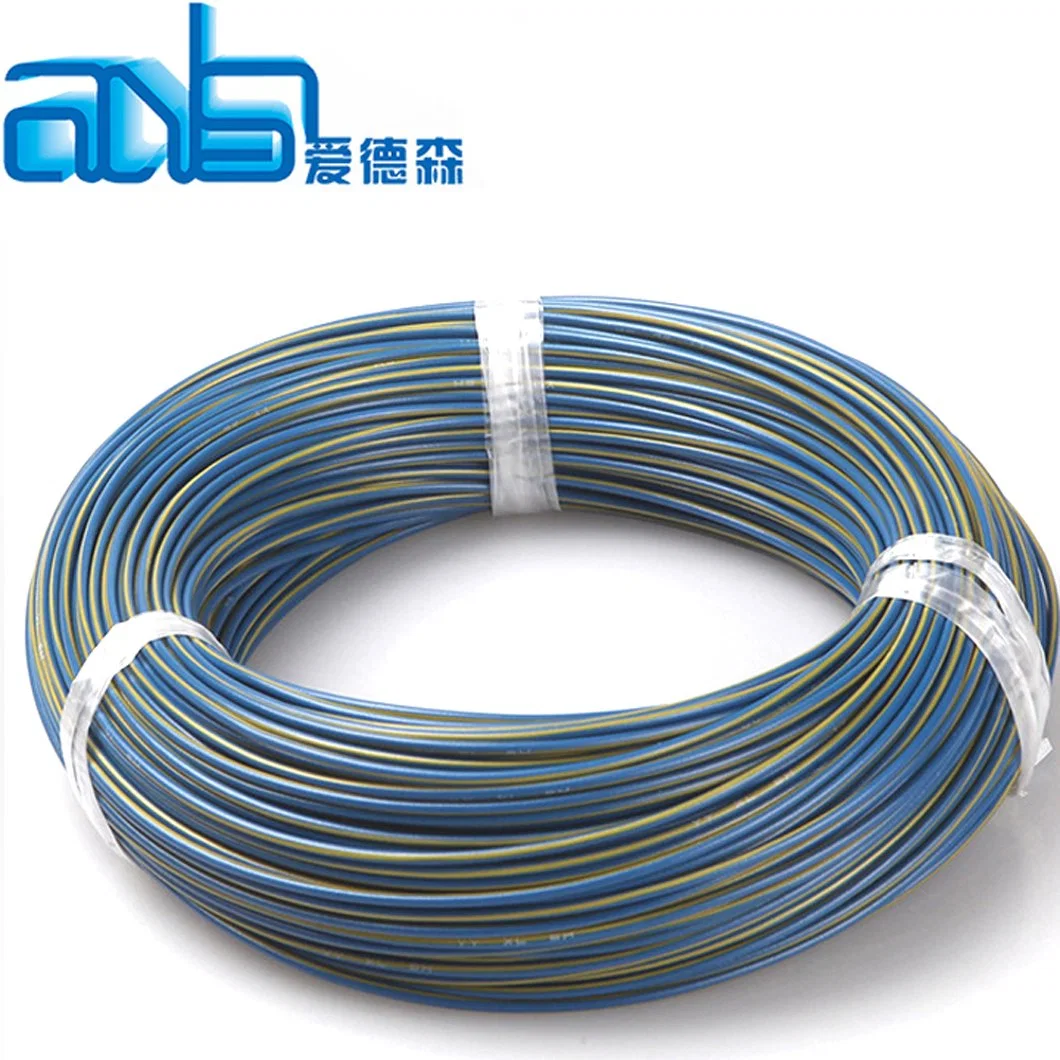

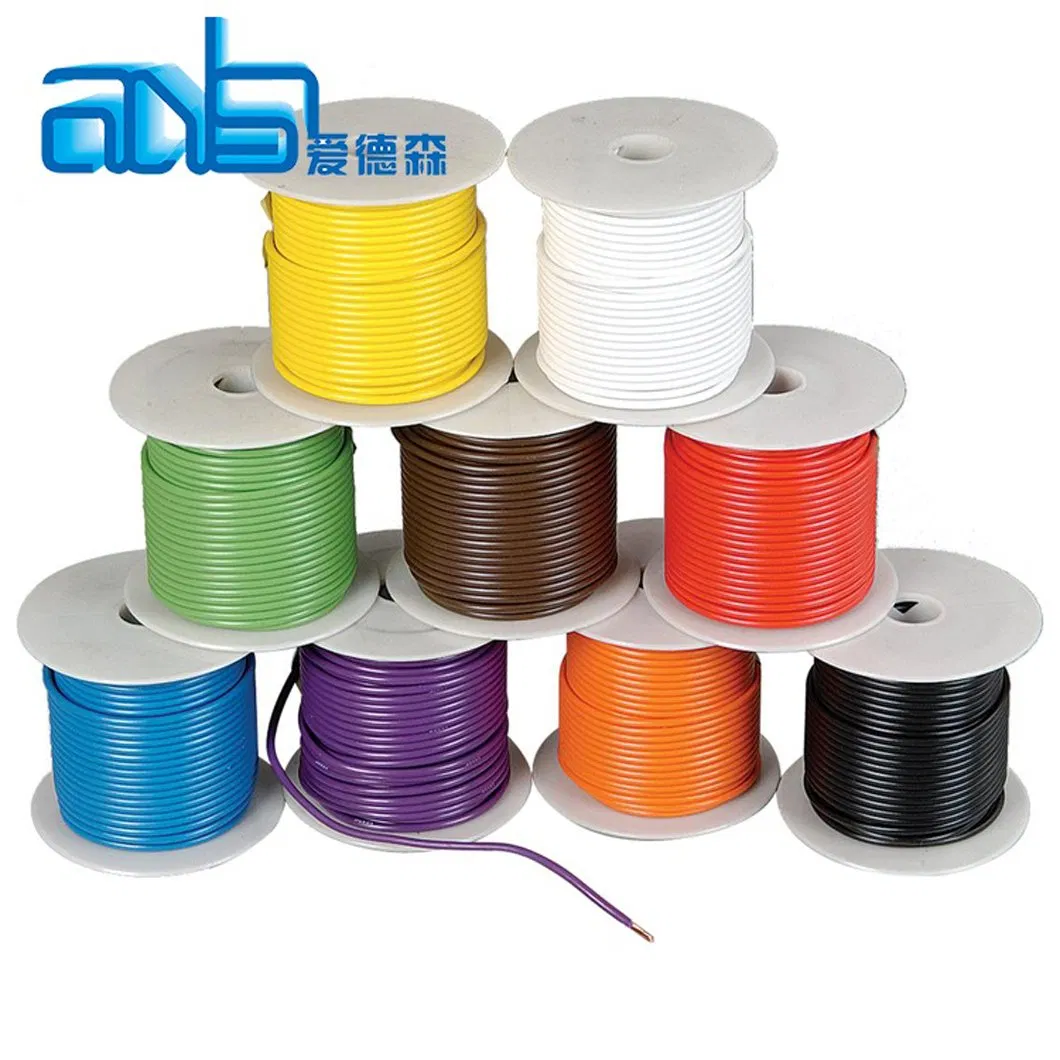

Fly 0.5mm2 German Standard Single Core Electrical Wire
Product SpecificationFLY (-25°C / +90°C)Conductor:Annealed Copper Insulation:PVC Continuous temperature: 105°C (3000h)Intermittent temperature: 120°C (48h)Cold resistance: -25°COil resistant: YesFuel resistant: YesInsulation wall thickness: Thin wallCABLE CONS......
Send Inquiry
Product Description
Product Specification
FLY (-25°C / +90°C)
Conductor:Annealed Copper
Insulation:PVC
Continuous temperature: 105°C (3000h)
Intermittent temperature: 120°C (48h)
Cold resistance: -25°C
Oil resistant: Yes
Fuel resistant: Yes
Insulation wall thickness: Thin wall

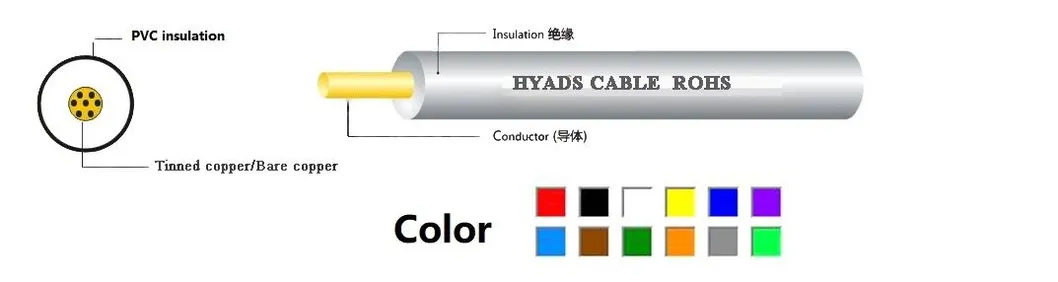

CABLE CONSTRUCTION
OEM Specification Are Also Welcome!

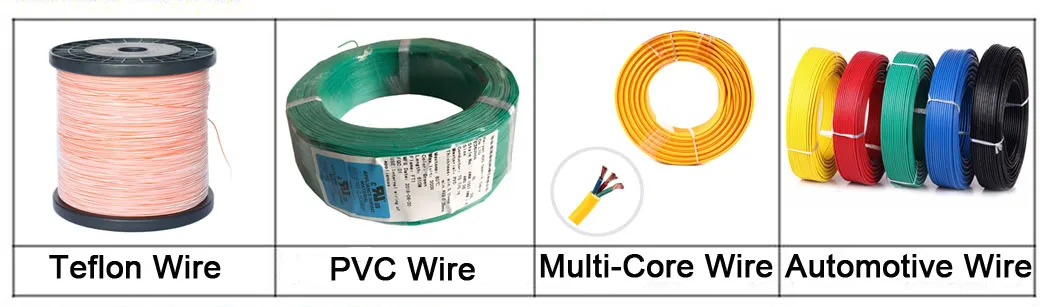

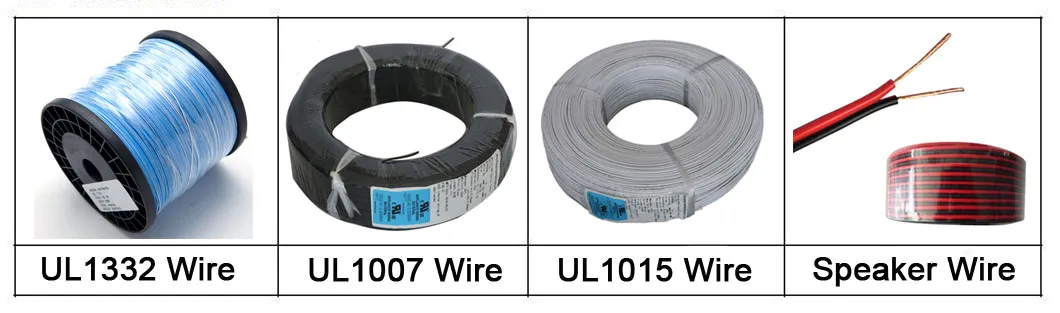

Main Product
More Product Please See Below:
1.Speaker Cable
2.Control Cable
3.Shielded Cable
4.Microphone Cable
5.Battery Cable
Hot Product

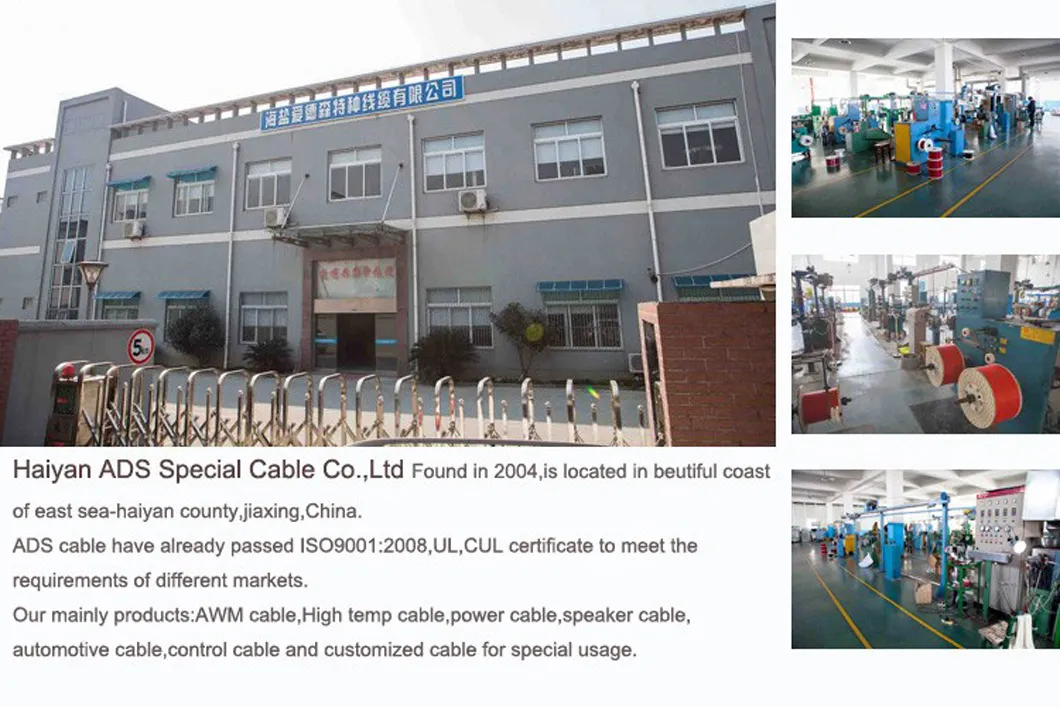

Company Intruction
Certification

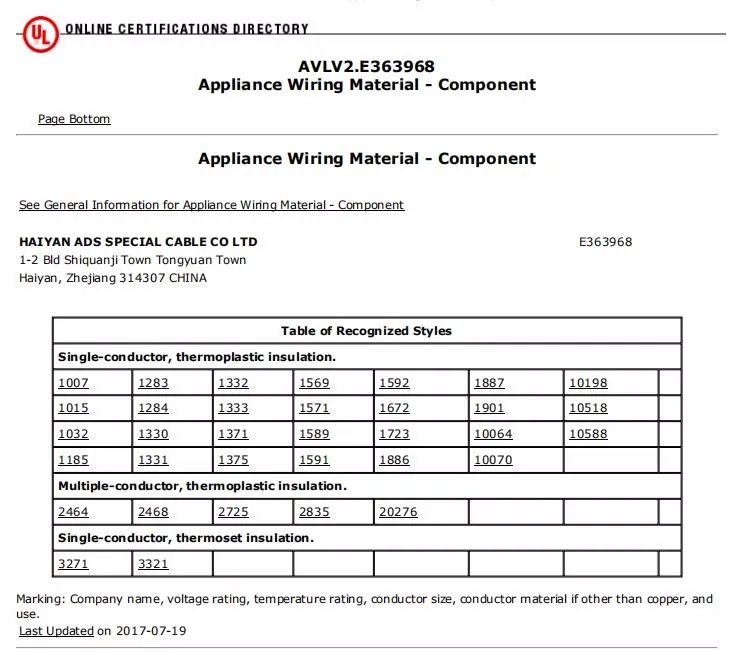

UL Certification
More Test report (Rohs,Reach,Flame Retardant),Pls contact us

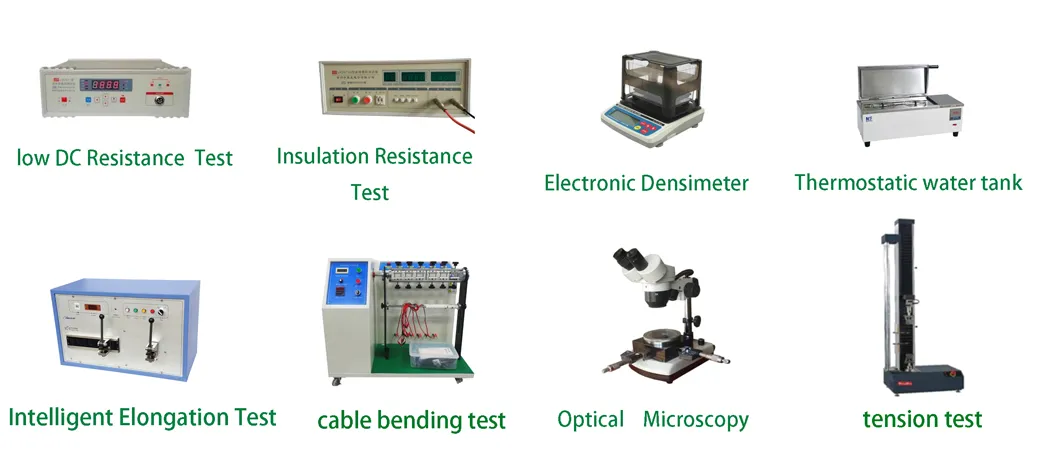

Test Equipment

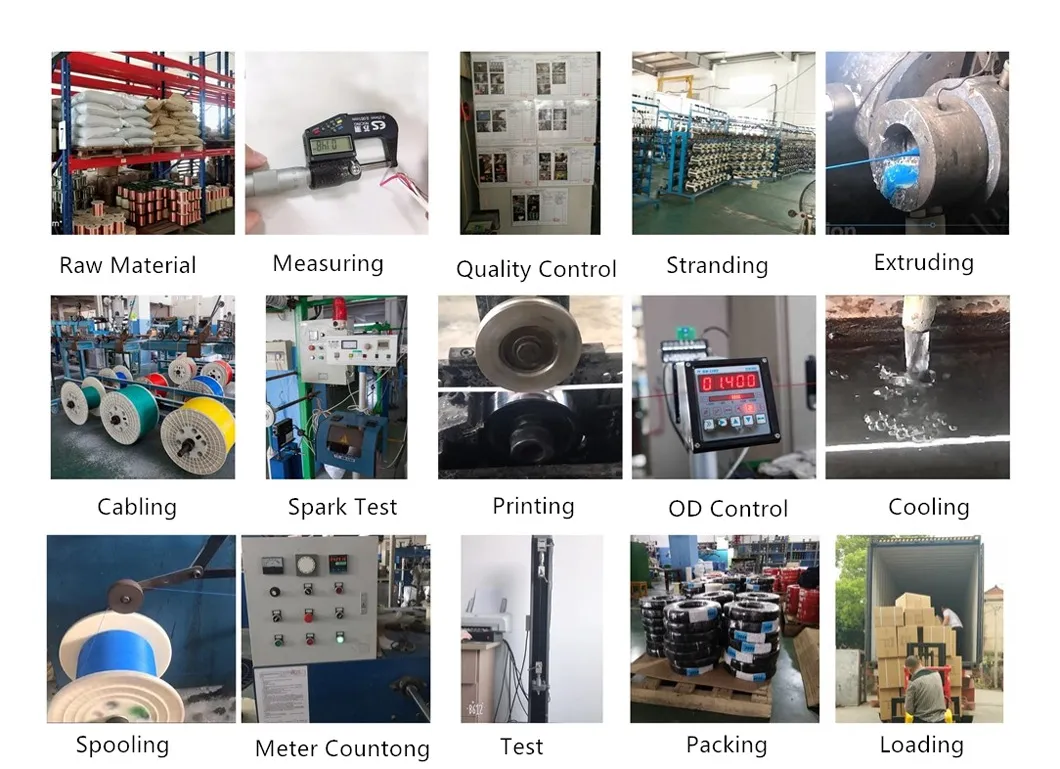

Production Process
Overseas Exibition
FAQ
Q:Are you a factory or a trading company
A:ADS company is a professional cable manufacturer with 15 years production experience.
Q:What's your company MOQ
A:Our company has MOQ requirements, but we also accept small quantity.
Q:Whether these products quality assured?
A:Most of cables are certificated. Also, we have strict QC, all products are 100% tested before delivery. Quality is assured.
Q:Can you send a sample for us to test?
A:1.If we have it in stock and the amount is small, it is free.
2.If we do not have it in stock, sample and freight cost have have to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
Q:If I want to purchase, how to pay?
A: Generally we do T/T in 30% deposit before production, 70% balance before loading. Also payment terms are negotiable depending on customer's request.
Contact Us
FLY (-25°C / +90°C)
Conductor:Annealed Copper
Insulation:PVC
Continuous temperature: 105°C (3000h)
Intermittent temperature: 120°C (48h)
Cold resistance: -25°C
Oil resistant: Yes
Fuel resistant: Yes
Insulation wall thickness: Thin wall
CABLE CONSTRUCTION
| Conductor | Insulation | Cable | ||||||
| Nominal | No. and Dia. of Wires | Diameter max. | Electrical resistance at 20ºC max. | thickness Wall Nom. | Overall Diameter Min. | Overall Diameter Max. | Weight approx. | |
| cross- | ||||||||
| section | ||||||||
| mm2 | No./mm | (mm) | ohm/km | (mm) | mm | mm | kg/km | |
| 1x0.50 | 16 /0.21 | 1 | 37.1 | 0.48 | 2 | 2.3 | 8 | |
| 1x0.75 | 24/0.21 | 1.2 | 24.7 | 0.48 | 2.2 | 2.5 | 12 | |
| 1x1.00 | 32/0.21 | 1.35 | 18.5 | 0.48 | 2.4 | 2.7 | 15 | |
| 1x1.50 | 30/0.26 | 1.7 | 12.7 | 0.48 | 2.7 | 3 | 20 | |
| 1x2.00 | 40/0.26 | 2 | 9.42 | 0.6 | 2.9 | 3.2 | 26 | |
| 1x2.50 | 50/0.26 | 2.2 | 7.6 | 0.7 | 3.3 | 3.7 | 32 | |
| 1x3.00 | 60/0.26 | 2.5 | 6 | 0.7 | 3.5 | 3.9 | 37 | |
| 1x4.00 | 56/0.31 | 2.75 | 4.71 | 0.8 | 4 | 4.4 | 49 | |
| 1x6.00 | 84/0.31 | 3.3 | 3.14 | 0.8 | 4.6 | 5 | 68 | |
| 1x10.00 | 80 /0.41 | 4.5 | 1.82 | 0.8 | 6 | 6.5 | 117 | |
| 1x16.00 | 126/0.41 | 6.3 | 1.16 | 0.8 | 7.5 | 8.3 | 193 | |
| 1x25.00 | 196/0.41 | 7.8 | 0.74 | 1.04 | 9.5 | 10.4 | 274 | |
| 1x35.00 | 276/0.41 | 9 | 0.53 | 1.04 | 10.6 | 11.6 | 397 | |
| 1x50.00 | 400/0.41 | 10.5 | 0.37 | 1.2 | 12.9 | 13.5 | 547 | |
| 1x70.00 | 555/0.41 | 12.5 | 0.26 | 1.2 | 14.8 | 15.5 | 769 | |
| 1x95.00 | 740/0.41 | 14.8 | 0.2 | 1.28 | 17 | 18 | 990 | |
| 1x120.00 | 960/0.41 | 16.5 | 0.15 | 1.6 | 18.7 | 19.7 | 1250 | |
OEM Specification Are Also Welcome!
Main Product
More Product Please See Below:
1.Speaker Cable
2.Control Cable
3.Shielded Cable
4.Microphone Cable
5.Battery Cable
Hot Product
Company Intruction
Certification
UL Certification
More Test report (Rohs,Reach,Flame Retardant),Pls contact us
Test Equipment
Production Process
Overseas Exibition
FAQ
Q:Are you a factory or a trading company
A:ADS company is a professional cable manufacturer with 15 years production experience.
Q:What's your company MOQ
A:Our company has MOQ requirements, but we also accept small quantity.
Q:Whether these products quality assured?
A:Most of cables are certificated. Also, we have strict QC, all products are 100% tested before delivery. Quality is assured.
Q:Can you send a sample for us to test?
A:1.If we have it in stock and the amount is small, it is free.
2.If we do not have it in stock, sample and freight cost have have to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
Q:If I want to purchase, how to pay?
A: Generally we do T/T in 30% deposit before production, 70% balance before loading. Also payment terms are negotiable depending on customer's request.
Contact Us
