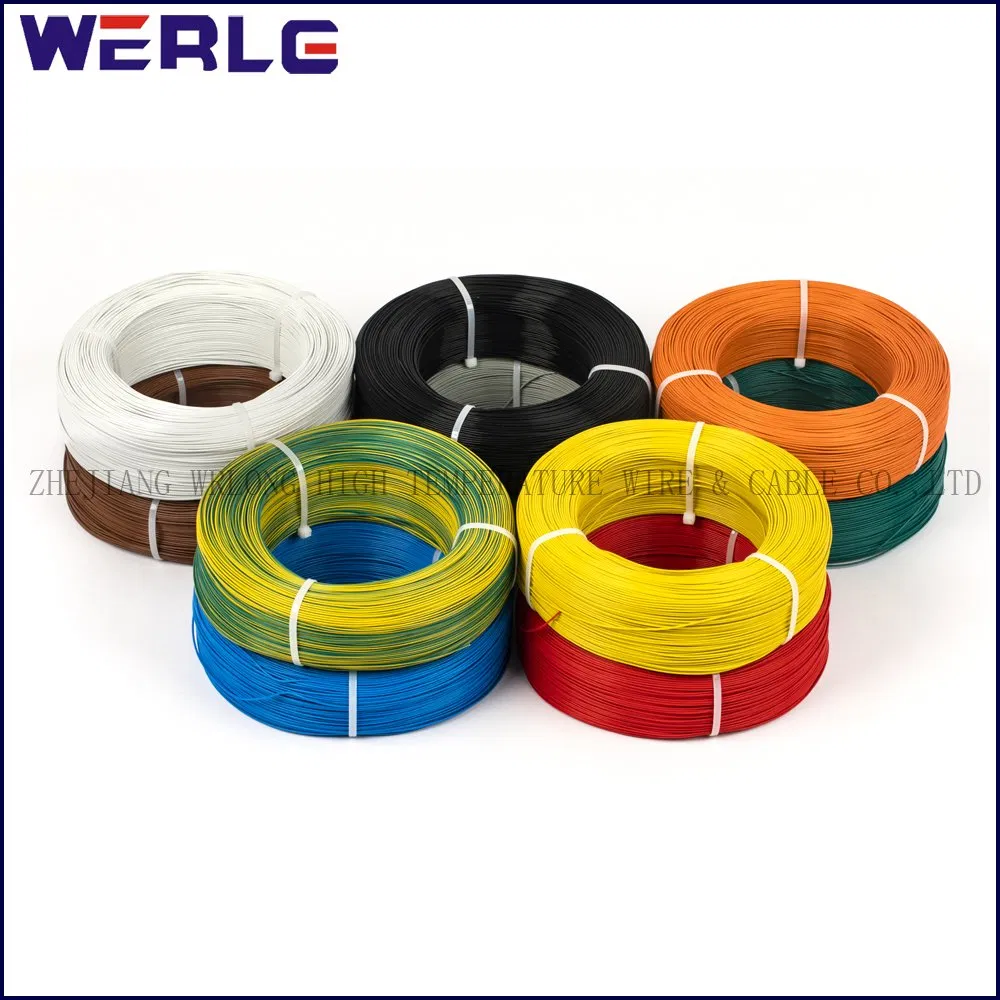

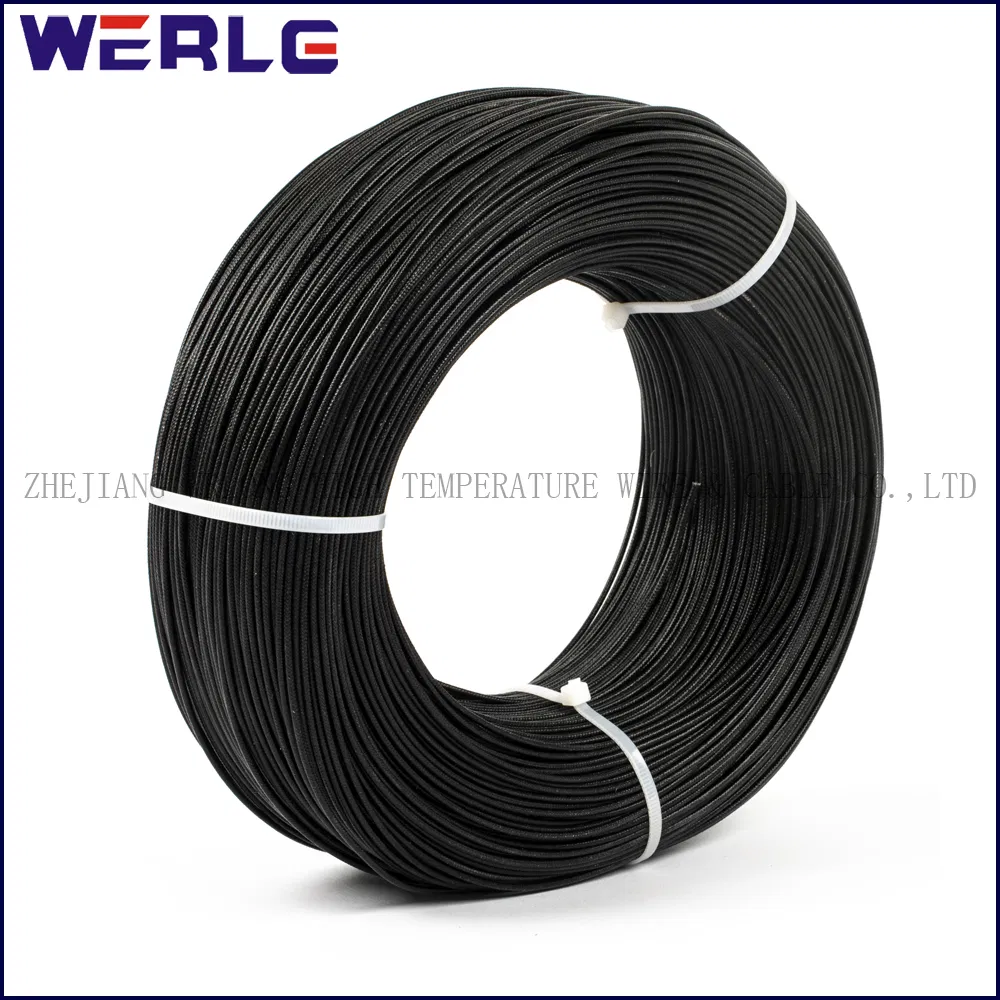

China Flexible Electric Electrical Copper Conductor PVC Insulated House Wiring Cable Wire

Product Description

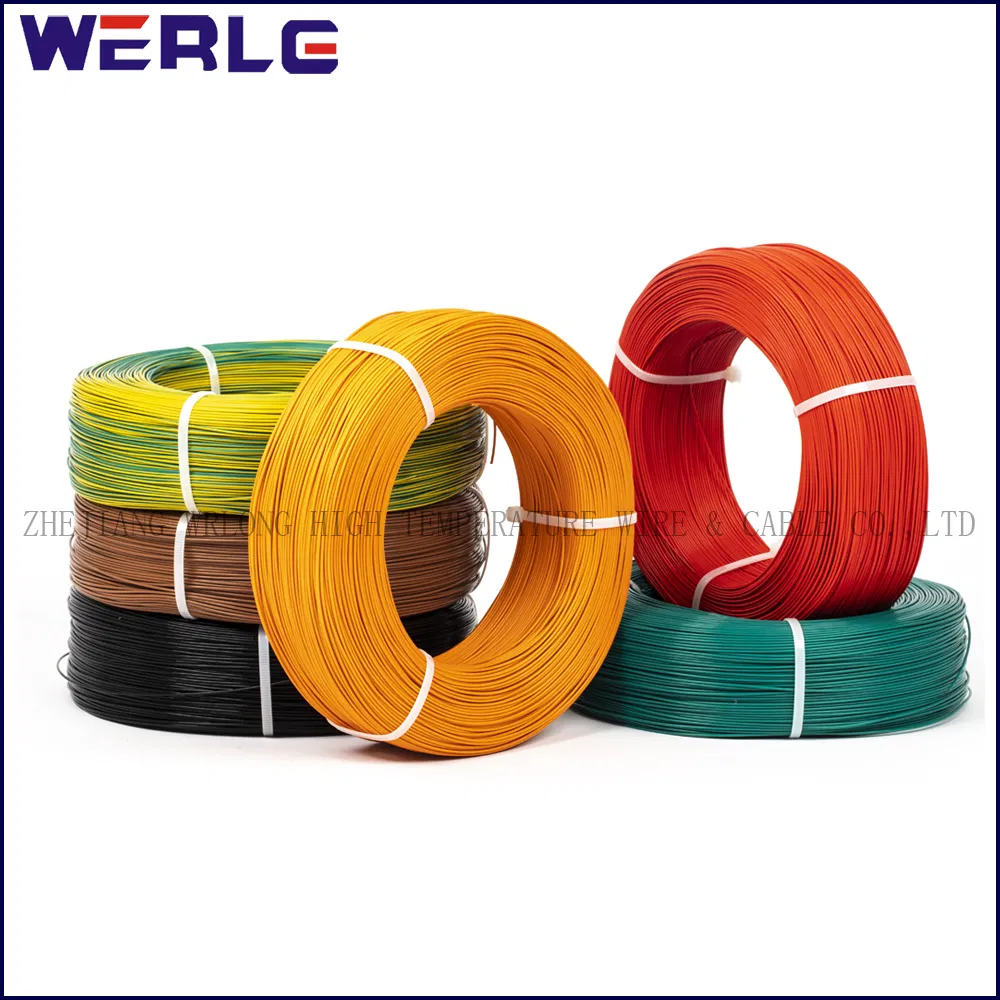

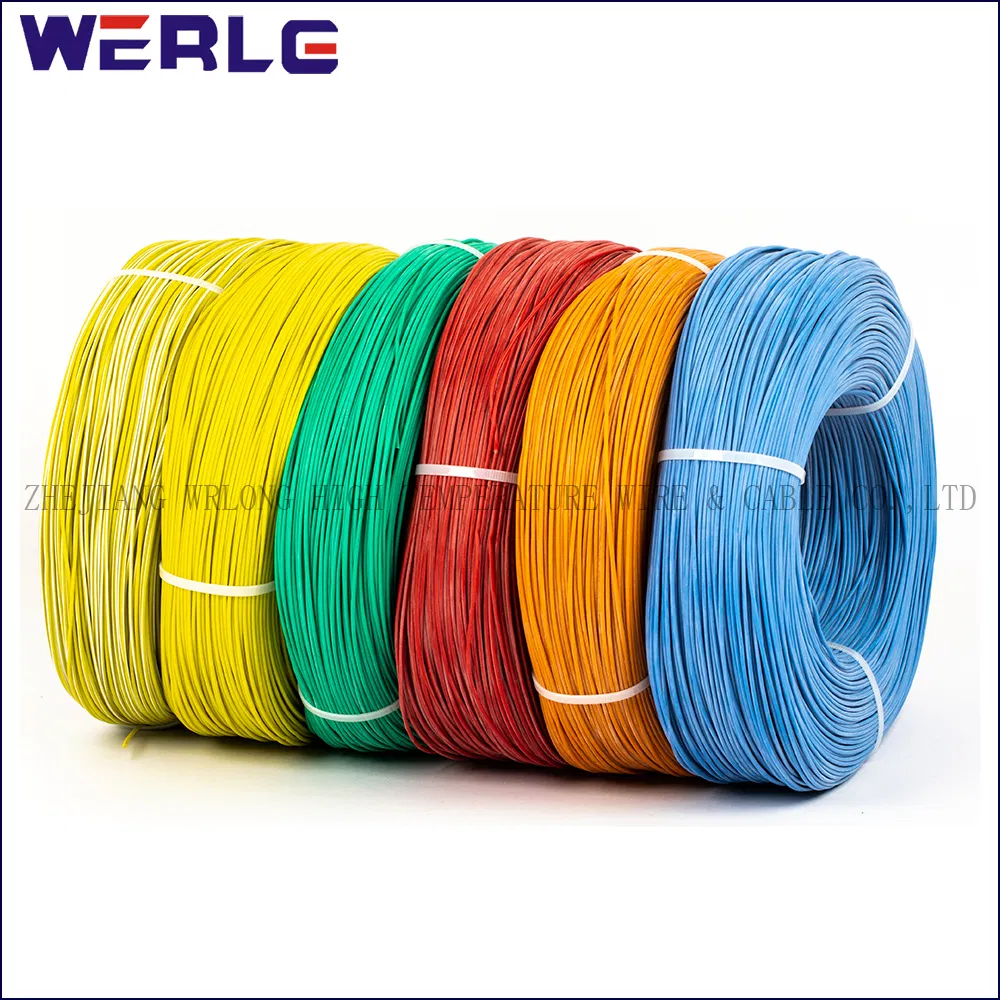

Flexible Electric Electrical Copper Conductor PVC Insulated House wiring Cable Wire

TECHNICAL DATA
Rated voltage: 300V
Rated temperature:-40ºC~+80ºC
Conductor: Tinned or bare, strand or solid copper
Insulator: PVC
OD Tolerance: ±0.05mm

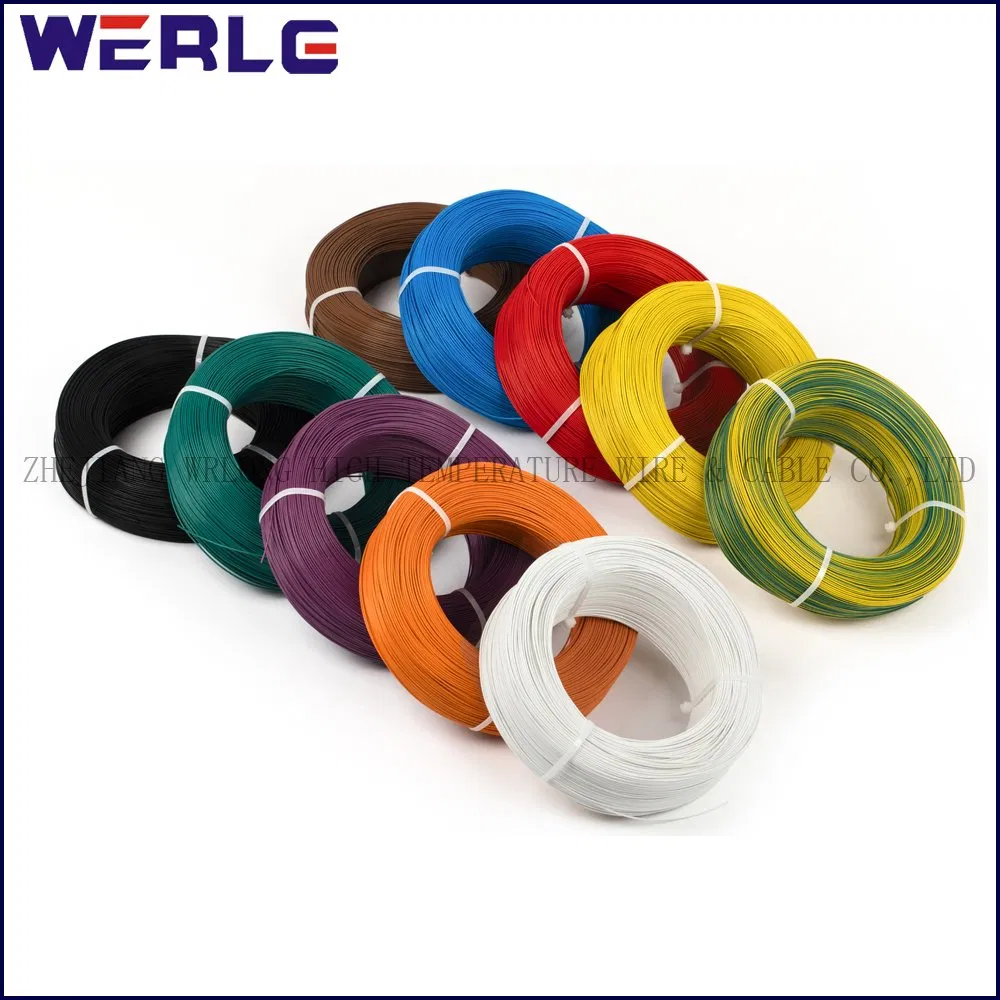

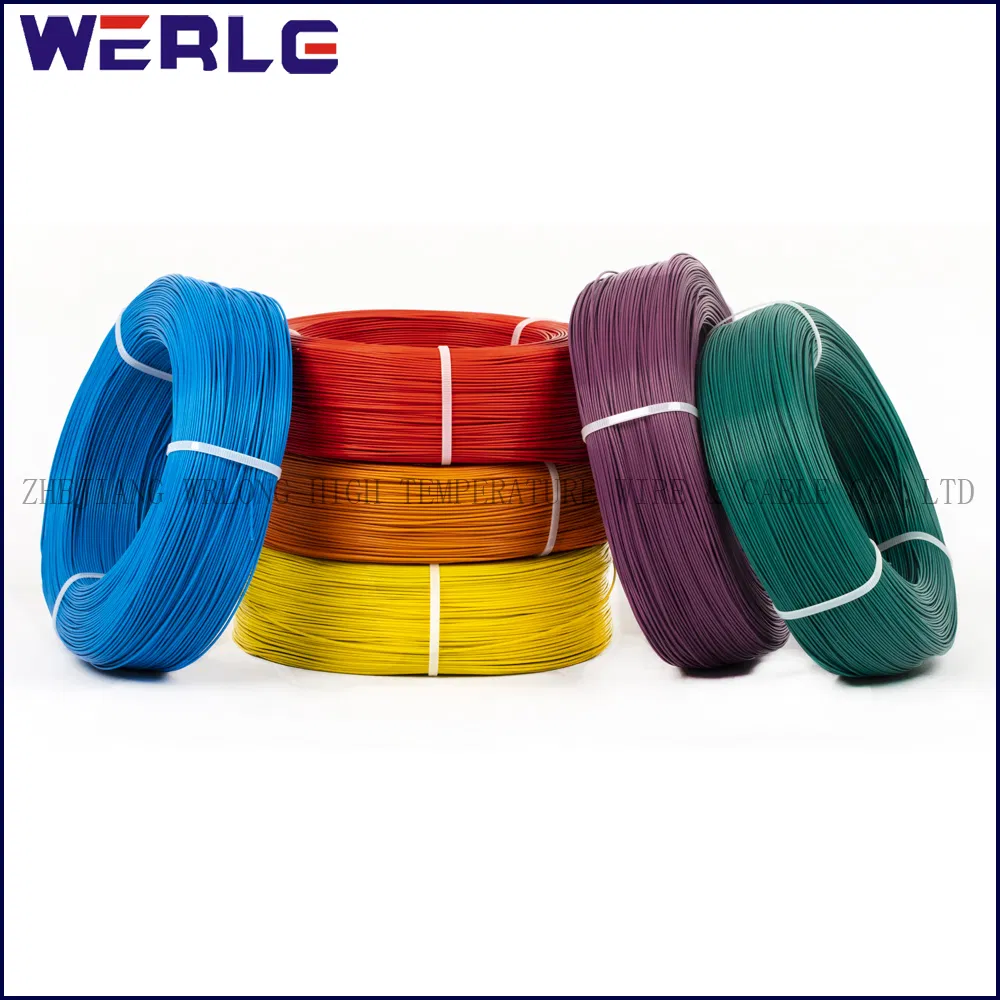

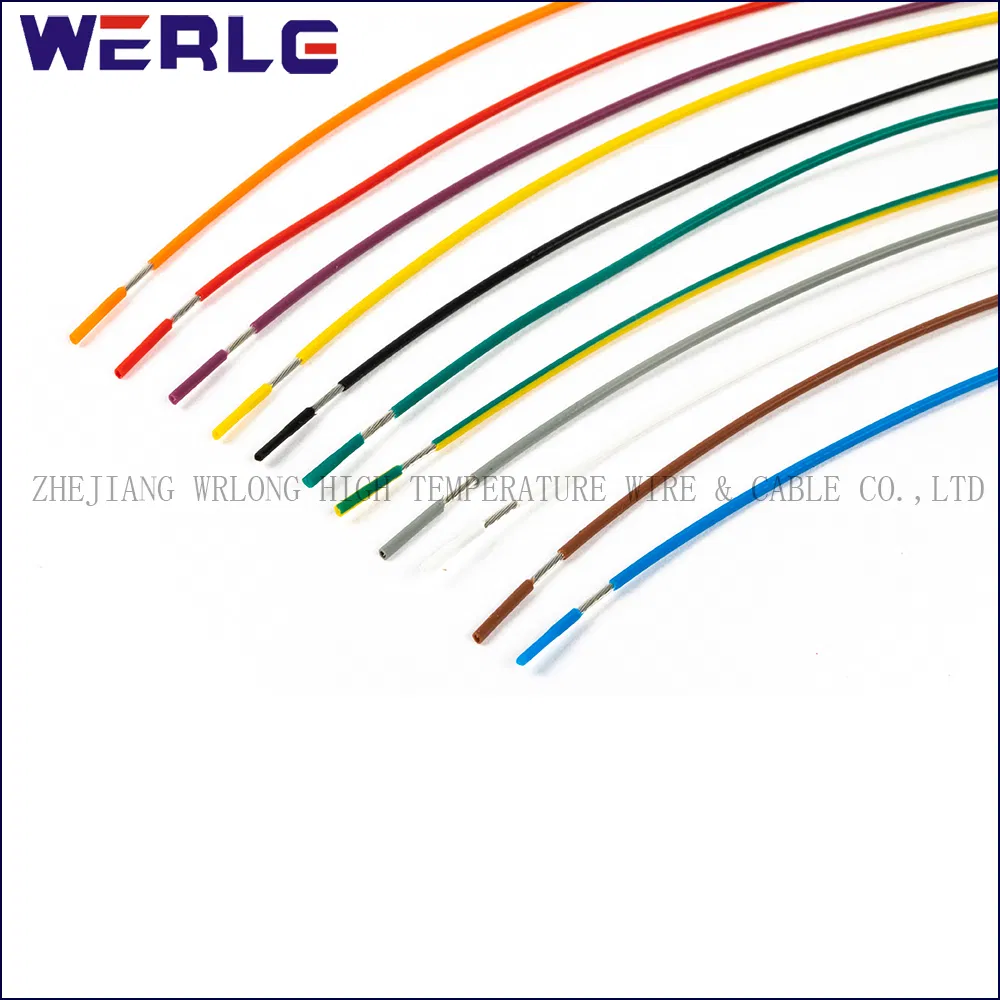

Colour: white, blue, red, black, brown, orange, purple, gray, yellow, green, transparent, yellow-green, etc

CHARACTERISTIC
Flexible, easy assemble, cold resistance, stable performance, UL 758, RoHs compliance.

APPLICATION
Apply to household appliance, illumination & lighting & headlamp, electric machines, temperature sensor, military series, metallurgy chemical series, motor cars & ships, electrical installation.

UL1007	Conductor		Over Diamter ±0.05mm²	Insulator			Technical Data		Packing(m/roll)
Size	Conductor Construction No./mm	Diameter mm	Over Diamter ±0.05mm²	Material	Average Thickness mm	Colour	Temperature Range(ºC)	Nominal voltage	Packing(m/roll)
32 AWG	7/0.08	0.24	1.O5	PVC	0.403	red,yellow, blue,green, black,white, purple,brown, orange, yellow-green, transparent	80ºC	300V	610
30 AWG	7/0.1	0.3	1.11	PVC	0.402				610
28 AWG	7/0.127	0.38	1.19	PVC	0.401				610
26 AWG	7/0.16	0.48	1.29	PVC	0.401				610
24 AWG	11/0.16	0.61	1.42	PVC	0.404				610
22 AWG	17/0.16	0.76	1.57	PVC	0.404				610
20 AWG	26/0.16	0.94	1.75	PVC	0.404				305
18 AWG	41/0.16	1.18	1.99	PVC	0.403				305
16 AWG	26/0.254	1.49	2.29	PVC	0.397				305
14 AWG	41/0.254	1.86	2.68	PVC	0.401				305
