Product Description

Flexible Cable Pump Cable Pump Power Cord Rubber Cable H07rn8-F H05rn8-F H05rn-F H05rr-F H07rn-F H07rr-F

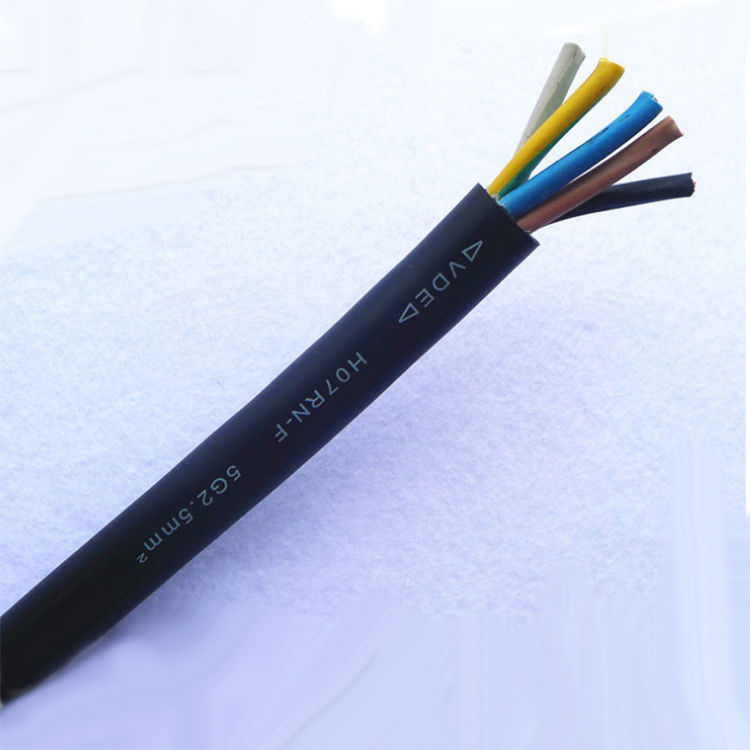

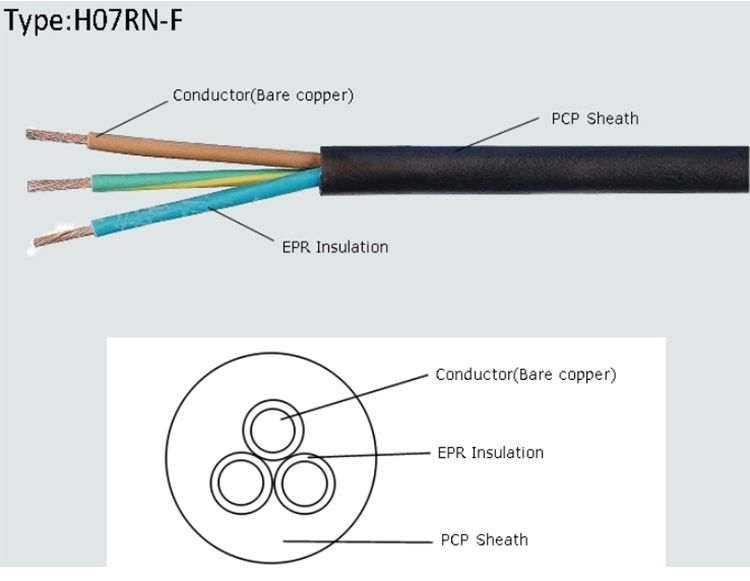

H07RN-F Cable Construction:
Conductor: Stranded Bare Copper acc. to IEC 60228, EN 60228, VDE 0295, class 5
Insulation: Synthetic Rubber, EI4 acc. to DIN VDE 0282 part 1 + HD 22.1
Conductor Color Coding: acc. to HD 308 (VDE 0293-308)
Conductor Stranding: from 2 conductors stranded in layers
Jacket: Synthetic Rubber, EM2 acc. to DIN VDE 0282 part 1 + HD 22.1
Jacket Color: Black
H07RN-F Cable Technical Data:
Nominal Voltage: Uo/U 450/750 volts
Testing Voltage U: 2500 volts acc. to DIN VDE 0282 part 2 + HD 22.2
Min. Bending Radius: 15 x O.D.
H07RN-F Cable Ratings & Approvals:
Temperature Range: -25°C to +60°C
VDE
HAR
CE
Working temperature:
H07RN-F  model rated voltage U0/U IS 450/750V
H05RN-F  model rated voltage U0/U IS 300/500V
H05RR-F  model rated voltage U0/U IS 300/500V
Long time allow working temperature of wire core cant be higher than 60C
Flexible Cable Pump Cable Pump Power Cord Rubber Cable H07rn8-F H05rn8-F H05rn-F H05rr-F H07rn-F H07rr-F

Code	IEC	Description	Voltage Design	Cores
H05RR-F	60245 IEC 53(YZ)/YZ	Ordinary rubber sheathed cord	300/500V	2~6
H05RN-F	60245 IEC 57(YZW)/YZW	Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord	300/500V	2~6
H07RN-F	60245 IEC 66(YCW)/YC	Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable	450/750V	1~5, 3+1/3+2/4+1
H01N2-D	60245 IEC 81(YH)	Rubber sheathed arc-welding electrode cable	100/100V	10-120
H01N2-D	60245 IEC 82(YHF)	polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable	100/100V	10-120
