China FL2g Thick Wall Silicone Ruber Insulated Vechile Wire

Product Description

Wuxi Yuanda Electrical Material Co., Ltd. is an ISO9001 certified manufacturer, whose main products have won approval of UL, VDE, CSA and CCC and RoHS Environmental Protection Instruction of European Union.

Our products including silicon rubber wires and cables, FSG silicon extruded and Glassfiber braided sleeves, HST silicon extruded and glassfiber braided sleevings, SRG silicon extruded and glassfiber braided sleevings, SR silicon sleeves as well As other silicon rubber items are widely used for aviation, metallurgy, petroleum, Electronic instruments, meters, household apparatus, transformers and motors.

With strong technical power, advanced production equipment, complete testing Facilities and perfect quality ensurance system, we have many years' production Experience in silicon rubber wires and cables. Our products are well sold around
The world, including U. S. A, U. K., Germany, Denmark, Canada, India, and Japan etc...

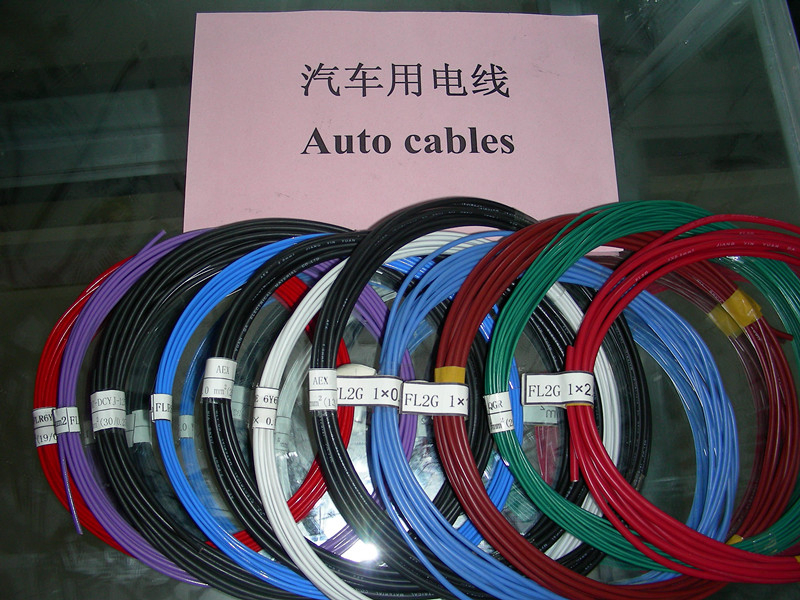

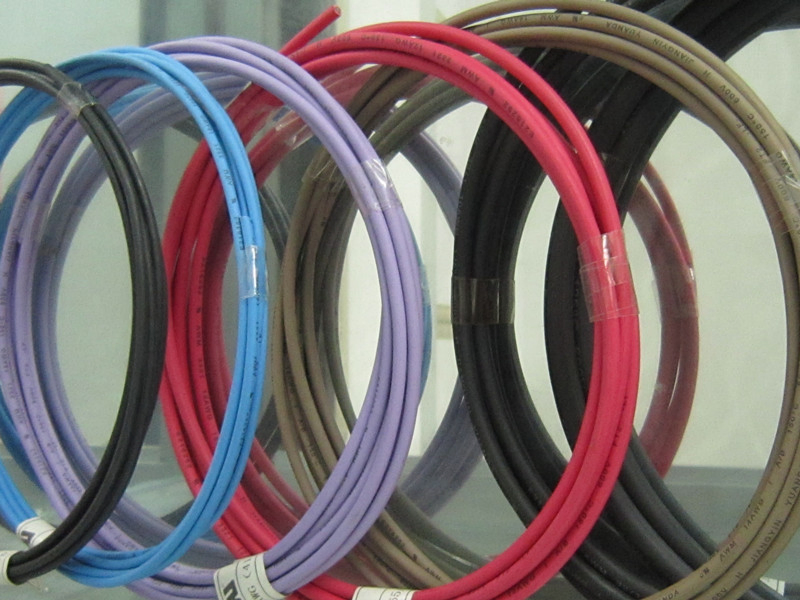

FL2G Thick Wall Silicone Ruber Insulated Vechile Wire

Technical Data:

1) Nominal voltage: 60V DC, 25V AC
2) Temperature Range: -60ºC-180ºC
3) Conductor: Copper or Tinned Copper
4) Insulator: Silicone Rubber
5) Testing voltage: 1000V
6) Colours: White, Blue, Red, Black, Yellow, Green
7) Use: Internal wiring of vechiles electrical system.
8) Standard: ISO 6722

Specification:

Conductor			Insulation			Max resistance at 20 ºC Ω/km
Size mm2	Conductor construction No./D(mm)	Diameter (mm)	Thickness (mm)	Nominal outer diameter (mm)	Max outer diameter (mm)	Cu core	Tinned-Cu core
0.5	28/0.15	0.93	0.6	2.1	2.3	37.1	38.2
0.75	24/0.20	1.14	0.6	2.3	2.5	24.7	25.4
1.0	32/0.20	1.32	0.6	2.5	2.7	18.5	19.1
1.5	30/0.25	1.60	0.6	2.8	3.0	12.7	13.0
2.0	(41/0.25)(28/0.30)	1.90	0.6	3.1	3.3	9.42	9.69
2.5	50/0.25	2.0	0.7	3.4	3.6	7.60	7.82
3.0	44/0.30	2.3	0.7	3.7	4.1	6.15	6.36
4.0	(56/0.30)(140/0.20)	2.7	0.8	4.3	4.4	4.71	4.85
5.0	(70/0.30)(172/0.20)	3.0	0.8	4.6	4.9	3.94	4.02
6.0	(84/0.30)(200/0.20)	3.4	0.8	4.8	5.0	3.14	3.23
10	(84/0.40)(322/0.20)	4.2	1.0	6.2	6.5	1.82	1.85
16	(126/0.40)(513/0.20)	5.7	1.0	7.7	8.0	1.16	1.18
25	(196/0.40)(798/0.20)	7.1	1.3	9.7	10.1	0.743	0.757
35	(276/0.40)(1121/0.20)	8.5	1.3	11.1	11.5	0.527	0.538
50	(396/0.40)(1596/0.20)	10.3	1.5	13.3	13.5	0.368	0.373
70	(360/0.50)(2214/0.20)	12.2	1.5	15.2	15.5	0.259	0.264
95	(475/0.50)(2997/0.20)	14.2	1.6	17.4	18.0	0.196	0.200
120	(608/0.50)(3811/0.20)	16.2	1.6	19.4	19.7	0.153	0.156
