Product Description

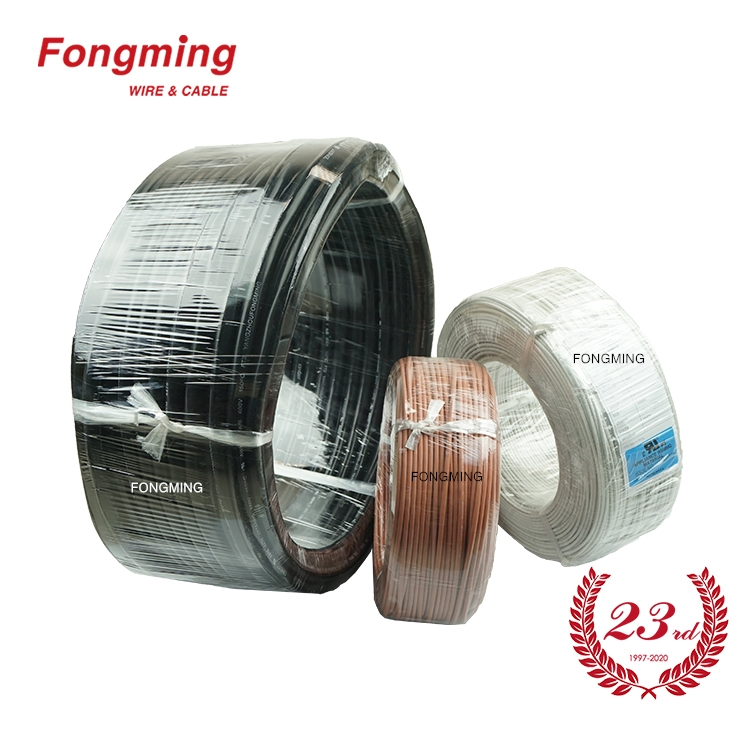

Fiberglass Braided High Temp Shield Multi Cable
Description
Name: Fiberglass Braided High Temp Shield Multi Cable
Model: GG01-P
Size: 2*26~5*14AWG
Feature
Ratings Voltage: 300/500V
Rated Temperature: 350C
Structure
Conductor: 3% Nickel Plated Copper
Insulation: Fiberglass Braid 3 Layers with Silicone Resin Coating
Cabling&Braid: Fiberglass Braid
Shield: Stainless Steel Wire
| Cores | Size AWG | Conductor Structure | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | Diameter (mm) | Shield Thickness (mm) | OD (mm) |
| 2 | 26 | 7/0.16 | 0.48 | 0.6 | 1.7 | 0.2 | 3.8 | 0.2 | 4.0±0.3 |
| 3 | 0.2 | 4.1 | 0.2 | 4.3±0.3 | |||||
| 4 | 0.2 | 4.5 | 0.2 | 4.7±0.3 | |||||
| 5 | 0.2 | 5.0 | 0.2 | 5.2±0.3 | |||||
| 2 | 24 | 7/0.2 | 0.60 | 0.6 | 1.8 | 0.2 | 4.0 | 0.2 | 4.2±0.3 |
| 3 | 0.2 | 4.3 | 0.2 | 4.5±0.3 | |||||
| 4 | 0.2 | 4.7 | 0.2 | 4.9±0.3 | |||||
| 5 | 0.2 | 5.3 | 0.2 | 5.5±0.3 | |||||
| 2 | 22 | 7/0.254 | 0.76 | 0.6 | 2.0 | 0.2 | 4.4 | 0.2 | 4.6±0.3 |
| 3 | 0.2 | 4.7 | 0.2 | 4.9±0.3 | |||||
| 4 | 0.2 | 5.2 | 0.2 | 5.4±0.3 | |||||
| 5 | 0.2 | 5.8 | 0.2 | 6.0±0.3 | |||||
| 2 | 20 | 10/0.254 | 0.93 | 0.6 | 2.1 | 0.2 | 4.6 | 0.2 | 4.8±0.3 |
| 3 | 0.2 | 4.9 | 0.2 | 5.1±0.3 | |||||
| 4 | 0.2 | 5.5 | 0.2 | 5.7±0.3 | |||||
| 5 | 0.2 | 6.1 | 0.2 | 6.3±0.3 | |||||
| 2 | 18 | 16/0.254 | 1.17 | 0.6 | 2.4 | 0.2 | 5.2 | 0.2 | 5.4±0.3 |
| 3 | 0.2 | 5.6 | 0.2 | 5.8±0.3 | |||||
| 4 | 0.2 | 6.2 | 0.2 | 6.4±0.3 | |||||
| 5 | 0.2 | 6.9 | 0.2 | 7.1±0.3 | |||||
| 2 | 16 | 26/0.254 | 1.50 | 0.6 | 2.7 | 0.2 | 5.8 | 0.2 | 6.0±0.3 |
| 3 | 0.2 | 6.2 | 0.2 | 6.4±0.3 | |||||
| 4 | 0.2 | 6.9 | 0.2 | 7.1±0.5 | |||||
| 5 | 0.2 | 7.7 | 0.2 | 7.9±0.5 | |||||
| 2 | 14 | 41/0.254 | 1.88 | 0.6 | 3.1 | 0.2 | 6.6 | 0.2 | 6.8±0.5 |
| 3 | 0.2 | 7.1 | 0.2 | 7.3±0.5 | |||||
| 4 | 0.2 | 7.9 | 0.2 | 8.1±0.5 | |||||
| 5 | 0.2 | 8.8 | 0.2 | 9.0±0.5 |
Certifications

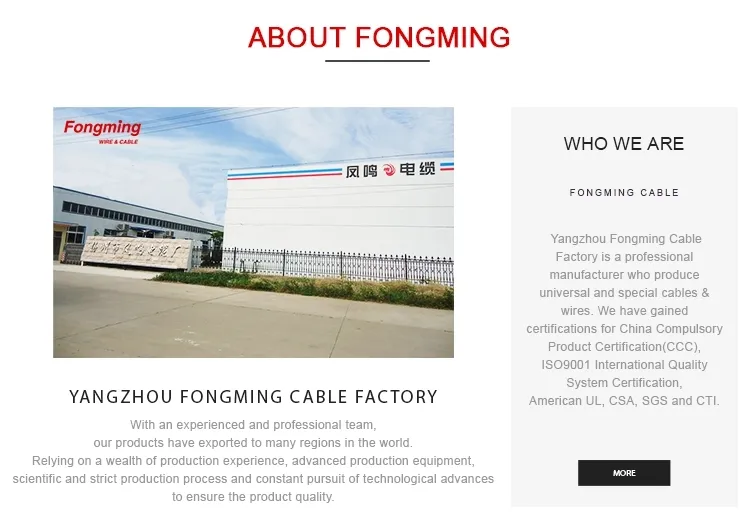

Company Information
Packaging&Shipping
Our Services
1. OEM service available based on official & legal authorization.
2. Strict quality control system.
3. Timely deliverly.
4. Excellent quality with affordable price.
5. Strong technical support.
6. Mobile on 24 hours for any question.
FAQ
1. Why is the price so low?
You are ordering directly from the factory.
2. Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3. Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
