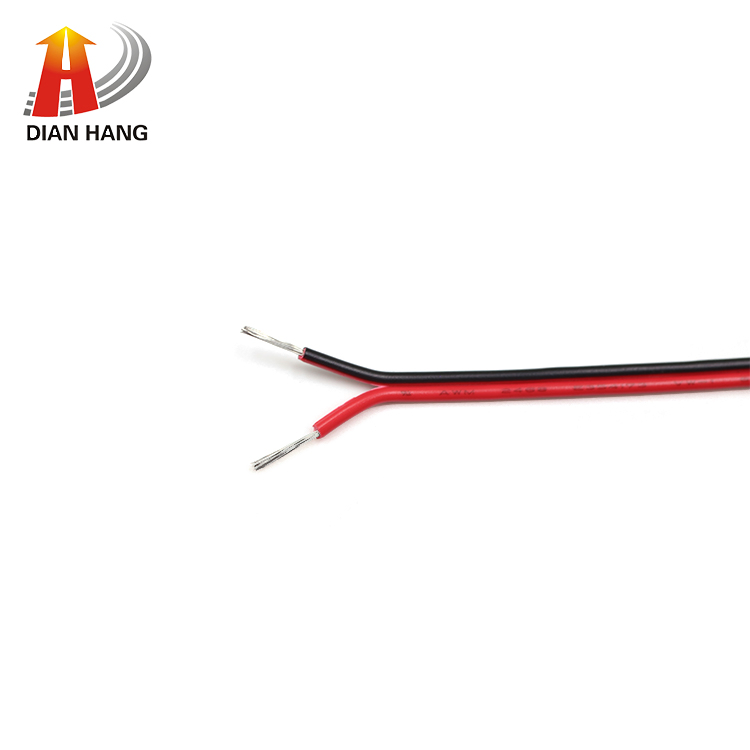

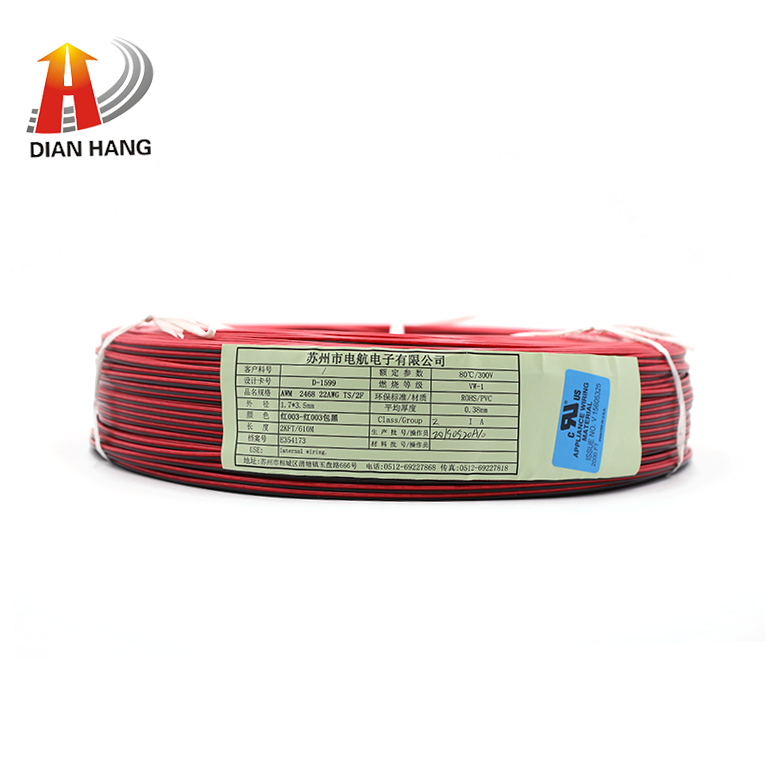

Factory Supply UL2468 18AWG 20 AWG Flat in Wall Speaker Cable Wire Tinned Copper PVC Insulation Cable
Product DescriptionUL Type: 2468 Flat ribbon cableRated temperature:80ºCRated voltage:300VReference standard:UL758,UL1581,CSA C22.2No.210.2Solid or stranded, tinned or bare copper conductor 32~16AWGPVC insulation, comply with ROHS, REACH environmental standardPasses UL VW-1, CSA FTI and JQA......
Send Inquiry
Product Description

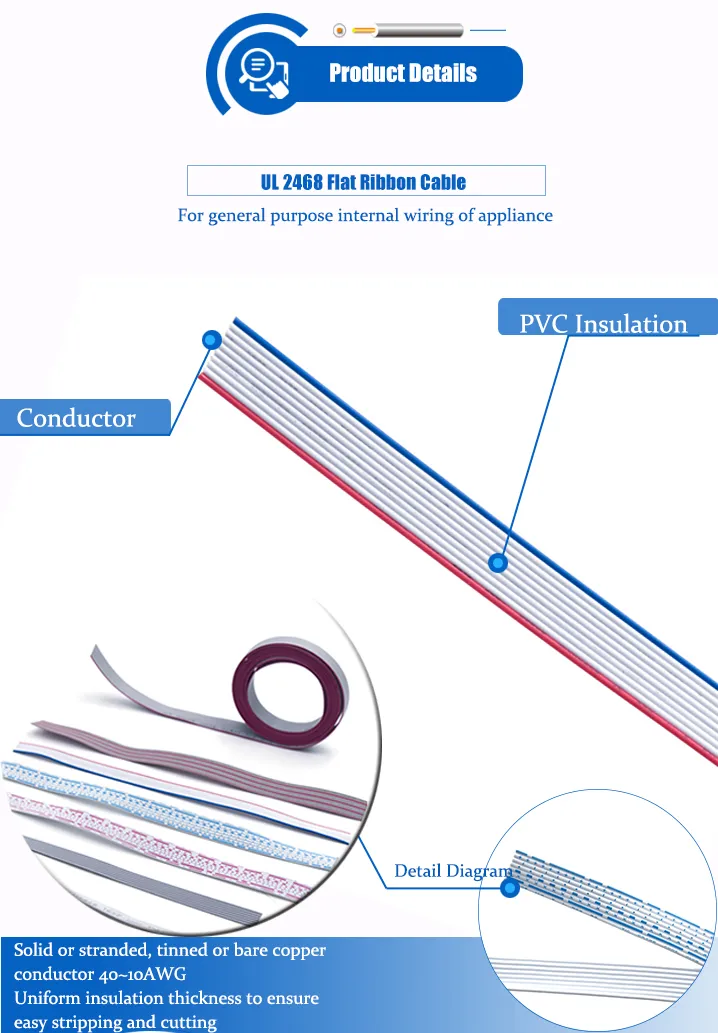

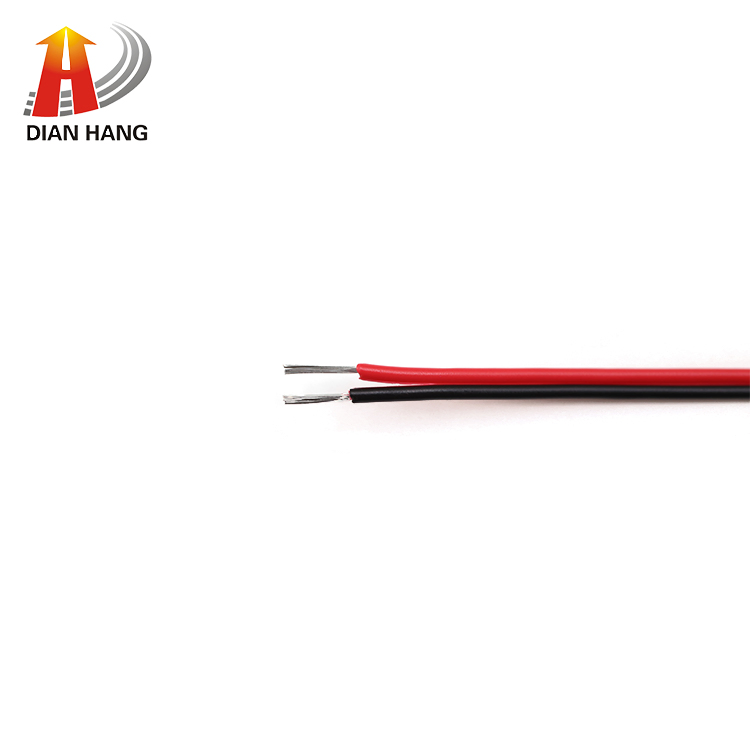

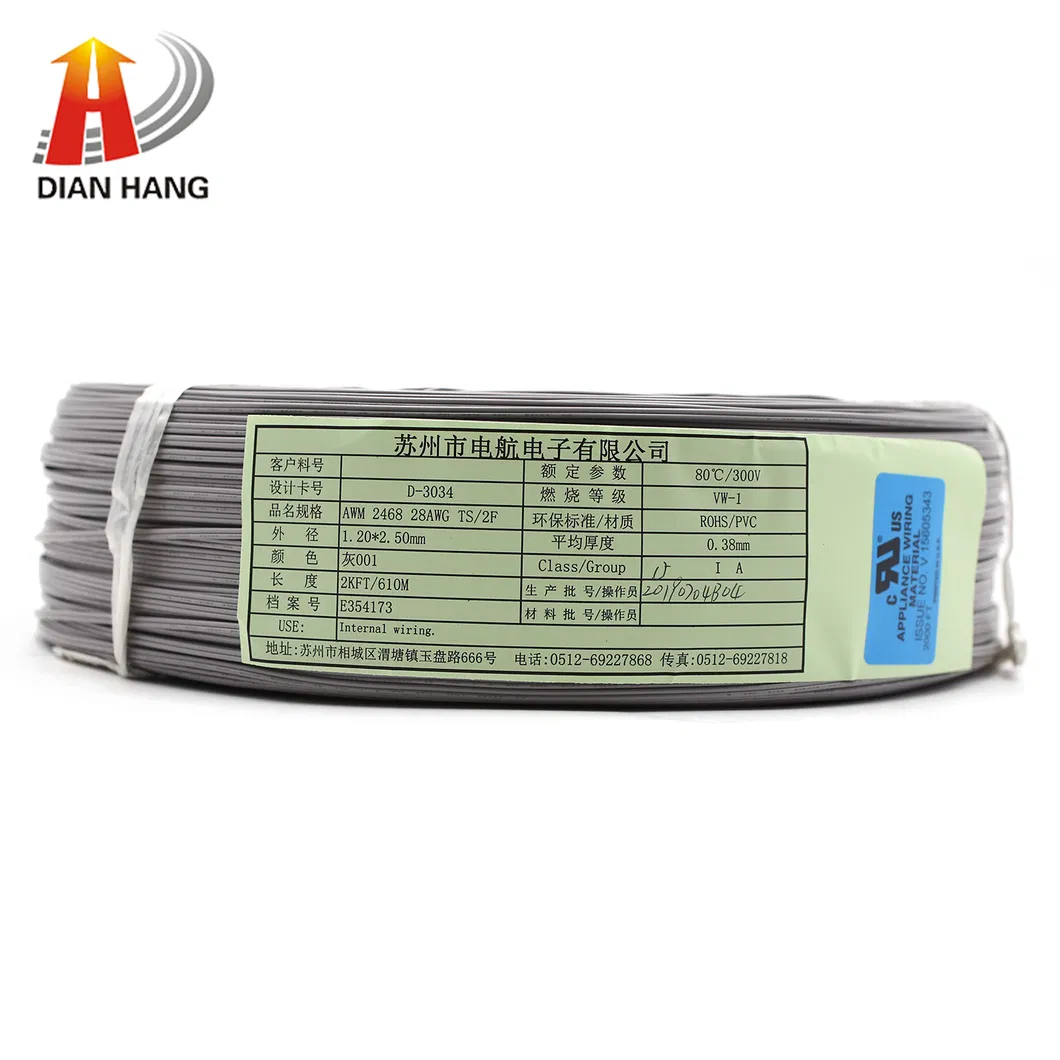

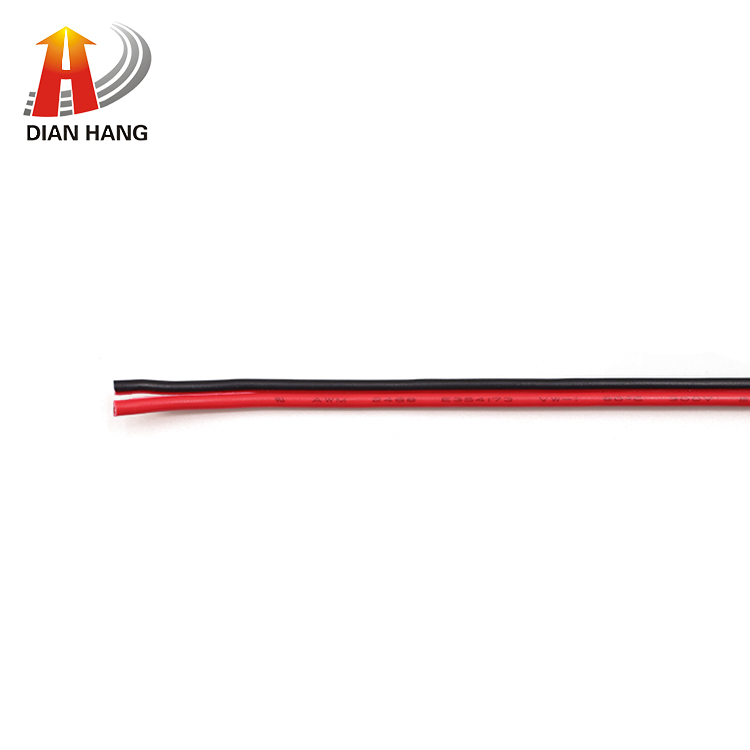

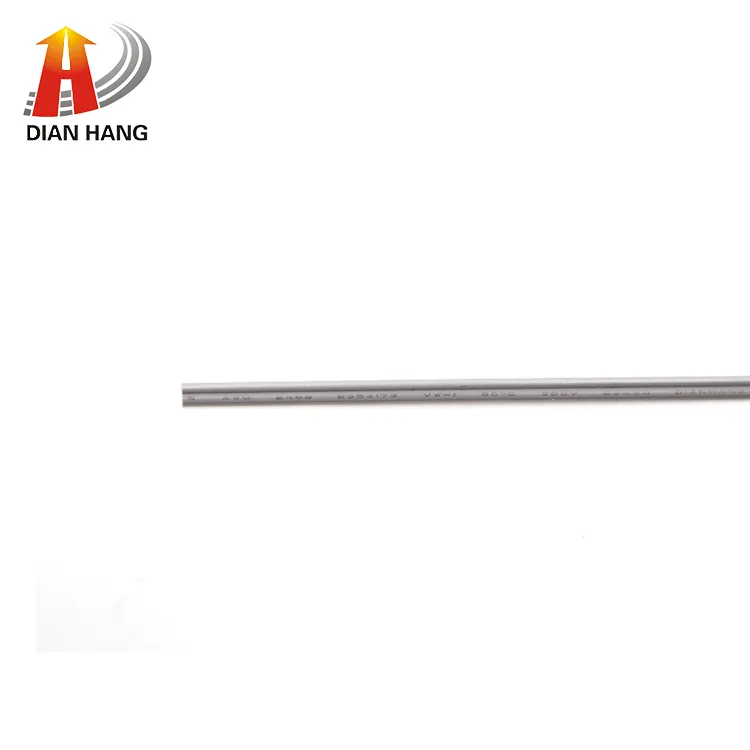

UL Type: 2468 Flat ribbon cable
Rated temperature:80ºC
Rated voltage:300V
Reference standard:UL758,UL1581,CSA C22.2No.210.2
Solid or stranded, tinned or bare copper conductor 32~16AWG
PVC insulation, comply with ROHS, REACH environmental standard
Passes UL VW-1, CSA FTI and JQA F-Mark flame test
Uniform insulation thickness to ensure easy stripping and cutting
Application:
For general purpose internal wiring of appliance
UL type | conductor | Insulation | Max.cond Resistance | Dielectric Strength | |||
2468 | AWG | Construction | Cores No
| Thickness (mm) | OD (mm) | (Ω/Km,20ºC,Dc)
| (Vac,1min)
|
28 | 7/0.127 | 2F | 0.44 | 1.25*2.50 | 239 | 2000 | |
26 | 7/0.16 | 2F | 0.46 | 1.35*2.85 | 150 | 2000 | |
24 | 11/0.16 | 2F | 0.42 | 1.45*3.05 | 94.2 | 2000 | |
22 | 17/0.16 | 2F | 0.47 | 1.70*3.50 | 59.4 | 2000 | |
20 | 26/0.16 | 2F | 0.43 | 1.80*3.70 | 36.7 | 2000 | |
18 | 41/0.16 | 2F | 0.46 | 2.10*4.30 | 23.2 | 2000 | |
