Product Description
electrical cable wire 3.5mm/3.5mm electrical wire/3.5mm electrical cable
Product Description
electrical cable wire 3.5mm/3.5mm electrical wire/3.5mm electrical cable

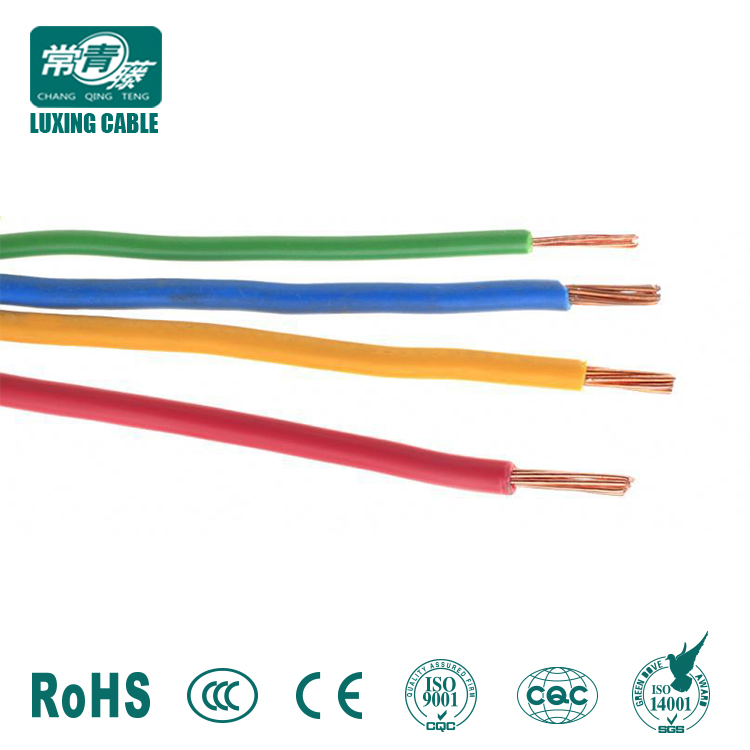

The Details of Cu conductor pvc insluated electrical cable wire
1. Rate Voltage: 300/500V, 450/750V
2. Max. working temperature: 70 °C , can be 90 °C ,105 °C as requirement
3. Insulation: PVC

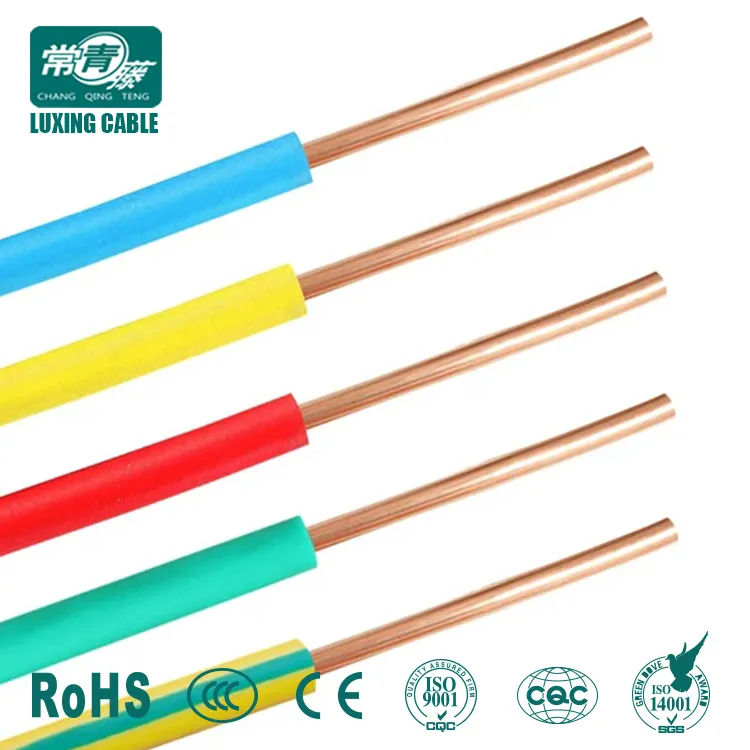

4. Conductor: Class 1/2 Plain annealed copper wires,solid or stranded
5.Cross Section Areas: 0.75mm2~185mm2
6. Remark: Flame retardant,fire resistance,low smoking and Halogen free,or other property can be avaliable

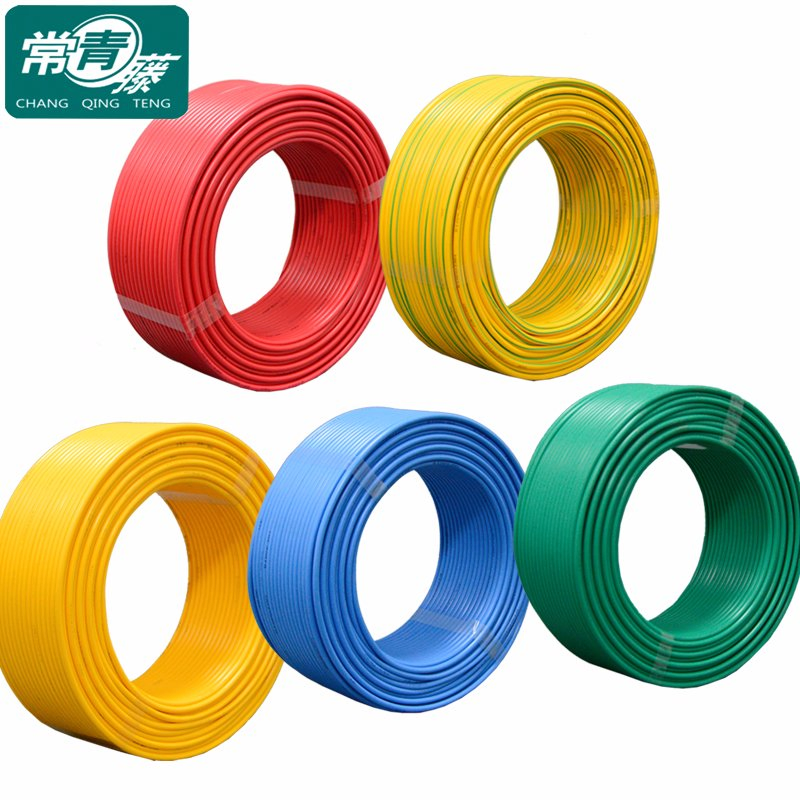

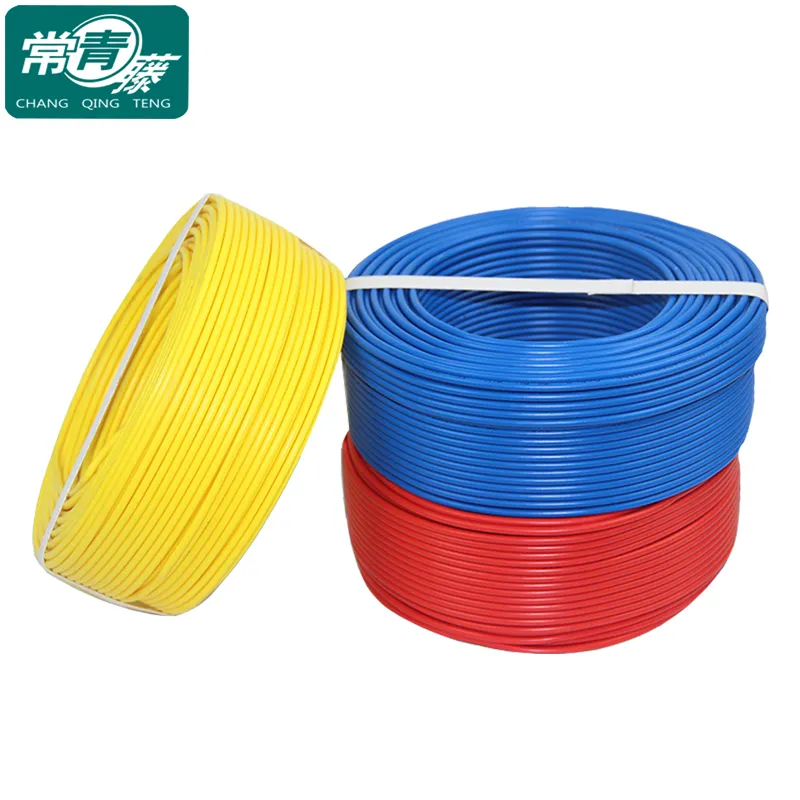

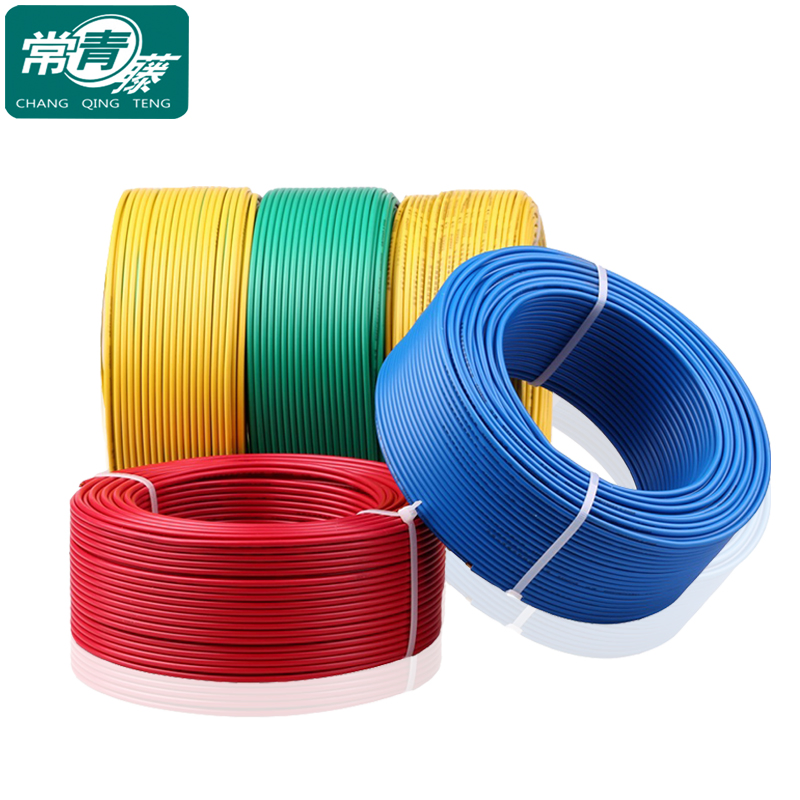

7. Packing: 100m per roll, or as your request.
The Application of electrical cable wire
Single Core PVC insulation Copper Conductor house wiring electical wire cable is used for general purpose, as building wire for power, lighting and
control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.
Technical Data of electrical cable wire
Nominal section (mm2) | Number/diameter of core (mm) | Maximum outer diameter (mm2) | Reference weight (Kg/km) | Conductor resistance at 20°C ≤(Ω/km) | ||
copper | aluminum | aluminum | copper | |||
1.5(A) | 1/1.38 | 3.3 | 20.3 | ----- | ----- | 12.1 |
1.5(B) | 7/0.52 | 3.5 | 21.6 | ----- | ----- | 12.1 |
2.5(A) | 1/1.78 | 3.9 | 31.6 | 17 | 11.80 | 7.41 |
2.5(B) | 7/0.68 | 4.2 | 34.8 | ----- | ----- | 7.41 |
4(A) | 1/2.25 | 4.4 | 47.1 | 22 | 7.39 | 4.61 |
4(B) | 7/0.85 | 4.8 | 50.3 | ------ | ----- | 4.61 |
6(A) | 1/2.76 | 4.9 | 65 | 29 | 4.91 | 3.08 |
6(B) | 7/1.04 | 5.4 | 71.2 | ---- | ---- | 3.08 |
10 | 7/1.35 | 7.0 | 119 | 62 | 3.08 | 1.83 |
16 | 7/1.70 | 8.0 | 179 | 78 | 1.91 | 1.15 |
25 | 7/2.04 | 10.0 | 281 | 118 | 1.20 | 0.727 |
35 | 7/2.52 | 11.5 | 381 | 156 | 0.868 | 0.524 |
50 | 19/1.78 | 13.0 | 521 | 215 | 0.641 | 0.387 |
70 | 19/2.14 | 15.0 | 734 | 282 | 0.443 | 0.268 |
95 | 19/2.52 | 17.5 | 962 | 385 | 0.320 | 0.193 |
120 | 37/2.03 | 19.0 | 1180 | 431 | 0.253 | 0.153 |
150 | 37/2.25 | 21.0 | 1470 | 539 | 0.206 | 0.124 |
185 | 37/2.52 | 23.5 | 1810 | 666 | 0.164 | 0.0991 |
240 | 61/2.25 | 26.5 | 2350 | 857 | 0.125 | 0.0754 |
Certifications
Certifications: ISO9001/14000, CE, CCC, IEC, BS, EN, VDE
