Electric Wire 1.5mm/1.5mm Cable/1.5mm Cable Price
electric wire 1.5mm/1.5mm cable/1.5mm cable priceProduct Description electric wire 1.5mm/1.5mm cable/1.5mm cable price SpecificationsSingle Core Copper Stranded PVC Coated Electric Wire 1.5mm 2.5mm Plastic coated copper wire ISO9001 ISO14001 Single Core Copper Stranded PVC Coated Electric ......
Send Inquiry
Product Description
electric wire 1.5mm/1.5mm cable/1.5mm cable price
Product Description
electric wire 1.5mm/1.5mm cable/1.5mm cable price
Specifications

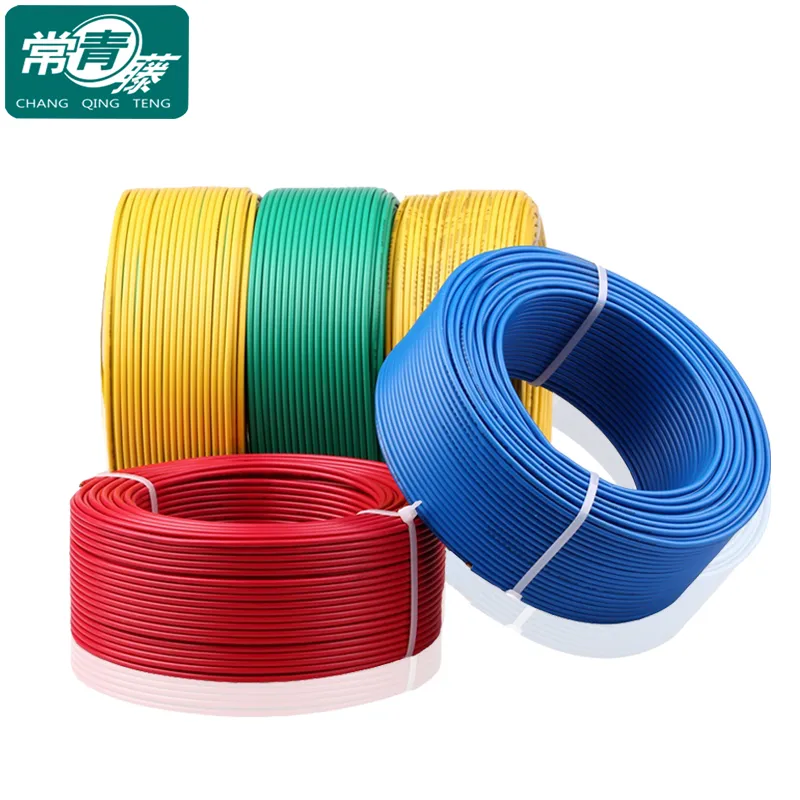

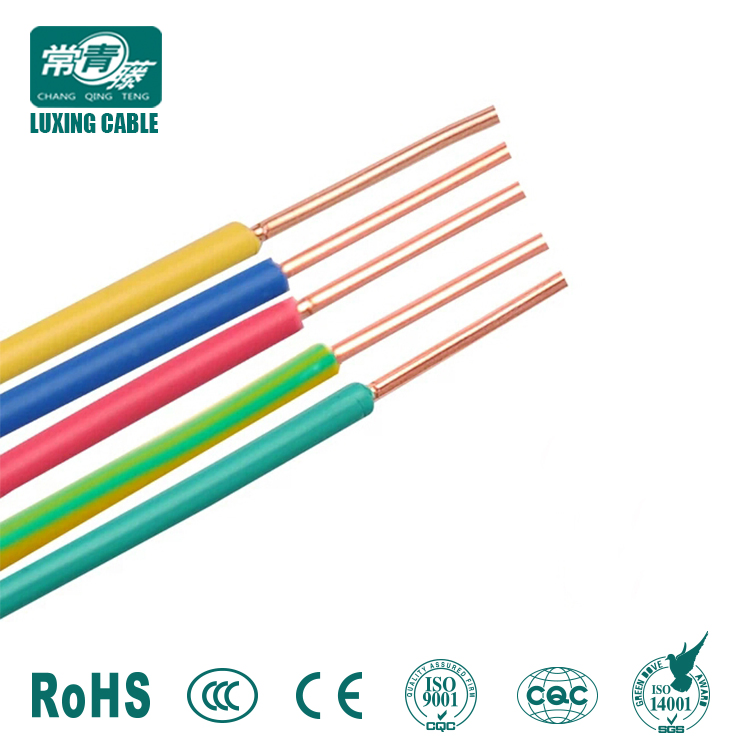

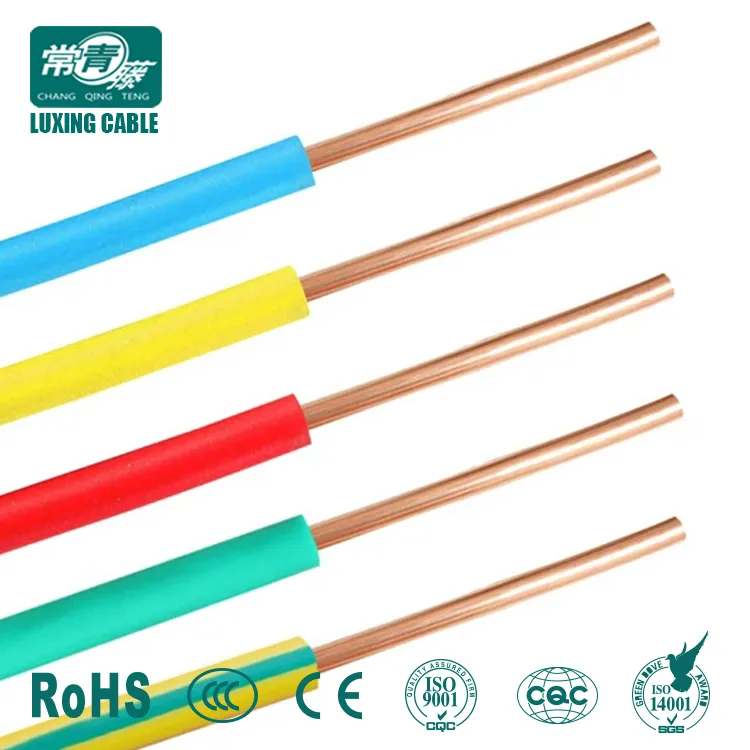

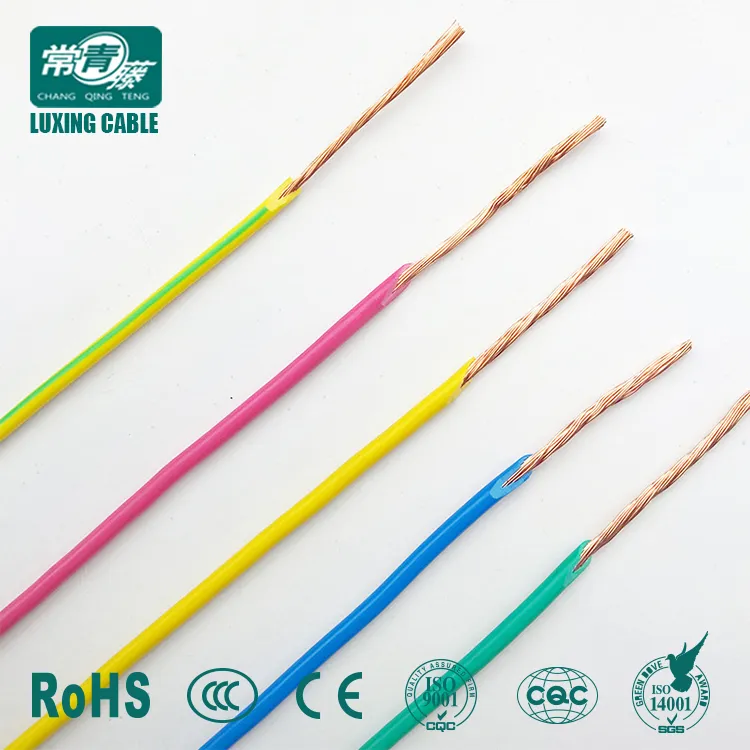

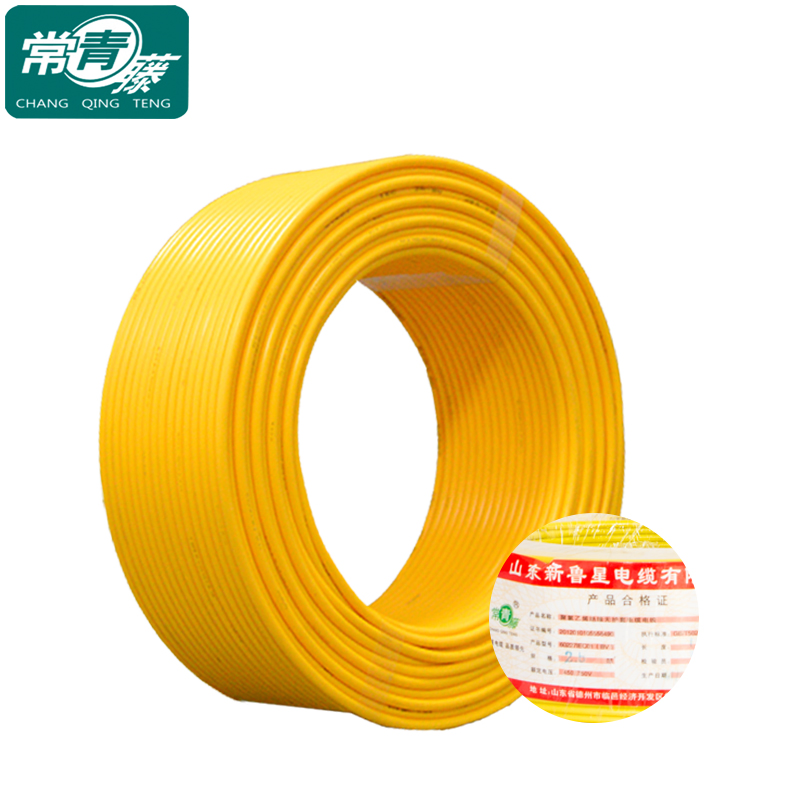

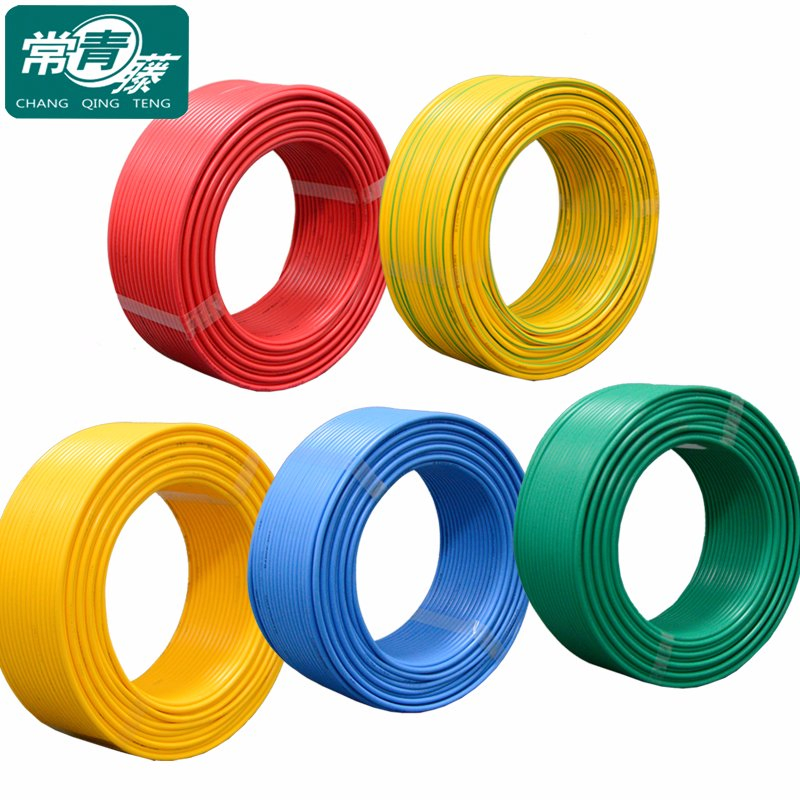

Single Core Copper Stranded PVC Coated Electric Wire 1.5mm 2.5mm
Plastic coated copper wire
ISO9001 ISO14001
Single Core Copper Stranded PVC Coated Electric Wire 1.5mm 2.5mm
Description of electric wire 1.5mm
Conductor : Stranded Copper conductor Class 5
Insulation: PVC
Sheath for multi core flexible wire: PVC
Voltage:300/500V, 450/750V
Application of electric wire 2.5mm
PVC Insulated Electric Wire is used for lighting, electronic equipment, instument and communication equipment with rated voltage 450/750V or less
Specification of electic wire 1.5mm
450/750V Electric Wire
Nominal section (mm2) | Number/diameter of core (mm) | Maximum outer diameter (mm2) | Reference weight (Kg/km) | Conductor resistance at 20°C ≤(Ω/km) | ||
copper | aluminum | aluminum | copper | |||
1.5(A) | 1/1.38 | 3.3 | 20.3 | ----- | ----- | 12.1 |
1.5(B) | 7/0.52 | 3.5 | 21.6 | ----- | ----- | 12.1 |
2.5(A) | 1/1.78 | 3.9 | 31.6 | 17 | 11.80 | 7.41 |
2.5(B) | 7/0.68 | 4.2 | 34.8 | ----- | ----- | 7.41 |
4(A) | 1/2.25 | 4.4 | 47.1 | 22 | 7.39 | 4.61 |
4(B) | 7/0.85 | 4.8 | 50.3 | ------ | ----- | 4.61 |
6(A) | 1/2.76 | 4.9 | 65 | 29 | 4.91 | 3.08 |
6(B) | 7/1.04 | 5.4 | 71.2 | ---- | ---- | 3.08 |
10 | 7/1.35 | 7.0 | 119 | 62 | 3.08 | 1.83 |
16 | 7/1.70 | 8.0 | 179 | 78 | 1.91 | 1.15 |
25 | 7/2.04 | 10.0 | 281 | 118 | 1.20 | 0.727 |
35 | 7/2.52 | 11.5 | 381 | 156 | 0.868 | 0.524 |
50 | 19/1.78 | 13.0 | 521 | 215 | 0.641 | 0.387 |
70 | 19/2.14 | 15.0 | 734 | 282 | 0.443 | 0.268 |
95 | 19/2.52 | 17.5 | 962 | 385 | 0.320 | 0.193 |
120 | 37/2.03 | 19.0 | 1180 | 431 | 0.253 | 0.153 |
150 | 37/2.25 | 21.0 | 1470 | 539 | 0.206 | 0.124 |
185 | 37/2.52 | 23.5 | 1810 | 666 | 0.164 | 0.0991 |
240 | 61/2.25 | 26.5 | 2350 | 857 | 0.125 | 0.0754 |
Certifications
Certifications: ISO9001/14000, CE, CCC, IEC, BS, EN, VDE
