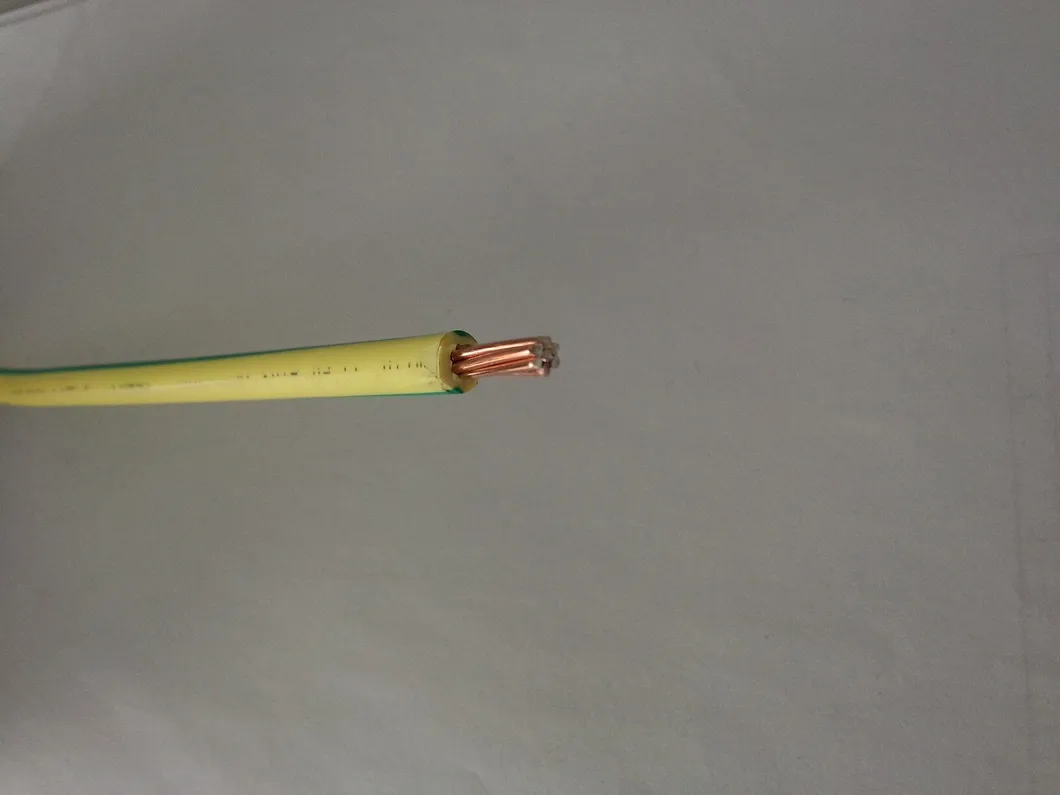

Copper Conductor PVC Insulation Single Core Electric Wires 1.0, 1.5, 2.5, 4, 6mm2
Copper Conductor PVC Insulation Single Core Electric Wires 1.0,1.5,2.5,4,6mm2TECHNICAL DATA SHEETPVC Insulation Single Core Electric WiresNo.DescriptionUnitDataDataDataData1Reference standard IEC60227IEC60227IEC60227IEC602272Rated VoltageV450/750450/750450/750450/7503Sizemm21x1.01x1.51x2.51x44Conduc......
Send Inquiry
Product Description

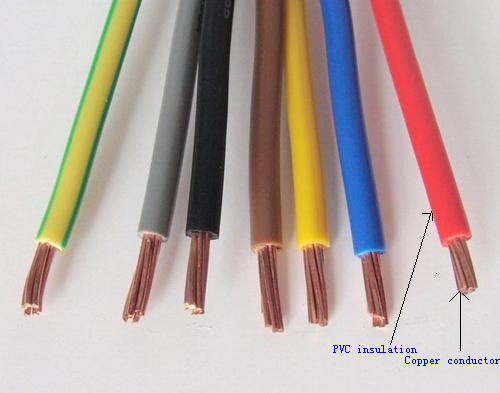

Copper Conductor PVC Insulation Single Core Electric Wires 1.0,1.5,2.5,4,6mm2
| TECHNICAL DATA SHEET | ||||||
| PVC Insulation Single Core Electric Wires | ||||||
| No. | Description | Unit | Data | Data | Data | Data |
| 1 | Reference standard | IEC60227 | IEC60227 | IEC60227 | IEC60227 | |
| 2 | Rated Voltage | V | 450/750 | 450/750 | 450/750 | 450/750 |
| 3 | Size | mm2 | 1x1.0 | 1x1.5 | 1x2.5 | 1x4 |
| 4 | Conductor | |||||
| Material | -- | Class 1 Solid Copper Wire | Class 1 Solid Copper Wire | Class 1 Solid Copper Wire | Class 1 Solid Copper Wire | |
| Stranding no. | 1 | 1 | 1 | 1 | ||
| Max. Conductor D.C Resistance at 20 ºC | Ω/km | 18.1 | 12.1 | 7.41 | 4.61 | |
| 5 | Insulation | |||||
| Material | -- | PVC | PVC | PVC | PVC | |
| Nominal insulation | mm | 0.7 | 0.7 | 0.8 | 0.8 | |
| 6 | Approx. Overall Dia. of cable | mm | 2.6 | 2.8 | 3.4 | 3.9 |
| 7 | Approx. Weight | Kg/km | 8 | 10 | 16 | 22 |
