Awm 26AWG 600V UL1330 FEP Fluoroplastic (Fluorine Plastic) Electrical Wire
The specification of UL1330 Fluoroplastic Insulated WireTechnical Data:Nominal voltage: 600VTemperature Range: -100° C~+200 ° CO. D. Tolerance: ± 0.10 mmTesting Voltage: 2500vConductor: Tinned CopperInsulator: FEP Colours: White-Blue-Red-Black-Brown-Yellow-Green-Transparen......
Send Inquiry
Product Description
The specification of UL1330 Fluoroplastic Insulated Wire
Technical Data:
Nominal voltage: 600V
Temperature Range: -100° C~+200 ° C
O. D. Tolerance: ± 0.10 mm
Testing Voltage: 2500v
Conductor: Tinned Copper
Insulator: FEP
Colours: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
Use: Lead wires for Home electric Appliances, lightings, electronic equipment and sensors etc.
Specification:
| Conductor | Insulation | Electrical characteristic | ||||
| Spec AWG | Conductor construction No./ φmm | Diameter (mm) | Insulation thickness (mm) | Over outer diameter (mm) | Resistance 20ºC Ω/km | Permissible ampactity 20ºC-AMR |
| 30 | 1×0.25 | 0.25 | 0.20 | 0.65 | 376.13 | 1.27 |
| 28 | 1×0.31 | 0.31 | 0.25 | 0.81 | 227.39 | 2.02 |
| 26 | 7×0.15 | 0.46 | 0.46 | 1.38 | 148.94 | 3.22 |
| 19×0.10 | 0.50 | 0.46 | 1.42 | 148.94 | 3.22 | |
| 24 | 7×0.20 | 0.61 | 0.46 | 1.53 | 93.25 | 5.15 |
| 19×0.12 | 0.60 | 0.46 | 1.52 | 93.25 | 5.15 | |
| 22 | 7×0.25 | 0.76 | 0.46 | 1.68 | 55.00 | 8.73 |
| 19×0.15 | 0.76 | 0.46 | 1.68 | 55.00 | 8.73 | |
| 20 | 7×0.31 | 0.95 | 0.46 | 1.87 | 34.60 | 13.87 |
| 19×0.19 | 0.96 | 0.46 | 1.88 | 34.60 | 13.87 | |
| 18 | 7×0.39 | 1.19 | 0.46 | 2.11 | 21.80 | 22.02 |
| 19×0.235 | 1.18 | 0.46 | 2.10 | 21.80 | 22.02 | |
| 16 | 7×0.50 | 1.53 | 0.46 | 2.45 | 13.70 | 35.04 |
| 19×0.30 | 1.51 | 0.46 | 2.43 | 13.70 | 35.04 | |
| 14 | 19×0.37 | 1.86 | 0.50 | 2.86 | 8.62 | 55.68 |
| 12 | 19×0.46 | 2.32 | 0.50 | 3.32 | 5.43 | 88.40 |
| 10 | 37×0.43 | 3.02 | 0.50 | 4.02 | 3.41 | 140.76 |

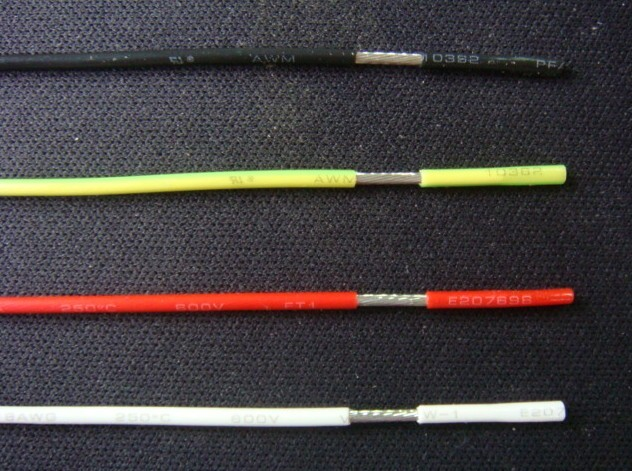

Reference pictures:

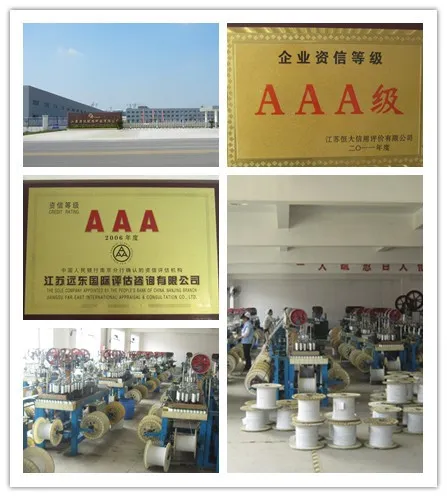

Company Information
Wuxi Yuanda Electrical Material Co., Ltd. Is an ISO9001 certified manufacturer, whose main products have won approval of UL, VDE, CSA and CCC and ROHS Environmental Protection Instruction of European Union.
Our products including silicon rubber wires and cables, FSG silicon extruded and glassfiber braided sleeves, HST silicon extruded and glassfiber braided sleevings, SRG silicon extruded and glassfiber braided sleevings, SR silicon sleeves as well as other silicon rubber items are widely used for aviation, metallurgy, petroleum, electronic instruments, meters, household apparatus, transformers and motors.
With strong technical power, advanced production equipment, complete testing facilities and perfect quality ensurance system, we have many years' production experience in silicon rubber wires and cables. Our products are well sold around the world, including U. S. A, U. K., Germany, Denmark, Canada, India, and Japan etc...
