China AWG18 AWG16 AWG22 AWG20 Twisted Pair Control Speaker Electric Wire & Cable

Product Description

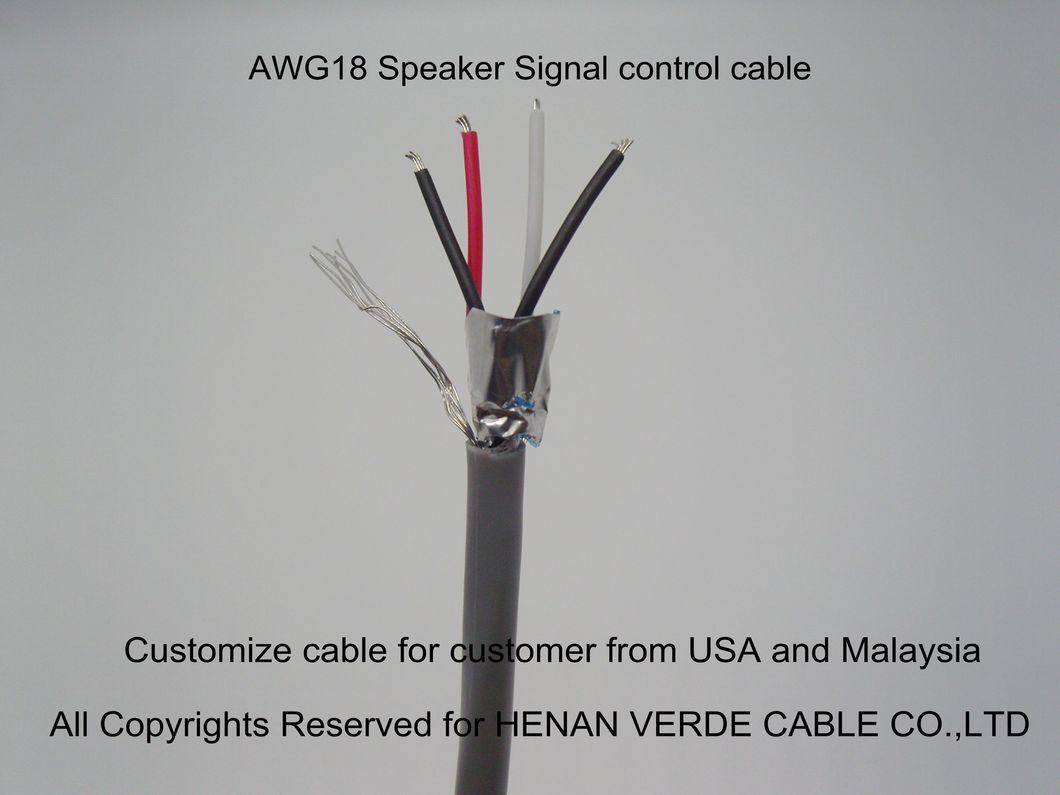

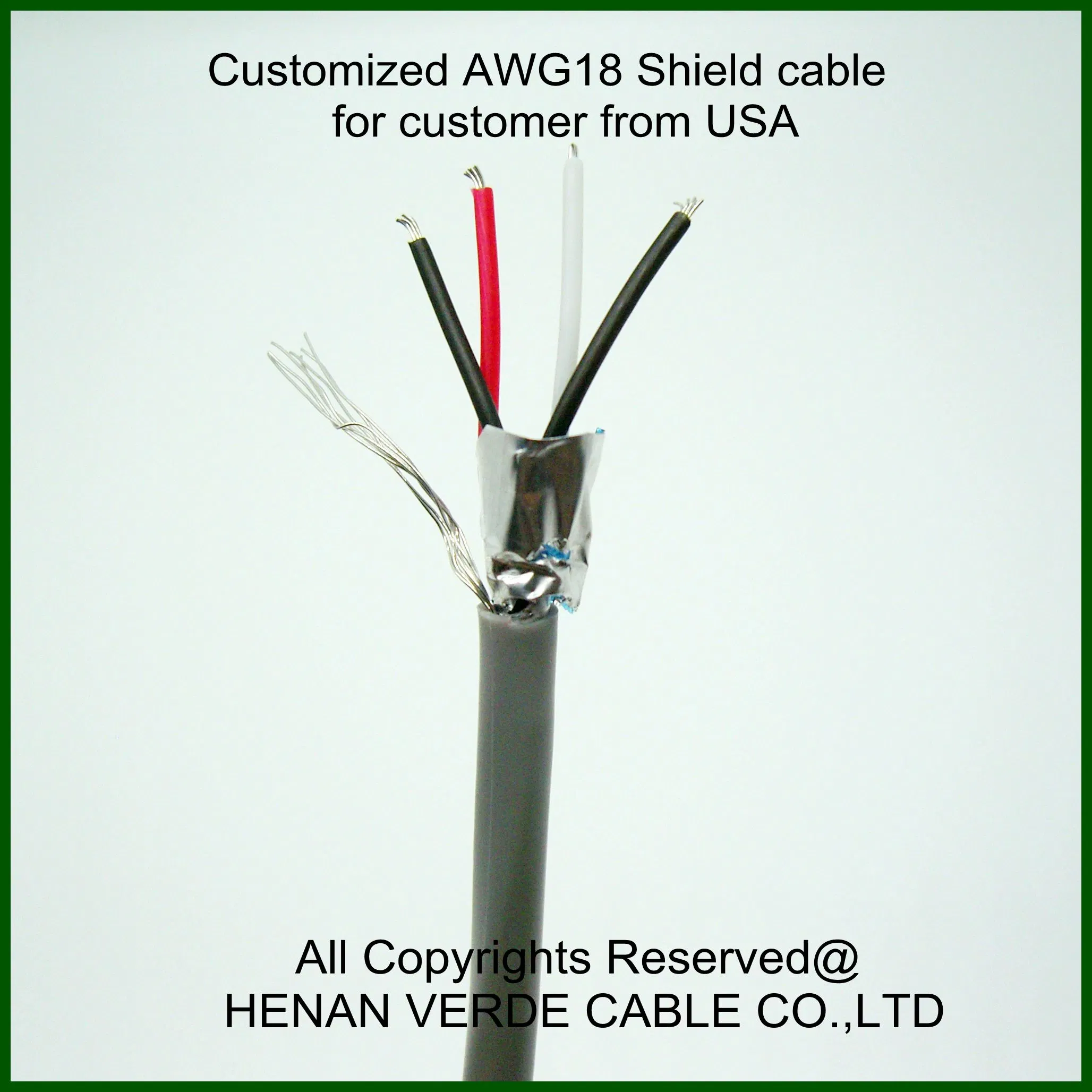

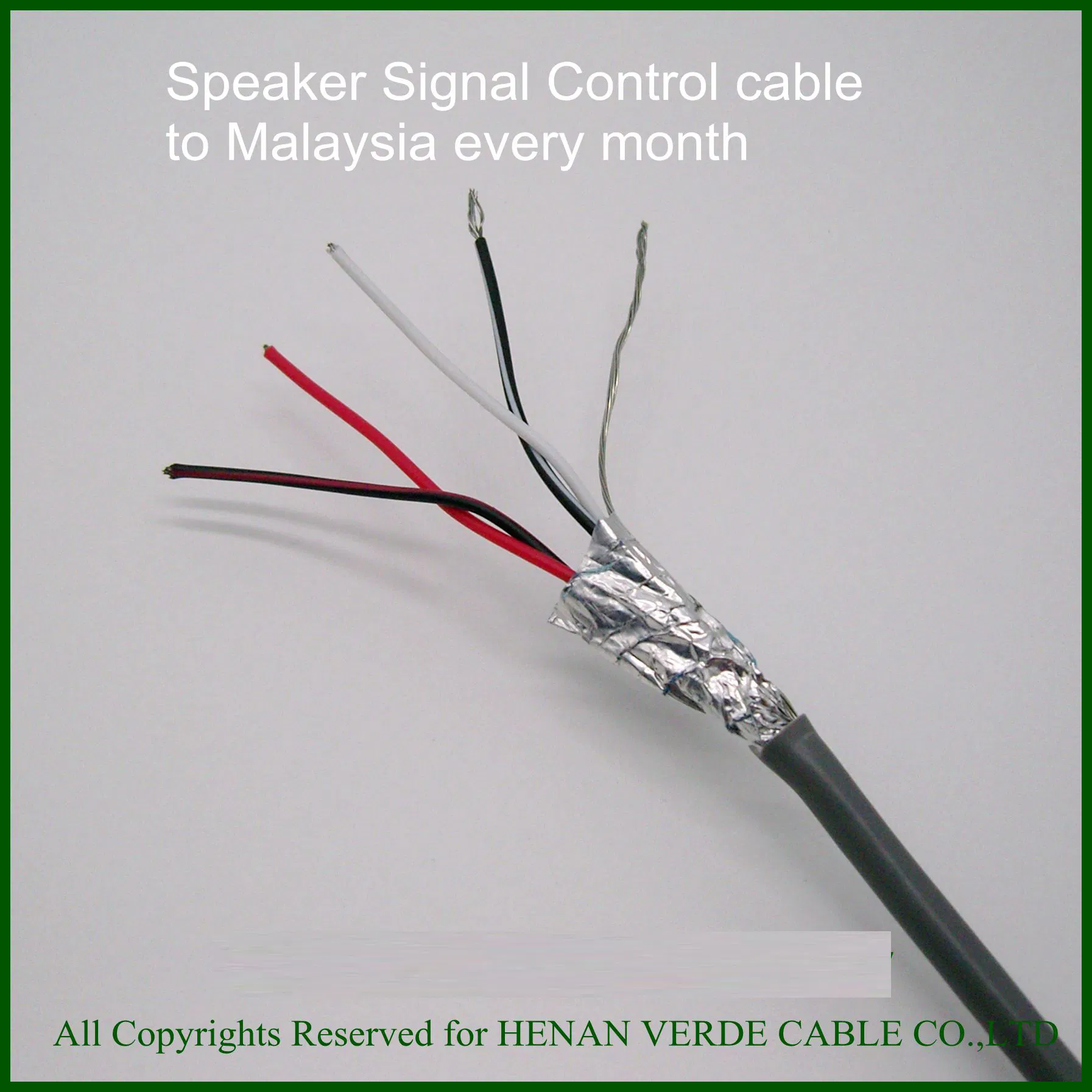

Pair Twisted Speaker and Signal Communication Cable with Shield

Widely used for communication interface in data acquisition and Control applications

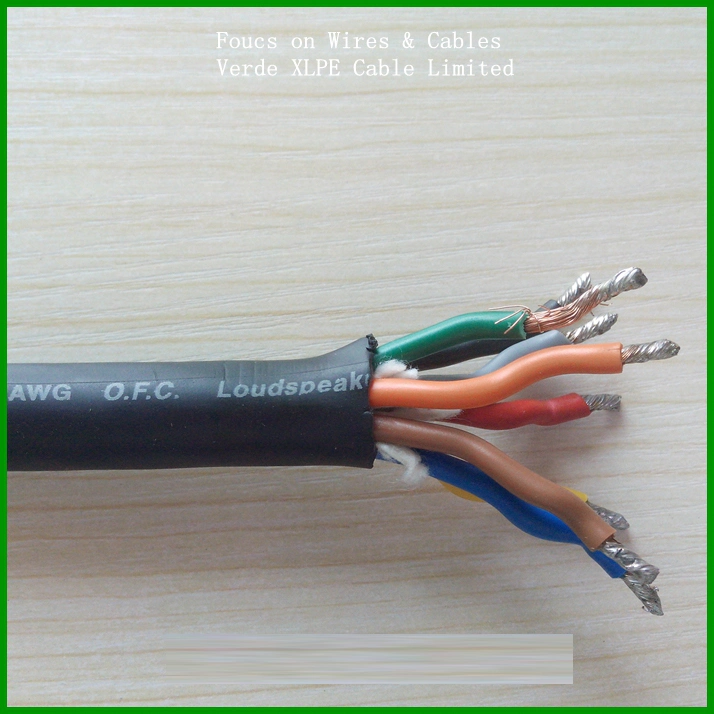

for Doorbel, household, hotel and so on. Multicore ( 2,4, 8 Insulation Core) Stranded Copper Conductor / PVC or HDPE Insulated / Copper Wire Braided Shield / Audio Control Cable

Type: 1Pair, 2Pair,4pair
Conductor: Annealed copper or Tinned copper
Conductor Type: Stranded, or Flexible
Insulation:PVC or HDPE

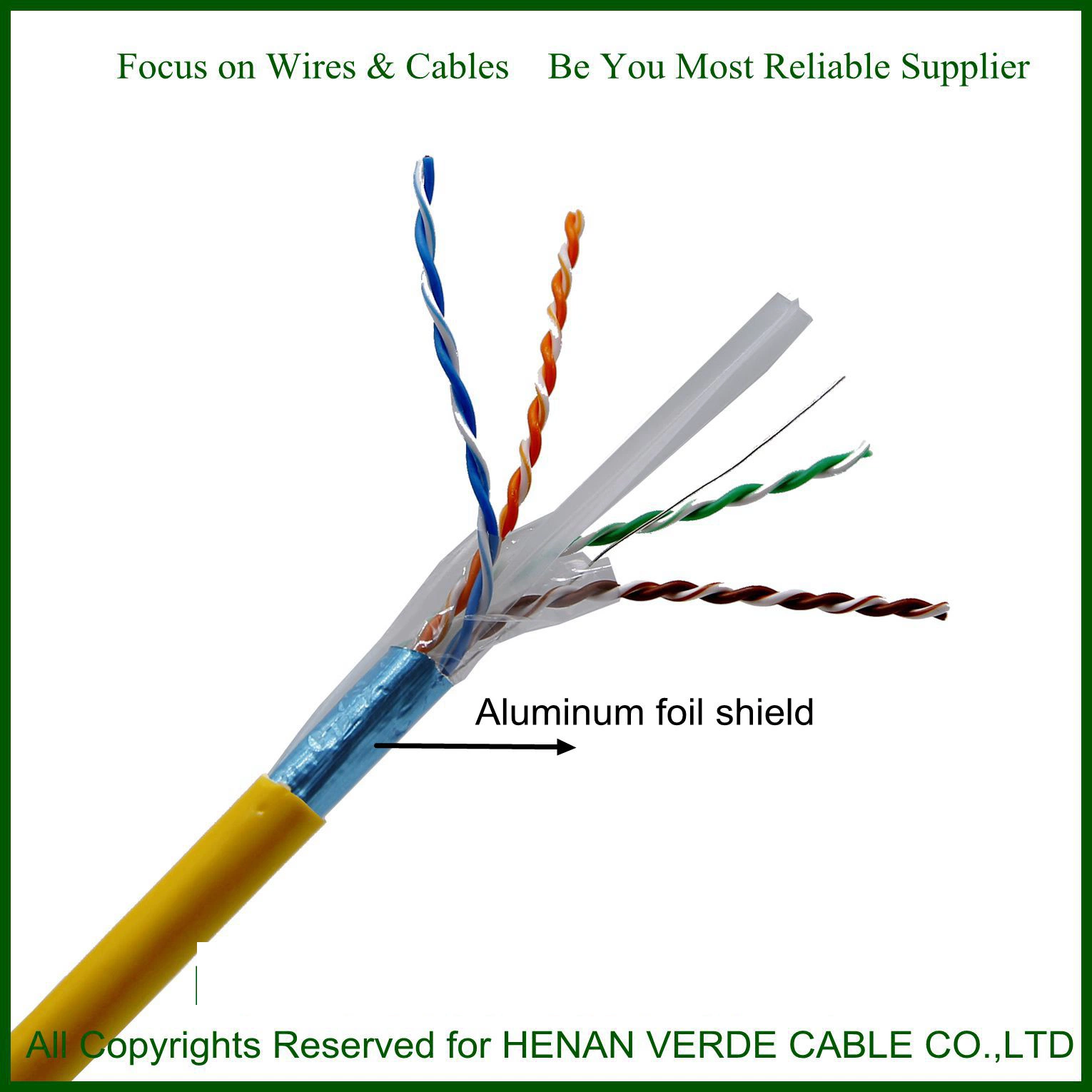

Shielding: Tinned copper wire braided and Aluminum foil layer
Sheathing:PVC , ROHS PVC

Standard:
GB/T 9330 IEC60228.
Customized Standard.
More Standard and specification as per your customized

Core Identification:
different colored and Number Indentification

Packing:
1.305meter or 500meter per roll, then carton as the outer packing
2. 1000meter per drum at least

Control cable Description and Technical Type

Type	Name	Section Area(mm2)	No. of Core	Application Site
KVV	Copper Conductor,PVC Insulated and Sheathed Control Cable	0.75 1.0 1.5 2.5	2-16	Permanent installation indoors,in cable ditches or pipes
		4 6	2-14
		10	2-10
KVVP	Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable	0.75 1.0 1.5 2.5	2-61	Permanent installation indoors,in cable ditches or pipes where shielding is required
		4 6	2-14
		10	2-10
KVVP2	Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable	0.75 1.0 1.5 2.5	4-10	Permanent installation indoors,in cable ditches or pipes where shielding is required
		4 6	7-61
		10	4-10
KVV22	Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable	0.75 1.0 1.5 2.5	7-61	Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force
		4 6	4-14
		10	4-14
KVVR	Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable	0.5-2.5	4-61	Installation indoors where flexibility and movability are required
KVVRP	Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable	0.5 0.75 1.0	4-61	Installation indoors where flexibility shielding and movability are required
KVVRP		1.5 2.5	4-48
KYJV	Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable	0.75 1.0 1.5 2.5	2-16	Permanent installation indoors,in cable ditches or pipes
		4 6	2-14
		10	2-10
KYJVP	Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable	0.75 1.0 1.5 2.5	2-61	Permanent installation indoors,in cable ditches or pipes where shielding is required
		4 6	2-14
		10	2-10
KYJV22	Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable	0.75 1.0 1.5 2.5	7-61	Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force
		4 6	4-14
		10	4-10
KYJVP2	Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable	0.75 1.0 1.5 2.5	7-61	Permanent installation indoors,in cable ditches or pipes where shielding is required
		4 6	4-14
		10	4-10
KYJVR	Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable	0.5-2.5	4-61	Installation indoors where flexibility and movability are required
KYJVRP	Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable	0.5 0.75 1.0	4-61
		1.5 2.5	4-48	Installation indoors where flexibility shielding and movability are required
