Product Description

Application and Description

6491B is equivalent to harmonized code H07Z-R, these cables are designed for fixed wiring purposes in domestic and industrial power/ lighting applications. Can be used in trunking or conduit, or may be surface mounted when used for earthing. and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gasses when burnt which is particularly important where electronic equipment is installed.

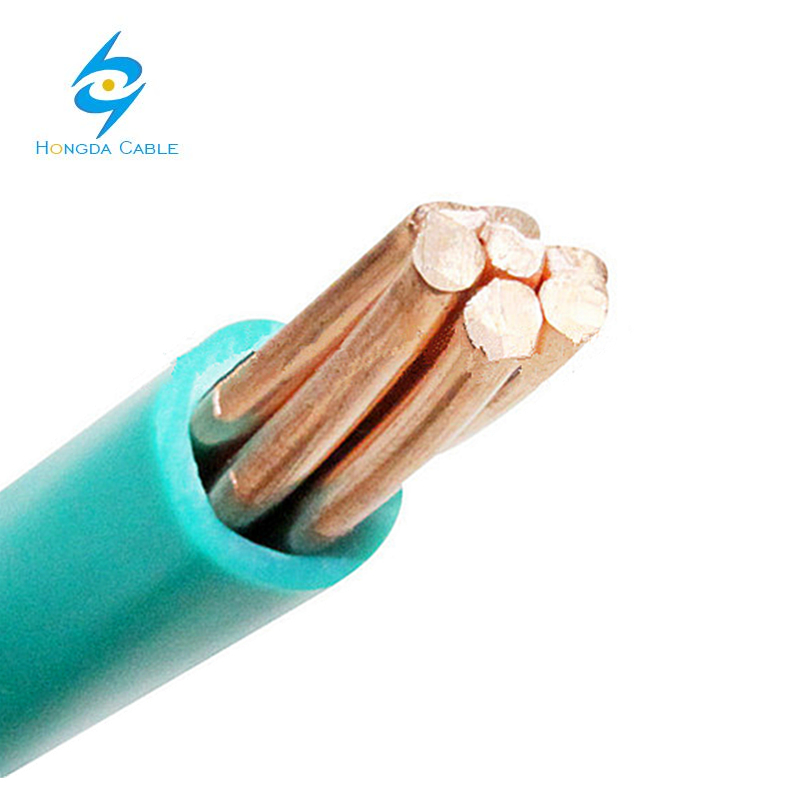

Cable Construction

Strands to IEC 60228 Cl-2 LSOH thermosetting insulation

-Thermosetting core insulation type EI5

-LSOH - low smoke, zero halogen

Technical Characteristics

Working voltage	300/500v (H05Z-U), 450/750v (H07Z-R)
Test voltage	2000 / 2500 volts
Flexing bending radius	15 x O
Static bending radius	10 x O
Flexing temperature	+5 oC to +90 oC
Short circuit temperature	+250 oC
Insulation resistance	10 MΩ x km
Flame retardant	IEC 60332.1
	Smoke density acc. to EN 50268 / IEC 61034
	Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2
Flame test	Flame-retardant acc. to EN 50265-2-1, IEC 60332.1

Cable Parameter

AWG	No. of Cores x Nominal Cross Sectional Area	Nominal Thickness of Insulation	Nominal Overall Diameter	Nominal Copper Weight	Nominal Weight	Minimum insulation resistance at 90 °C
# x mm^2	mm	mm	kg/km	kg/km	MΩ·km
H05Z-U
20	1 x 0.5	0.6	1.9-2.4	4.8	8	0.015
18	1 x 0.75	0.6	2.1-2.6	7.2	12	0.012
17	1 x 1	0.6	2.2-2.8	9.6	14	0.011
H07Z-U
16	1 x 1.5	0.7	2.6-3.3	14.4	20	0.011
14	1 x 2.5	0.8	3.2-4.0	24	30	0.010
12	1 x 4	0.8	3.6-4.6	38	45	0.0085
10	1 x 6	0.8	4.1-5.2	58	65	0.0070
8	1 x 10	1.0	5.3-6.6	96	105	0.0070

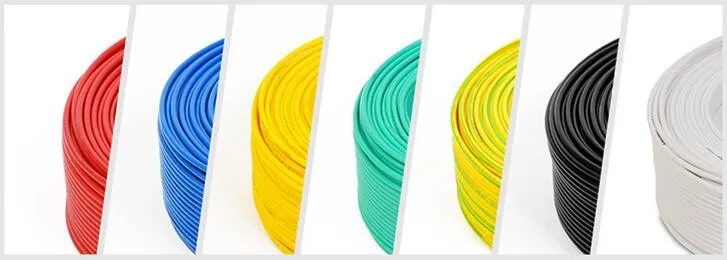

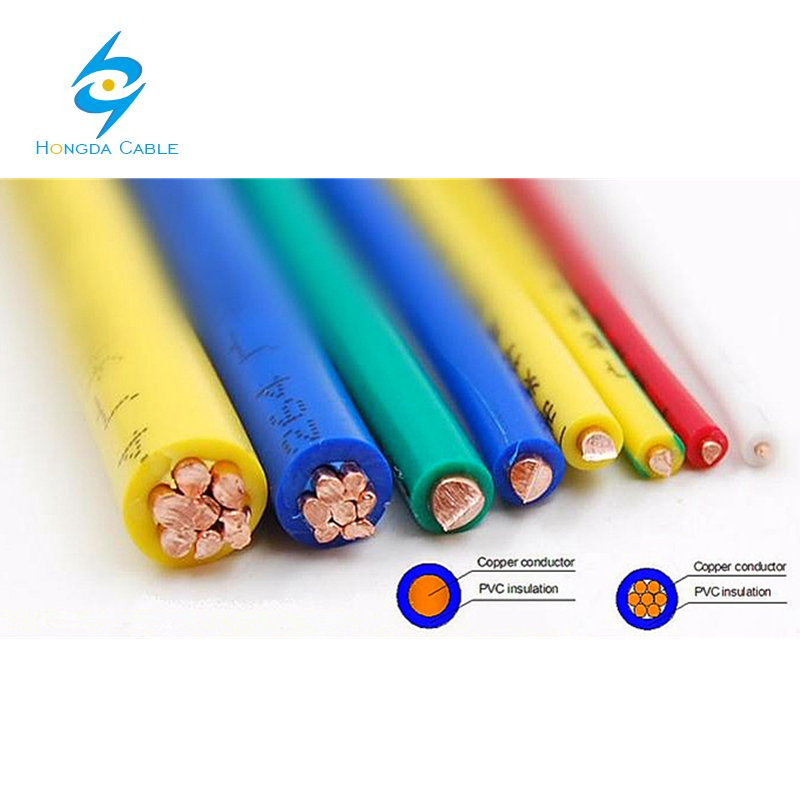

Available Color

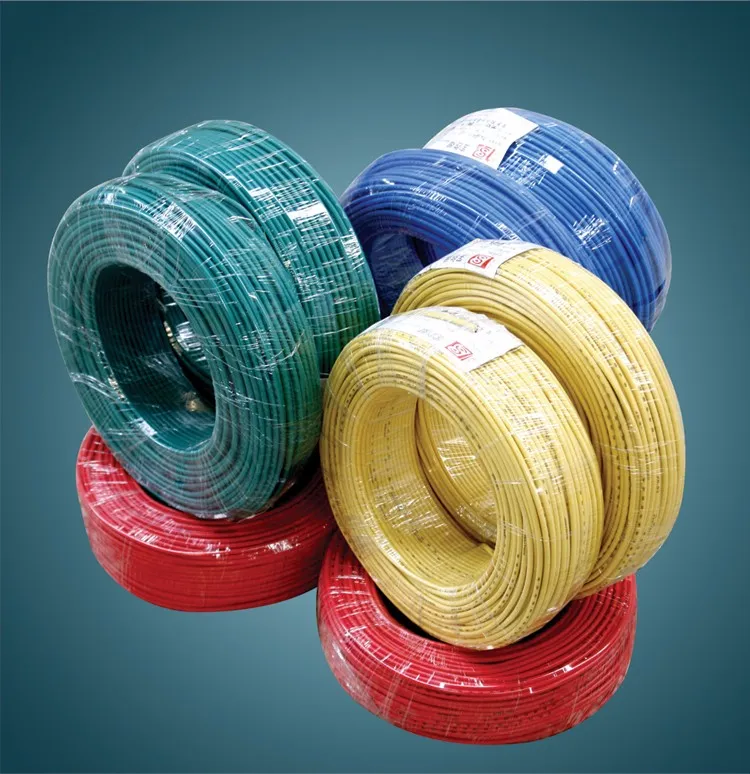

Packing shipping
6491b Cable Single Core Zero Halogen Low Smoke Cable
