50 Ohm Flexbile Teflon Double Shield Coaxial Cable (RG393)
50 Ohm Flexbile Teflon Double Shield Coaxial Cable RG39350 Ohm RG393 double shield teflon coaxial cable can be fixed with SMA,SMB,MXC,N,BNC,TNC connectors and etc..These versatile cable assemblies with various lengths have been widely applied to GPS,BEIDOU,GSM, antenns and other communication syste......
Send Inquiry
Product Description

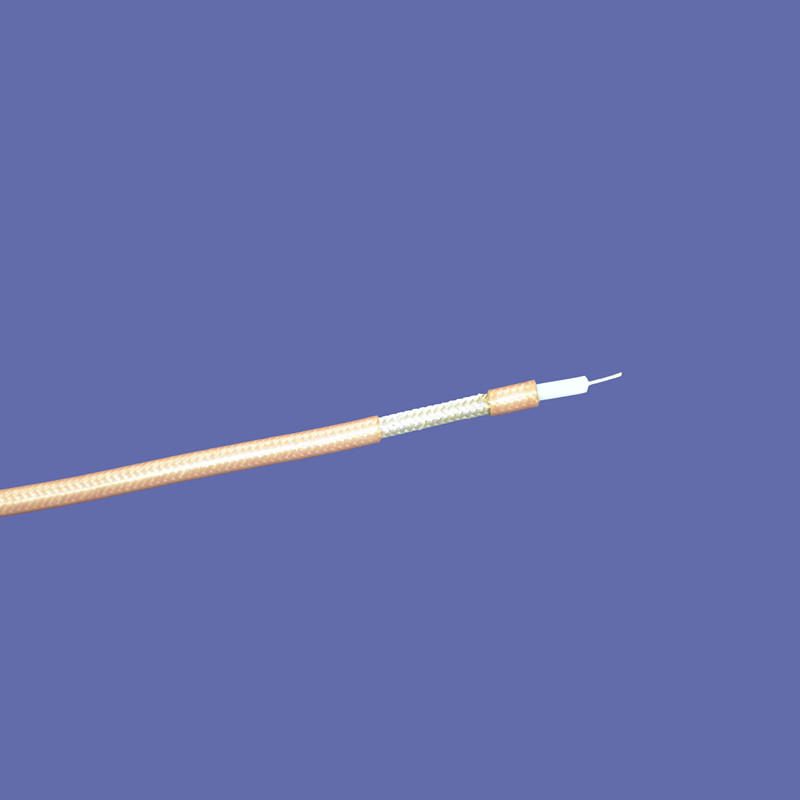

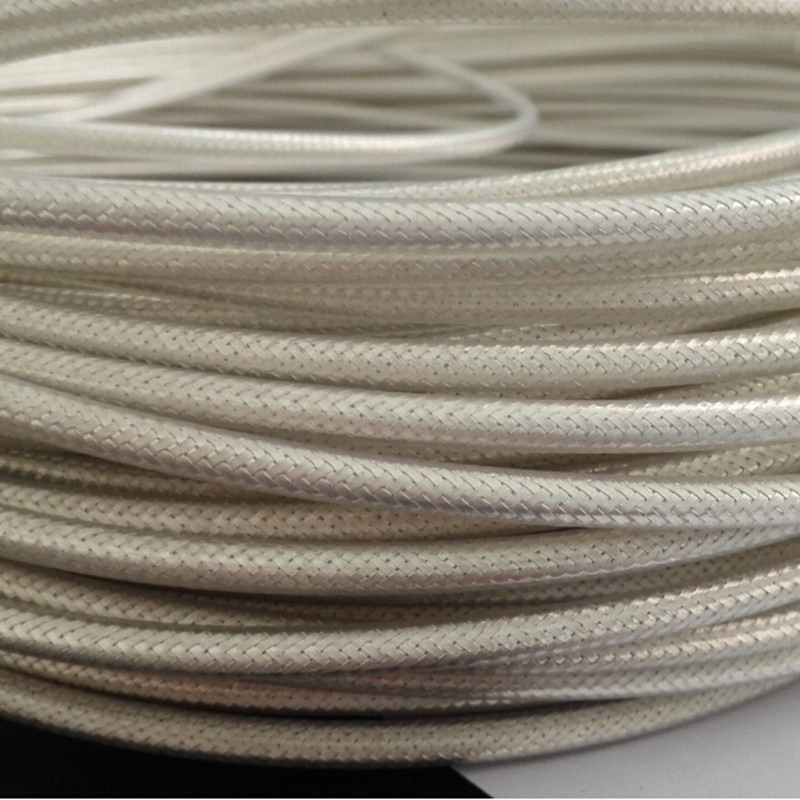

50 Ohm Flexbile Teflon Double Shield Coaxial Cable RG393

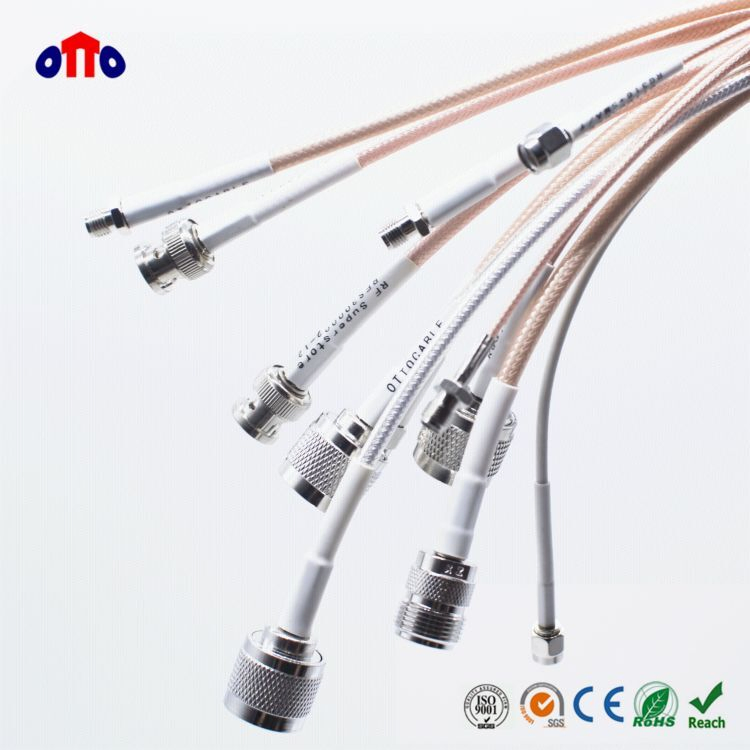

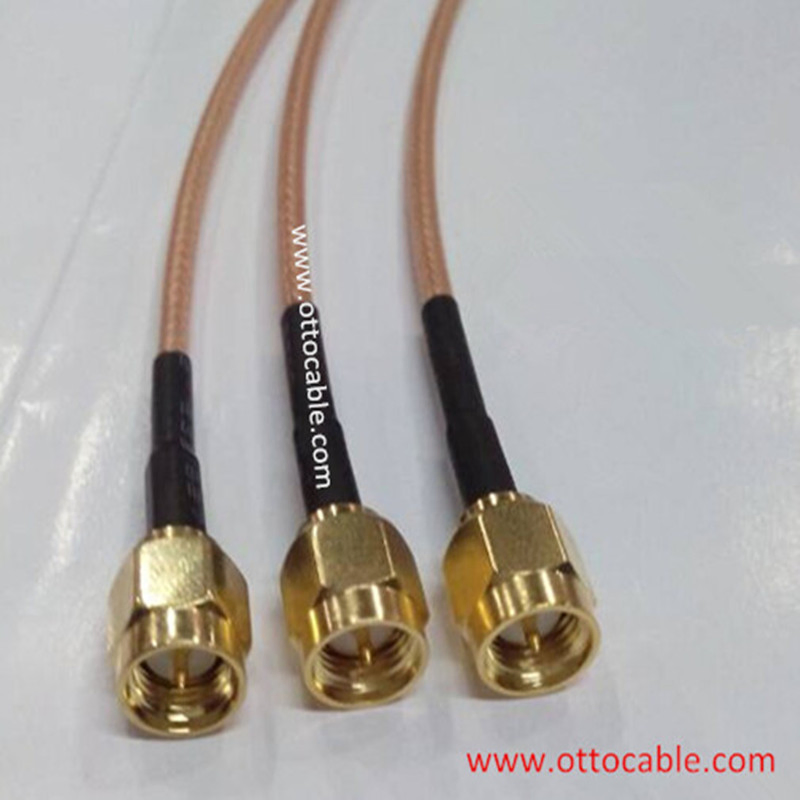

50 Ohm RG393 double shield teflon coaxial cable can be fixed with SMA,SMB,MXC,N,BNC,TNC connectors and etc..These versatile cable assemblies with various lengths have been widely applied to GPS,BEIDOU,GSM, antenns and other communication systems.
Features
1).50 Ohm data signal transmission;
2).The inner conductor could be stranded or solid;
3).Special insulation materials,providing good electrical property and welding performance;
4).Small diameter is ideal for tight fit applications;
5).Customized cable color , winding and connector, meet your different requirements;
6).RoHS compliant;
| RG393 Coaxial Cable Double Shield | |||
| Construction | |||
| Item | Material | Diameter(mm) | |
| Inner Conductor | Sliver Plated Copper Clad Steel | 7*0.792 | |
| Dielectric | PTFE | 7.24 | |
| First Shield | Silver Plated Copper Braid | ----- | |
| Seond Shield | Silver Plated Copper Braid | 8.71 | |
| Jacket | FEP | 9.91 | |
| Electrical Characteristics | Attenuation @20ºC (dB/100M) | ||
| Impedance(Ω) | 50 | @100MHz | 6.6 |
| Velocity of Propagation(%) | 70 | @400MHz | 14.3 |
| Max Operating Frequency (MHz) | 3000 | @1000MHz | 24.0 |
| Max Operating Voltage(VRMS) | 1000 | @3000MHz | 47.0 |
| Operating Temperature(ºC) | -55 to +200 | @5000MHz | 65.0 |
