5.0, 10.0, 15.0, 20.0, 25.0kvdc 250c UL1911 PFA Insulated High Temperature Wire
UL1911 PFA Wire Description Name:PFA Wire Model:AWM 1911 Size:24-10AWG Feature Ratings Voltage:5.0,10.0,15.0,20.0,25.0KVDC Rated temperature:250ºC ......
Send Inquiry
Product Description

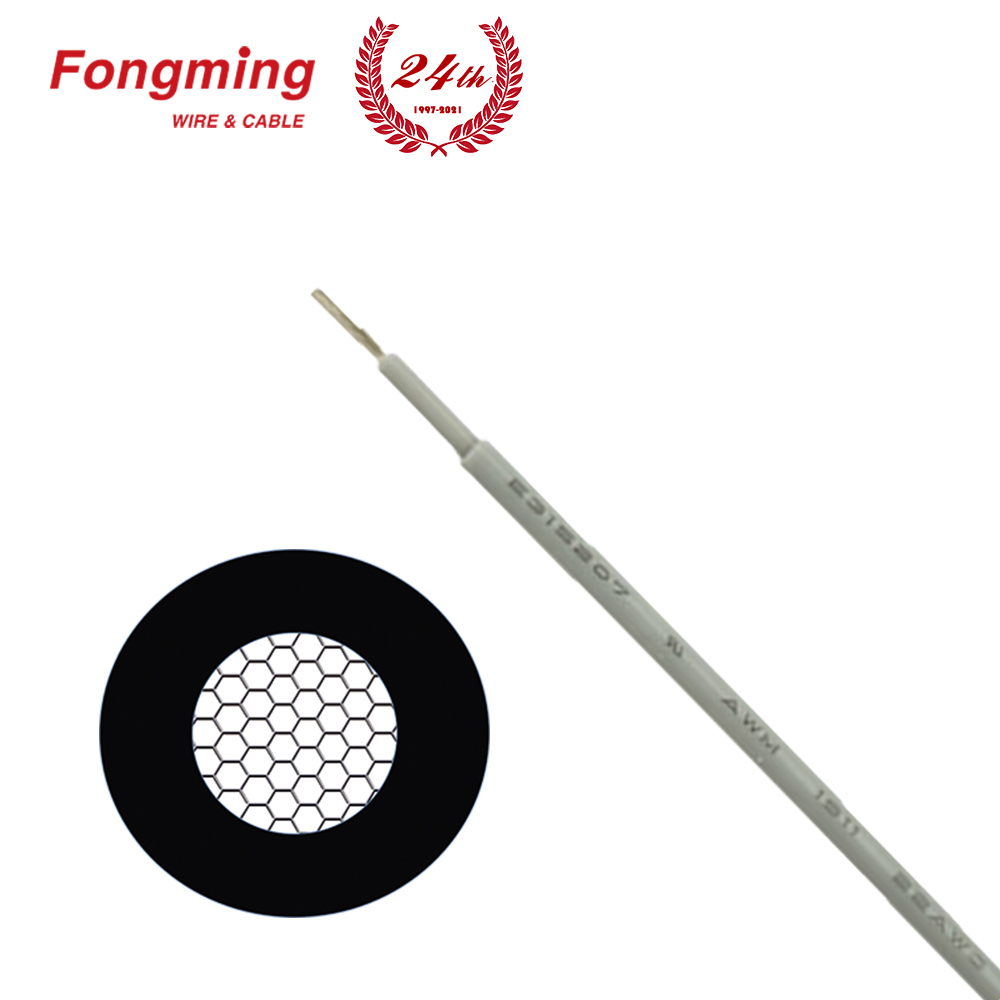

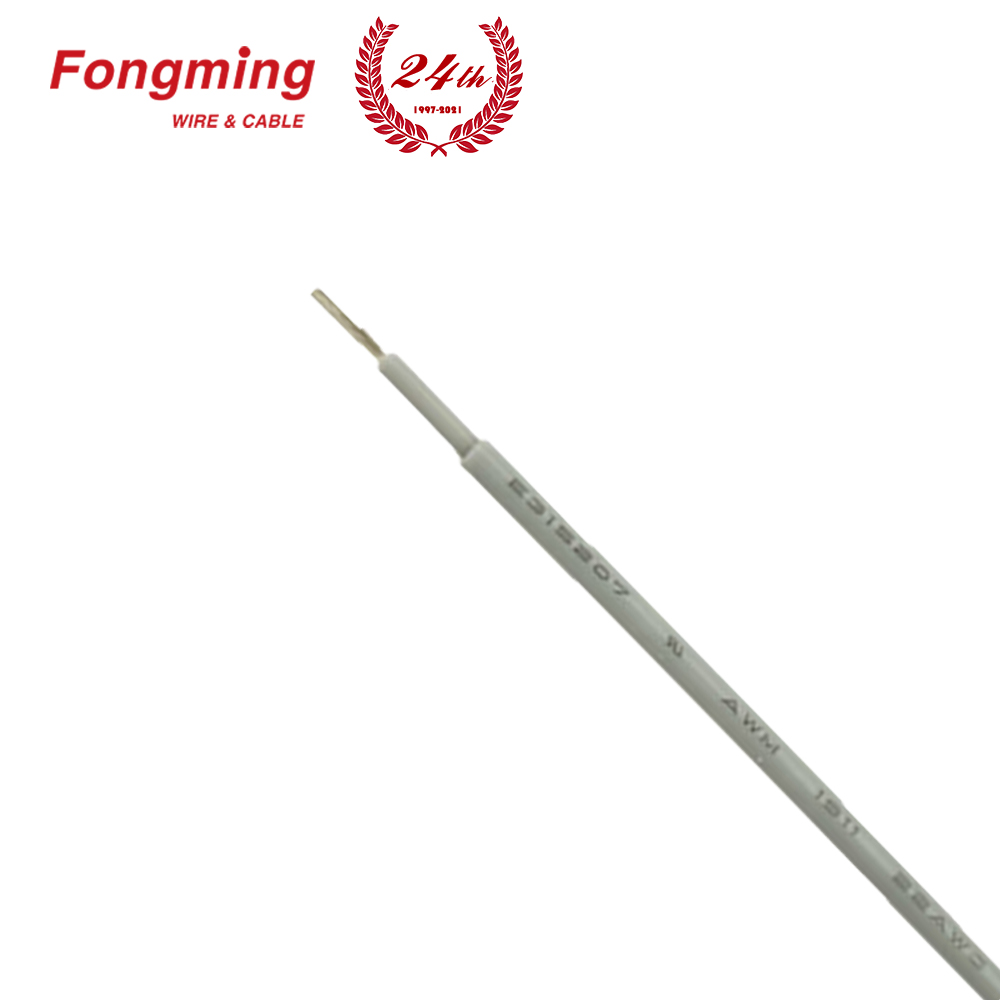

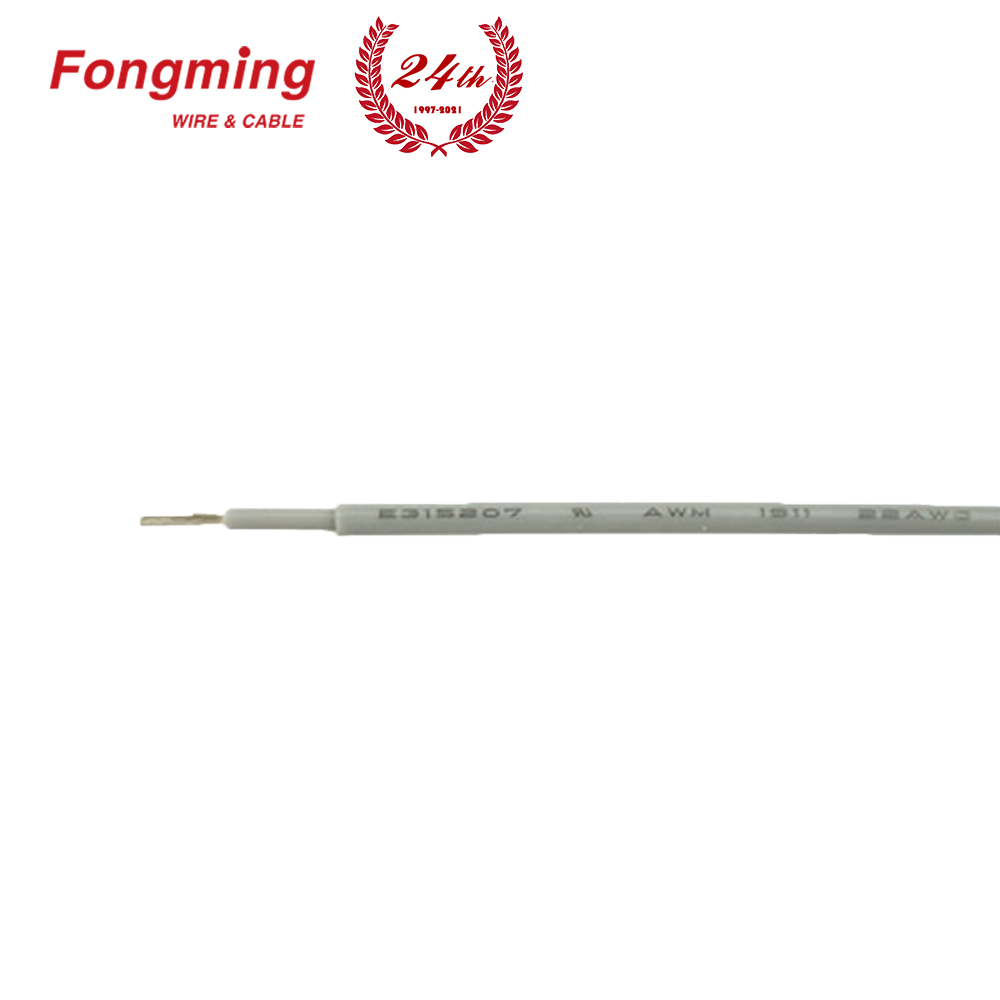

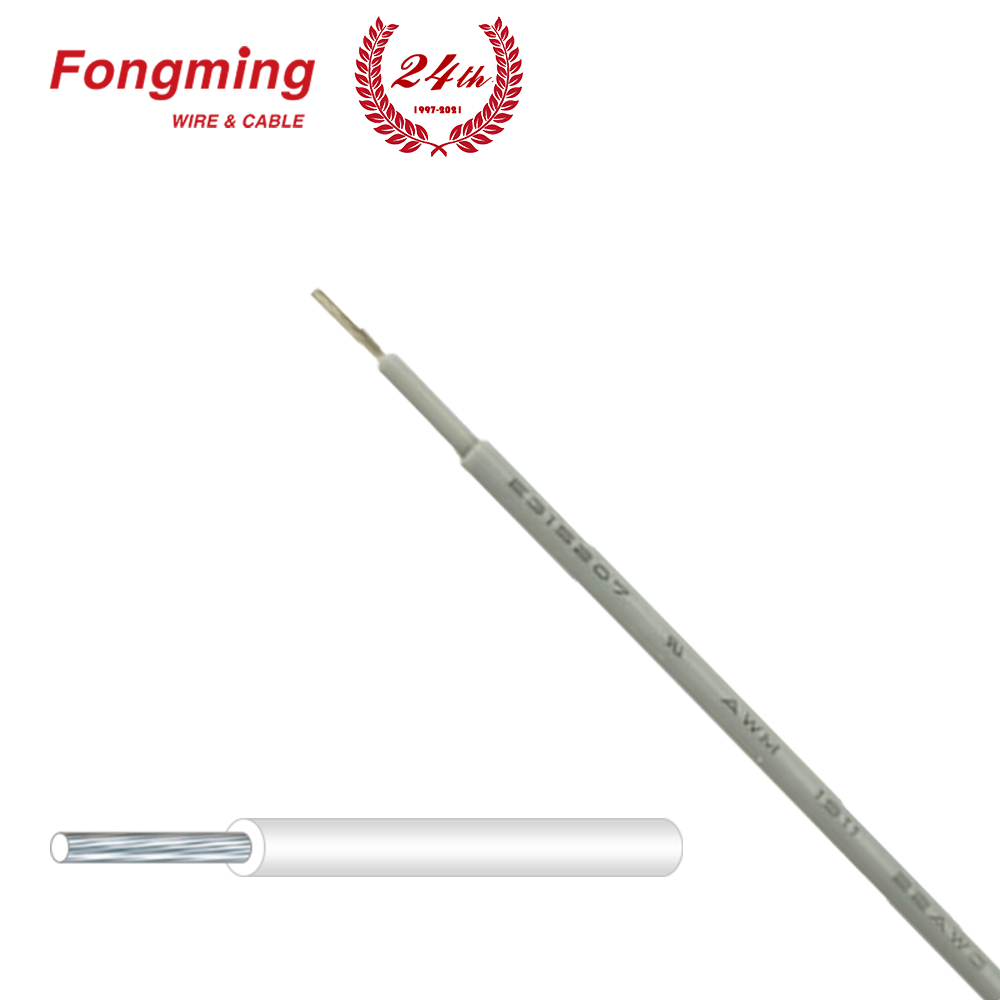

UL1911 PFA Wire
Description
Name:PFA Wire
Model:AWM 1911
Size:24-10AWG
Feature
Ratings Voltage:5.0,10.0,15.0,20.0,25.0KVDC
Rated temperature:250ºC

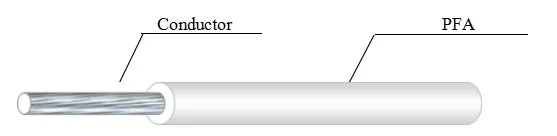

Structure
Conductor: Tinned Copper,Nickel-Copper
Insulation:Extruded PFA
Standard:UL758,UL1581

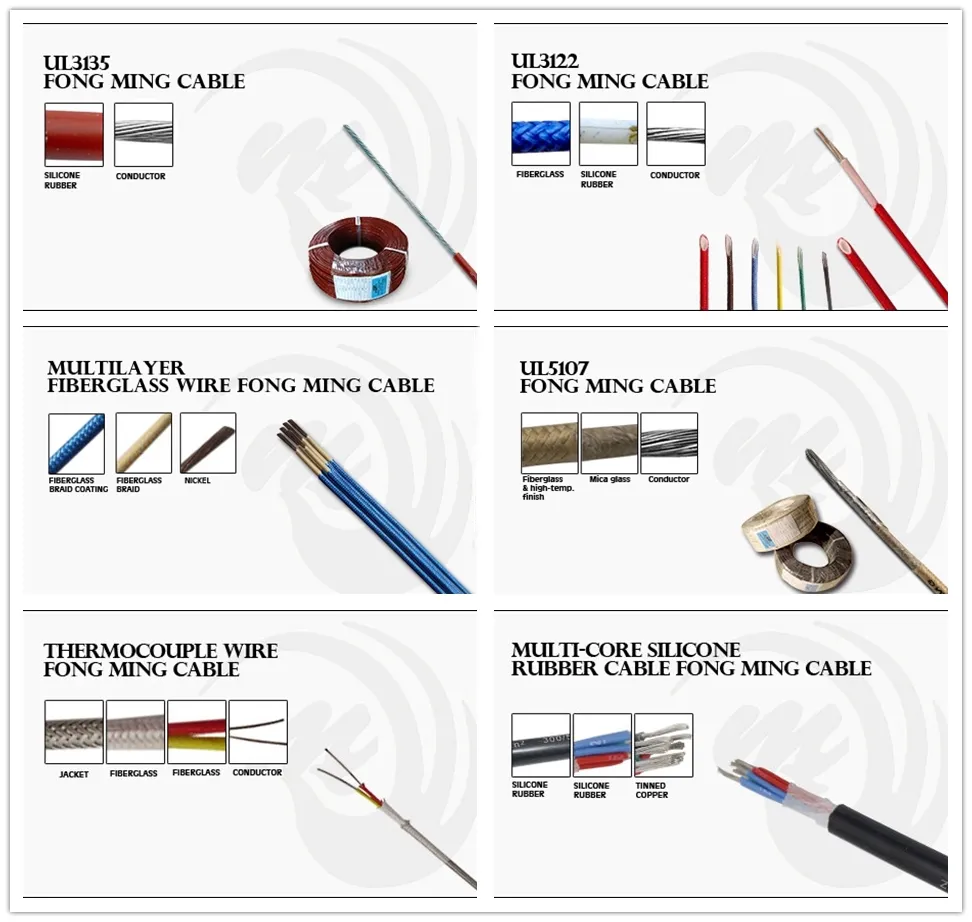

Hot Products
Certificates
Company Information
Transport&Shipping
Our Services
1. OEM service available based on official & legal authorization.
2. Strict quality control system.
3. Timely deliverly.
4. Excellent quality with affordable price.
5. Strong technical support.
6. Mobile on 24 hours for any question.
FAQ
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3.Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
Description
Name:PFA Wire
Model:AWM 1911
Size:24-10AWG
Feature
Ratings Voltage:5.0,10.0,15.0,20.0,25.0KVDC
Rated temperature:250ºC
Structure
Conductor: Tinned Copper,Nickel-Copper
Insulation:Extruded PFA
Standard:UL758,UL1581
| Size AWG | Conductor Construction (No./mm) | 5.0KVDC | 10.0KVDC | 15.0KVDC | 20.0KVDC | 25.0KVDC | |||||
| Thickness (mm) | O.D (mm) | Thickness (mm) | O.D (mm) | Thickness (mm) | O.D (mm) | Thickness (mm) | O.D (mm) | Thickness (mm) | O.D (mm) | ||
| 24 | 7/0.2 | 0.56 | 1.8±0.1 | 0.6 | 1.9±0.1 | 0.65 | 2.0±0.1 | 0.7 | 2.1±0.1 | 0.75 | 2.2±0.1 |
| 22 | 7/0.254 | 0.56 | 1.9±0.1 | 0.6 | 2.0±0.1 | 0.65 | 2.1±0.1 | 0.7 | 2.2±0.1 | 0.75 | 2.3±0.1 |
| 20 | 7/0.32 | 0.56 | 2.1±0.1 | 0.6 | 2.2±0.1 | 0.65 | 2.3±0.1 | 0.7 | 2.4±0.1 | 0.75 | 2.5±0.1 |
| 18 | 7/0.39 | 0.56 | 2.3±0.1 | 0.6 | 2.4±0.1 | 0.65 | 2.5±0.1 | 0.7 | 2.6±0.1 | 0.75 | 2.7±0.1 |
| 16 | 19/0.3 | 0.56 | 2.7±0.1 | 0.6 | 2.8±0.1 | 0.65 | 2.9±0.1 | 0.7 | 3.0±0.1 | 0.75 | 3.1±0.1 |
| 14 | 19/0.37 | 0.56 | 3.1±0.1 | 0.6 | 3.2±0.1 | 0.65 | 3.3±0.1 | 0.7 | 3.4±0.1 | 0.75 | 3.5±0.1 |
| 12 | 19/0.48 | 0.56 | 3.6±0.2 | 0.6 | 3.7±0.1 | 0.65 | 3.8±0.2 | 0.7 | 3.9±0.2 | 0.75 | 4.0±0.2 |
| 10 | 37/0.43 | 0.56 | 4.2±0.2 | 0.6 | 4.3±0.1 | 0.65 | 4.4±0.2 | 0.7 | 4.5±0.2 | 0.75 | 4.6±0.2 |
