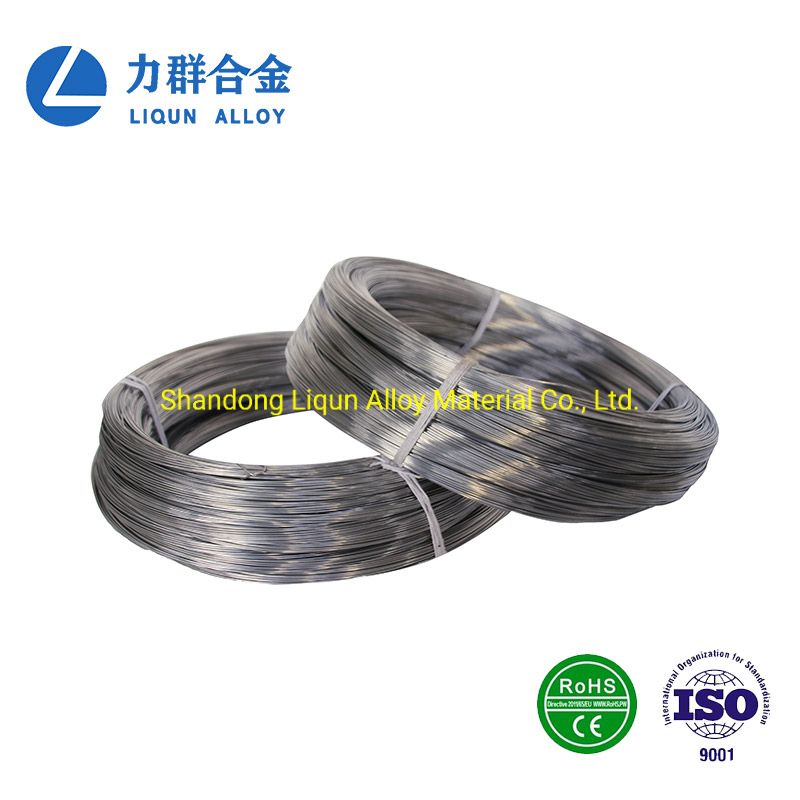

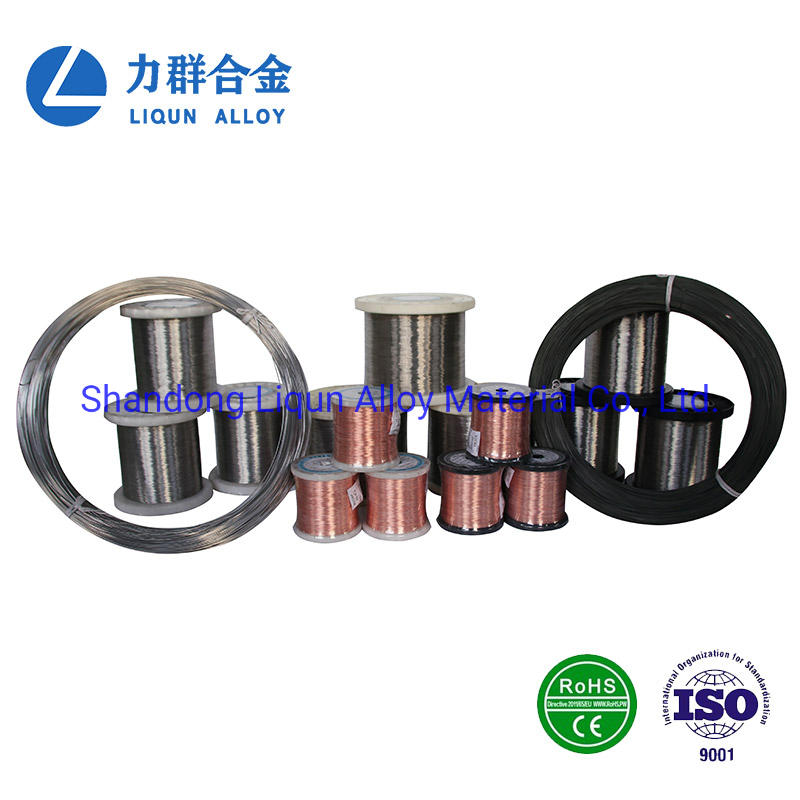

1X1.0mm2 Extension and Compensating thermocouple alloy Wire (KX/ NX /EX/JX /TX/ KCA /KCB/VX/RC/SC) /Nickel Alloy electric cable Wire/sensor
Extension and Compensating thermocouple alloy Wire (KX/ NX /EX/JX /TX/ KCA /KCB/VX/RC/SC) /Nickel Alloy electric cable Wire/sensorProduct DescriptionThermocouple compensating wire is used to connect the electrode (cold side of thermocouple) with display instrument in order to form a temperature meas......
Send Inquiry
Product Description

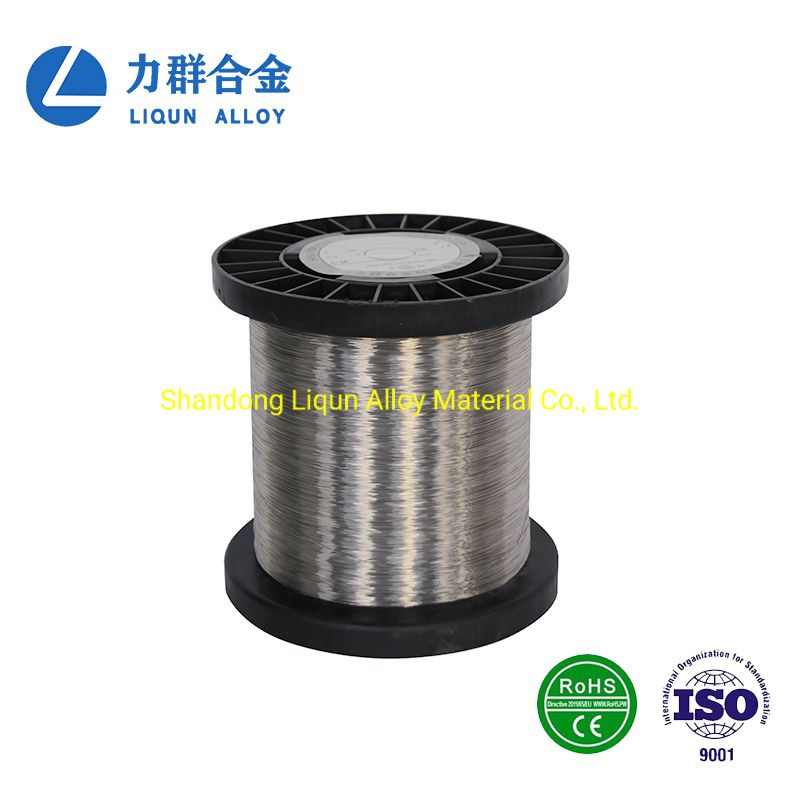

Extension and Compensating thermocouple alloy Wire (KX/ NX /EX/JX /TX/ KCA /KCB/VX/RC/SC) /Nickel Alloy electric cable Wire/sensor
Thermocouple compensating wire is used to connect the electrode (cold side of thermocouple) with display instrument in order to form a temperature measurement system.
Thermocouple compensating wire is used to extend the reference junction of thermocouple and connect with the temperature measuring instrument to form a temperature measuring system.
It usually works in most applications, which include industrial aerospace,nuclear power,chemical industry.
1.Chemical composition and mechanical properties
| Thermocouple type | Extension condution model | Extension condution alloy wire | |||||||||||
| Name | Code | Polarity | Chemical Composition/% | Density (g/cm3) | Resistivity (μΩ.cm) | Tensile Strength (Mpa) | |||||||
| Ni | Cr | Si | Cu | Fe | |||||||||
| K | KX | Ni-Cr10 | KPX | Positive | 90 | 10 | - | - | - | 8.7 | <7.9 | >490 | |
| NI-Si3 | KNX | Nagative | 97 | - | 3 | - | - | 8.6 | <0.3 | >390 | |||
| KCA | Iron | KPCA | Positive | - | - | - | - | 100 | 8.7 | <7.9 | >490 | ||
| Cu-Ni22 | KNCA | Nagative | 22 | - | - | 78 | - | 8.6 | <0.3 | >390 | |||
| KCB | Copper | KPCB | Positive | - | - | - | 100 | - | 8.7 | <7.9 | >490 | ||
| Cu-Ni40 | KNCB | Nagative | 40 | - | - | 60 | - | 8.6 | <0.3 | >390 | |||
2.Alloy wire specification
| Alloy wire Dia/mm | Apply to the number of wire cores | The nominal cross-sectional area of the wire core /mm² |
| 0.2 | 7 | 0.2 |
| 0.3 | 7 | 0.5 |
| 0.41 | 19 | 2.5 |
| 0.43 | 7 | 1.0 |
| 0.52 | 7 | 1.5 |
| 0.52 | 1 | 0.2 |
| 0.8 | 1 | 0.5 |
| 1.13 | 1 | 1.0 |
| 1.38 | 1 | 1.5 |
| 1.78 | 1 | 2.5 |
3.Couple KX/KCA/KCB EMF reference table (μV)
| Thermocouple type | Extension condution model | Use classification | Operating temperatures/°C | Nominal value of thermoelectric EMF | Level I | |
| Tolerance | Range of EMF | |||||
K | KX KCA KCB | G | -25 | -968 | ±44 | -924~ -1012 |
| 100 | 4 096 | 4 052 ~4 140 | ||||
K | KX KCA | H | -25 | -968 | ±44 | -924~ -1012 |
| 100 | 4096 | 4 052~4 140 | ||||
| 200 | 8138 | 8 094~8 182 | ||||

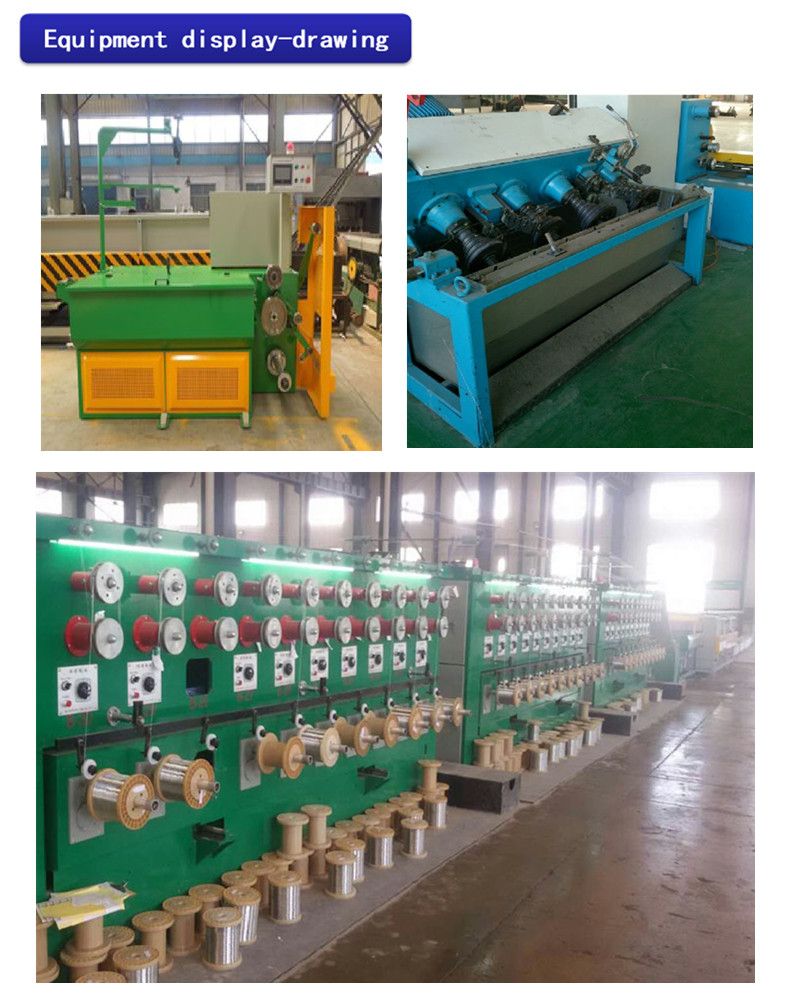

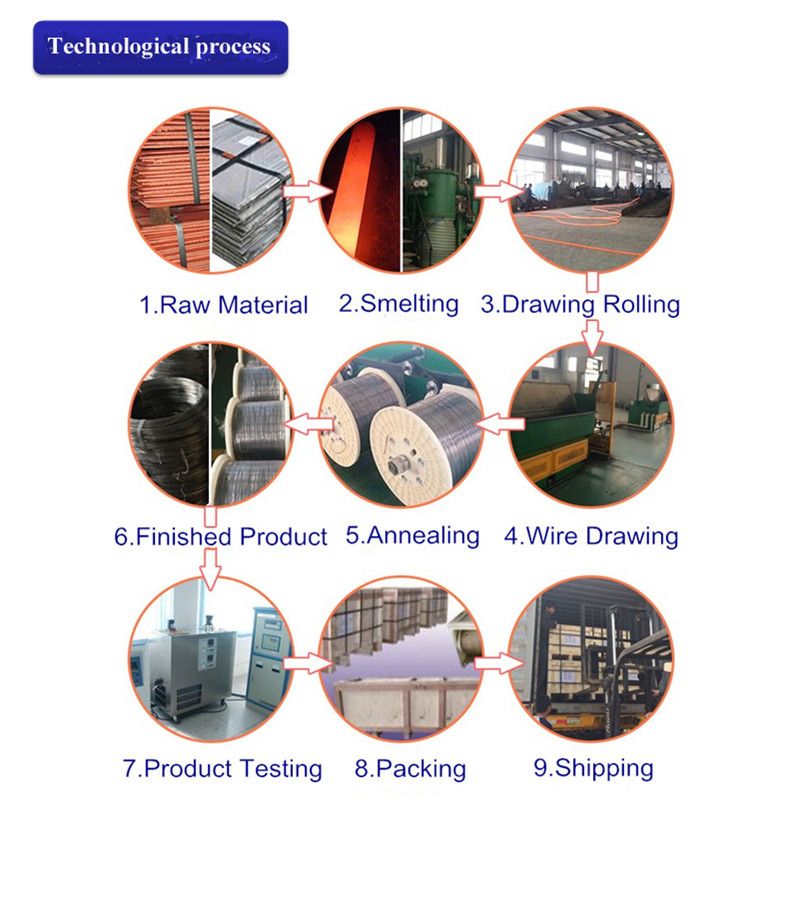

Q1.What is the nature of the company?
A: We are a production enterprise, our company has its own factory.
Q2. What is the MOQ of an order of your company?
A: Our company's MOQ is 100 kg for each type of product.
Q3.Can I get a sample before mass production ?
A: Sample is free,the shipping cost of the sample is paid by the customer .
Q4.How long is the mass production cycle of product?
A:We will end the production within 15-20 days after receiving the deposit.
Q5.What payment method does your company support?
A: We can accept T/T, L/C ,you can choose the one which the most convenient or most effective for you .
