China UTP/FTP/SFTP Cat5e Ethernet Networking LAN Cable ETL/UL/Cmx/Cm/Cmr Approved

Product Description

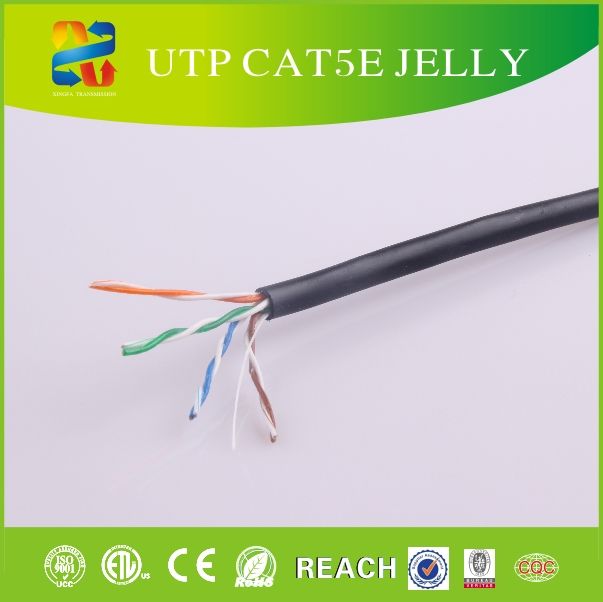

UTP CAT5e for outdoor

Construction:
0.47mm Solid Copper 0.90mm PE 4 pairs Jelly 5.0mm PE
Solid Copper Conductors, PE Insulation, 4 Twisted pairs, Ripcord, PE Jacket

PE Colour: White/Blue, Blue
White/Orange, Orange
White/Green, Green
White/Brown, Brown
Sheath Colour: Black

Material& Size	Inner conductor	Insulation	No. of Pairs		Sheath
Material& Size	0.47mm Solid Copper	0.90mm PE	4	Jelly	5.0mm PE

Solid Copper Conductors, PE Insulation, 4 Twisted pairs, Ripcord, PE Jacket

PE Colour: White/Blue, Blue
White/Orange, Orange
White/Green, Green
White/Brown, Brown
Sheath Colour: Black

Temperature Rating: -20 Celsius degree to 60 Celsius degree
Characteristics Impedance: 100Ω
Norminal Velocity of Propagation: 66%

Electrical Characteristics:

Frequency (MHz)	Attenuation (dB/100m)	Return loss (dB/100m)	Pair to Pair
			NEXT (dB/100m)	ELFEXT (dB/100m)
1 4 8 10 16 20 25 31.25 62.5 100 155	2.0 4.1 5.8 6.5 8.2 9.3 10.4 11.7 17.0 22.0 28.1	20.0 23.0 24.5 25.0 25.0 25.0 24.3 23.6 22.0 20.1 18.8	65.3 56.3 51.8 50.3 47.3 45.8 44.3 42.9 38.4 35.3 33.0	63.8 51.7 45.7 43.8 39.7 37.7 35.8 33.9 27.8 23.8 20.0
