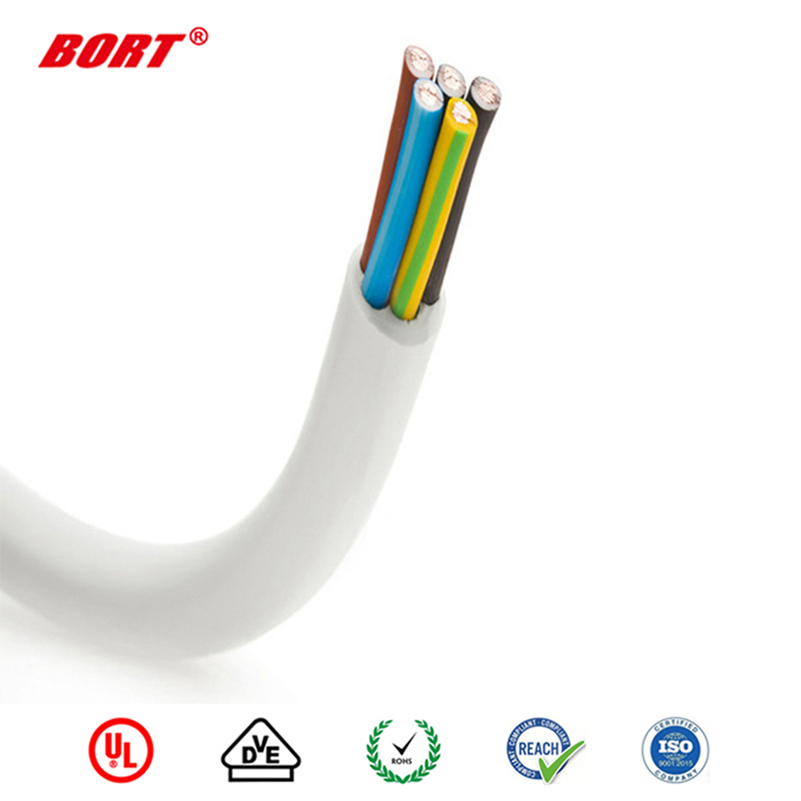

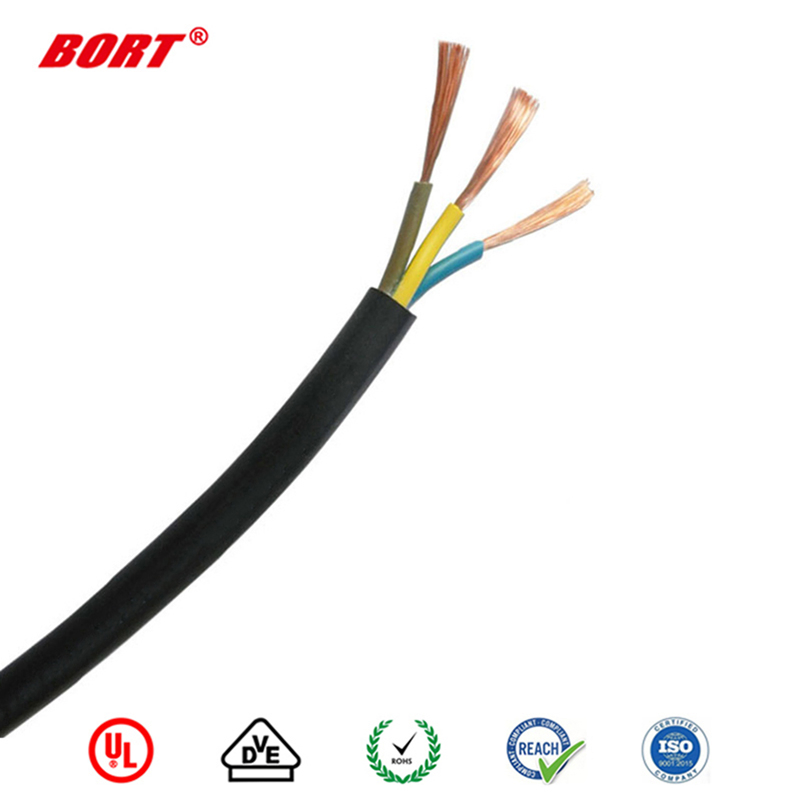

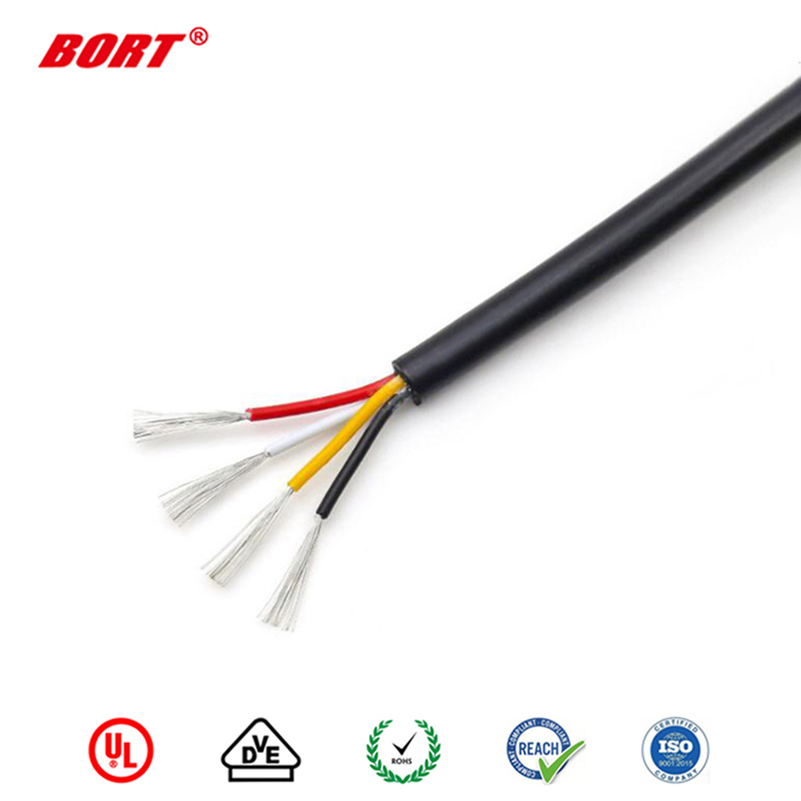

UL2464 Electrical Cable Multi Core Stranded Copper Braided Electric Wire
UL2464 Electrical Cable Multi Core Stranded Copper Braided Electric WireRated temperature:80ºCRated voltage:300VAccording to:UL Subject758,UL1581,C22.2Solid or stranded,tinned or bare copper conductor PVC insulationTinned or bare stranded copper drain wireTinned or bare stranded copper ......
Send Inquiry
Product Description
UL2464 Electrical Cable Multi Core Stranded Copper Braided Electric Wire
★Rated temperature:80ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2

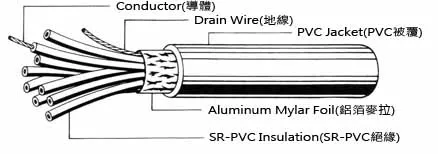

★Solid or stranded,tinned or bare copper conductor
★PVC insulation
★Tinned or bare stranded copper drain wire
★Tinned or bare stranded copper wire overall more than 80% coverage braided shield
★PVC jacket
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure easy stripping and cutting
★Sound broadcast,audio,instrumentation&computer
| AWG/NO.OFCOND | No./mm | mm | m/n/d | mm | mm |
| 24×2C | 11/0.16 | 0.25 | 16/4/0.10 | 0.80 | 4.35 |
| 24×3C | 11/0.16 | 0.25 | 16/4/0.10 | 0.80 | 4.50 |
| 24×4C | 11/0.16 | 0.25 | 16/5/0.10 | 0.80 | 4.80 |
| 24×5C | 11/0.16 | 0.25 | 16/6/0.10 | 0.80 | 5.10 |
| 24×6C | 11/0.16 | 0.25 | 16/6/0.10 | 0.80 | 5.45 |
| 24×7C | 11/0.16 | 0.25 | 16/6/0.10 | 0.80 | 5.50 |
| 22×2C | 17/0.16 | 0.25 | 16/5/0.10 | 0.80 | 4.75 |
| 22×3C | 17/0.16 | 0.25 | 16/6/0.10 | 0.80 | 4.95 |
| 22×4C | 17/0.16 | 0.25 | 16/6/0.10 | 0.80 | 5.30 |
| 22×5C | 17/0.16 | 0.25 | 16/7/0.10 | 0.80 | 5.65 |
| 22×6C | 17/0.16 | 0.25 | 16/8/0.10 | 0.80 | 6.05 |
| 22×7C | 17/0.16 | 0.25 | 16/8/0.10 | 0.80 | 6.10 |
