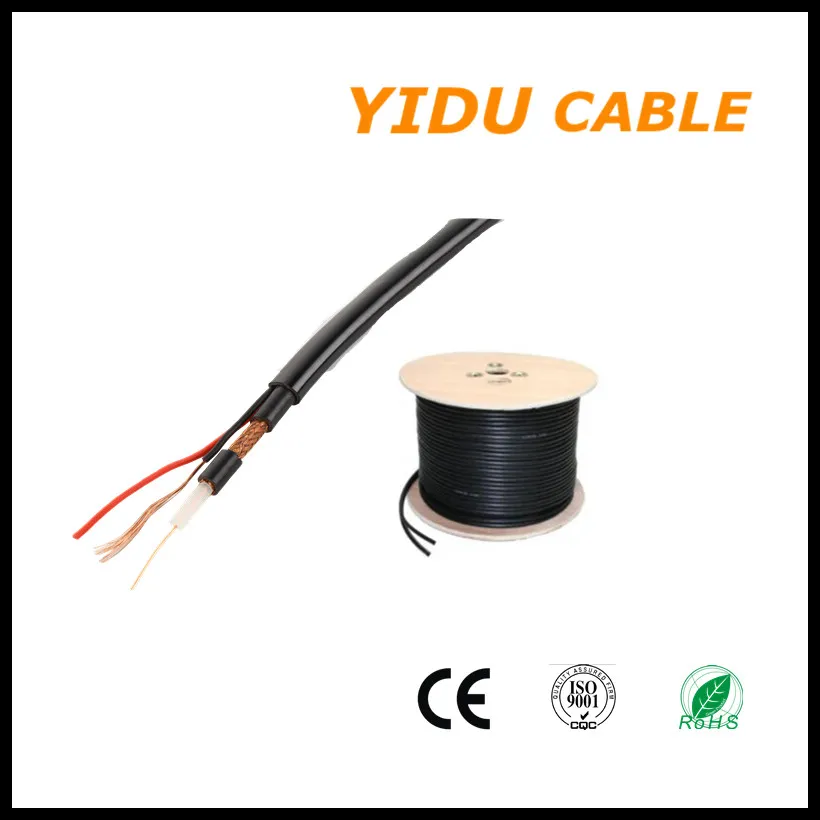

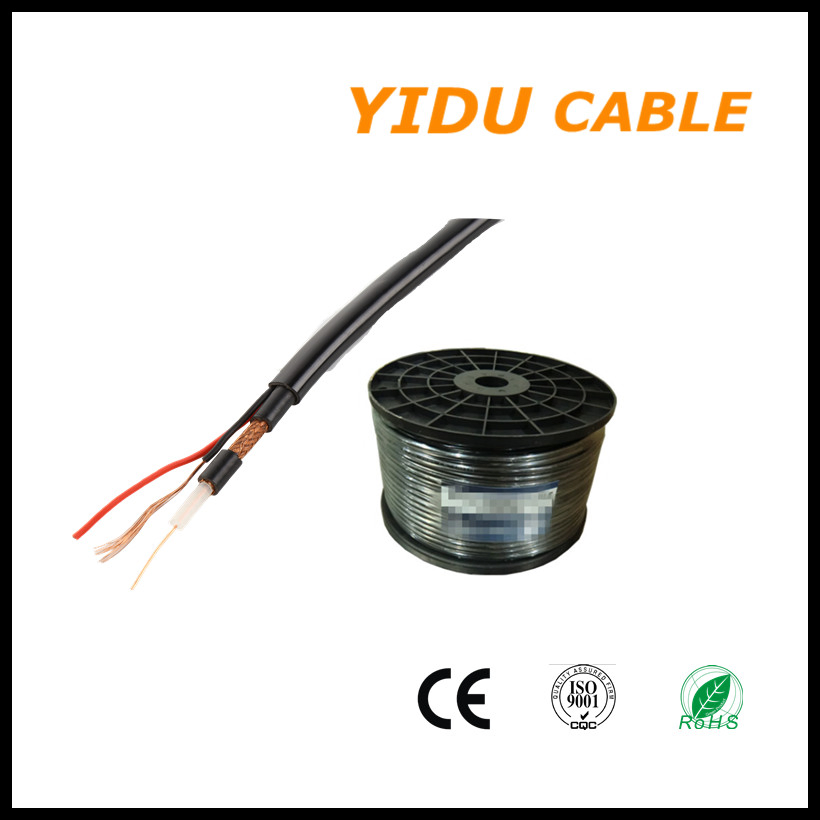

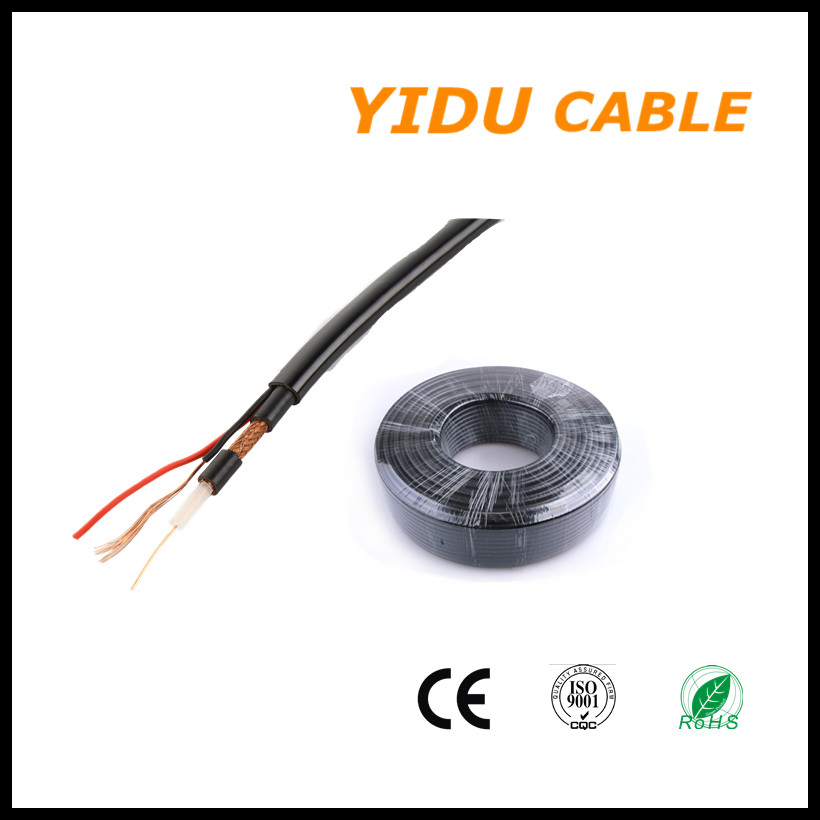

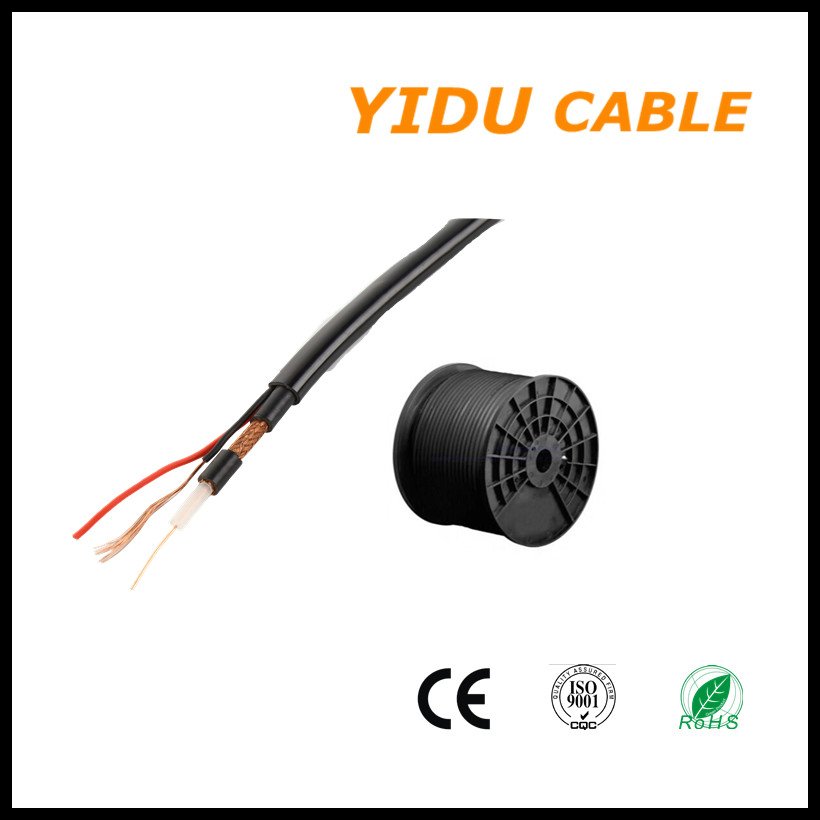

Rg59 with Power/ Rg59 + 2c / Solid PE/CCA Braiding/2*0.5mm2/0.75mm2 Coaxial Cable Combo Multimedia TV AV CCTV Camera Coax Siamese Cable

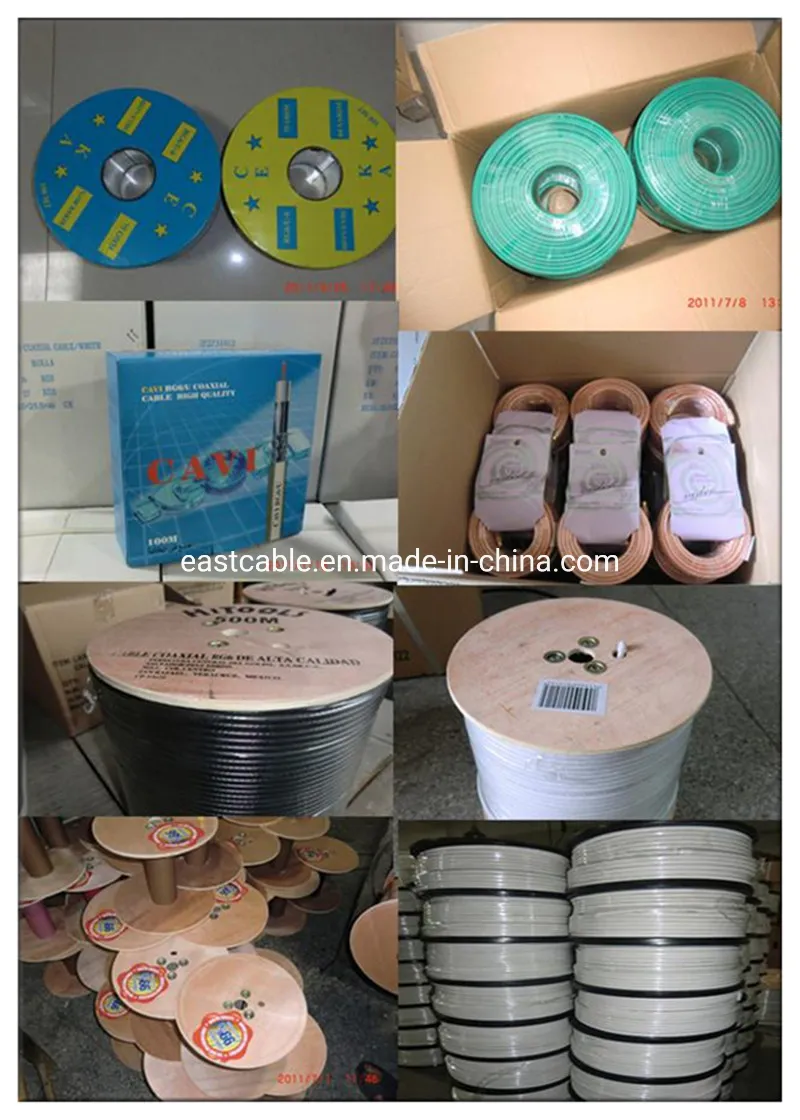

Detailed Photos Product ParametersProduct Specification 0.64Cu/CCS+3.66SPE+90%Braiding Coverage+6.0PVC+0.5mm2 power/0.75mm2 power0.81Cu/CCS+3.66FPE+Bonded foil+90% Braiding......
Send Inquiry
Product Description
Product Specification
0.64Cu/CCS+3.66SPE+90%Braiding Coverage+6.0PVC+0.5mm2 power/0.75mm2 power
0.81Cu/CCS+3.66FPE+Bonded foil+90% Braiding Coverage+6.0PVC+0.5mm2 power/0.75mm2 power

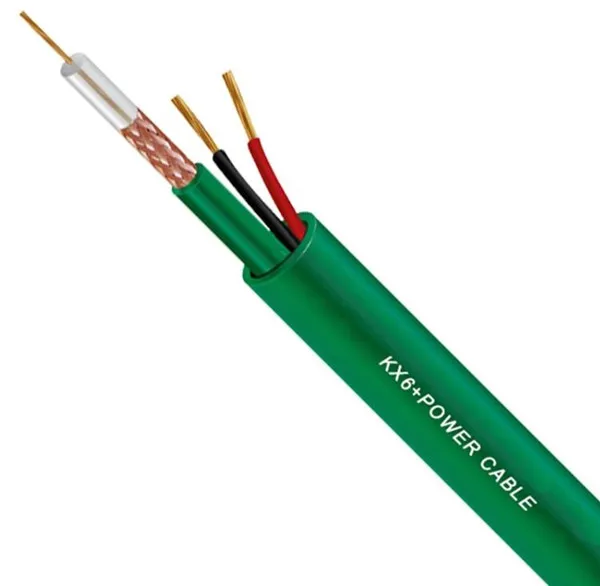

Description for RG59 with power cable
Mainly used for the distribution and access of electronic communication equipment, RF transmitter unit of
communication system, building cabling and CATV; the most striking features are broadband and high
speed; currently, also widely used in the multimedia transmission field; conforms to RG59.
Features
| Specificaitons | ||||||
| Physical dimensions | ||||||
| component | Standard-shield | Tri-shield | Quad-shield | |||
| inchs | mm | inchs | mm | inchs | mm | |
| Nominal center conductor diameter | 0.032 | 0.81 | 0.032 | 0.81 | 0.032 | 0.81 |
| Nominal diameter over dielectric | 0.144 | 3.66 | 0.144 | 3.66 | 0.14 | 3.66 |
| Nominal diameter over first shield | 0.151 | 3.84 | 0.151 | 3.84 | 0.151 | 3.84 |
| Nominal diameter over jacket | 0.24 | 6.1 | 0.24 | 6.1 | 0.265 | 6.73 |
| Nominal jacket wall thickness | 0.03 | 0.76 | 0.032 | 0.81 | 0.034 | 0.86 |
| Nominal diameter of | 0.051(single) | 1.3 | 0.051(single) | 1.3 | 0.051(single) | 1.3 |
| steel messenger | 0.072(dual) | 1.83 | 0.072(dual) | 1.83 | 0.072(dual) | 1.83 |
| Electrial Characteristics | ||||||
| Nominal impedance | 75ohms | |||||
| Nominal Velocity of propagation | 0.85 | |||||
| Attenuation(20ºC) | ||||||
| Frequency(MHz) | Maximum(dB/100ft) | Maximum(dB/100m) | ||||
| 55 | 2.05 | 6.73 | ||||
| 211 | 3.8 | 12.47 | ||||
| 350 | 4.8 | 15.75 | ||||
| 450 | 5.4 | 17.72 | ||||
| 550 | 5.95 | 19.52 | ||||
| 750 | 6.97 | 22.87 | ||||
| 865 | 7.52 | 24.67 | ||||
| 1000 | 8.12 | 26.64 | ||||

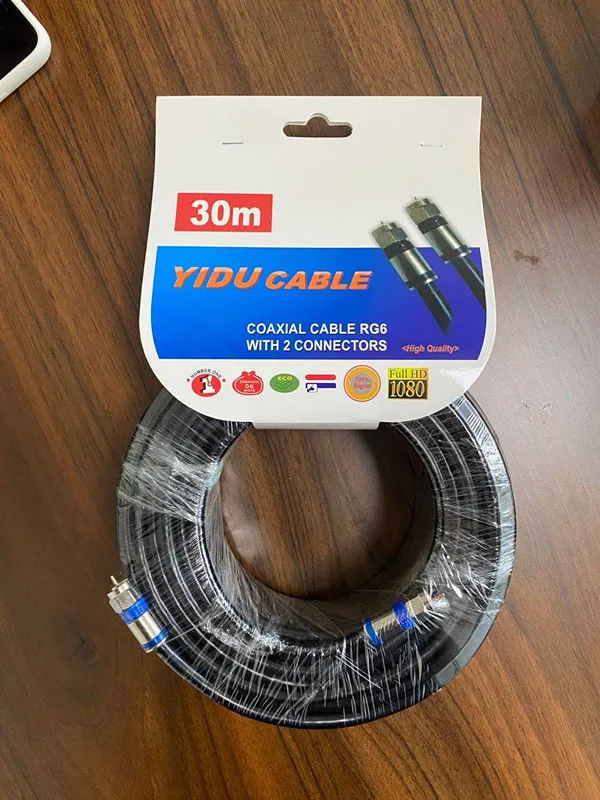

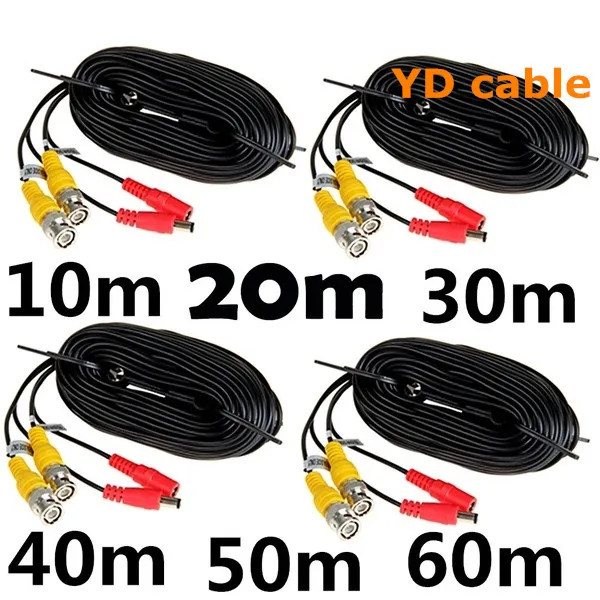

Related Hot Models
Manufacturer Introduction
Hangzhou Yidu Import & Export Co.,Ltd is one of the leading manufacturer in the cables
and telecom accessories. We have more than 15 years experience in this line.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give
best service to our clients and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.
We have established a close relationship with many companies around the world and we sincerely look
forward to woking with all clients from all over the world.
OEM and ODM order highly welcome !

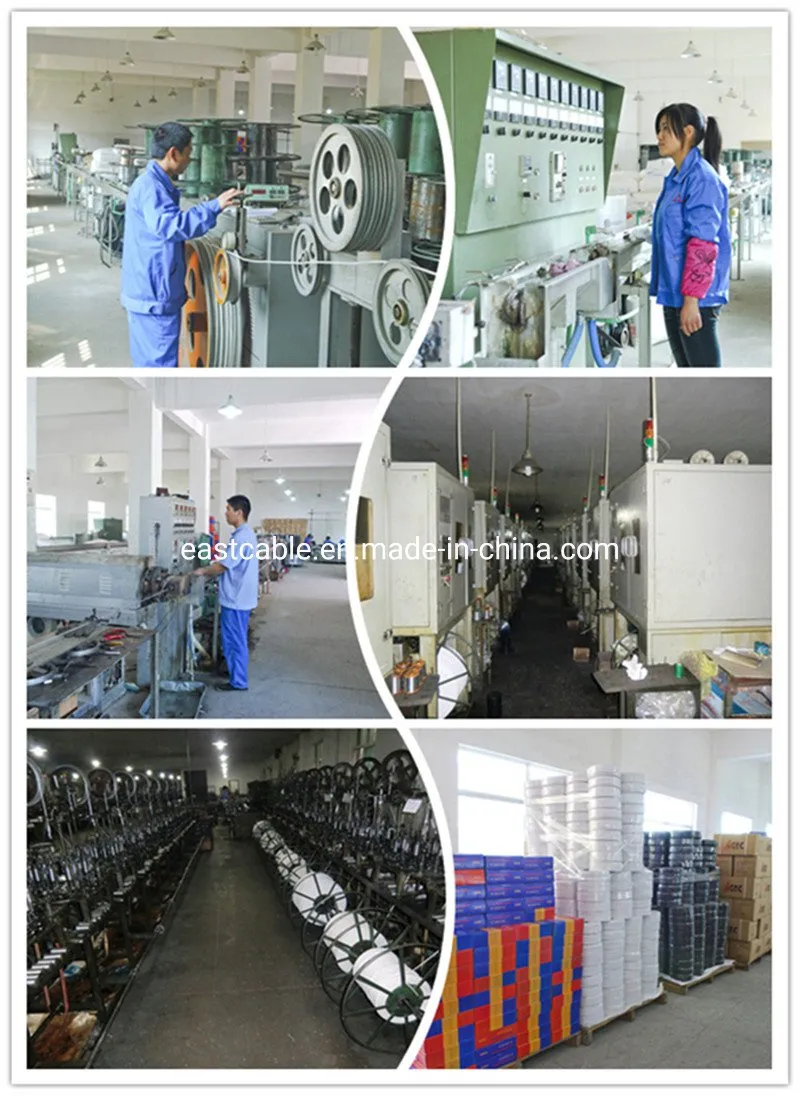

Workshop and Company Show
