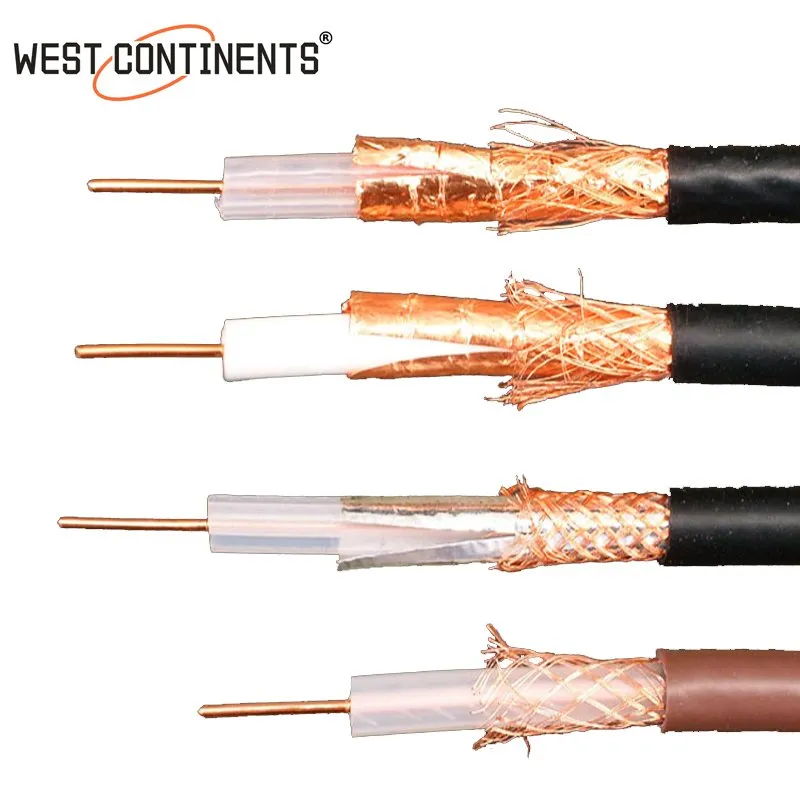

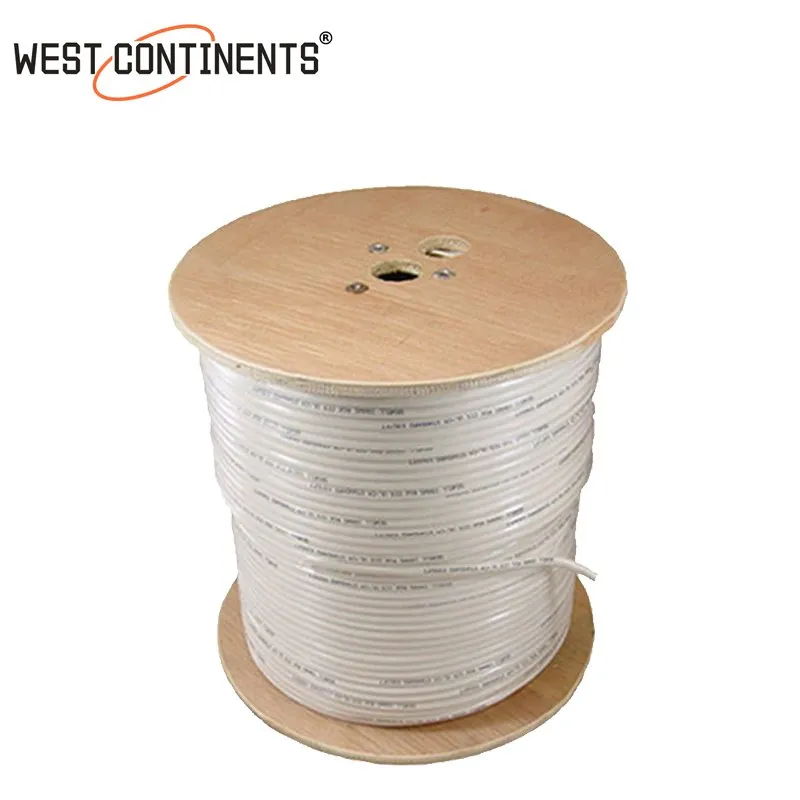

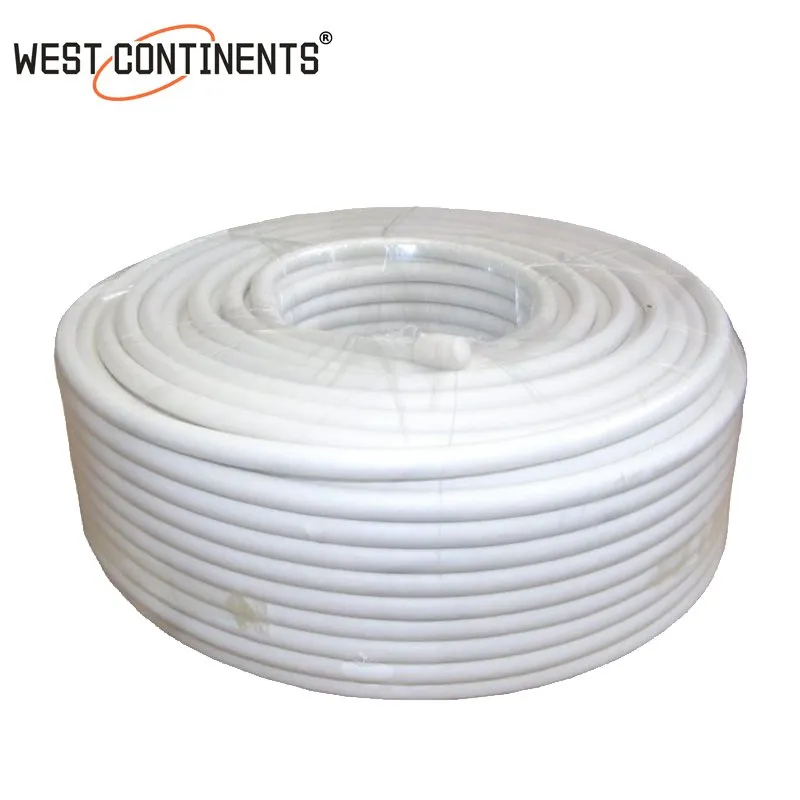

Rg59+ 2c Coaxial Cable for CCTV Camera /Satellite TV with CE RoHS Standard BNC and DC Connector
Product Description What's the different of RG59 and RG59+2CRG59 cable is thinner and is recommended in low bandwidth and lower frequency applications such as analog video and CCTV installations.RG59+2C cable is to add two power lines on the basis of RG59.It can realize long distance power suppl......
Send Inquiry
Product Description
What's the different of RG59 and RG59+2C

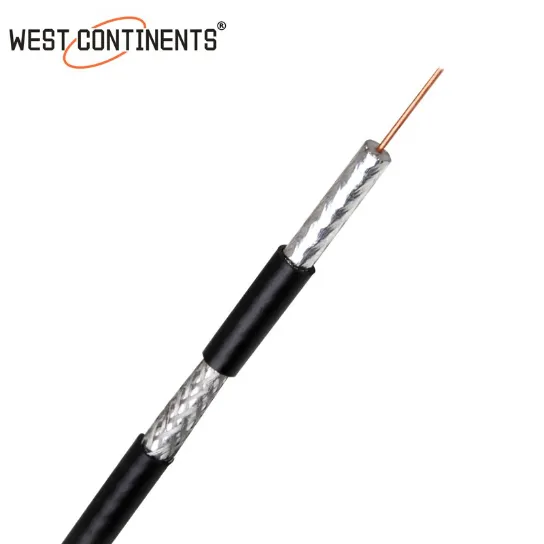

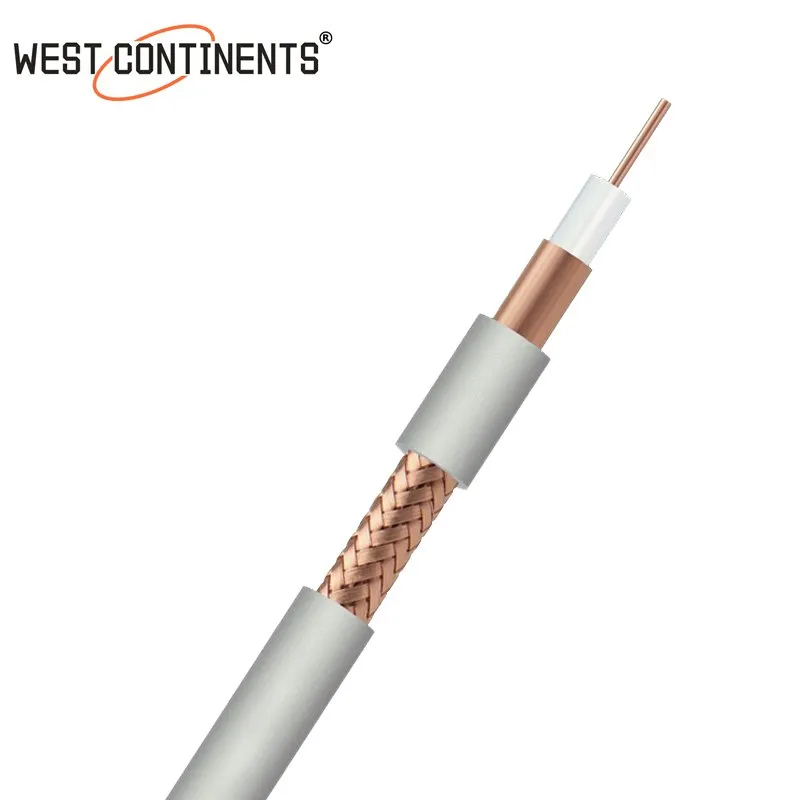

RG59 cable is thinner and is recommended in low bandwidth and lower frequency applications such as analog video and CCTV installations.

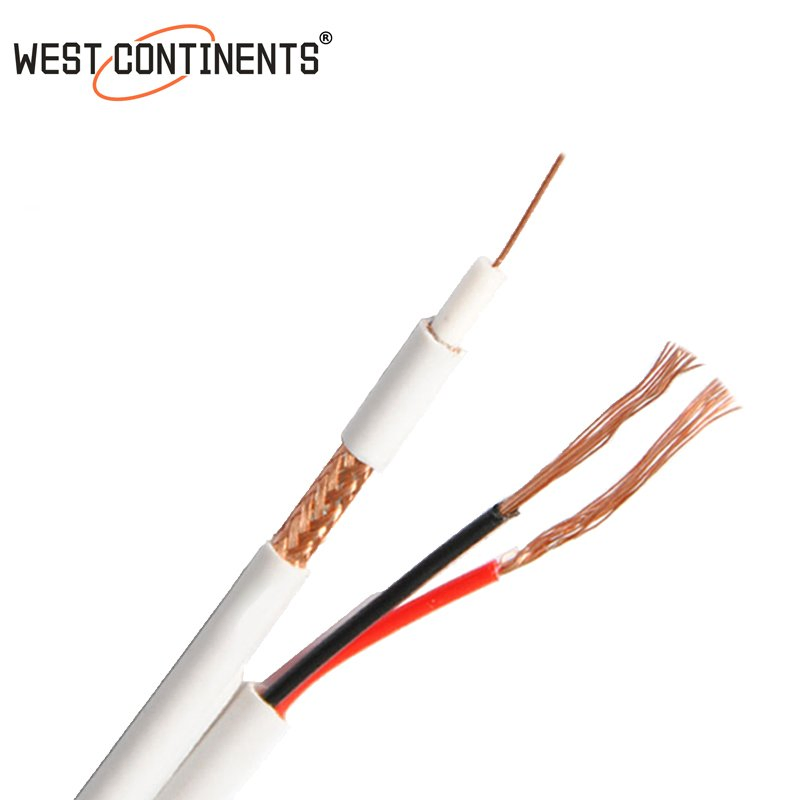

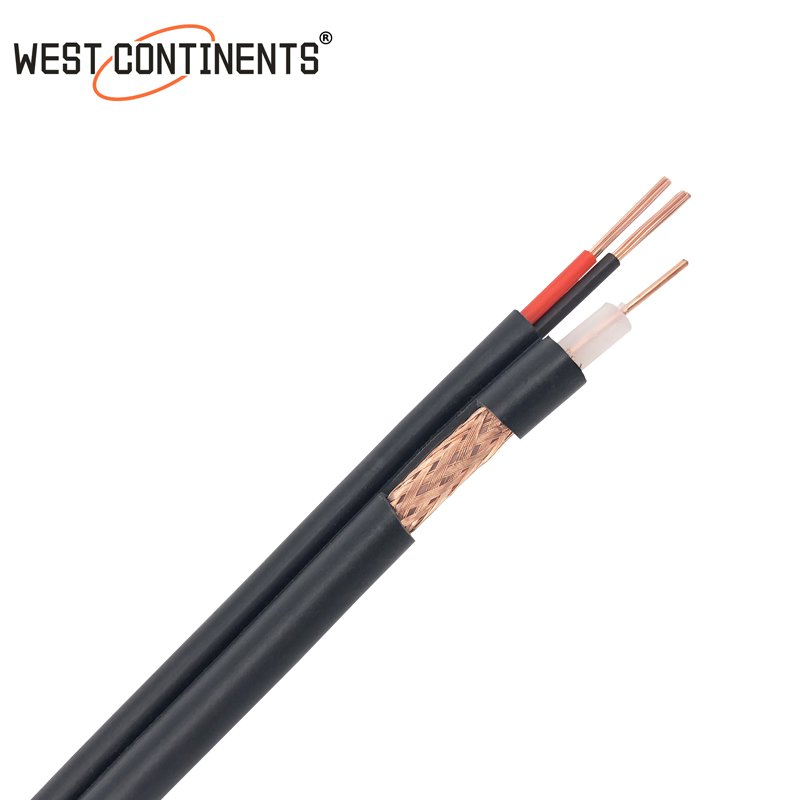

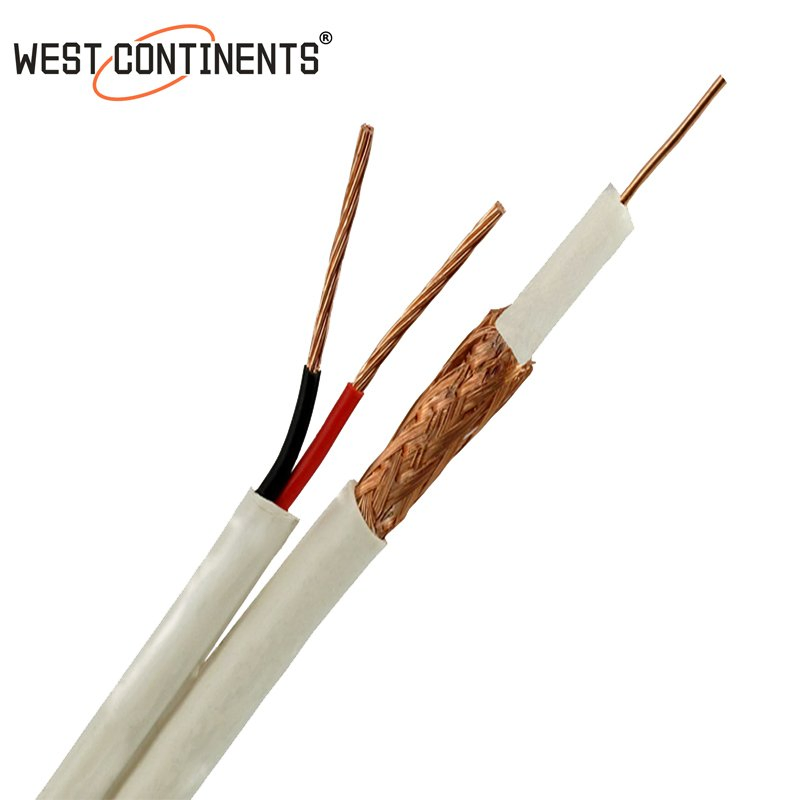

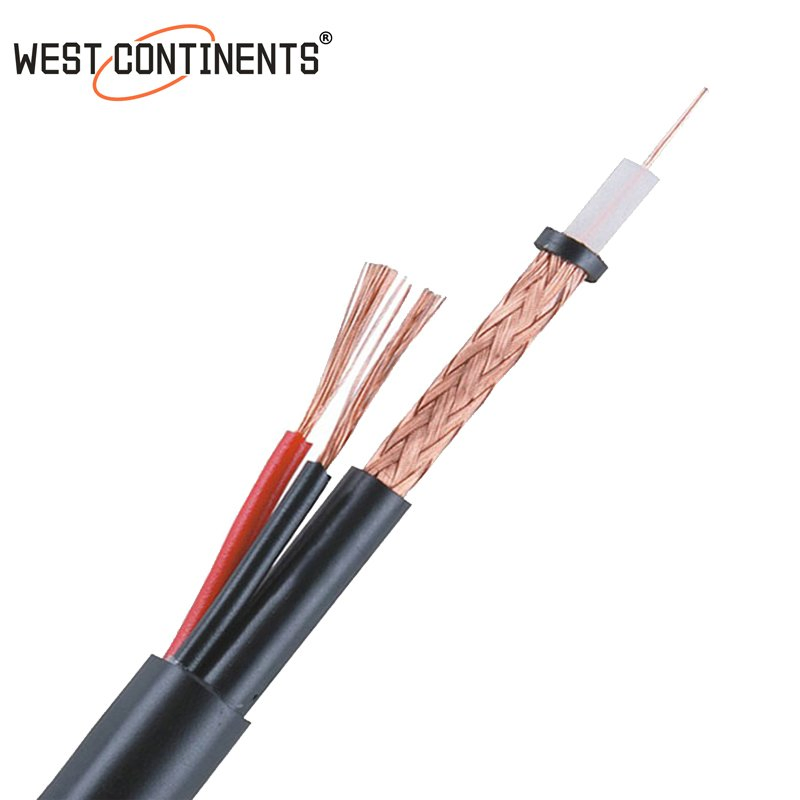

RG59+2C cable is to add two power lines on the basis of RG59.It can realize long distance power supply and signal transmission
RG59+2C RG59

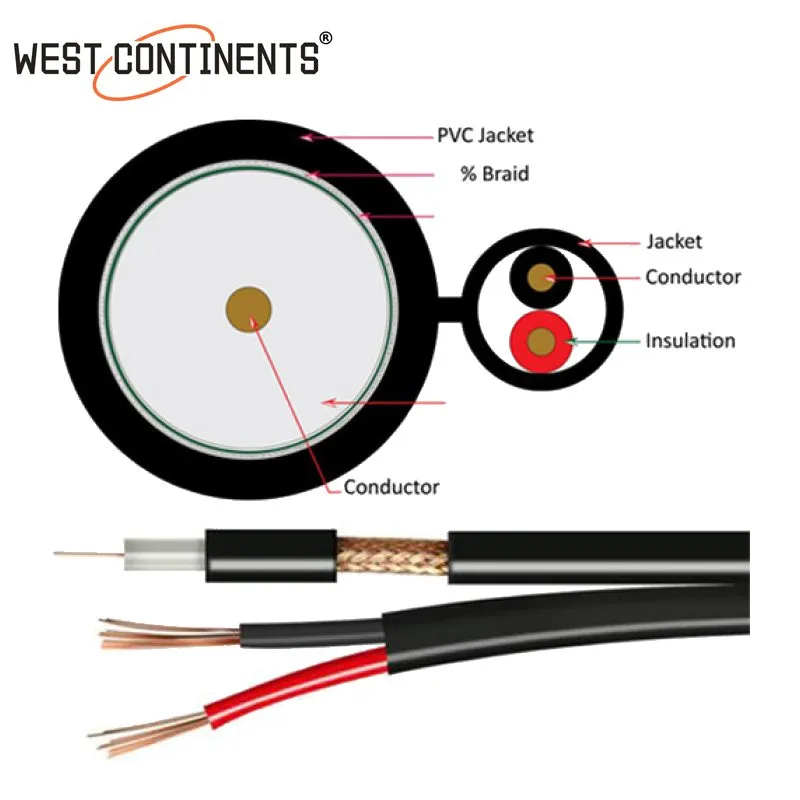

| Characteristics | |||
| Material | Detail | inches | mm |
| Inner Conductor | Copper | 0.0320 | 0.8128 |
| Dielectric | Foamed Polyethylene | 0.1350 | 3.429 |
| 1st Outer Conductor | Sealed APA Tape | 0.188 | 4.78 |
| 2nd Outer Conductor | 90% CCA Braid | 0.212 | 5.38 |
| 3rd Outer Conductor | -- | -- | -- |
| 4th Outer Conductor | -- | -- | -- |
| Jacket | PVC,Flame Retardant, White | 0.240 | 6.10 |
| Twisted Pairs | -- | -- | -- |
| Messenger | -- | -- | -- |
| Electrical Specifications | ||
| Impedance, Ω | 75±3 | |
| Velocity of Propagation, % | 82% | |
| Capacitance, Nominal | 16.0 pF/ft | 54pF/ft |
| DC Resistance | 10.50Ω/ kft | |
| Attenuation, Maximum@ 68ºF (20 ºC ) | ||
| Frequency, MHz | dB/ 100 ft | dB/ 100 m |
| 10 | 0.86 | 2.82 |
| 50 | 1.91 | 6.26 |
| 100 | 2.78 | 9.11 |
| 200 | 4.06 | 13.31 |
| 400 | 6.01 | 19.71 |
| 700 | 8.47 | 27.78 |
| 900 | 9.82 | 32.20 |
| 1000 | 10.47 | 34.34 |

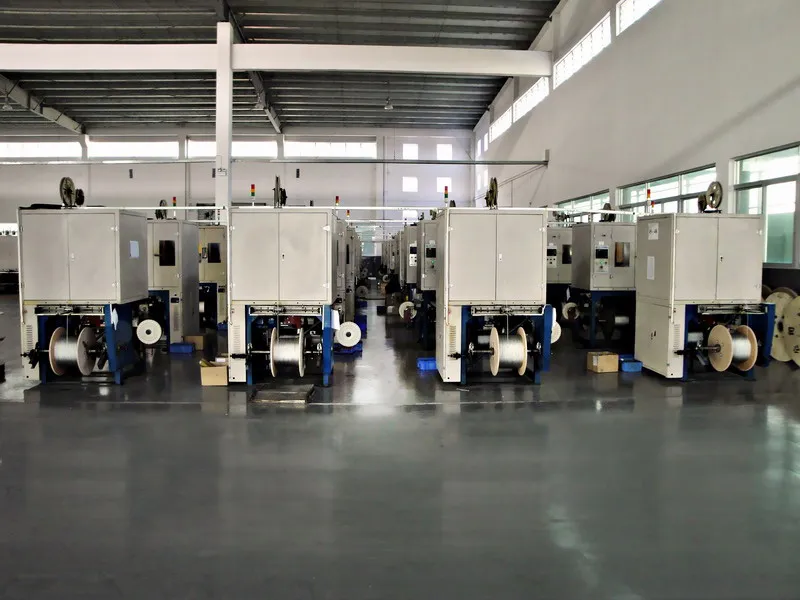

HANGZHOU XIZHOU TECHNOLOGY., LTD located at Hangzhou city, zhejiang province, China. We provide various kinds of cables. We have two factories, one focuse on coaxial cables, and another produce lan cable and other cables.
We are also the cable supplier of Dahua and Hikvision camera agents. Many agents will choose our cable to support his CCTV Camera and business. We also have our cable agent in Mid-east country. Let's us to be your reliable cable supplier and cooperative partner.
We are also the cable supplier of Dahua and Hikvision camera agents. Many agents will choose our cable to support his CCTV Camera and business. We also have our cable agent in Mid-east country. Let's us to be your reliable cable supplier and cooperative partner.
1. OBM and ODM service
2. Cables guaranteed for one year (except wet location)
3. Respond inquiry in 12 hours, quotation in 24 hours.
4. Leading time 25-30 days in slack season and 30-40 days in peak season
5. Mature and stable logistics system to ensure the smooth export of goods
6. Sample order service
2. Cables guaranteed for one year (except wet location)
3. Respond inquiry in 12 hours, quotation in 24 hours.
4. Leading time 25-30 days in slack season and 30-40 days in peak season
5. Mature and stable logistics system to ensure the smooth export of goods
6. Sample order service
