Rg Mil-C-17 Silver-Plated Copper Coaxial Cable for Communication

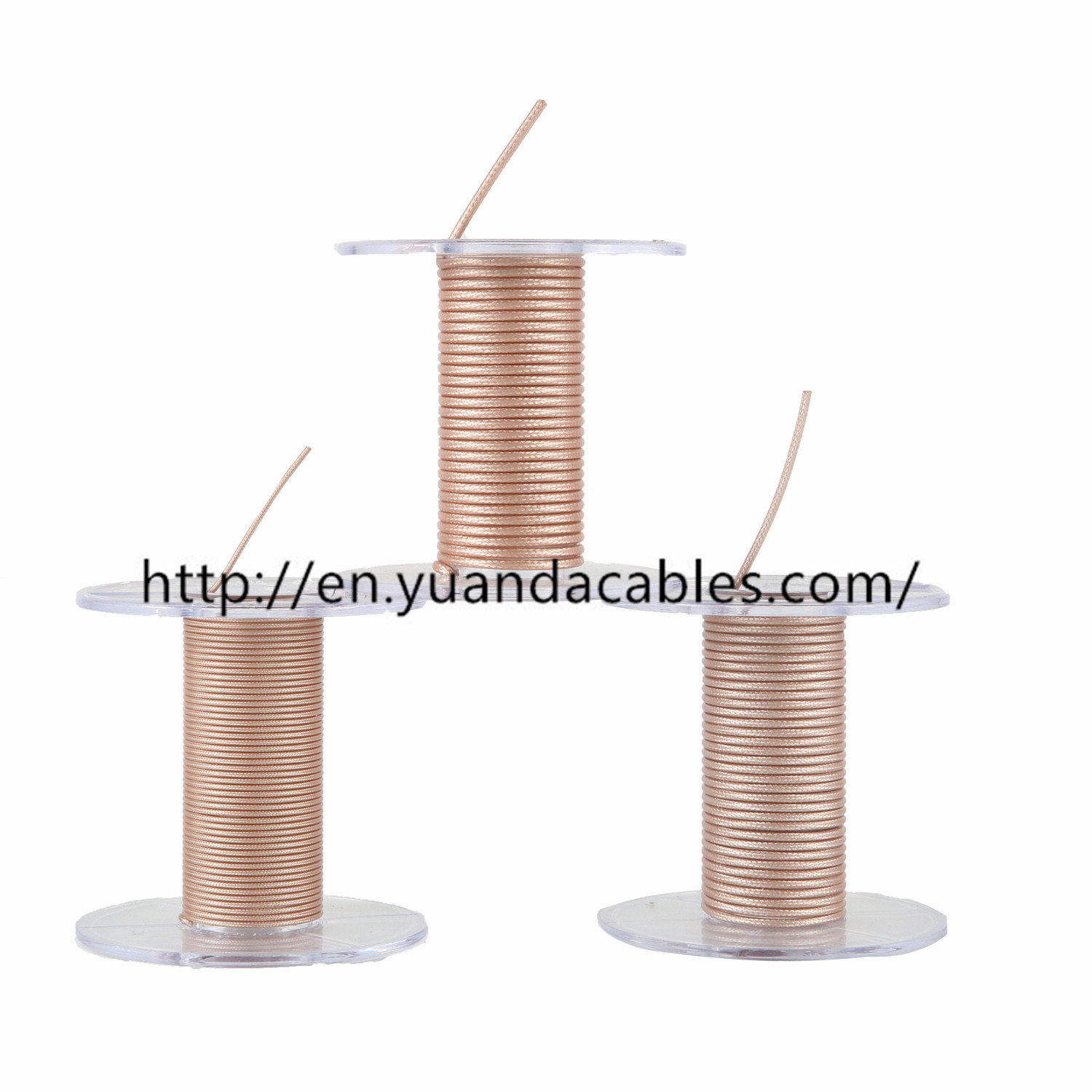

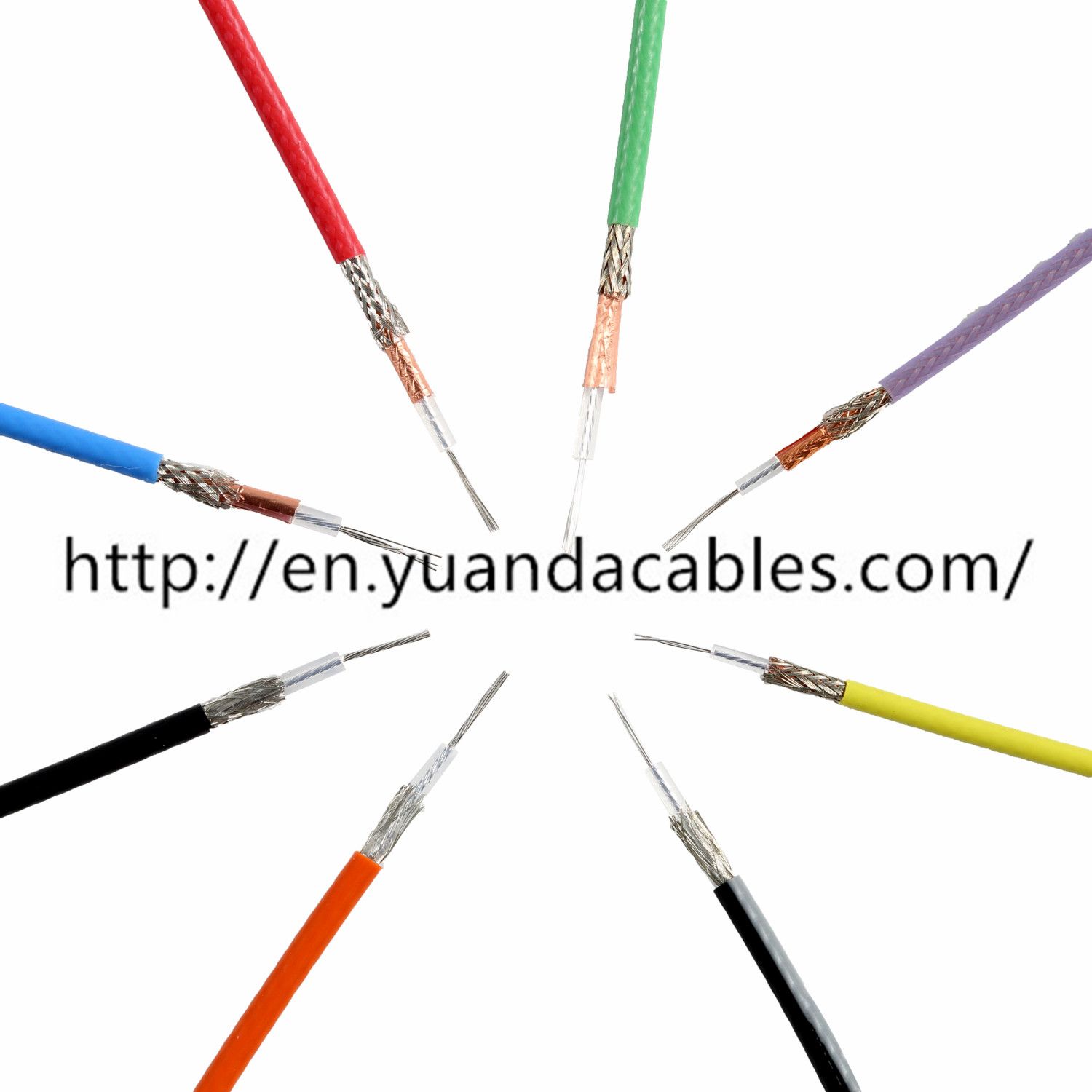

Silver-plated copper coaxial cable for communication

Technical Data:

1. Operating temperature range: (-65~165)° C

2. Inner conductor: Silver-plated copper

3. Outer conductor: Tinned copper braid outer conductor of the overall dip tin

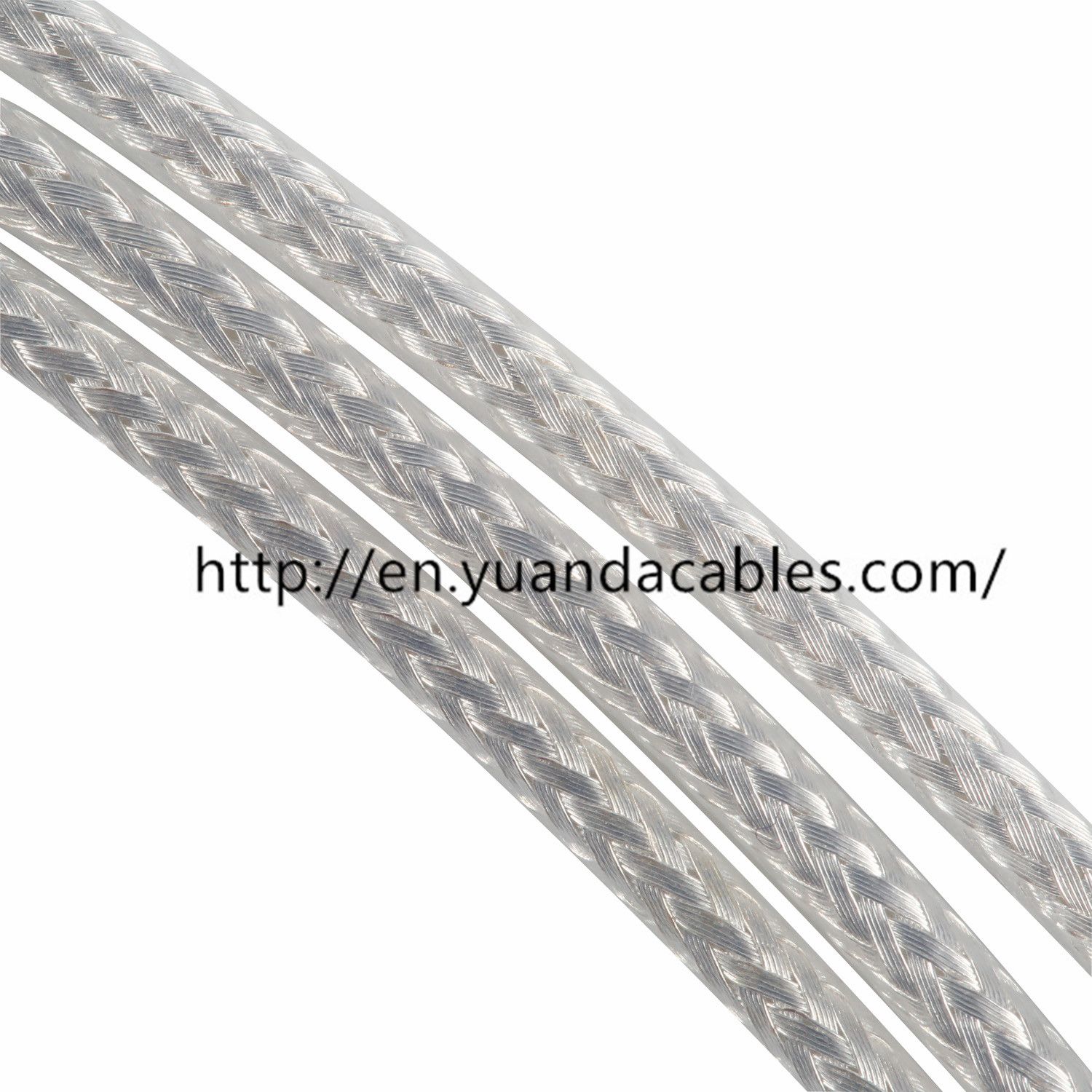

4. Insulation: PTFE

5. Jacket: FEP/PVC/LSZH

6. Application and features: Semi-flexible coaxial cable with good shielding, the use of high frequency, standing wave ratio is small, power, reliability and other characteristics, as opposed to semi-rigid cable with repeated bending function for the black box of internal connections, mobile base station, delay lines, radio equipment and other electronic devices.

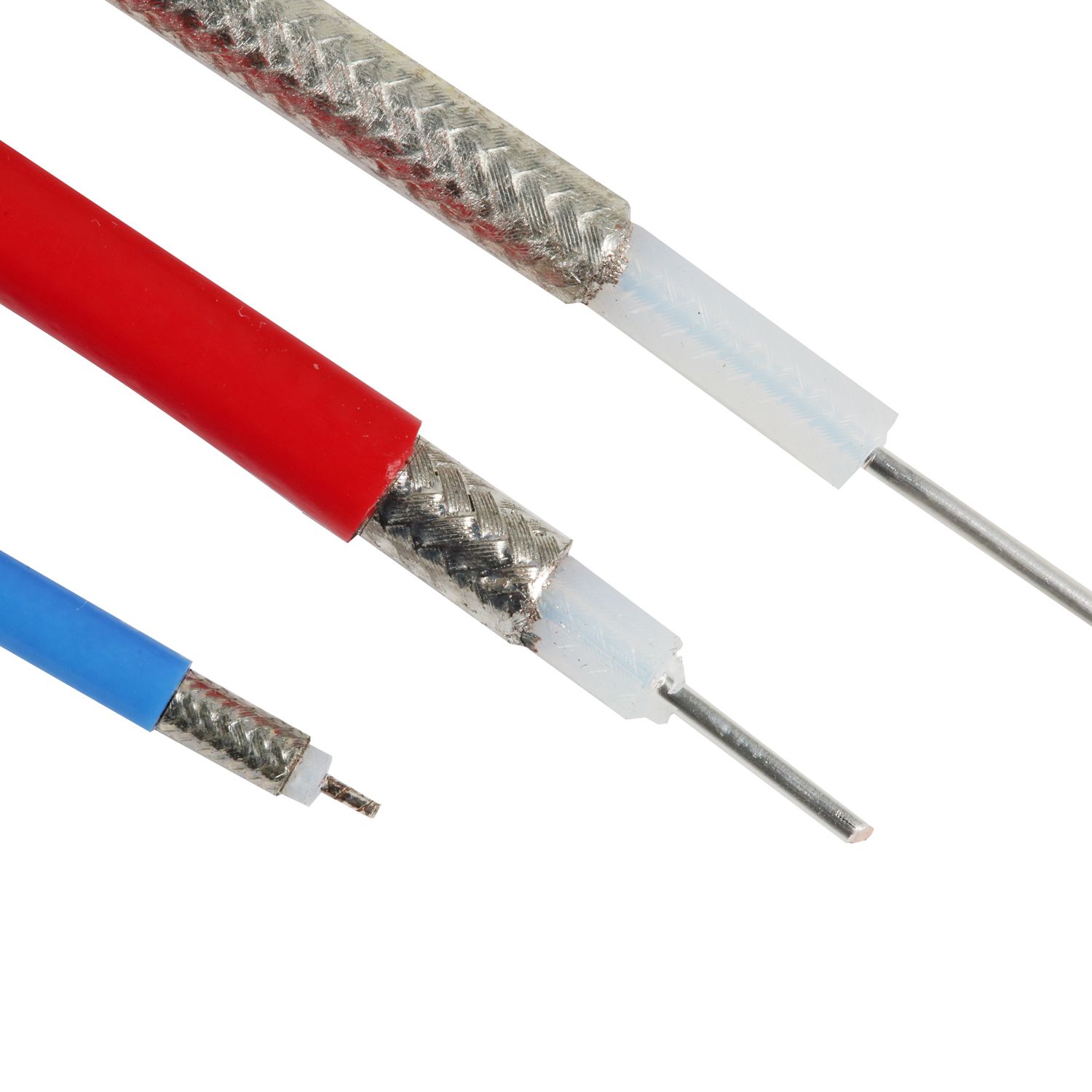

Cable structure and key performance data:

1. Inner conductor number/diameter (mm): Sc1/0.92

2. Nominal insulation OD (mm): 2.98

3. Nominal diameter of outer conductor (mm): 3.58

4. Nominal Feature Impedance (Ω ): 50

5. Attenuation constant ≤ DB/100m:
0.5GHz: 0.35
1GHz: 0.45
5GHz: 1.20

6. Return Loss ≥ DB:
0.5GHz: 30
5GHz: 23

7. Maximum bending mandrel diameter (mm): 11

8. Test Voltage (kv): 5


Notes:

1. Sc: Silver-plated copper wire
Sccs: Silver-plated copper clad steel wire

2. According to customer requirements characteristic impedance of 35Ω , 37.5Ω , 42Ω , 75Ω And 100Ω Cable, etc., while according to the customer asks for a PVC or FEP jacket.


Company Information

Our main products include:

A. Series of automotive cables which can meet various standards , like ISO, SAE, JASO, JB/T, VW, LV, GMW and etc. ; Especially newly developed aluminum conductor battery cables , new energy HV (un)shield cables , will be your good choice for cost saving and light weight.

B. RF, RG series of coaxial cables with abroad application in cellphone , laptop , router , 5G/6G , military industry , smart car and etc. for communication ;

C. UL, VDE, CCC verified , PVC/cross-linked polyolefin/silicone rubber/fluoroplastic insulated series of household electric appliance wires ;

D. Heat resistant silicone rubber sleeves with (or without) fiberglass braid , widely used in household appliances, motors, vehicles and etc. ;

E. Special cables applicable to urban orbitals, photovoltaic systems, wind power generation, space navigation and etc..

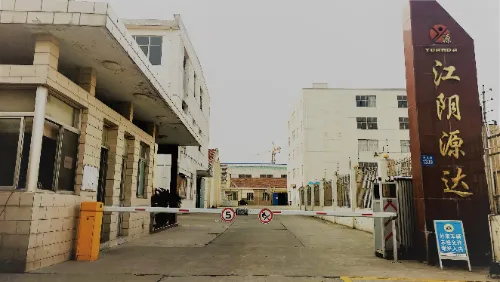

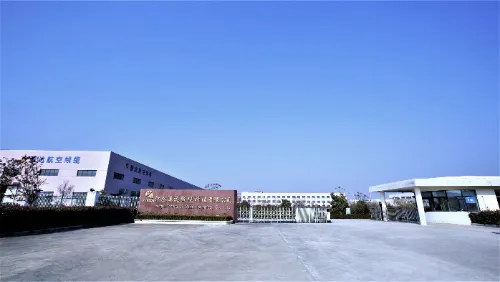

Jiangyin Yuanda Electrical Material Co., Ltd. is located in Jiangyin, the most developed city in Jiangsu Province ,China. Facing Taihu Lake in the south and bordering Changjiang River in the north, it is well located and easy of access as Huning and Xicheng Freeway Stretching over the district. It's about 100 km from Shanghai Pudong Airport and Nanjing Lukou Airport and it is near Wuxi and Changzhou Airport too. We believe that our unique location and convenient transportation could be your ideal business choice.

Yuanda have abundant technical strength, advanced equipment ,functional testing facilities and good quality-ensuring systems . We have acquired the certificates of IATF 16949,ISO 9001,ISO 14001,OHSAS 18001 for automotive cables and communication cables . Series of silicone rubber, fluorine plastic, crosslinked polyolefin electronic wires and sleeves are certified by UL,VDE,CSA and CCC.
Especially our aluminum conductor battery cable , new energy high-voltage shield cable , and some coaxial cables used in automotive , enjoy high popularity in automotive industry. With high-qualify products, reasonable price and splendid after-sales service, our products supporting customers are exported to the world.

FAQ:

1.Q: Are you trading company or manufacturer ?
 A:We are factory, with the belief "Good faith makes quality, Quality wins market"

2.Q: How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to cable type and quantity.

3.Q:What certifications do you have?
A:We have UL, CUL, VDE, RoHS, REACH and SGS for our wires& cables.

4.Q:What is your payment term?
A:We have several payment terms for you, T/T, Western Union, L/C, etc.

5.Q:Can you do the design for us?
A:Yes, we have a professional team having rich experience in wire and cable design and manufacturing.Just tell us your demands, we will manufacture the cable as your requirement.And we can also print your Logo on the wire which can never be erased.
