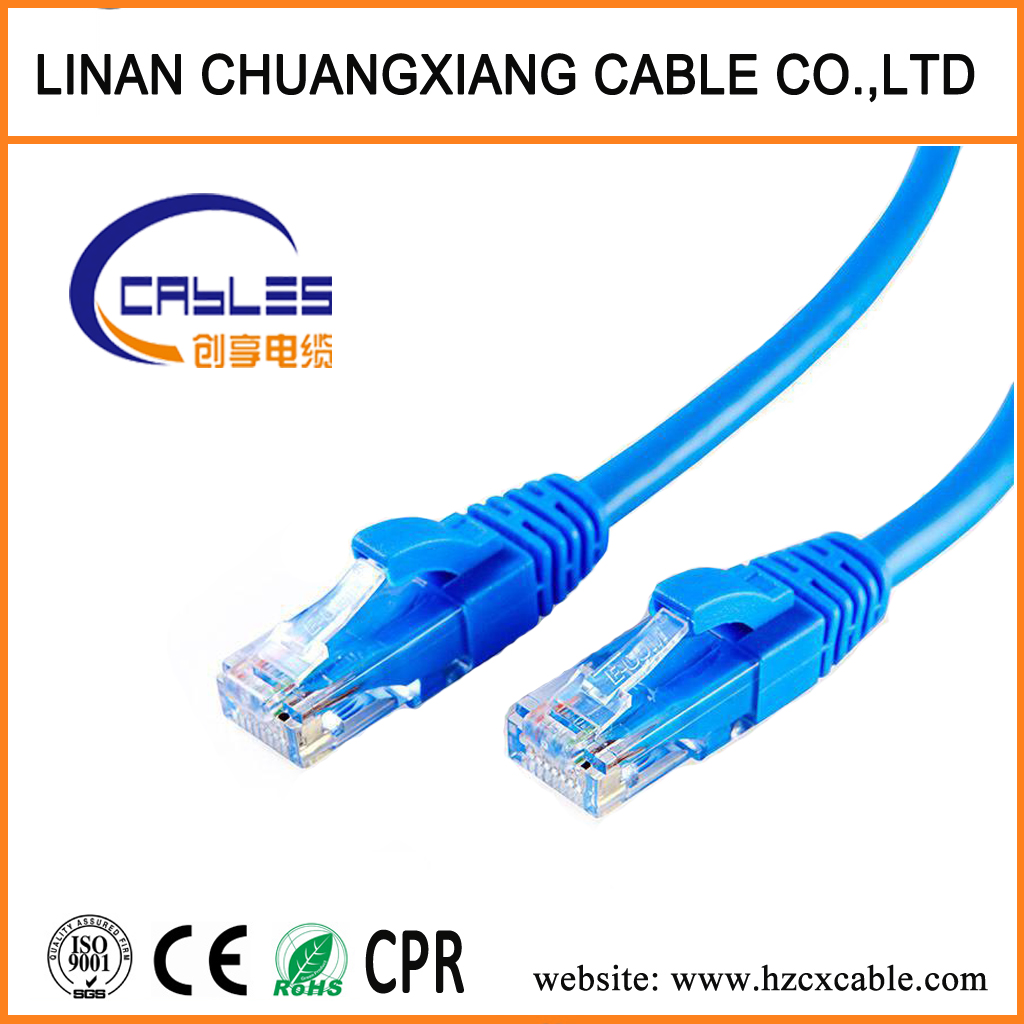

Network Cable Ethernet Patch Cord LAN Cable UTP Cat5e Copper Wire Communication Cable CE// CPR Approved Data Cable Computer Cable
Material Instruction:1.CCA or 24AWG Soft Plain Copper.2.Eco-friendly,pollution-free and new materials selected.Promise new material only.3.Insulation: Solid HDPE;4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long working life. TypeUTP CAT5e Conductor24AWG CU/CCAInsulation MaterialHDPE......
Send Inquiry
Product Description

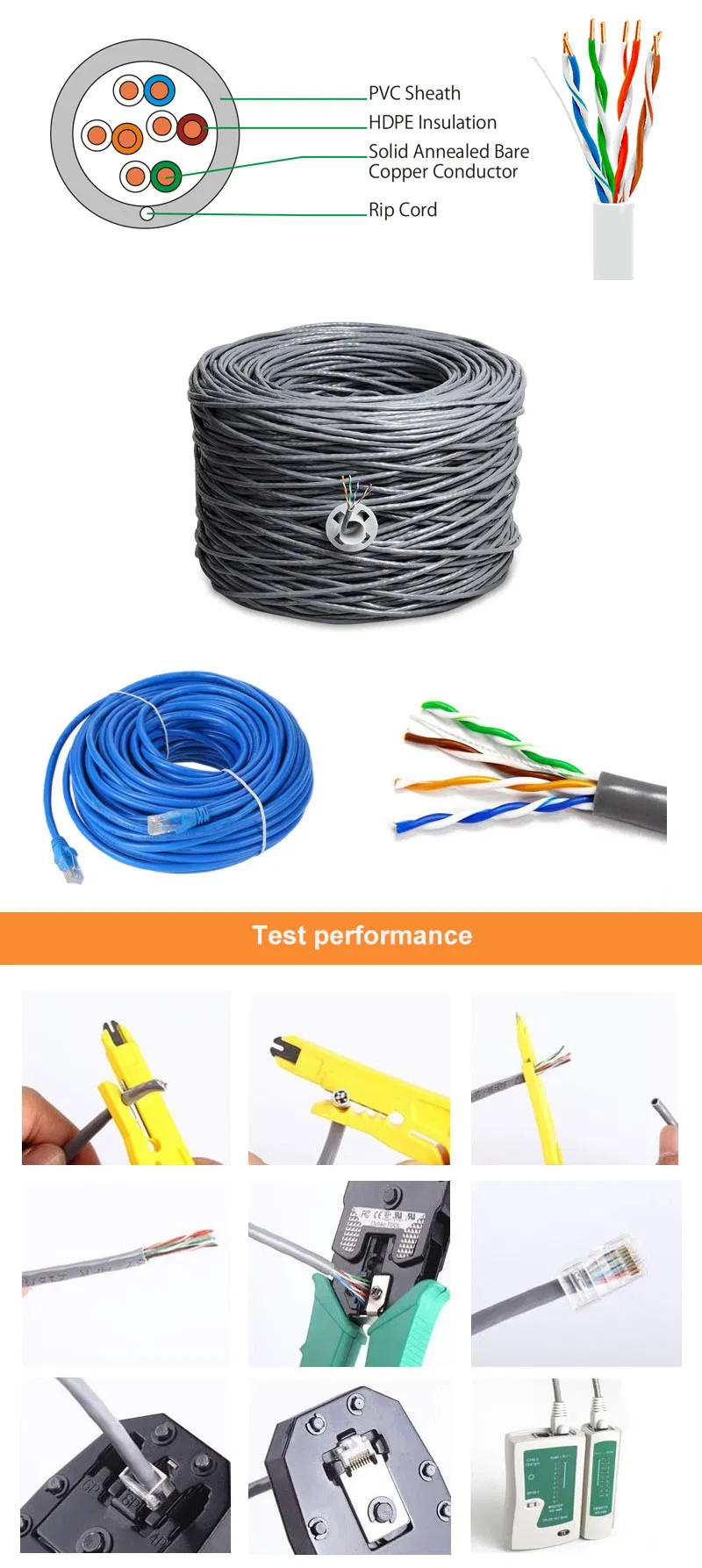

Material Instruction:
1.CCA or 24AWG Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;
4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long working life.

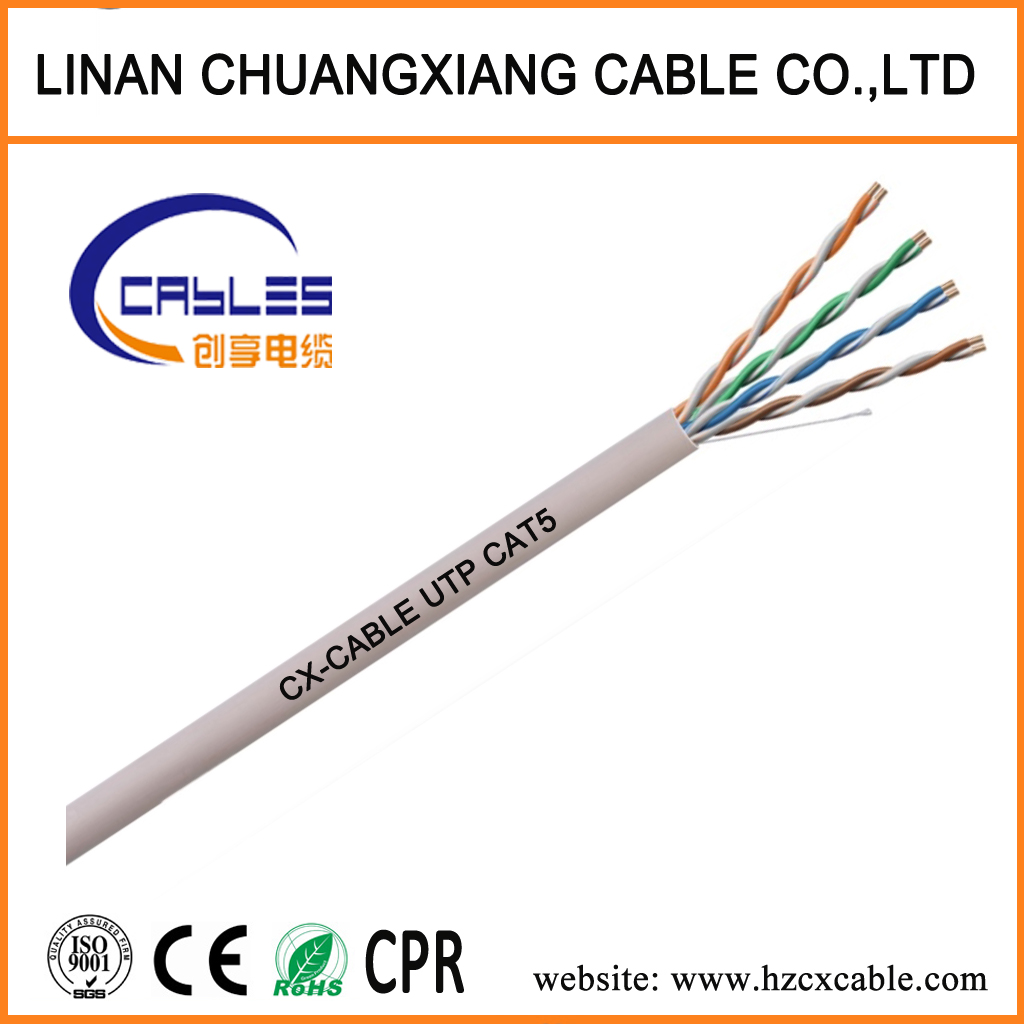

| Type | UTP CAT5e |
| Conductor | 24AWG CU/CCA |
| Insulation Material | HDPE |

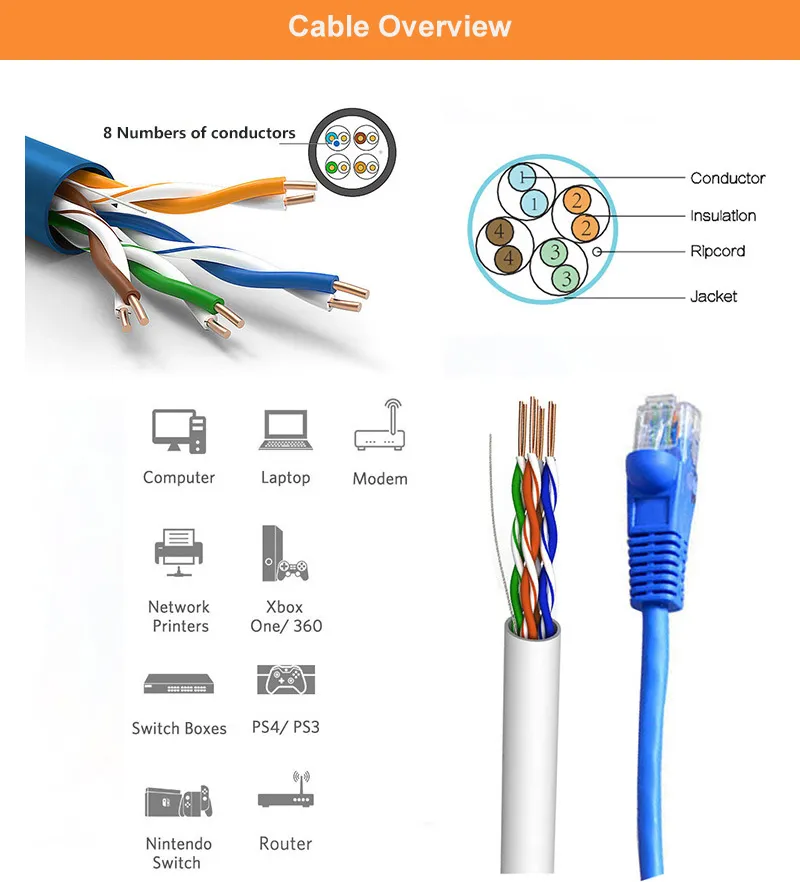

| Number of conductor | 8cores, twisted in 4 pairs |
| Color code | white-blue/blue,white-orange/orange,white-green/green,white-brown/brown |
| Jacket | PVC/PE/LSZH |
| Operating temperature | -50 ° C - +70 ° C |
| Certificate | CE/ISO/RoHS Approved |
| Frequency (MHZ) | RL (dB) | Attenuation (dB/100M) | Next (dB/100M) | Phase Delay (ns) | ELFEXT (dB/100M) | PS NEXT (dB/100M) | PS ELFEXT (dB/100M) |
| 1.00 | 20.0 | 2.0 | 65.3 | 570.00 | 63.8 | 62.3 | 60.8 |
| 4.00 | 23.0 | 4.1 | 56.3 | 552.00 | 51.8 | 53.3 | 48.8 |
| 8.00 | 24.5 | 5.8 | 51.8 | 546.73 | 45.7 | 48.8 | 42.7 |
| 10.00 | 25.0 | 6.5 | 50.3 | 545.38 | 43.8 | 47.3 | 40.8 |
| 16.00 | 25.0 | 8.2 | 47.2 | 543.00 | 39.7 | 44.4 | 36.7 |
| 20.00 | 25.0 | 9.3 | 45.8 | 542.00 | 37.8 | 42.8 | 34.8 |
| 25.00 | 24.3 | 10.4 | 44.3 | 541.00 | 35.8 | 41.3 | 32.8 |
| 31.25 | 23.6 | 11.7 | 42.9 | 540.00 | 33.9 | 39.9 | 30.9 |
| 62.5 | 21.5 | 17.0 | 38.4 | 538.55 | 27.9 | 35.4 | 24.9 |
| 100.00 | 20.1 | 22.0 | 35.3 | 537.60 | 23.8 | 32.3 | 20.8 |
Linan Chuangxiang Cable Co., Ltd is a professional cable manufacturer in China,we have more than 11years in this line.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give
best service to our clients and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world,and we sincerely look for-
ward to woking with all clients from all over the world.
Our Main Products:
1,Optical Fiber Cable and Patch Cord
2.Lan and Network Cable and Patch Cord
3.Alarm Cable and Speaker Cable
4.Drop Wire and Telephone Cable
5.Communication Cable
6.Coaxial Cable
7.Electrical Wire and Power Cable
8.Telecom Accessory.
1.Are you the real manufacturer?
Yes. We are the real manufacturer,which is specialized in coaxial cable,lan cable and optical cable,etc.
2.Can you accept small order?
Yes,We support new project of our customers,and we know business is always from small order.
3.What is your delivery time?
Usually within 30days after we received deposit.
4.What is your payment way?
T/T, L/C,it can be negotiated.
5.Can you supply customized products and logo?
Yes. We supply OEM&ODM service.
If you were interested in our competitive cables,Just call me,Let's talk more.
