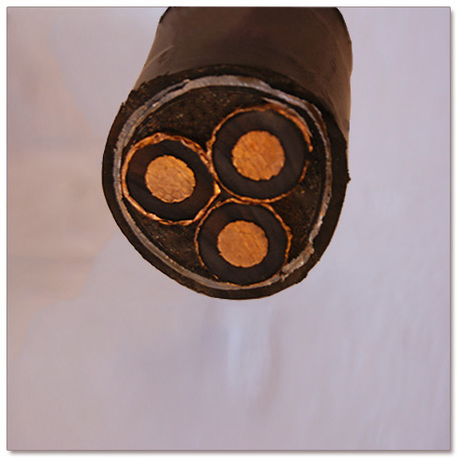

LV-Copper Core PVC Power Cable

Product Description

Specifications

power cable low voltage

Specifications
1.SWA armoured cable
2.Voltage:0.6/1KV
3.Size:1.5-300mm2
4.Competitive price

Specifications
1.Competitive price,good payment
2.High quality conductor ,PVC or XLPE insulation
3.60 years OEM
4.Free sample and desgin

Cable Instruction:
Specification: Copper/Aluminum Conductor PVC/XLPE Insulated PVC Sheathed Cable
Standard: IEC60502, BS6346
Voltage: 0.6/1KV,
Conductor: Copper/Aluminum Conductor
Insulation: PVC/XLPE Insulated
Application: For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces, single core cable in magnetic duct is not permissible.
Package: Wooden Drum Package or Iron-wooden drum
Standard Data

Type	Discription	Rated Voltage (KV)	Number of cores	Nominal Cross-sectional Area (mm2)
Type	Discription	Rated Voltage (KV)	Number of cores	Cu	Al
SHUA	VV/YJV: Copper conductor PVC/XLPE insulated and PVC sheathed powercables. VLV/YJLV: Aluminium conductor PVC insulated and PVC sheathed power cables.	0.6/1KV	1	1.5~1200	2.5~1200
			2	1.5~300	2.5~300
			3	1.5~300	2.5~300
			4	1.5~300	2.5~300
			5	1.5~300	2.5~300
			3+1	1.5~300	2.5~300
			3+2	1.5~300	2.5~300
			4+1	1.5~300	2.5~300
SHUA	VV22/YJV22 : Copper conductor PVC insulated and PVC sheathed steel tap armoured power cables. VV22/YJV22 : Aluminium conductor PVC insulated and PVC sheathed steel tap armoured power cables.	0.6/1KV	1	10~500	10~500
			2	1.5~300	2.5~300
			3	1.5~300	2.5~300
			4	1.5~300	2.5~300
			5	1.5~300	2.5~300
			3+1	1.5~300	2.5~300
			3+2	1.5~300	2.5~300
			4+1	1.5~300	2.5~300
SHUA	VV32/YJV32 : Copper conductor PVC insulated and PVC sheathed steel wire armoured power cables. VLV32/YJV32 : Aluminium conductor PVC insulated and PVC sheathed steel wire armoured power cables.	0.6/1KV	1	50~500	50~500
			2	35~300	50~185
			3	25~300	35~300
			4	25~300	35~300
			5	25~240	35~240
			3+1	25~300	35~300
			3+2	25~300	35~300
			4+1	25~240	35~240
