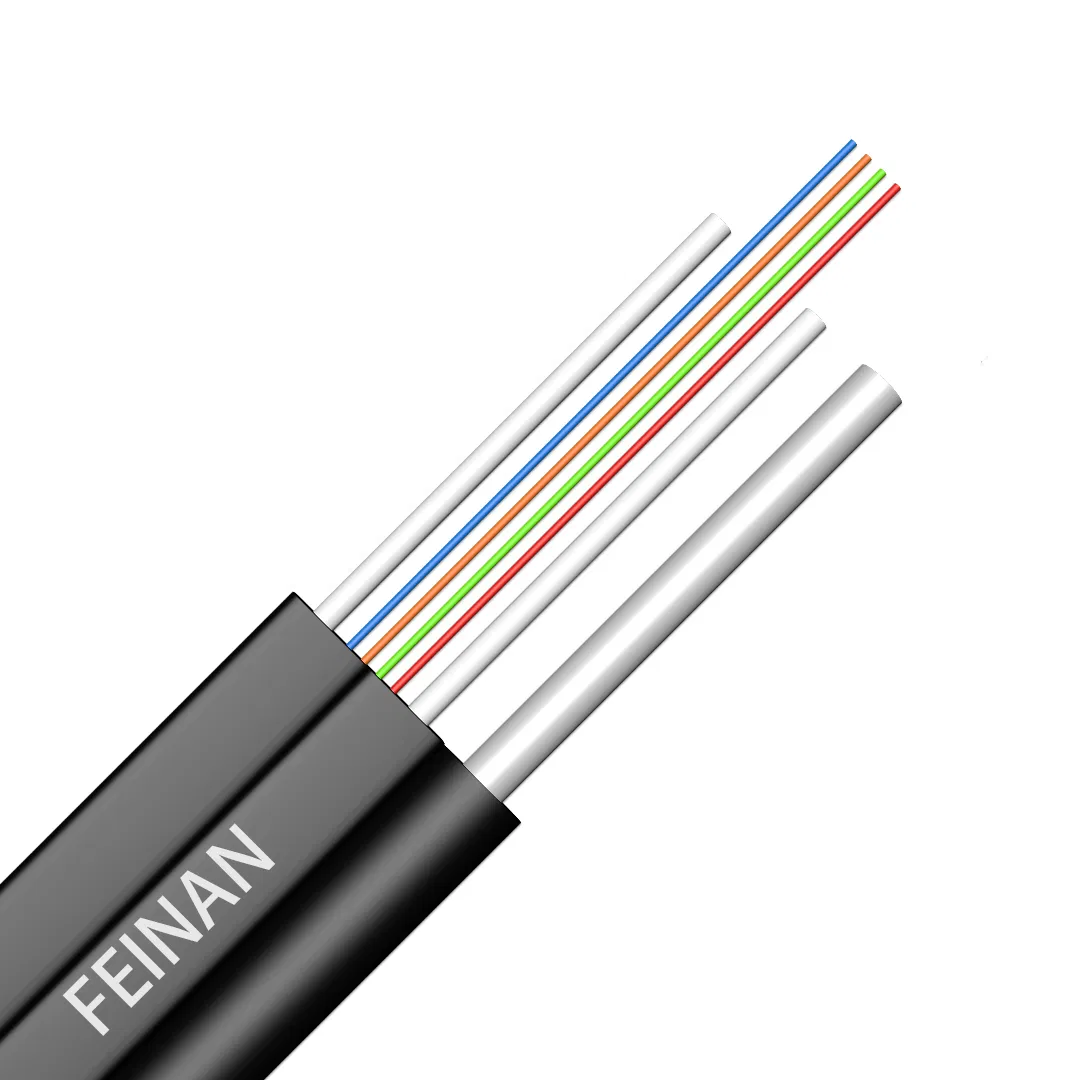

Indoor Outdoor 1 2 4 Core FTTH Fiber Optic Drop Cable
Product DescriptionFTTH Drop Cable Fiber Optic Cable Fiber Core: 1-4 (G657A1/G657A2),3.0*2.0(±0.1)mm,5.2*2.0(±0.1)mm;Messenger: Stranded steel wires,1.0mmCable sheath: LSZH(black),1.8±0.2mm;Strength member: FRP/Steel wire,2*(0.5-0.8)mm; Product ParametersCable Tech......
Send Inquiry

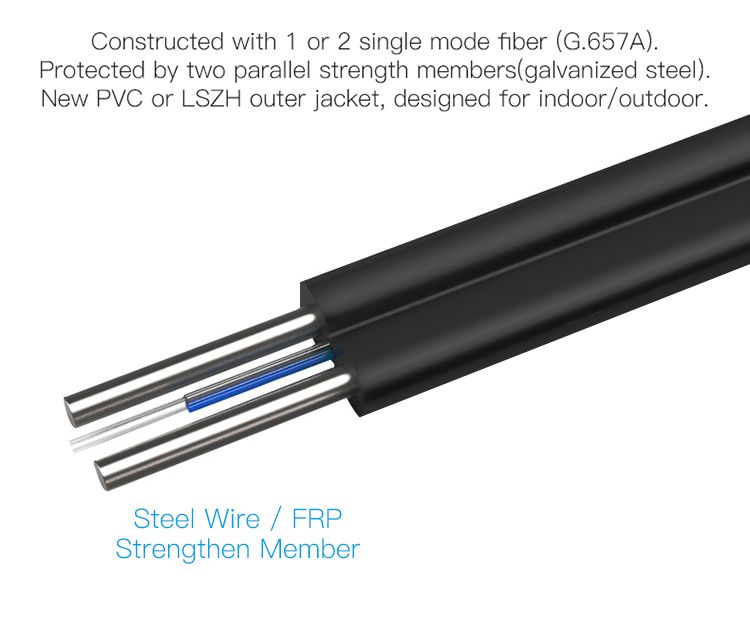

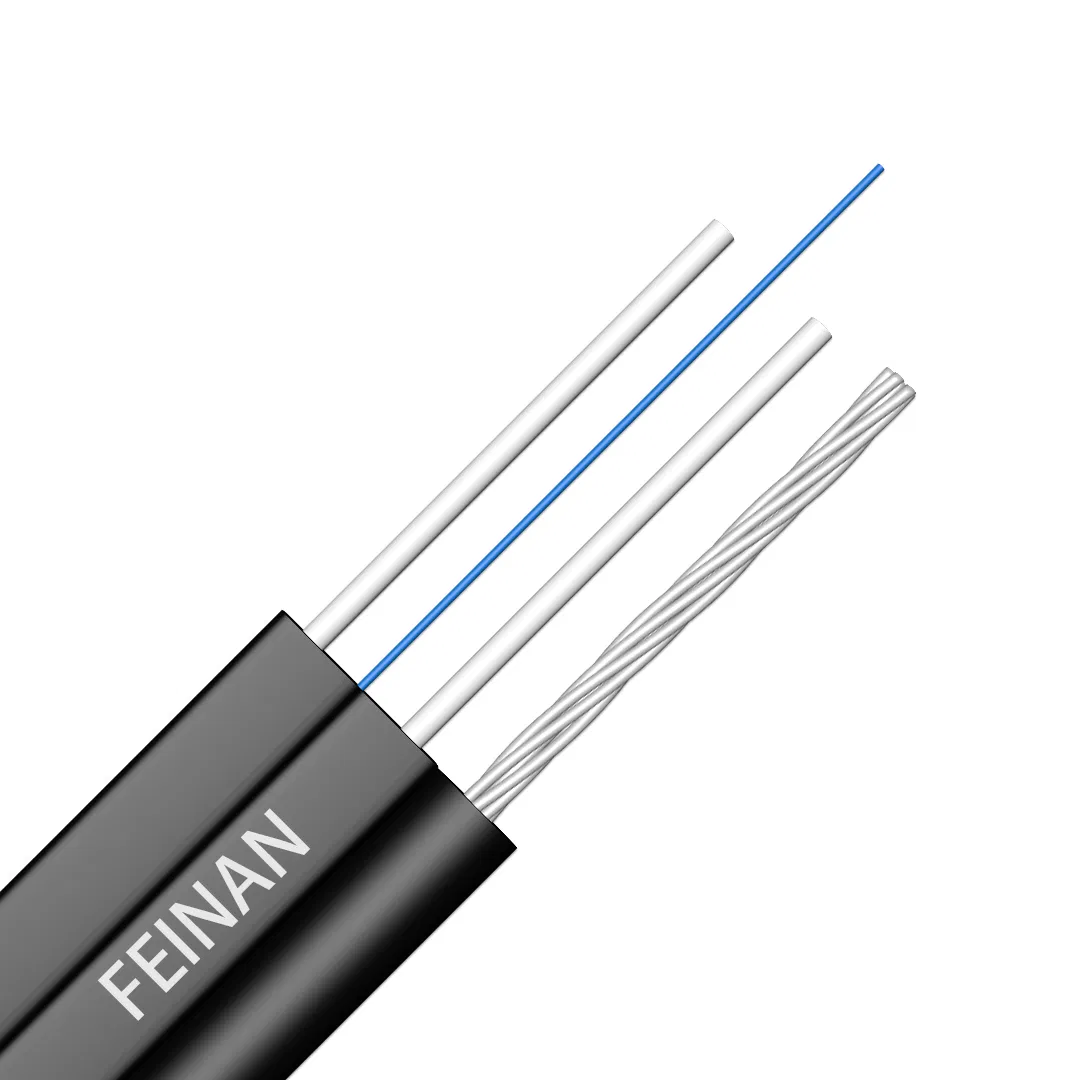

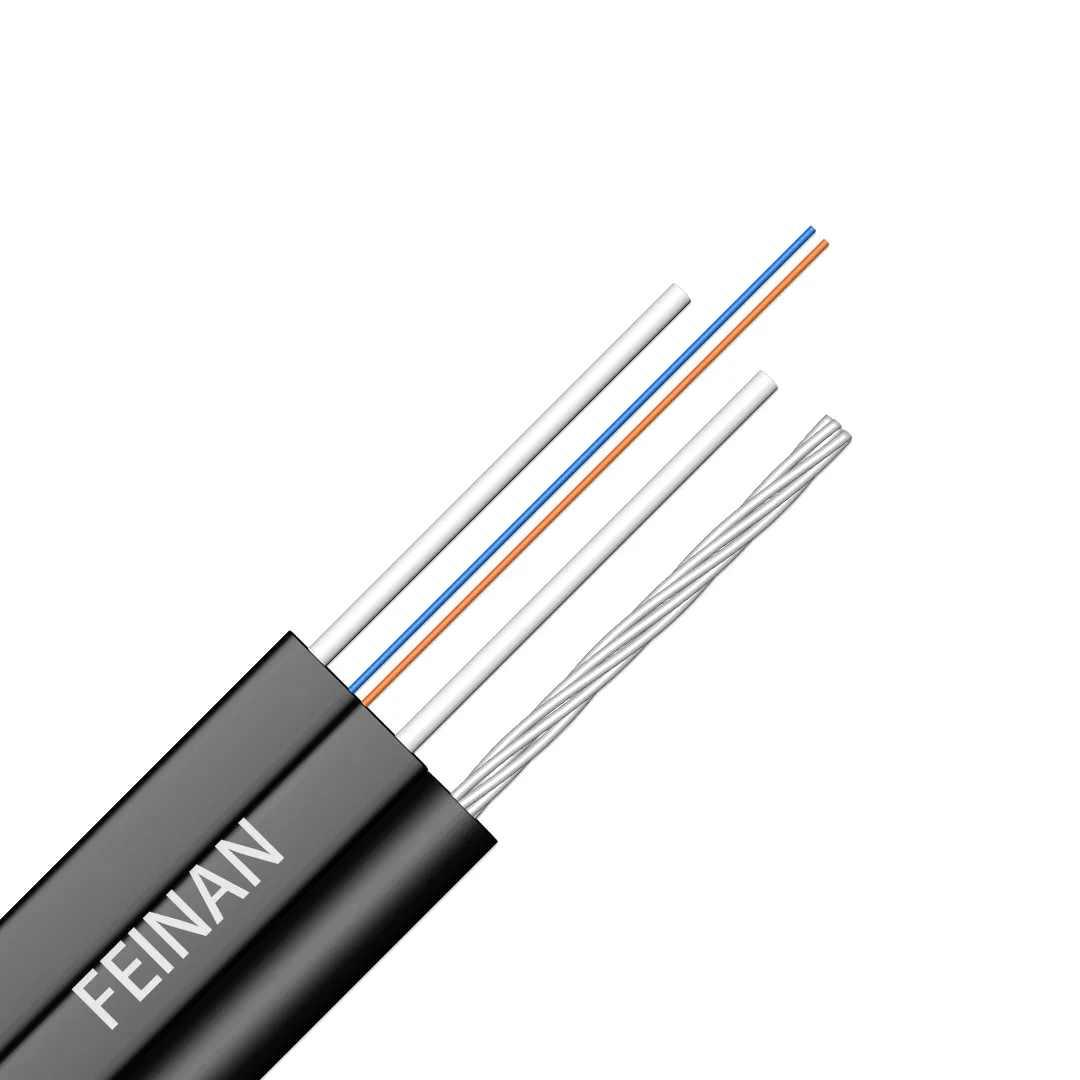

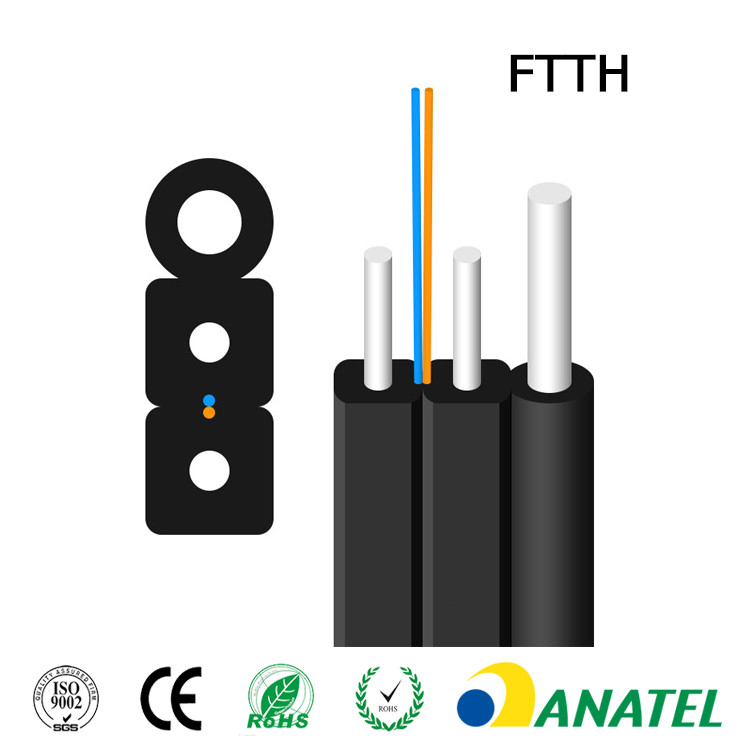

Product Description
FTTH Drop Cable
Fiber Optic Cable
Fiber Core: 1-4 (G657A1/G657A2),
3.0*2.0(±0.1)mm,
5.2*2.0(±0.1)mm;
Messenger: Stranded steel wires,
1.0mm
Cable sheath: LSZH(black),
1.8±0.2mm;
Strength member: FRP/Steel wire,
2*(0.5-0.8)mm;
2*(0.5-0.8)mm;
Cable Technical Parameters
| Model | FTTH drop cable | |
| Fiber Count | 1-4 | |
| Outer diameter (mm) | (2.0±0.2)×(5.0±0.3) | |
| Nominal weight(kg/km) | 21.7 | |
| Max.tensile Strength(N) | Short-term | 400 |
| Long-term | 200 | |
| Min.Bending Radius(mm) | Dynamic | 15D |
| Static | 7.5D | |
| Max.Crush Resistance(N/100mm) | Short-term | 2200 |
| Long-term | 1000 | |
| Jacket | LSZH | |
| Color | Cable | Black |
| Fiber | Blue,Orange,Green,Brown | |
| Strength Members | 2×0.5mm FRP & 1.0mm FRP | |
| Environmental Protection | RoHS COMPLIANT | |
| Temperature range | Storage or transportation | -20~70ºC |
| Operation | -20~70ºC | |
| Installation | 0 ~ 50ºC | |
