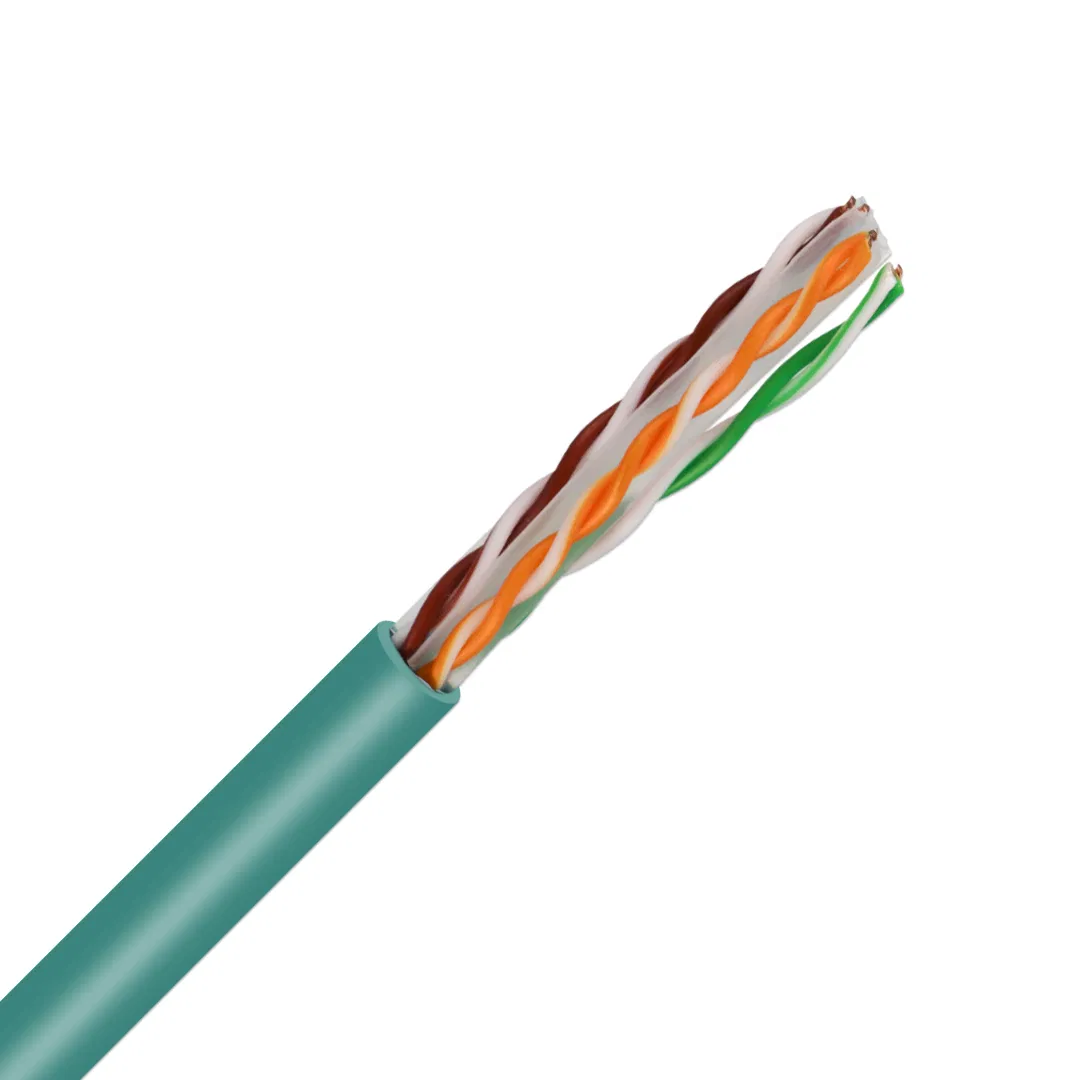

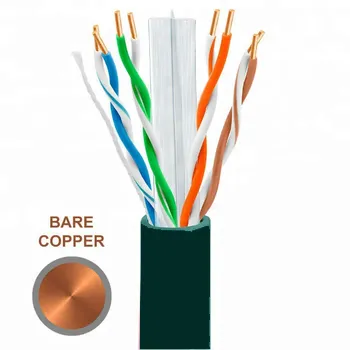

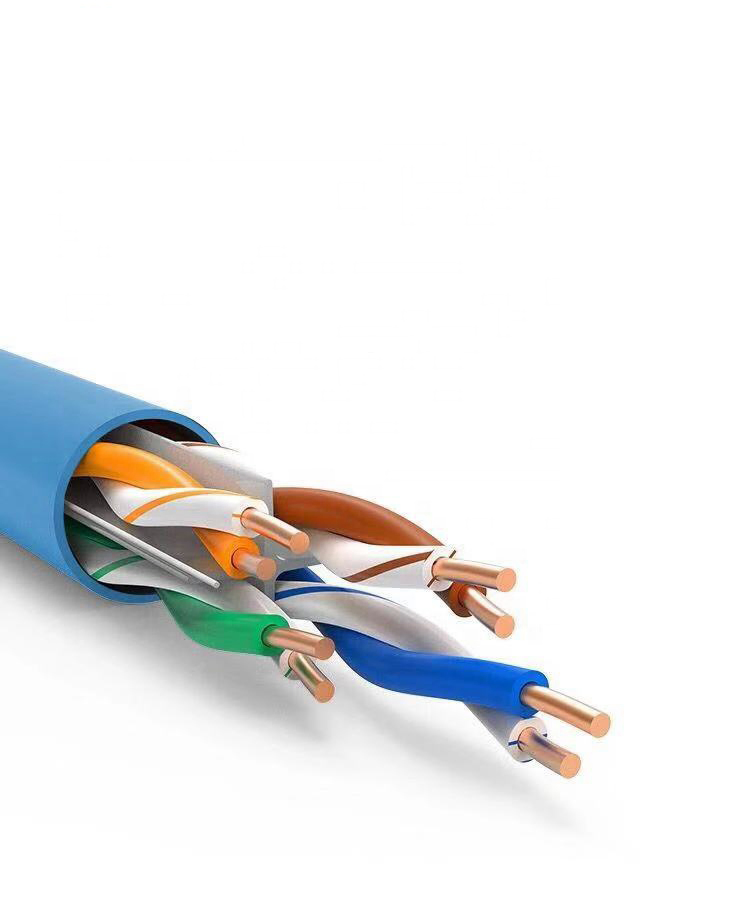

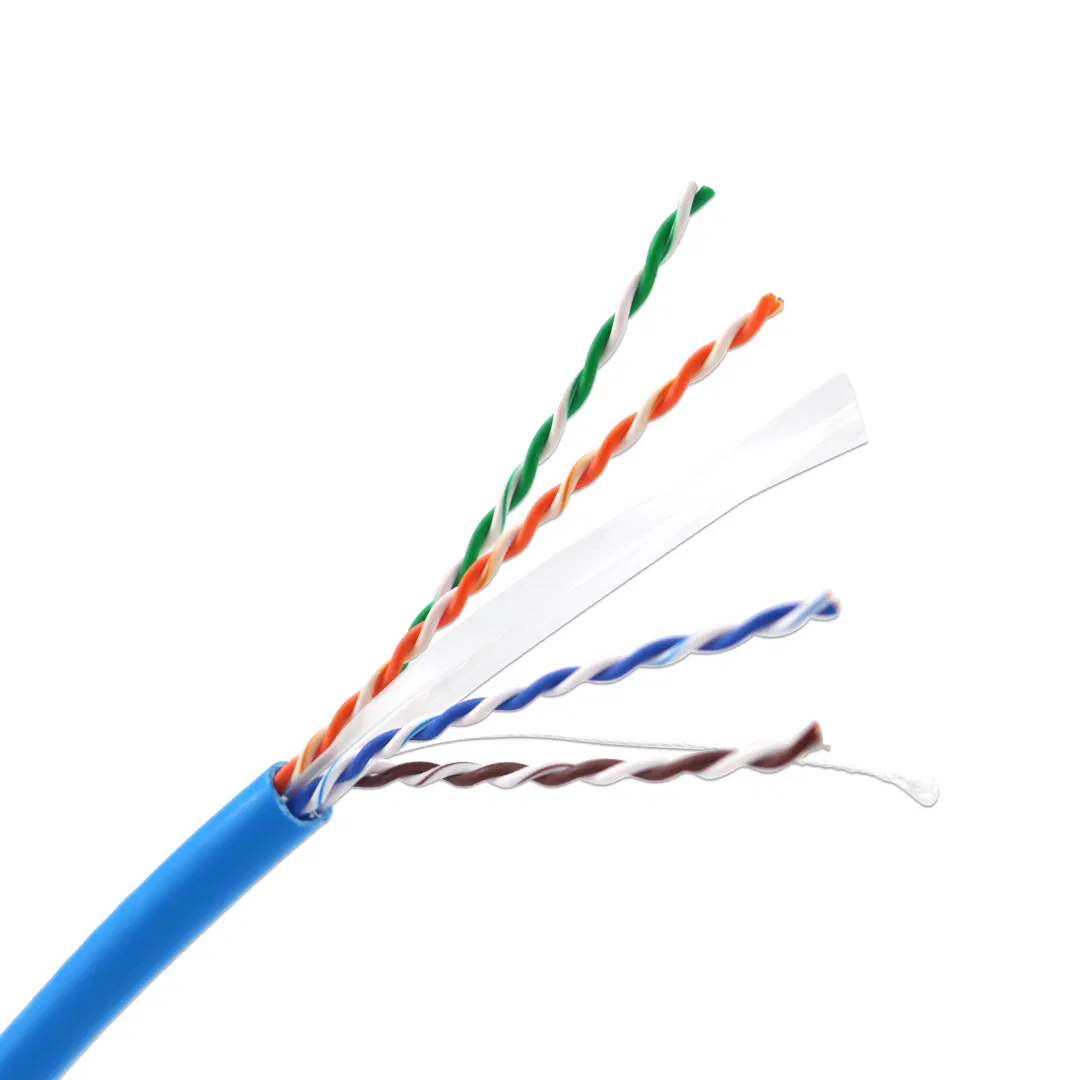

Indoor 305m 1000FT Pull Box Bare Copper 23AWG CAT6 UTP LAN Cable
Product Parameters High Quality Internet UTP CAT6 Cable 305M 23Awg1. Meet the 100MHz bandwidth requirements specified by the TIA/EIA568-C.2 standard for Cat.62. The core adopts 4 pairs of solid core oxygen-free copper conductors with a conductor diameter of 23 AWG3. Plug and pull cycle>1050 times......
Send Inquiry
Product Description
High Quality Internet UTP CAT6 Cable 305M 23Awg
1. Meet the 100MHz bandwidth requirements specified by the TIA/EIA568-C.2 standard for Cat.6

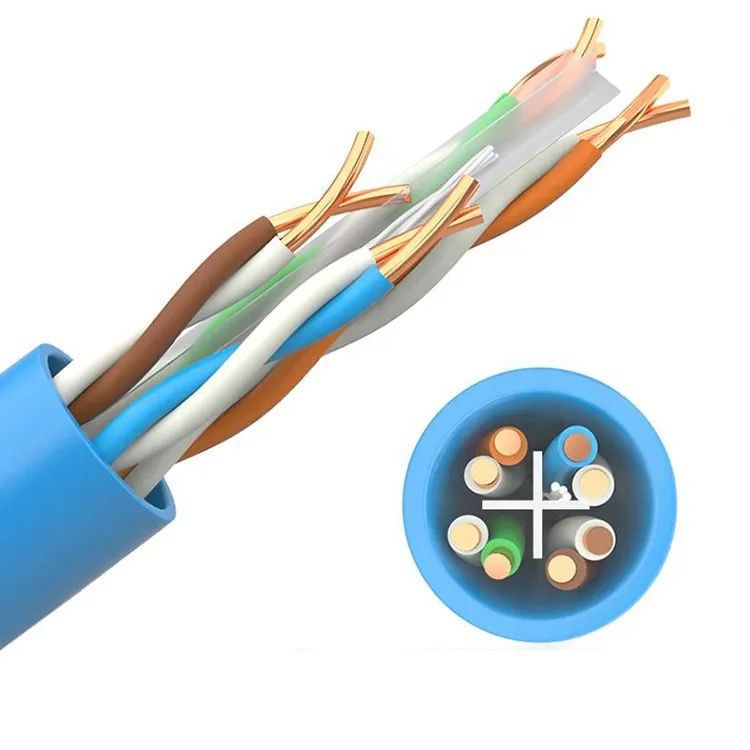

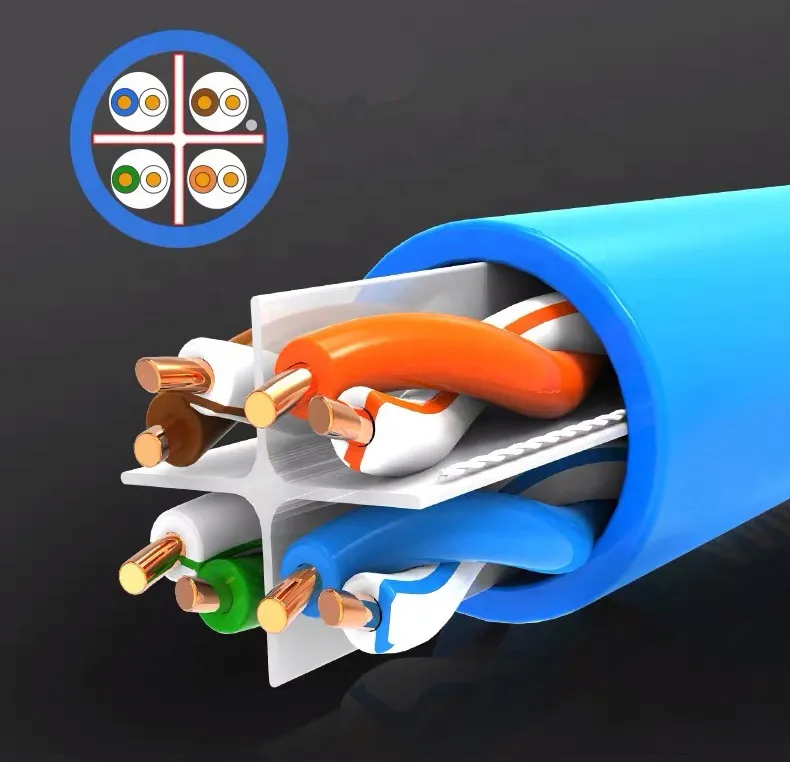

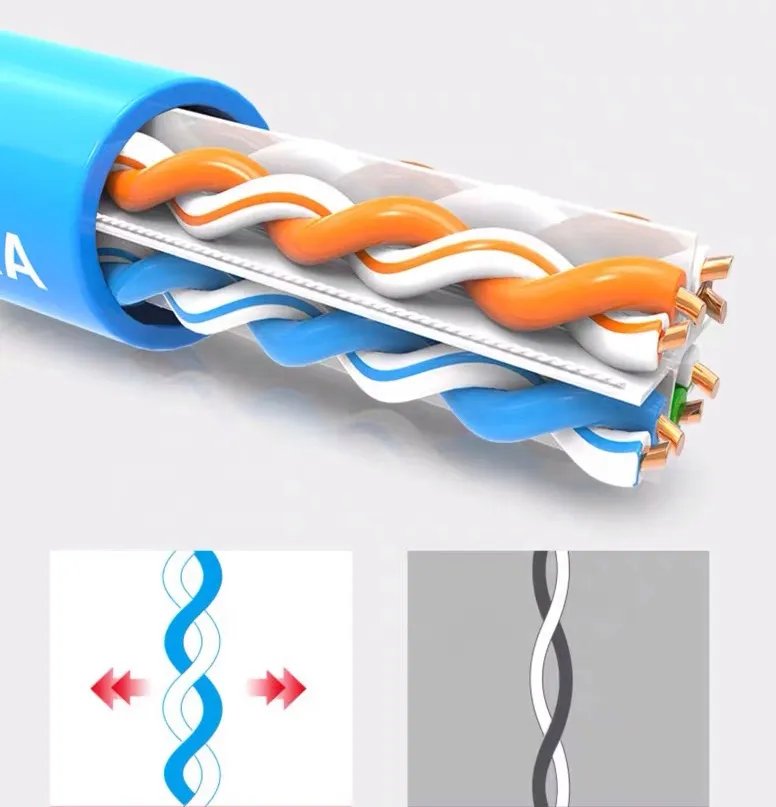

2. The core adopts 4 pairs of solid core oxygen-free copper conductors with a conductor diameter of 23 AWG
3. Plug and pull cycle>1050 times
4. Packing method: 305 meters / box
1. Meet the 100MHz bandwidth requirements specified by the TIA/EIA568-C.2 standard for Cat.6
2. The core adopts 4 pairs of solid core oxygen-free copper conductors with a conductor diameter of 23 AWG
3. Plug and pull cycle>1050 times
4. Packing method: 305 meters / box
PRODUCT & SPEC. | UTP CAT6 | |
CONDUCTOR | Material | BC/CCA/CCS |
OD | 4X2X0.5mm±0.005mm, 24AWG | |
Number | 4Pairs | |
INSULATION | Material | HDPE |
OD | Φ0.91±0.05mm | |
JACKET | Material | PVC/LSZH |
Color | As client's request | |
OD | Φ6.1mm±0.1MM | |
Ripcord | Yes | |
Fire Rating | CM,CMR,CMP | |
PERFORMANCE | DC Resistance(Max.) | 9.5Ω/100m |
DC Resistance Imbalance | 2.5% | |
Working Capacitance(Max.) | 5.4nF/100m | |
Insulation Resistance | 10000 MΩ.km | |
NVP | 69% | |
Operating temperature(ºC) | -20ºC~+70ºC | |
MARKING ON JACKET | On your request (Print your brand) | |

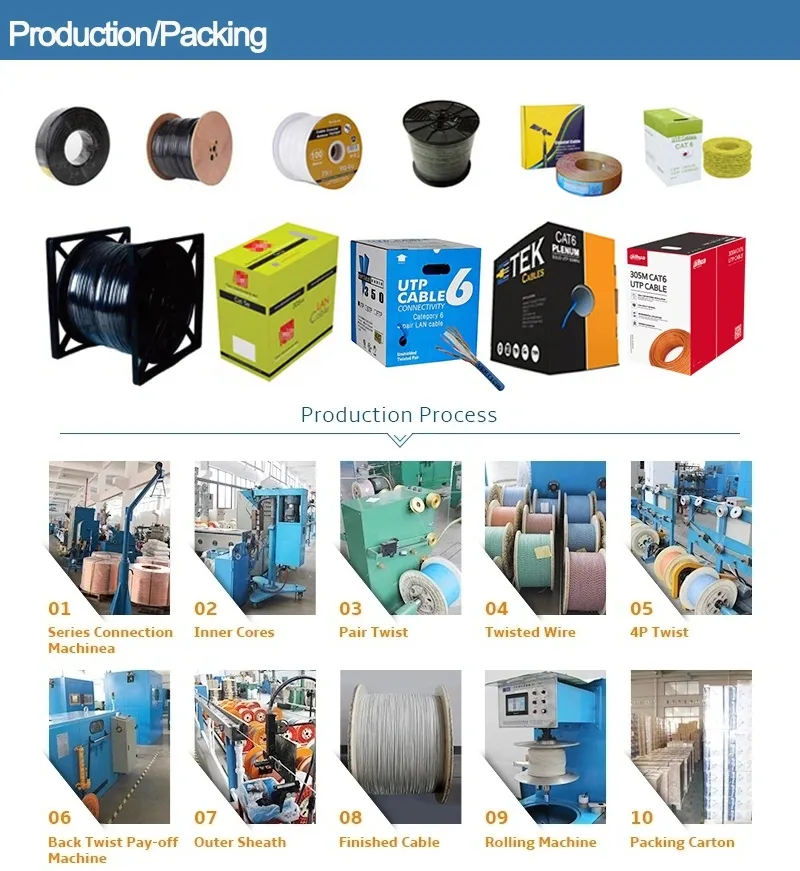

Network Cable packing :
1). 305m/1000ft easy pull box
2)305M/Wooden Reel, 500M/Wooden Reel Color Box and OEM Package available.
20" Container Full Load: 850boxes.
40" Container Full Load: 1700boxes.
20" Container Full Load: 850boxes.
40" Container Full Load: 1700boxes.
