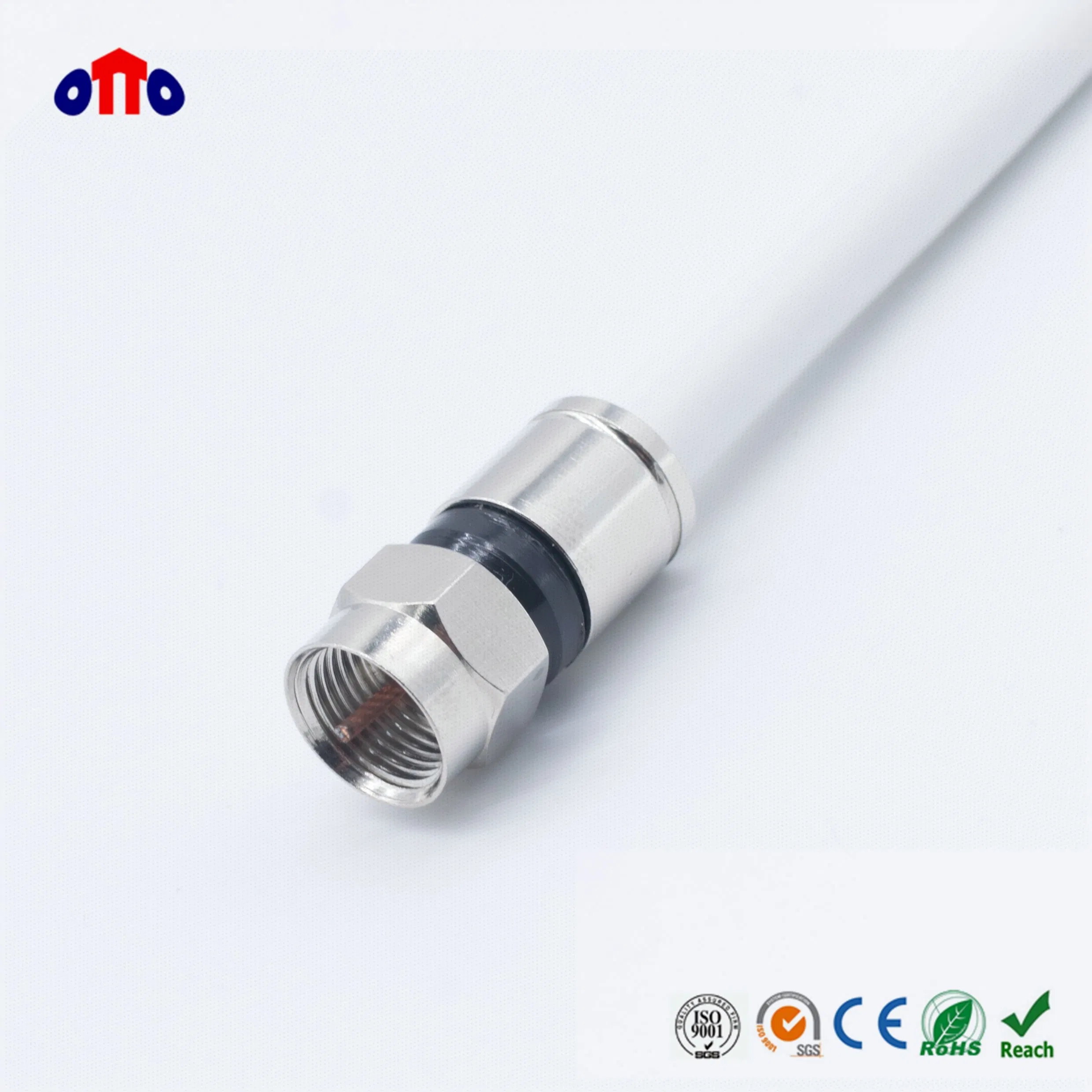

High Quality 75ohm Coaxial Cable (RG6DM)
RG6DM ConstructionItemMaterialDiameter(mm)RemarksInner ConductorInsulationFirst ShieldSecond ShieldMessengerJacketCCS/BCFoam PEBonded Aluminum FoilAL-Mg/TC Wire BraidCCSPVC/PE1.024.574.705.201.156.80*17.5Per customer's requirements:The inner conductor could be CCS or BC;The second shield could ......
Send Inquiry
Product Description
RG6DM

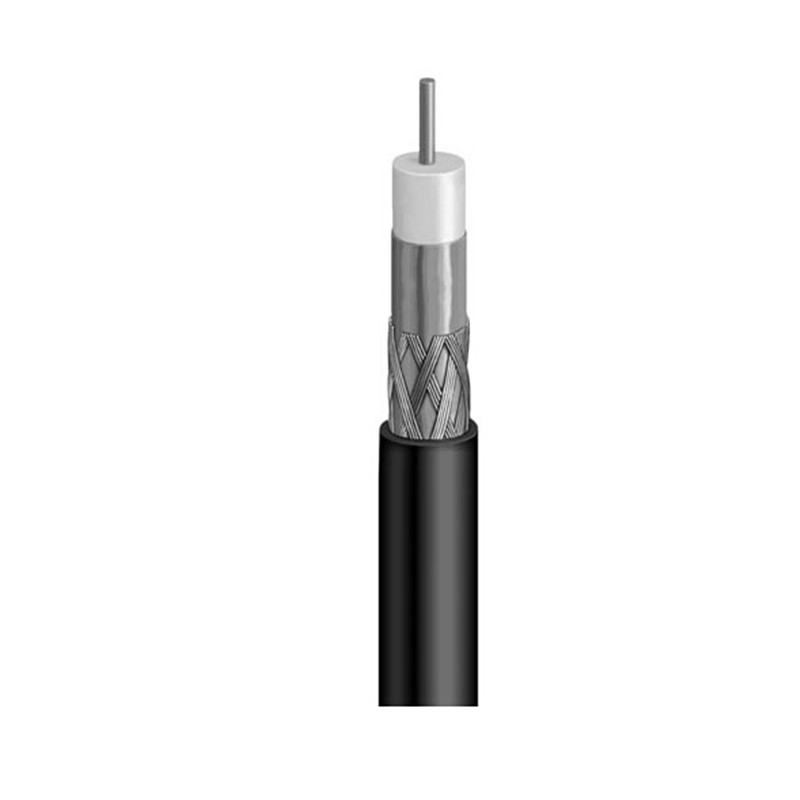

Construction
| Item | Material | Diameter(mm) | Remarks |
| Inner Conductor Insulation First Shield Second Shield Messenger Jacket | CCS/BC Foam PE Bonded Aluminum Foil AL-Mg/TC Wire Braid CCS PVC/PE | 1.02 4.57 4.70 5.20 1.15 6.80*17.5 | Per customer's requirements: The inner conductor could be CCS or BC; The second shield could be 48,64,80,96,112,128 or 144 AL-Mg /TC wires braiding;Jacket could be PVC or PE ; |
Electrical Characteristics
| Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Dielectric strength(kV) V.S.W.R Return Loss Screening Effectiveness(db) Min. Bending Radius (mm) Operating Temperature(0C) | 75±3 54±2 84.0 1.6 ≤1.2 ≥20 ≥75 35.0 -25 to +70 |
Attenuation (@200C)
| Frequency(MHz) | Max Attenuation(dB/100m) |
| 50 100 200 400 700 900 1000 | 5.2 6.8 9.4 13.9 19.0 20.6 21.5 |
