High Quality 50 Ohm Low Loss Cable (LMR600)
Low Loss Cable (LMR600)Construction SpecificationMaterialDiameter(mm/in)1.Inner ConductorSolid Copper4.47/0.182.DielectricPhysical Foam Polyethylene11.56/0.463.Out......
Send Inquiry
Product Description

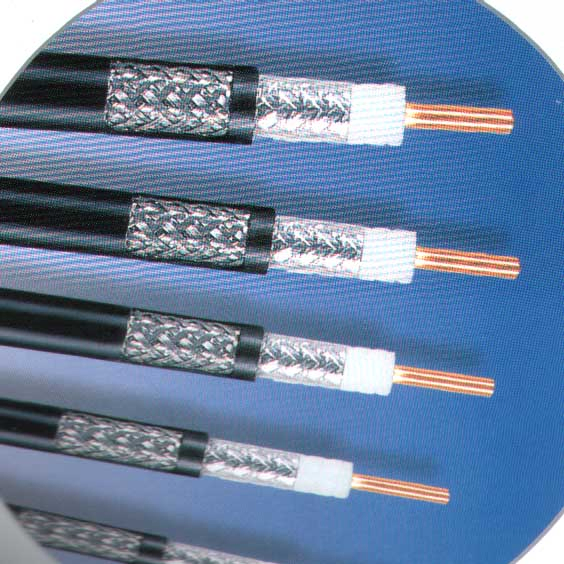

Low Loss Cable (LMR600)
SPECIFICATION:
Conductor: 4.47mm CCA
Dielectric: 11.56mm Foam polyethylene
Fist Shield: Bonded AL/ P Foil
Second Shield: Tinned Copper wire braid
Jacket: 14.98mm black PE or PVC
APPLICATION:
Used as a connection cable in the high signal sequences of the wireless and data communication systems where lower attenuation required, such as Cellular, mobile antennas, local loop, wireless internet, broadband wireless data.
Flexible low loss communications Coax Ideal for^
1.Drop-in replacement for RG-8/9913 air-dielectric type cable
2.Jumper Assemblies in Wireless Communications systems.
3.Short Antenna Feeder runs
4.Any application(e.g. WLL,GPS,WLAN WISP WiMax,SCADA,Mobile Antennas)requiring an easily routed,low loss RG cable
4.Packing:
1) Packing Lengths:305/roll,500 m/roll, 1000m/roll.
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
Construction Specification | ||
Material | Diameter(mm/in) | |
1.Inner Conductor | Solid Copper | 4.47/0.18 |
2.Dielectric | Physical Foam Polyethylene | 11.56/0.46 |
3.Outer Conductor | Bonded Aluminum Foil+Tinned Copper Braid(90%coverage) | 12.50/0.49 |
4.Jacket | Black Polyviny Chloride - FRPVC | 14.99/0.59 |
Electrical charactenristics | ||
| Capacitance(pF/m) | 76.8 | |
Impedance(Ohm) | 50 | |
Velocity(%) | 87 | |
Inner Conductor DC Resistance(Ω/km) | 3.94 | |
Outer Conductor DC Resistance(Ω/km) | 1.09 | |
Shielding Effectriveness(dB) | >90 | |
Cutoff Frequency | 10.3GHz | |
Peak Power | 40KW | |
Mechanical and Environmental Characteristics | ||
Min.Bend Radius(mm/in) | 75/2.95 | |
Operating Temp.(ºC) | -40 to +80 | |
Tensile Strength(kg/lb) | 158.9/350 | |
Cable weight(kg/m-lb/ft) | 0.2671g/m | |
0.131lb/ft | ||
RoHS Compliant | YES | |
Attenuation and Avg.Power(20ºC) | ||
Frequency(MHz) | Attenuation dB(100m/100ft) | Avg.Power(KW) |
30 | 1.4/0.4 | 5.5 |
50 | 1.8/0.6 | 4.2 |
150 | 3.2/1.0 | 2.4 |
220 | 3.9/1.2 | 2.0 |
450 | 5.6/1.7 | 1.35 |
900 | 8.2/2.5 | 0.93 |
1500 | 10.9/3.3 | 0.70 |
1800 | 12.1/3.7 | 0.63 |
2000 | 12.8/3.9 | 0.59 |
2500 | 14.5/4.4 | 0.52 |
5800 | 23.8/7.3 | 0.32 |
SPECIFICATION:
Conductor: 4.47mm CCA
Dielectric: 11.56mm Foam polyethylene
Fist Shield: Bonded AL/ P Foil
Second Shield: Tinned Copper wire braid
Jacket: 14.98mm black PE or PVC
APPLICATION:
Used as a connection cable in the high signal sequences of the wireless and data communication systems where lower attenuation required, such as Cellular, mobile antennas, local loop, wireless internet, broadband wireless data.
Flexible low loss communications Coax Ideal for^
1.Drop-in replacement for RG-8/9913 air-dielectric type cable
2.Jumper Assemblies in Wireless Communications systems.
3.Short Antenna Feeder runs
4.Any application(e.g. WLL,GPS,WLAN WISP WiMax,SCADA,Mobile Antennas)requiring an easily routed,low loss RG cable
4.Packing:
1) Packing Lengths:305/roll,500 m/roll, 1000m/roll.
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
