Product Description

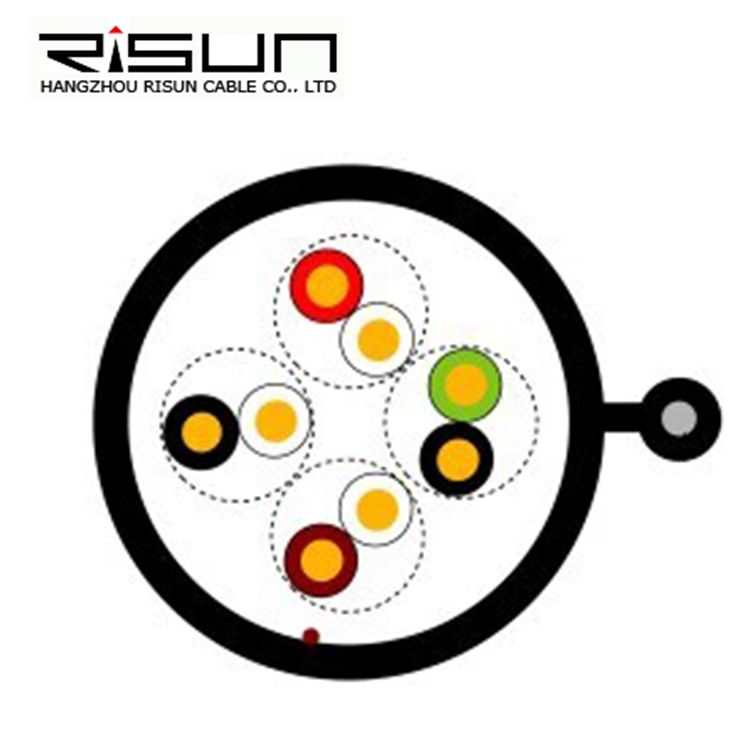

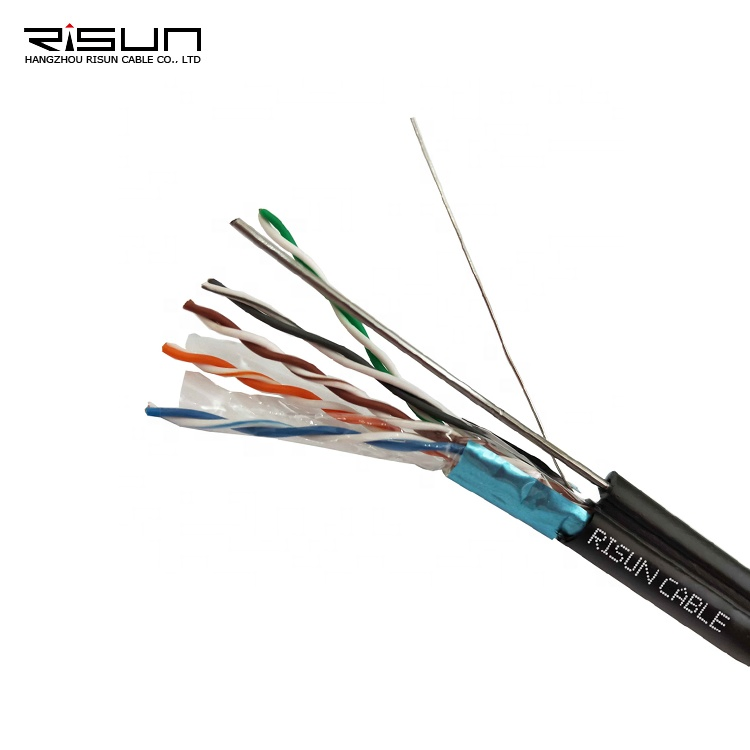

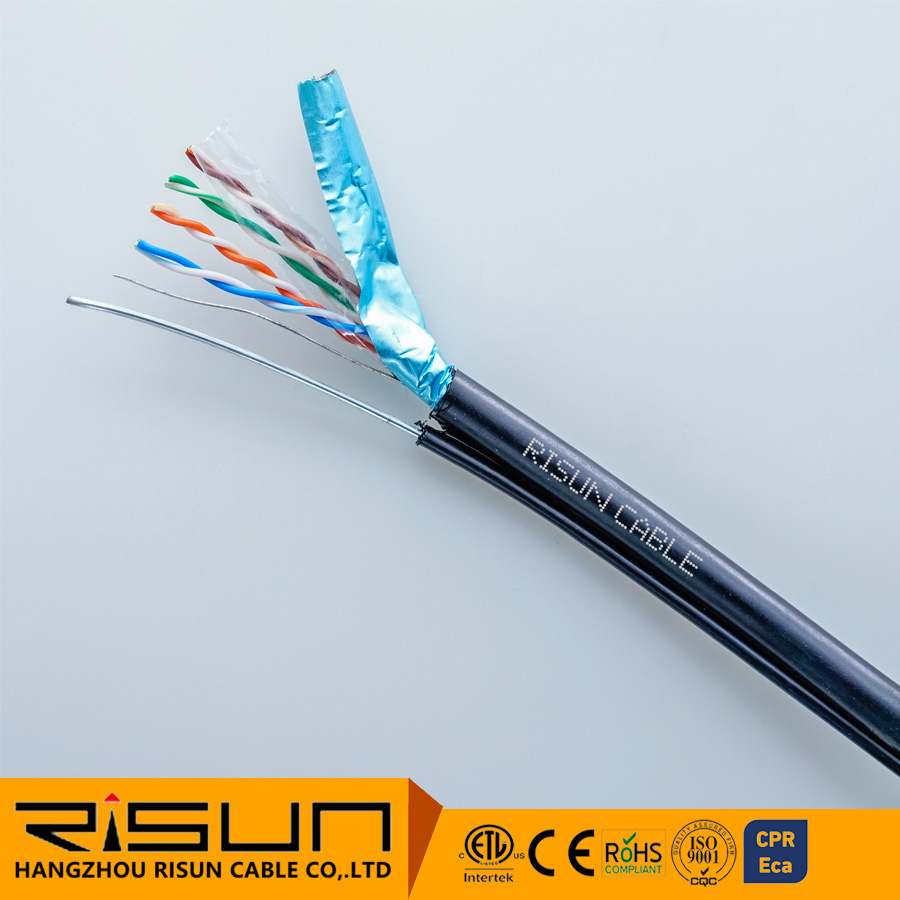

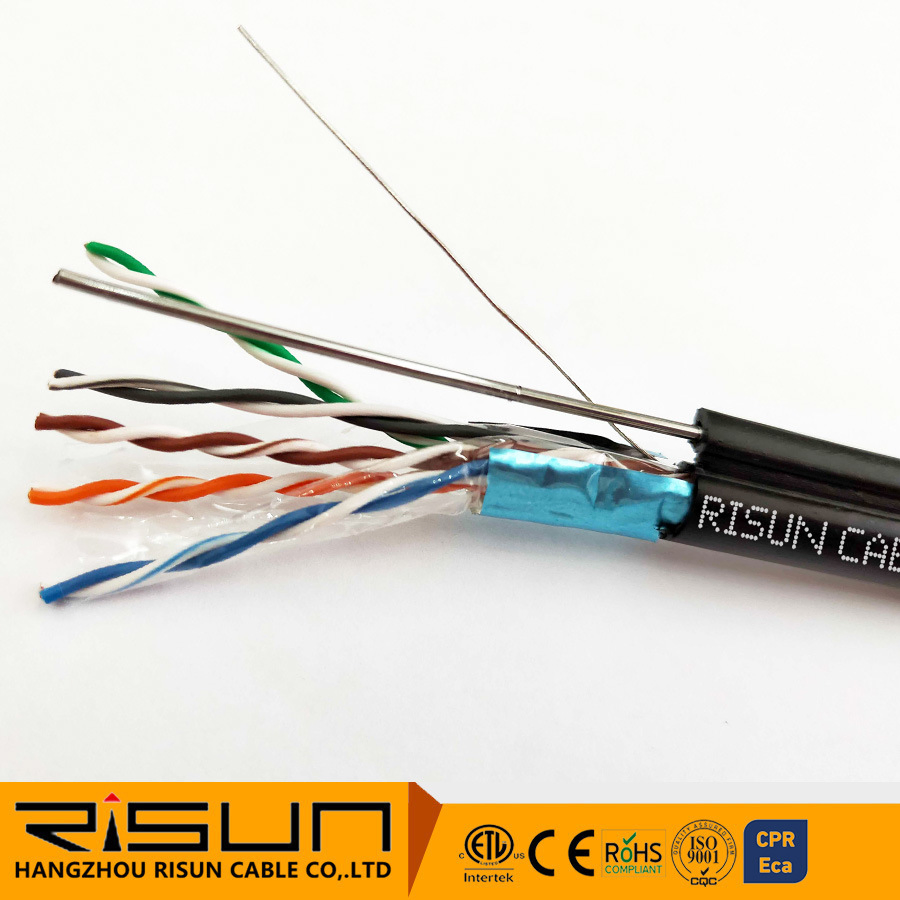

FTP CAT.5e with messenger for outdoorCategory 5e shielded Twisted Pair FTP Installation cable for outdoor use. | ||||||||
| DESCRIPTION | ||||||||
| Manufactured according to ISO / IEC 11801, EIA / TIA-568-C.2, EN-50173. | ||||||||
| TECHNICAL SPECIFICATIONS | ||||||||
| Conductor | Bare copper | 0.51±0.01 mm |
| |||||
| Insulation | HDPE | 0.97±0.05 mm | ||||||
| Identification of pairs | ||||||||
| 1 pair | Blue - White / Blue | |||||||
| 2 pair | Orange - White / Orange | |||||||
| 3 pair | Green - White / Green | |||||||
| 4 pair | Brown - White / Brown | |||||||
| shield | PET FOIL + AL Foil | |||||||
| Ripcord | Yes | |||||||
| Sheath | PE | |||||||
| Color | Black | |||||||
| Messenger | 1.30±0.01 mm steel | |||||||
| Bending radius | ≥ 8 x Diameter (mm) Installation | |||||||
| Storage temperature | -15ºC-+70ºC | |||||||
| ELECTRICAL CHARACTERISTICS | ||||||||
| nº Pairs.xФ (mm) | Conductor Resistance (ohm/km) | Resistance Unbalance | Cap. between cond. pair (nF / 100m) | Velocity of Propagation (%) | Impendance (ohm) | ФExt. (Appvox) (mm) | ||
| 4x2x0.51 | max.91.5 | max.2% | 5.6 | 67 | 100±15 | 6.5±0.3 | ||

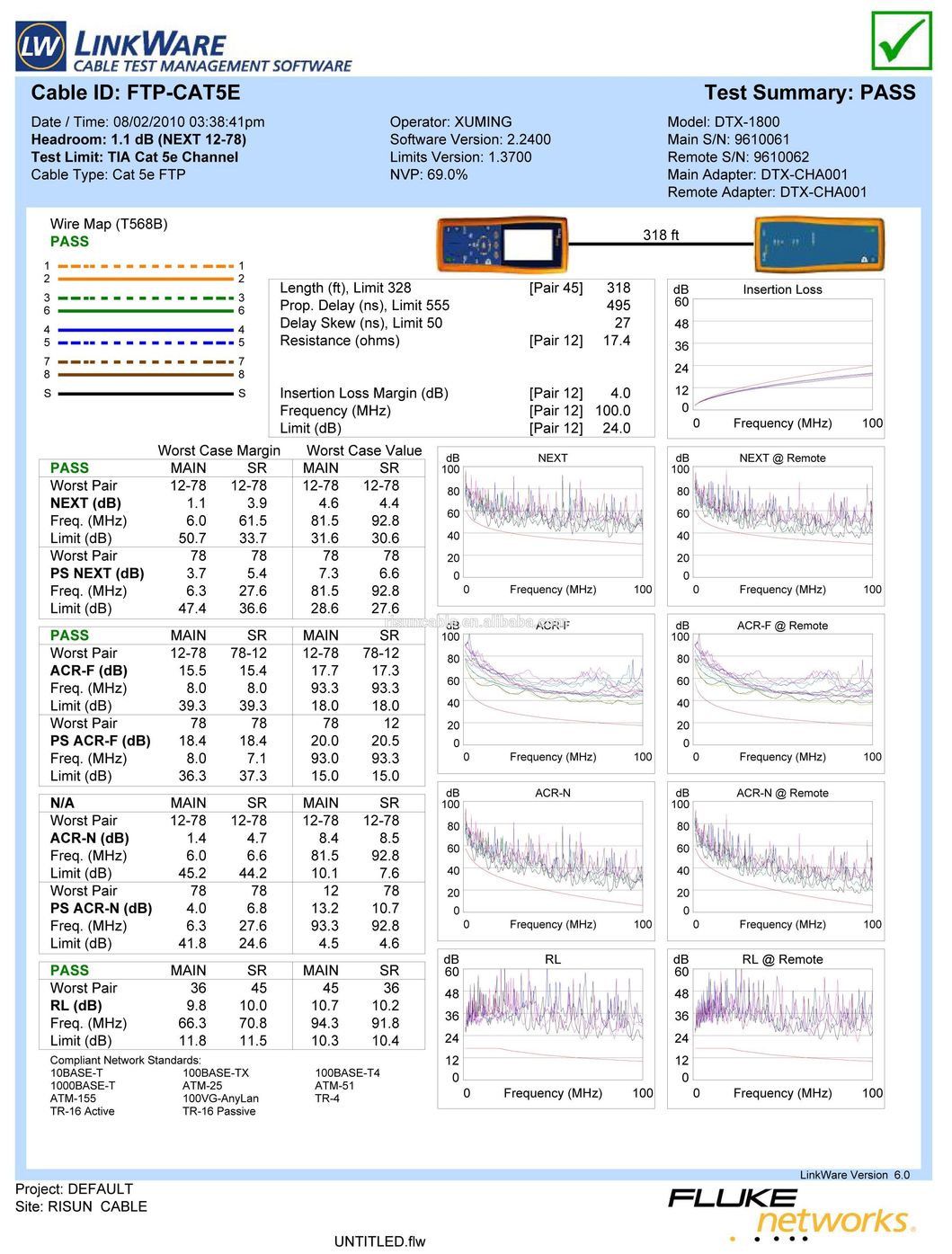

Frequency (MHz) | RL ≥dB | ATT ≤dB/100m | NEXT ≥dB | DELAY ≤ns/100m | PS NEXT ≥dB | EL FEXT ≥dB/100m | PS EL FEXT ≥dB/100m | |
| 1 | 20.0 | 2.0 | 65.3 | 570.00 | 62.3 | 63.8 | 60.8 | |
| 4 | 23.0 | 4.1 | 56.3 | 552.00 | 53.3 | 51.8 | 48.8 | |
| 8 | 24.5 | 5.8 | 51.8 | 546.73 | 48.8 | 45.7 | 42.7 | |
| 10 | 25.0 | 6.5 | 50.3 | 545.38 | 47.3 | 43.8 | 40.8 | |
| 16 | 25.0 | 8.2 | 47.2 | 543.00 | 44.4 | 39.7 | 36.7 | |
| 20 | 25.0 | 9.3 | 45.8 | 542.05 | 42.8 | 37.8 | 34.8 | |
| 25 | 24.3 | 10.4 | 44.3 | 541.20 | 41.3 | 35.8 | 32.8 | |
| 31.25 | 23.6 | 11.7 | 42.9 | 540.44 | 39.9 | 33.9 | 30.9 | |
| 62.5 | 21.5 | 17.0 | 38.4 | 538.55 | 35.4 | 27.9 | 24.9 | |
| 100 | 20.1 | 22.0 | 35.3 | 537.60 | 32.3 | 23.8 | 20.8 | |
| Appliance | ||||||||
| Cable for data transmission in structured cabling networks (LAN), horizontal and secondary facilities. | ||||||||
| Packing | ||||||||
| ||||||||
| All sizes and values without tolerances are reference values. We reserves the right to amend this specification without prior notice. | ||||||||
Company Introduction

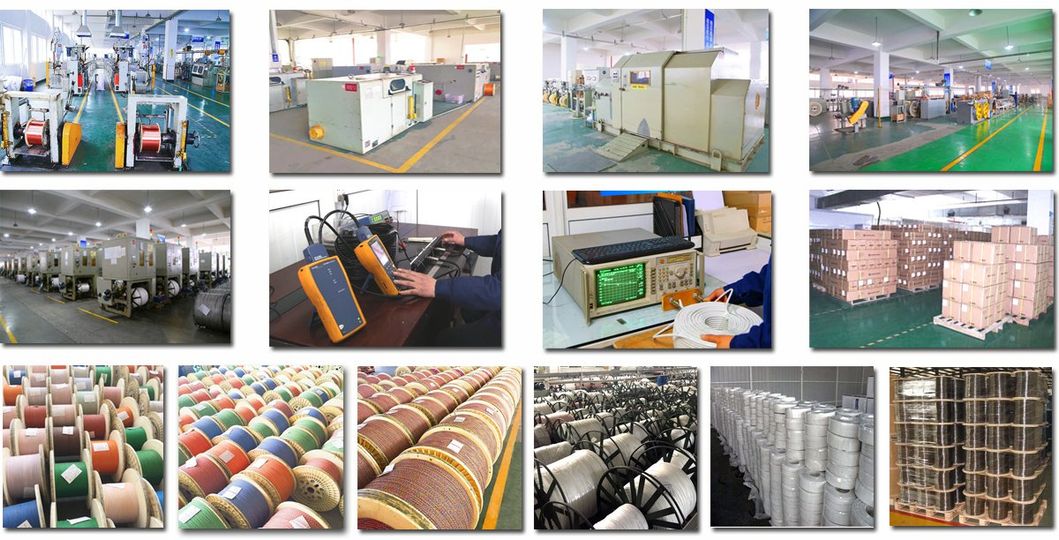

RISUN is Professional in manufacturing of high quality network cable/lan cable , coaxial cable, telephone wire and alarm cable. We specialize in this field for 15 years, and have already get ETL, CE, RoHS, ISO9001,CPR certification etc.
