Factory Price Quality Bare Copper Coaxial Cable Rg59 RG6 with Power for CCTV
Product Description RG59/RG6 WITH POWEROEM packing 350m 500m 1000ft rg 59/6 coaxial cable Inner Conductor (mm): 0.81/1.02 ± 0.01 BC / CCSDielectric (mm): 3.66/4.57 ± 0.10 FPEShield: AL Foil+CCA/AL BraidsJacket (mm): 6.1/6.19 ± 0.1 PVC / PEPower wire:2*7*0.37mm CCA......
Send Inquiry
Product Description

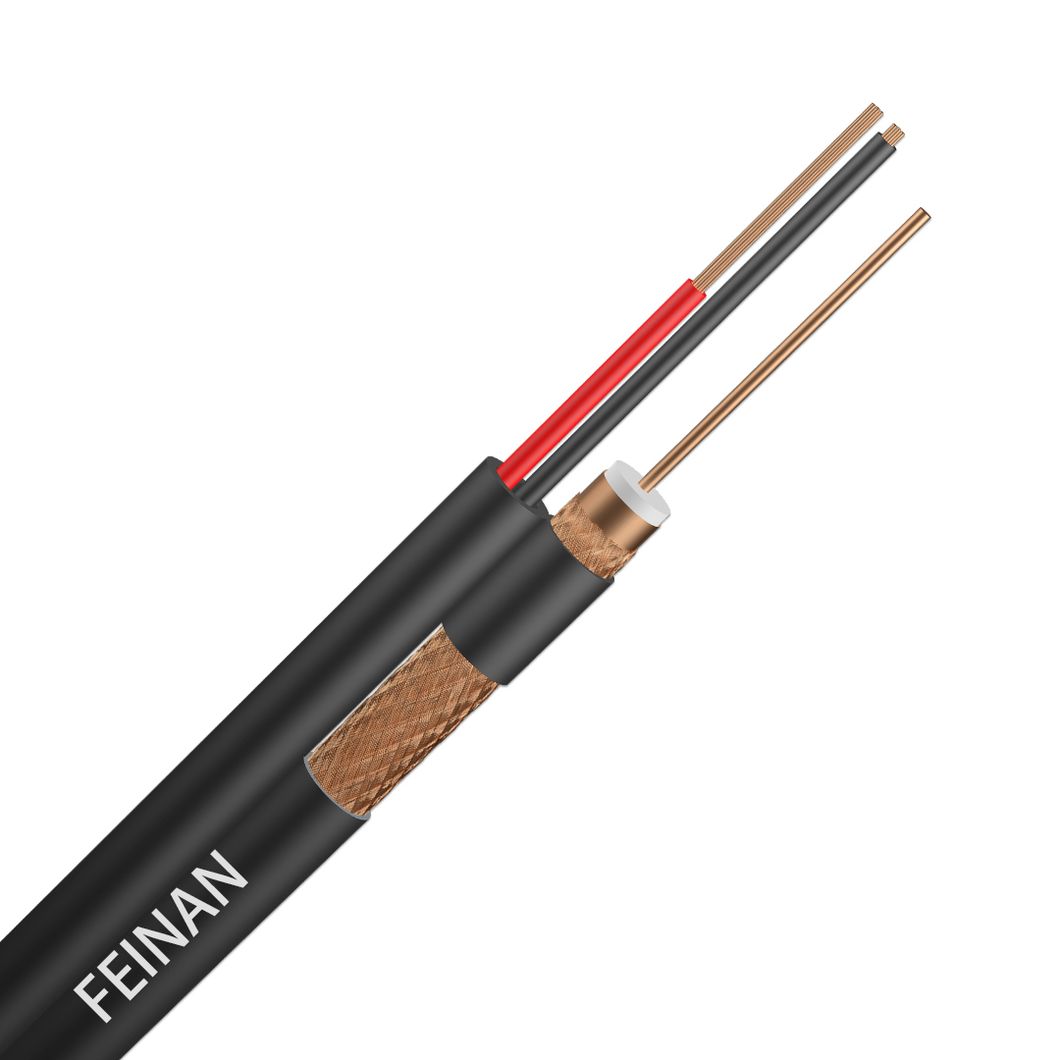

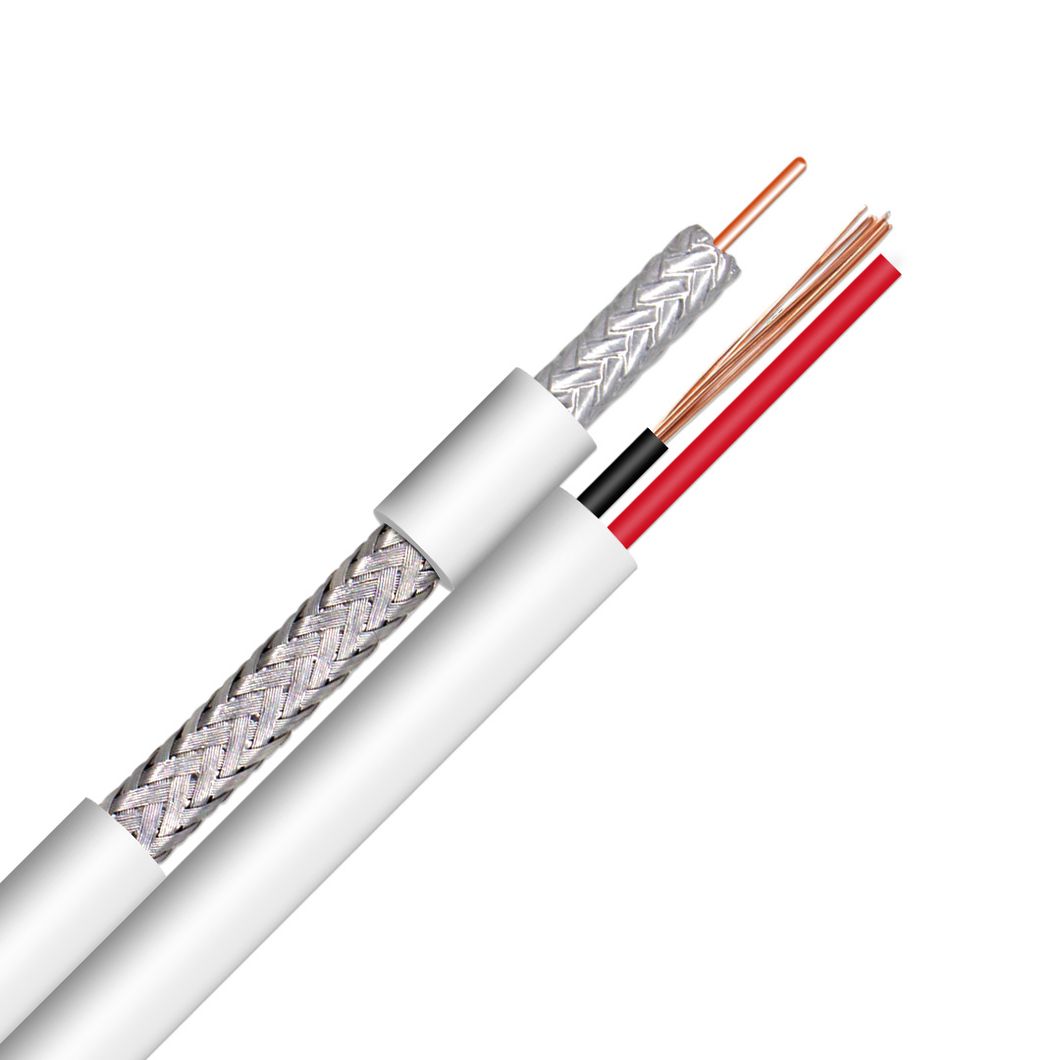

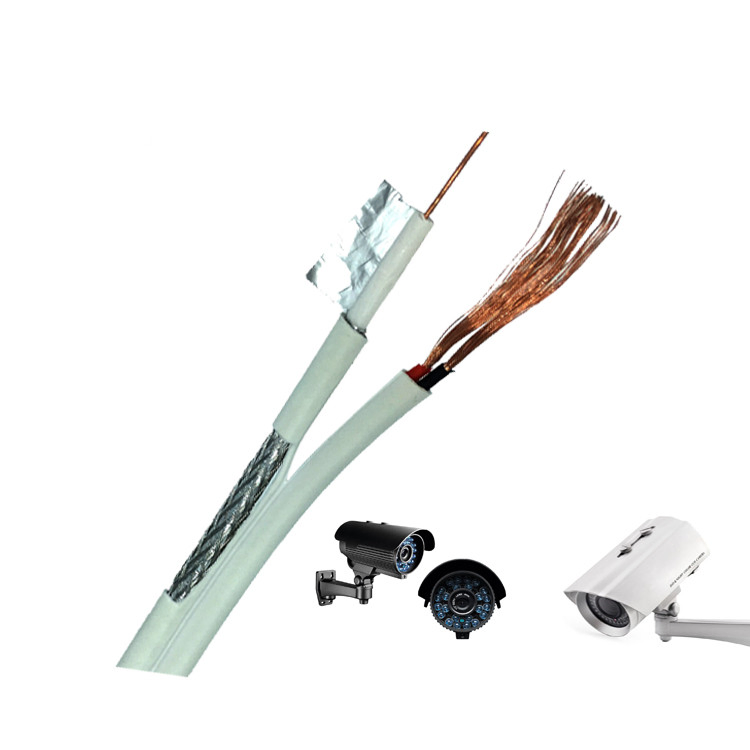

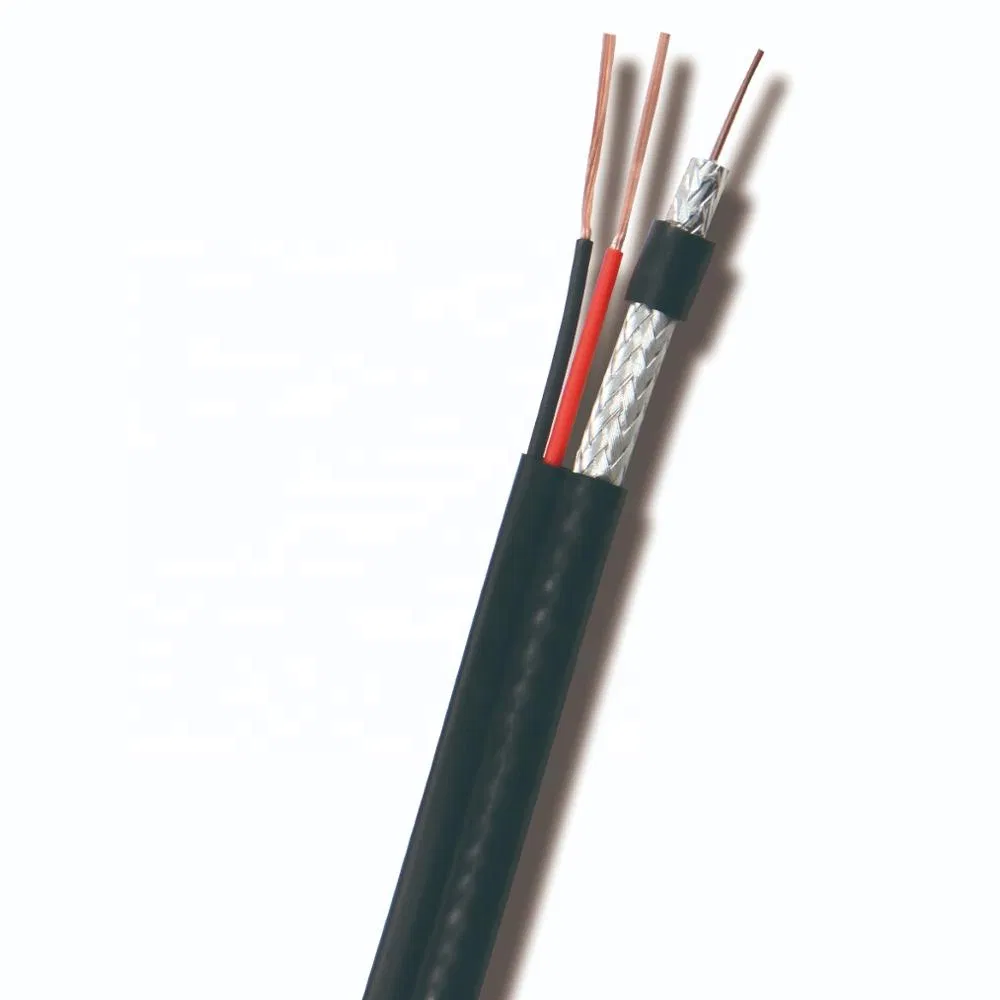

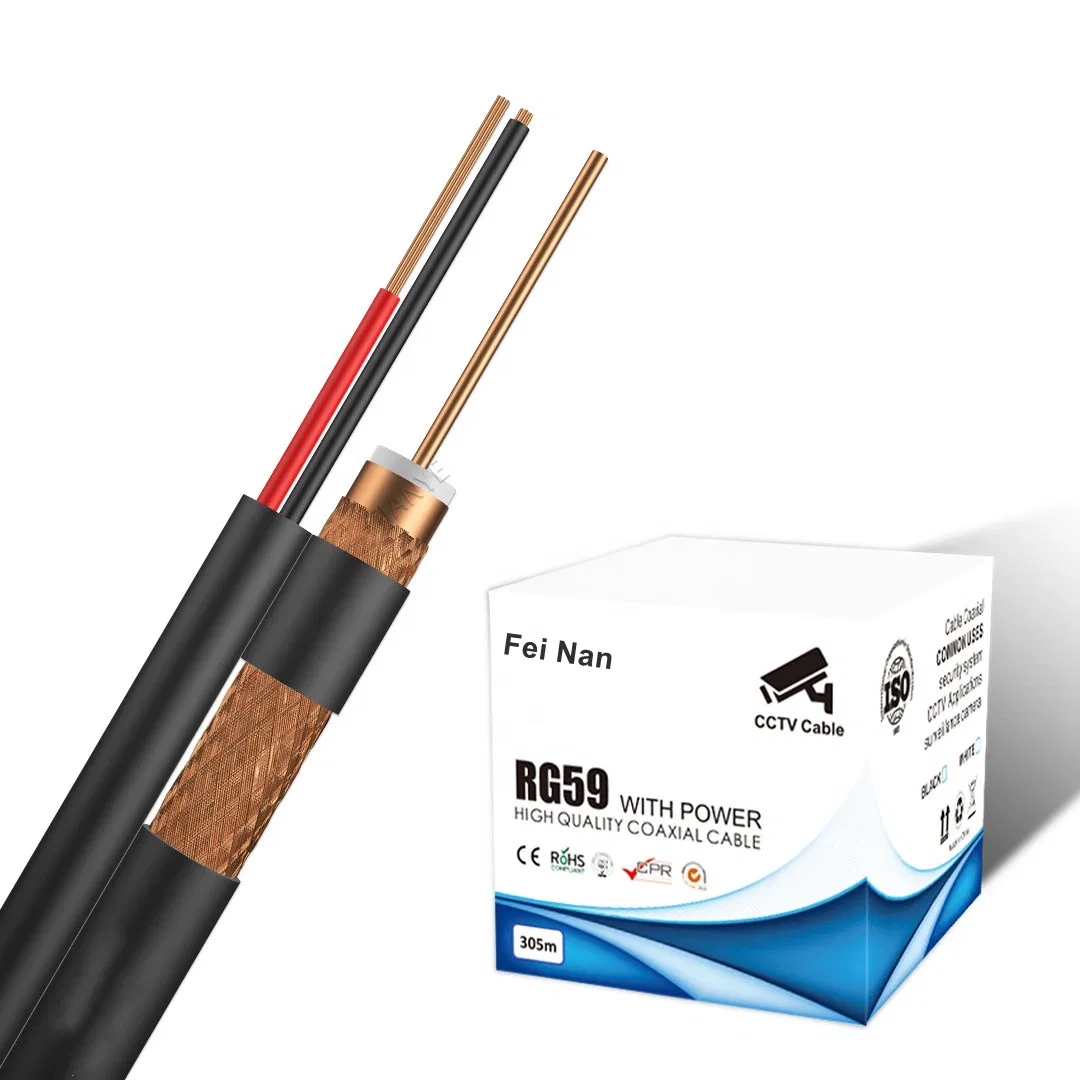

RG59/RG6 WITH POWER
Inner Conductor (mm): 0.81/1.02 ± 0.01 BC / CCS
Dielectric (mm): 3.66/4.57 ± 0.10 FPE
Shield: AL Foil+CCA/AL Braids
Jacket (mm): 6.1/6.19 ± 0.1 PVC / PE

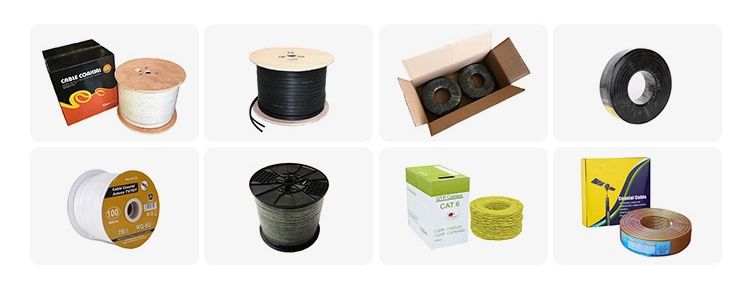

OEM packing 350m 500m 1000ft rg 59/6 coaxial cable
Inner Conductor (mm): 0.81/1.02 ± 0.01 BC / CCS
Dielectric (mm): 3.66/4.57 ± 0.10 FPE
Shield: AL Foil+CCA/AL Braids
Jacket (mm): 6.1/6.19 ± 0.1 PVC / PE
Power wire:2*7*0.37mm CCA

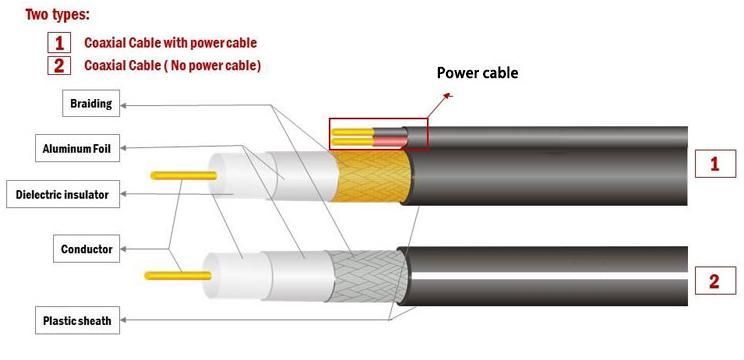

RG59/RG6 with Power Construction and Dimension
| Structure | Material | Dimension |
| Conductor | BC/CCS | 0.81/1.02mm |
| Dielectric | FPE | 3.66/4.57mm |
| 1st Shield | Al Foil | 100% Overlap |
| 2nd Shield | BC or Al Braiding | 30%-95% Coverage |
| 3rd Shield | Al Foil | -- |
| 4th Shield | BC or Al Braiding | -- |
| Jacket PVC/PE | Outer Diameter | 6.1/6.19mm |
| Nominal Thickness | 0.76mm(0.030'') | |
| Messenger | Steel | 1.30mm |
